GPM Racing

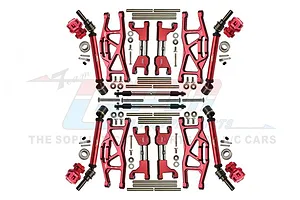

GPM Red Aluminium Complete CVD Driveshaft & Suspension Upgrade Kit

  • Kit

Part no. TXMS100N-R

Sold outNo reviews yet

$237.53

or 4 fortnightly payments of $59.38 with afterpay or PayPal, or zip

Complete aluminium CVD driveshaft and suspension upgrade kit that widens the wheelbase 20mm per side for improved stability and handling.

  • Widens Track Width 20mm Per Side For Improved Handling
  • Transfers Constant Velocity Power Via Heavy-Duty CVD Joints
  • Enlarged 8mm Hardened Steel Axles Prevent Drive Failure
  • Machined 6061 T6 Aluminium Arms Maximise Durability
  • Integrated Delrin Sleeve Collars Minimise Drivetrain Play
Select Option: Red

Overview

Transform the handling characteristics and durability of your monster truck with the GPM Blue Aluminium Complete CVD Driveshaft and Suspension Upgrade Kit. Precision-machined from high-grade 6061 T6 aluminium, this comprehensive conversion package replaces factory plastic components with heavy-duty alloy suspension arms and steel driveshafts. By widening the vehicle's track width by 20mm on each side, this kit dramatically lowers the centre of gravity and widens the footprint, reducing roll-overs during high-speed cornering and aggressive bashing.

Engineered for extreme brushless power, the kit upgrades standard cross-head driveshafts to constant velocity drive (CVD) swing joints. This CVD mechanism ensures smooth, efficient power transmission at variable suspension angles without binding or friction loss. The drive axles are increased from standard 6 mm to heavy-duty 8 mm hardened steel shafts, providing superior shear resistance under heavy landing impacts. Complete with integrated Delrin collars for slop-free fitment, multiple shock mounting positions, and an anodised blue protective finish, this upgrade set delivers maximum stability and strength for your Traxxas Maxx.

Features

  • Complete Suspension And Driveshaft Wide-Track Conversion Kit
  • Widens Vehicle Track Width By 20mm On Each Side For Stability
  • High-Strength 6061 T6 Aluminium Suspension Arms Lower Flex
  • CVD Swing Joints Ensure Constant Velocity Power Delivery
  • Enlarged 8mm Hardened Steel Drive Axles Resist Twisting Loads
  • Delrin Collars Minimise Slop Between Moving Components
  • Multiple Shock Mount Holes Allow Custom Suspension Tuning
  • Protective Blue Anodised Finish Guards Against Corrosion
  • Direct Fit Upgrade For Traxxas Maxx Monster Trucks
  • Genuine GPM Product

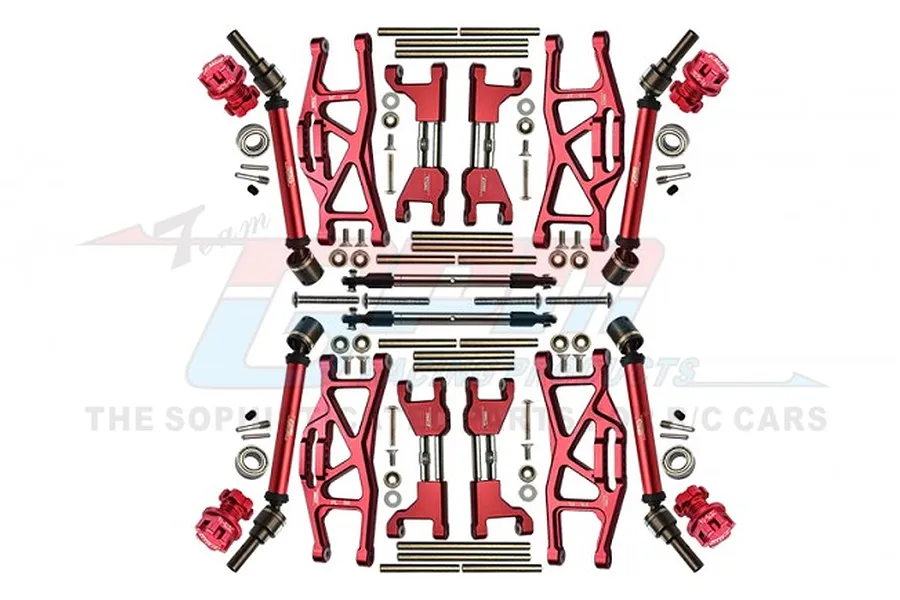

In the box

  • 4x Front & Rear Upper Suspension Arms
  • 4x Front & Rear Lower Suspension Arms
  • 4x CVD Driveshafts
  • 4x Aluminium Hex Adapter
  • 4x Aluminium Wheel Lock
  • 2x Turnbuckles
  • 4x 4x33mm Stainless Steel Pin
  • 4x 4x43mm Stainless Steel Pin
  • 12x 3x8mm Fine Thread Countersunk Head Screw
  • 12x 3mm Stainless Steel Washer
  • 4x 4x38.5mm Stainless Steel Pin
  • 4x 4x63.5mm Stainless Steel Pin
  • 2x 4mm White Delrin Shim
  • 2x 3x20mm Fine Thread Button Head Screw
  • 6x 3x18mm Fine Thread Button Head Screw
  • 4x 5x5mm Grub Screws
  • 4x 8x16x5mm Bearing
  • 4x 2.5x14.8mm Pin
  • 4x 4x2.5x17mm Screw Pin

Highlights

CVD driveshaft mechanism animation

CVD driveshaft mechanism animation

CVD (Constant Velocity Drive) Driveshafts allow a driveshaft to efficiently transfer power at a variable angle, at constant rotational speed, without an appreciable increase in friction or play.

Reviews

No reviews yet. Own one? Tell other hobbyists what it's like.

Questions & Answers (1)

Have a question, or an answer? Our team and other owners both reply.

  • Derek C14 Apr 2026

    Question: What vehicle is this for?

    DanielStaff6 Aug 2026
    Answer:
    Share what you know
