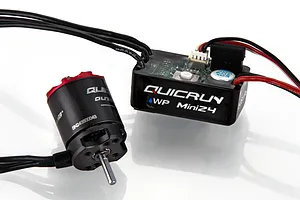

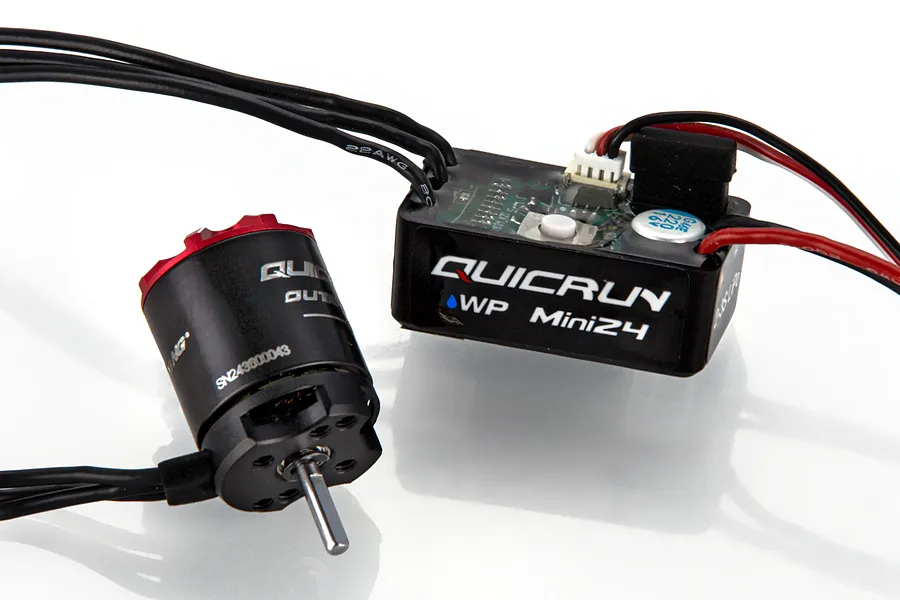

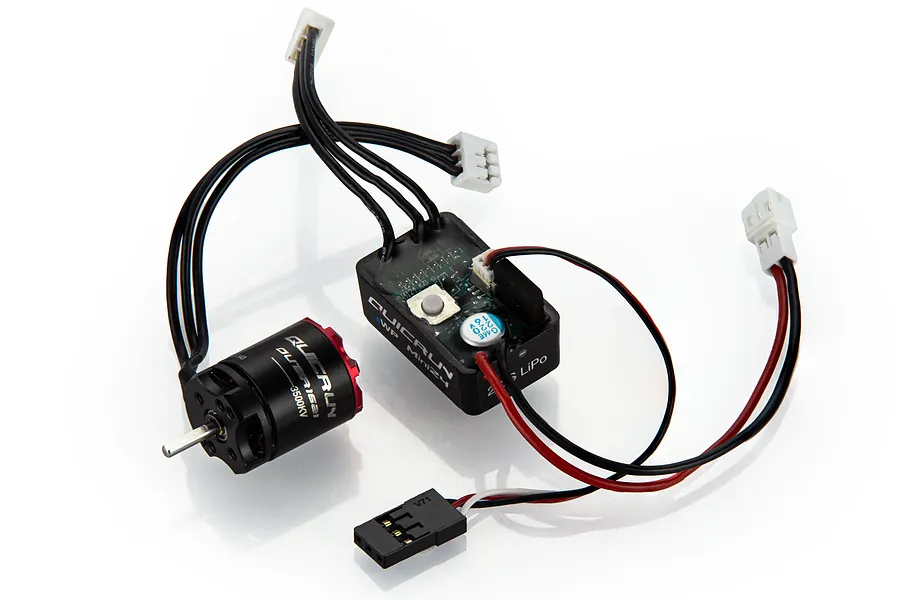

Hobbywing Quicrun Mini24 ESC and 1621 3500Kv Brushless Motor Combo
- Brushless
Part no. 38020436
Sold out5.0
1 review
Hobbywing QuicRun WP Mini24 Combo: The Ideal Choice for 1/24 Scale Vehicles and Beyond!
- Versatile combo for 1/24, 1/18, and 1/16 scale vehicles
- Waterproof ESC with multiple protection features
- Smooth and efficient motor with excellent low-speed linearity
- Compact and lightweight design for easy installation.
- Compatible with various sensorless brushless and brushed motors
Ordered 3 Nov · we're waiting on our supplier
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
In stock now: similar
Overview
The Hobbywing QuicRun WP Mini24 ESC and QuicRun 1621SL Outer Motor Combo is a versatile and powerful system designed to elevate your mini RC experience. This combo is perfect for 1/24 scale vehicles, as well as 1/18 and 1/16 crawlers, offering a balance of performance, efficiency, and reliability.
The waterproof ESC provides peace of mind when tackling wet conditions, while multiple protection features safeguard your electronics. The smooth and efficient motor delivers excellent low-speed linearity, making it ideal for precise control and delicate manoeuvres. Whether you're navigating a challenging rock course or enjoying a casual backyard adventure, the Hobbywing QuicRun WP Mini24 combo provides the power and control you need.
Features
- Supports sensorless brushless motors and brushed motors
- Fully waterproof design for reliable performance in all conditions
- Super internal switch-mode BEC with switchable voltage of 6V/74V
- Separate programming port for easy connection of the LED program card or the LCD Pro program box
- Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection)
- Allows real-time adjustment of drag brake force using the transmitter's AUX channel
- Pairs perfectly with the QuicRun WP Mini24 ESC for optimal performance
- Good linearity at low speeds with minimal vibration
- Silicone wire outlet for easier and more aesthetically pleasing wiring
- High installation compatibility with various motor base mounting hole diameters
- Low cogging torque for smooth operation at low speeds
- Modular design for easier disassembly and maintenance
- Durable construction with high-performance iron core, high-temperature resistant enamelled wire, and high-precision bearings
- Genuine Hobbywing product
In the box
- 1x Hobbywing Quicrun Mini24 ESC
- 1x Hobbywing 1621 3500Kv Brushless Motor Combo
Specifications
| ESC: | |
| Length | 28.1mm (1.11") |
| Width | 17.9mm (0.70") |
| Height | 12mm (0.47") |
| Weight | 10.8g (0.38oz) |
| Continuous/Peak Current | 25A/60A |
| Waterproof | Yes |
| Motor Limit | Compatible with QuicRun Outer 1621, mainstream 1212, 1806 sensorless Outrunner motors; 050, 130, 180 brushed motors. |
| BEC | 6V/7.4V Adjustable |
| Voltage Limit | 11.1V LiPo |
| Programmable | Yes (via LED program card or LCD Pro program box) |
| Scale | 1/16th- 1/24th |
| Sensored | No |
| Motor: | |
| KV | 3500kV |
| Voltage Limit | 11.1V LiPo |
| Diameter | 16mm (0.63") |
| Length | 21mm (0.83") |
| Shaft Diameter | 1.80mm (0.07") |
| Weight | 16.7g (0.58oz) |
Motor
| KV | 3500KV |
|---|---|
| Sensored | No |
| Length | 21mm |
| Diameter | 16mm |
ESC (Electronic Speed Controller)
| For Motor Type | Brushless |
|---|---|
| Max Voltage | 11.1V |
| Waterproof Design | Yes |
| Burst Amps | 60A |
| Continuous Amps | 25A |
| Motor Connectors | PH |
| Battery Connector | PH 2.0 |
| LVC | Yes |
| Programmable | No |
| Cooling Method | Air |
| BEC Voltage | 6V, 7.4V |
| Dual Motor | No |
