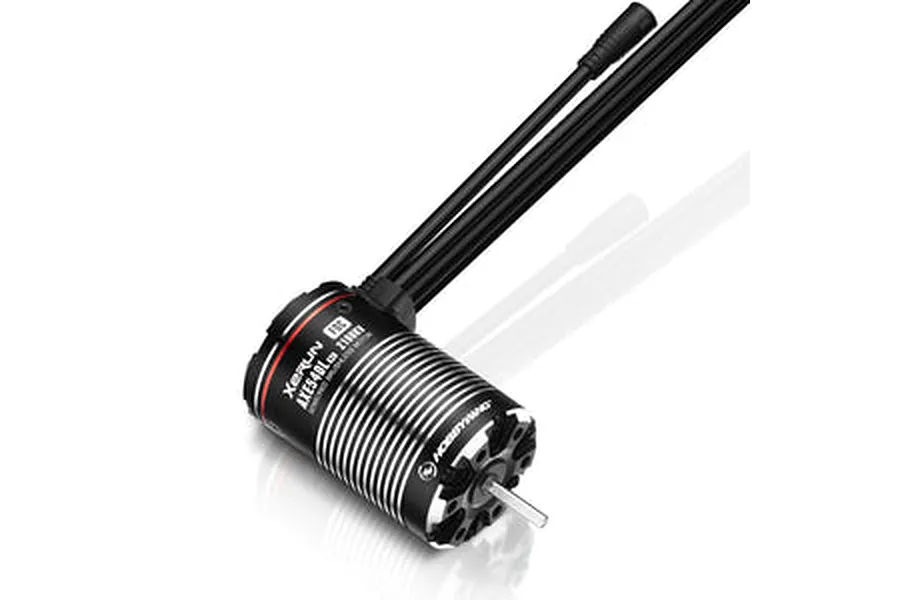

Hobbywing XERUN AXE R2 FOC 2100kv Brushless Motor For Rock Crawler
Hobbywing XERUN AXE R2 FOC 2100kv Brushless Motor For Rock Crawler
Brand:
Hobbywing
|
MPN: 30401254
Now $183.29
or 4 fortnightly payments of $45.82 with
Hobbywing XERUN AXE R2 2100Kv FOC brushless rock crawler motor with IP67 waterproofing and zero cogging.
- World's first FOC motor purpose-built for rock crawlers
- IP67 waterproof and dust-proof
- Zero cogging for smooth, precise low-speed control
- Polarity protection prevents reverse-wiring damage
- Plug-and-screw sensor harness with waterproof O-ring seal
Pay later with
Want more than 1?
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Compatible with
1 product.
See Compatibility
Description
The Hobbywing XERUN AXE R2 2100Kv is the world's first FOC (Field-Oriented Control) brushless motor designed specifically for rock crawlers, delivering super linearity, high torque, and extreme silence at all speeds.
Features
- World's first FOC brushless system for rock crawlers — Field-Oriented Control for super linearity, high torque, and extreme silence
- Chip-type magnetic encoder guarantees consistency between three phases' signals and always outputs pure, precise signals indicating rotor position
- Polarity protection — no more reverse-wiring damage
- Waterproof and dust-proof design to IP67 standards — suitable for all weather and track conditions
- Intelligent torque output & speed closed-loop control for easy, consistent motor RPM under all loads
- 4-pole, 12-magnet motor with Hobbywing's patented “staggered pole” design — zero cogging effect and torque ripple for smooth low-speed operation
- New sensor harness with plug-and-screw design and silicone O-ring for a firm, waterproof sensor port connection
Specifications
-
Type
- 1/10–1/8th FOC brushless motor (patented)
-
Waterproof
- Yes
-
Motor Diameter
- 36.0mm (1.42in)
-
Length
- 57.8mm (2.28in)
-
Shaft Diameter
- 3.175mm (0.125in)
-
Poles
- 4
Motor
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 2100KV
-
LengthLength of the motor can in mm
- 58mm
-
DiameterDiameter of the motor can
- 36mm
-
Shaft Diameter
- 3.175 (1/8")mm
