HPI Racing

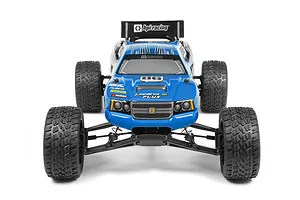

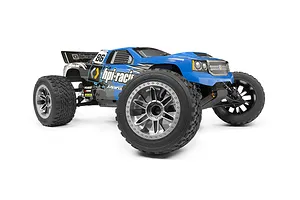

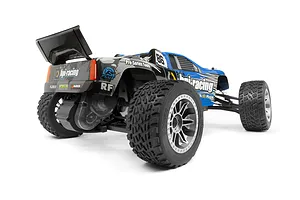

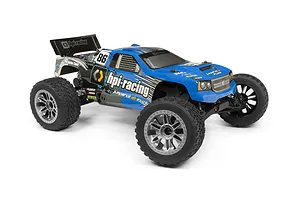

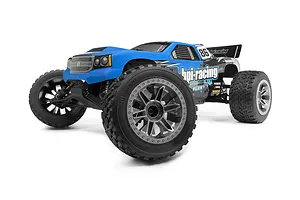

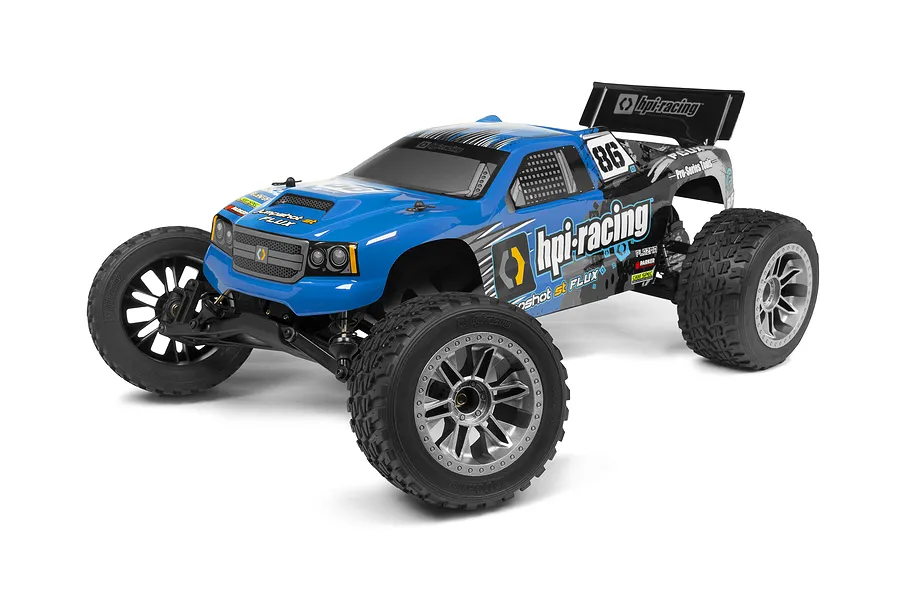

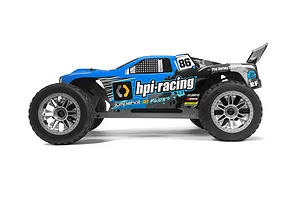

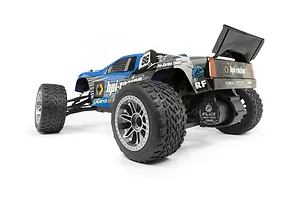

HPI Jumpshot ST Flux RC Stadium Truck Electric Brushless 2WD 1/10 Scale RTR - Blue

  • 1/10
  • 2WD
  • RTR
  • Brushless

Part no. 160032

Discontinued5.0
1 review
1 / 10
1 / 10

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

The HPI Jumpshot ST FLUX is a factory-built Ready-To-Run 1/10 2WD stadium truck powered by the FLUX MMH-4000 brushless motor and FLUX EMH-3S speed controller. It supports 2S or 3S LiPo packs (as well as 6- or 7-cell NiMH flat style stick packs), accessed from a hinged battery door underneath the chassis for fast battery changes. The Jumpshot ST FLUX is built on a Savage-style Twin Vertical Plate (TVP) lightweight aluminium chassis with electronics and battery boxes sandwiched between the plates for a super-stiff, centre-balanced design with simple maintenance and durable crash protection.

The Jumpshot FLUX line-up features new metal transmission gears — metal top and middle gears, a revised tooth profile for improved gear mesh and lower rolling resistance, a sealed oil-filled metal 4-bevel gear differential, a fully enclosed spur gear cover with rubber cap for slipper clutch access, and a metal motor mount plate insert — all inside a new protective rear gearbox cover. Up front, the V2 servo saver with stronger upper suspension links makes the front end extra-rugged. The water-resistant steering servo and waterproof ESC and receiver ensure the Jumpshot ST FLUX can be driven in conditions from dry and dusty to wet and muddy.

Features

  • Factory-built Ready To Run 2WD stadium truck
  • FLUX MMH-4000 brushless motor and FLUX EMH-3S 3S speed controller
  • Tough aluminium TVP (Twin Vertical Plate) chassis design
  • NEW: Metal Top & Middle Transmission Gears — revised tooth profile for improved gear mesh and lower rolling resistance
  • NEW: Metal Differential — sealed oil-filled 4-bevel gear design

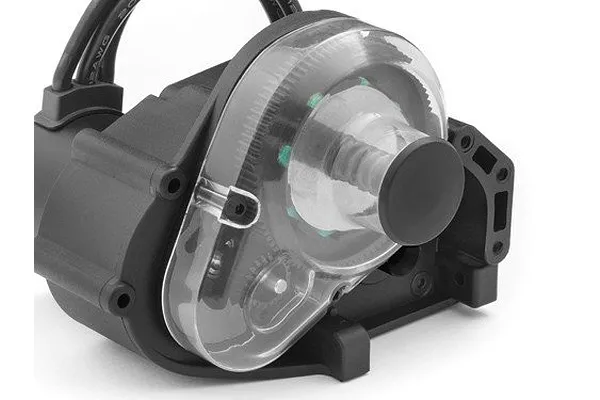

  • NEW: Fully enclosed Spur Gear Cover with rubber cap for slipper clutch access

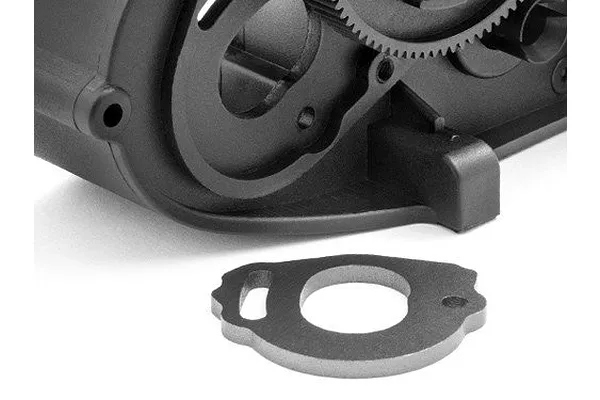

  • NEW: Rear Gearbox with Metal Motor Mount Plate Insert
  • Battery box fits 6- or 7-cell NiMH flat style stick packs and 2S & 3S LiPo packs
  • Battery easily accessible from the bottom of the chassis via hinged door with metal clip
  • Enclosed receiver box (waterproof)
  • 2.4GHz radio system

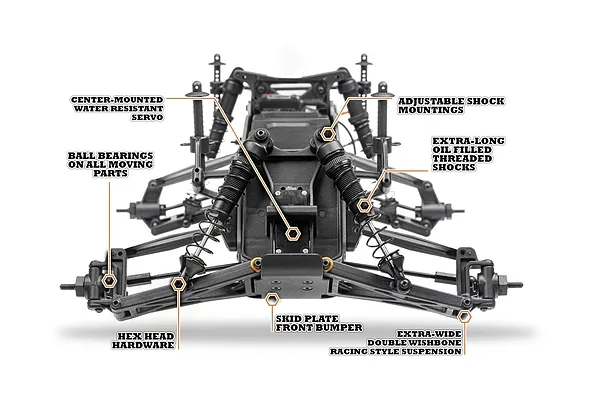

  • Oil-filled, threaded long-stroke shock absorbers — adjustable ride height
  • Double-wishbone suspension design
  • V2 servo saver with stronger upper suspension links
  • Water-resistant steering servo
  • Waterproof electronic speed controller
  • Direct-link steering system
  • Rear-wheel 2WD drivetrain
  • Durable skid plates front and rear
  • Rigid ribbed battery box door doubles as chassis skid plate
  • Sturdy body mounts
  • Standard 12mm hex hub wheel fitting
  • Pick-up truck style body with the latest HPI graphics
  • Large all-terrain tyres
  • Silver 6-spoke wheels
  • Complete set of ball bearings

In the box

  • 1x 1/10 Jumpshot ST Flux RTR RC Stadium Truck

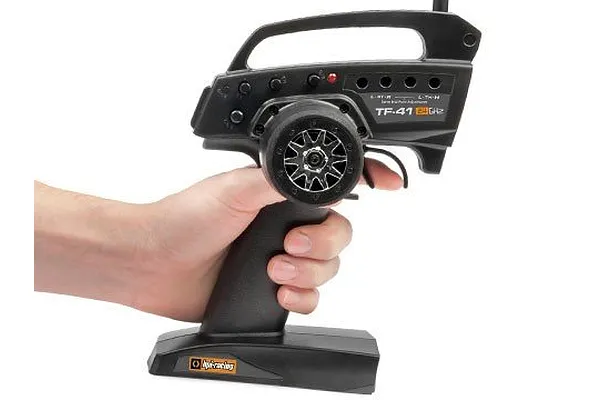

  • 1x Radio Transmitter
  • 1x Parts Bag
  • 2x Allen Wrench Set
  • 1x Cross Wrench

You'll need

  • 11.1V (3S) LiPo Battery & Compatible Charger
  • 4x AA Batteries (for transmitter)

Highlights

Stadium Truck Platform

Stadium Truck Platform

The Jumpshot ST FLUX is the Stadium Truck member of the latest instalment in the excellent Jumpshot dynasty.

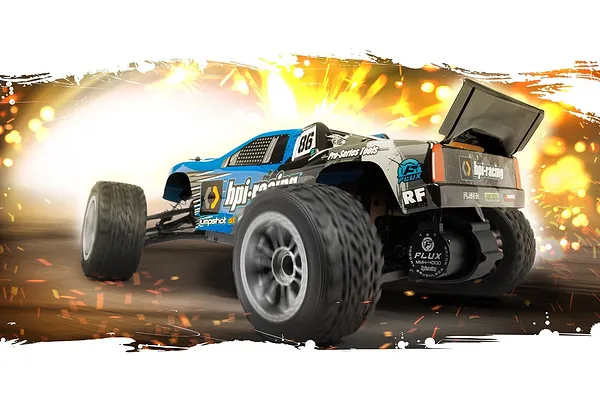

Updated Body Design

Updated Body Design

The Jumpshot ST FLUX has been updated with a brand new look that is bright and sure to grab attention.

Feature-Loaded Ready-To-Run

Feature-Loaded Ready-To-Run

The Jumpshot ST FLUX is loaded with features that will keep you driving for hours.

Jumpshot ST Flux body and styling detail

Jumpshot ST Flux body and styling detail

Pick-up truck style body with the latest HPI graphics.

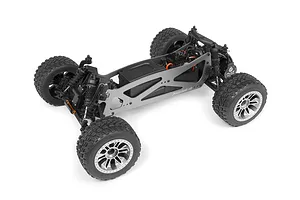

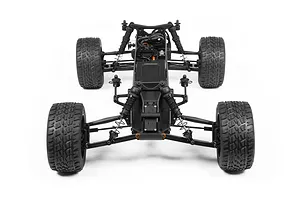

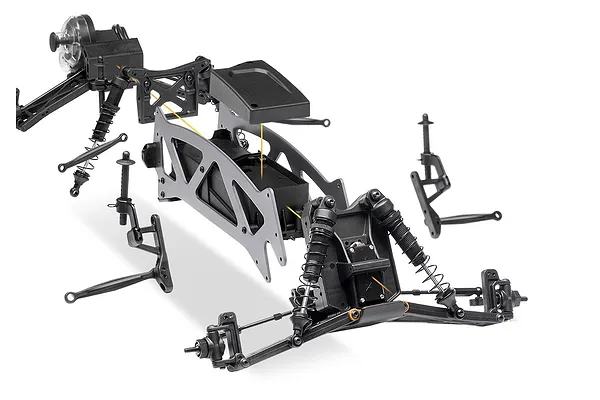

Savage-style TVP chassis detail

Savage-style TVP chassis detail

The Jumpshot ST FLUX is built like the legendary Savage, with a TVP (Twin Vertical Plate) lightweight aluminium chassis that runs from front to rear.

FLUX brushless motor and ESC detail

FLUX brushless motor and ESC detail

The FLUX MMH-4000 motor works with the robust FLUX EMH-3S speed controller so you can strap in your choice of 2S or 3S LiPo.

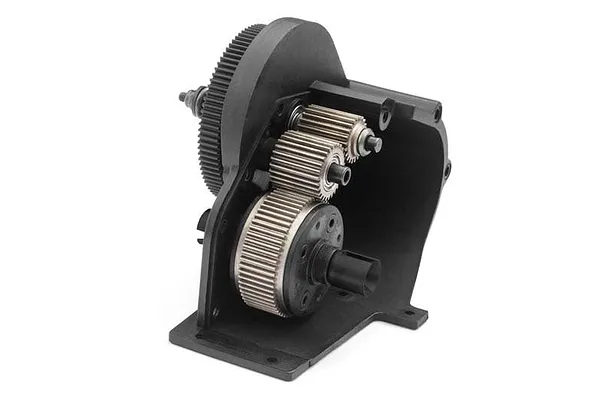

HD metal gearing detail

HD metal gearing detail

New metal Top, Middle and Differential Transmission Gears with revised tooth profile for improved gear mesh and lower rolling resistance.

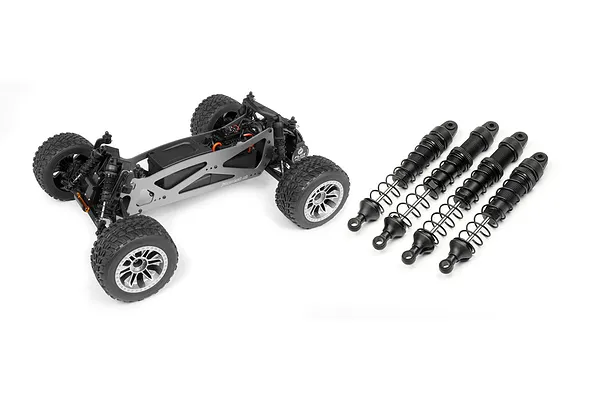

Oil-filled shocks and suspension detail

Oil-filled shocks and suspension detail

The Jumpshot ST is equipped with long-stroke, oil-filled shocks just like you see on real stadium trucks.

Bottom access battery door detail

Bottom access battery door detail

The Jumpshot ST features a hinged battery door underneath the chassis, so you don't need to take the body off to change battery packs.

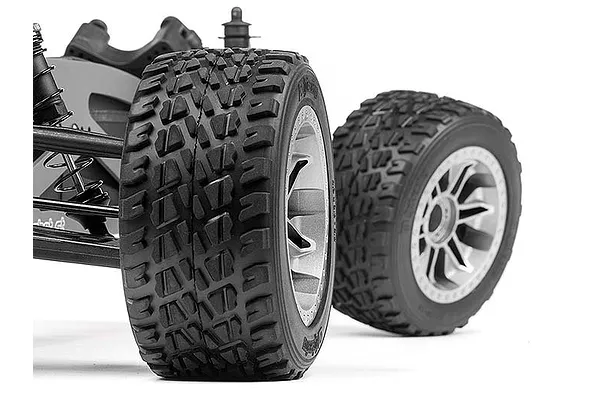

All-terrain tyres and wheels detail

All-terrain tyres and wheels detail

Rugged all-terrain tyres and extra-wide tyres let you roll over mud, snow, as well as over jumps and any obstacles.

Protected electronics and receiver box

Protected electronics and receiver box

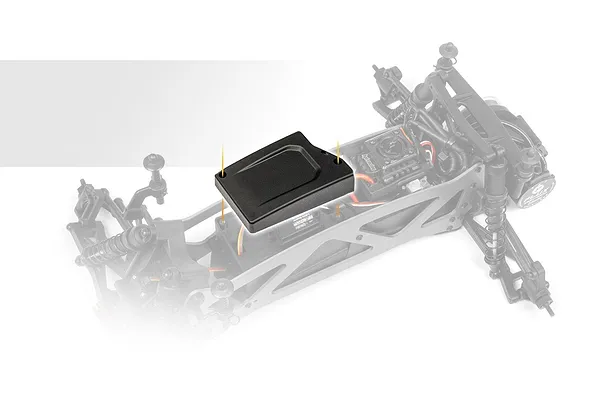

The receiver is completely waterproof and enclosed within a protective box, just like the battery on the bottom of the chassis.

Plug-In And Drive Setup

Plug-In And Drive Setup

The Jumpshot ST FLUX is super-easy to drive and get familiar with — all you have to do is plug in the battery.

Out-Of-Box Performance

Out-Of-Box Performance

The Jumpshot ST FLUX drives and performs fantastic right out of the box.

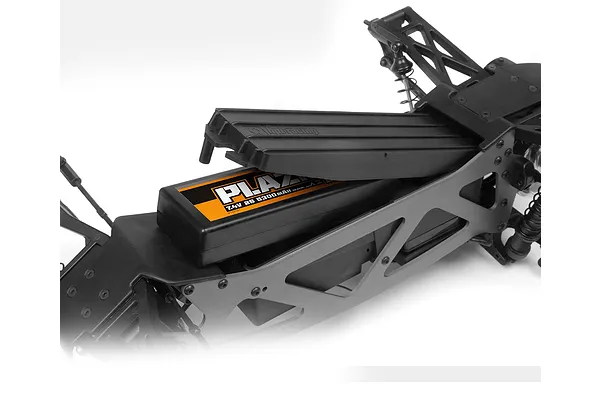

Multi-Format Battery Fitment

Multi-Format Battery Fitment

The Jumpshot ST FLUX easily fits all popular battery sizes, from 6- and 7-cell flat style NiMH packs and even 2S and 3S LiPo packs.

Specifications

Scale1/10
Assembly LevelReady-To-Run
Drivetrain2WD (rear wheel drive)
Wheelbase295mm (11.6")
Weight1.85kg (4.07 lbs)
MotorFLUX MMH-4000 brushless
ESCFLUX EMH-3S (supports 2S and 3S LiPo)
Radio2.4GHz

Dimensions

Length420mm (16.5")
Width315mm (12.4")
Height190mm (7.48")

RC Car

Scale1/10
Power SourceElectric Brushless
Drivetrain2WD
Chassis TypeStadium Truck
CompletionReady to Run
On/Off RoadOff Road
Skill LevelBeginner
Max LiPo Power3S (11.1v)

Factory Specs

Battery ConnectorDeans
Rear Shock Oil50w
Front Differential Oil1000cSt
Centre Differential Oil1000cSt
Rear Differential Oil1000cSt
Pinion Gear21T 48dp/0.5Mod, 23T 48dp/0.5Mod
Spur Gear90T 48dp/0.5Mod
Wheel Hex Size12mm
