Kyosho 1/5 Surfer 4 Electric RTR RC Boat - Blue
- 1/5
- RTR
Part no. 40110T1
Videos
This product has been discontinued.
Contact usNo longer made. In stock now: similar

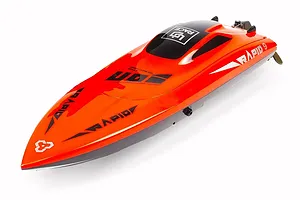

- Pro Boat 1/6 24" Jetstream RTR Jet Boat - Mojo Orange
Now $899.99
was $978.73Save $78 - Kyosho 1/8 Surfer Figure
$106.53
Videos
Recommended products
Overview
RC Surfer returns for everyone to enjoy!
Kyosho's 4th release of the RC Surfer amazed the world with its innovative form and function and rides the waves again. Reinforced stainless shaft rudder and male board rider figure add extra reliability. Features 2 graphic designs for surfboards. Not just for R/C fans, real wave riders will also appreciate the function and form of the R/C Surfer. Buoyancy material inside the surfboard structure and hollow surfer figure with floatation function combine with the auto-recovery mechanism to make the R/C Surfer unsinkable. While the natural habitat of the R/C Surfer is the sea, its dynamic control response also functions well on the flat waters of lakes and rivers. Anticorrosion materials mean you can focus on surfing the R/C Surfer in any type of water.

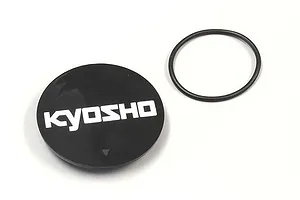

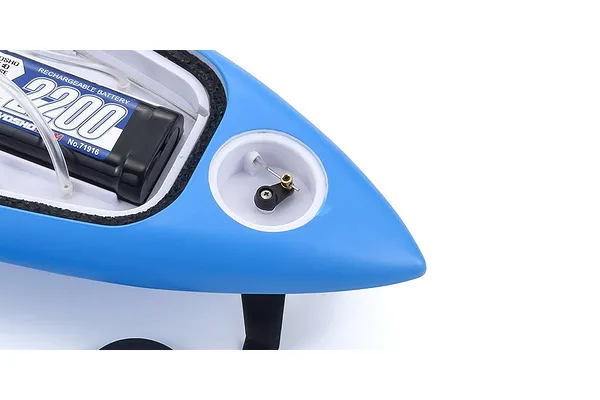

Simply install the surfer figure onto the factory-assembled surfboard, and you are ready to ride the waves without assembly or adjustment as soon as you charge the battery with the Delta Peak USB Charger. Waterproof board design incorporates an unsinkable built-in float. Factory assembled Readyset only requires 4 x AA batteries for the transmitter. A unique shaped rudder with a reinforced stainless steel shaft delivers sure control down the slope of the wave. Rudder servo linkage can be accessed by removing the round cover on the rear of the surfboard. Equipped with water-cooled Kyosho Speed House KA060-91W 60A waterproof ESC. 24T 540-class motor installed with water-cooling jacket maintains performance over long drive times. Reinforced realistic male surfer figure features hollow structure and functions as balance float to support auto-recovery.
Note: RC Surfer is an RC model propelled by a screw. It cannot be used to surf without electric power.
Note
To ensure optimal performance and longevity of your RC Boat, it is recommended to clean and grease the driveshaft before your first run and after every use.
Features
- Redesigned colour scheme with 2 graphic designed surfboards.
- Pre-assembled and adjusted Readyset.
- Waterproof board design incorporates unsinkable built-in float.
- Reinforced pre-painted figure with hollow structure also functions as a float. O-ring damper in the board join reduces damage from impact shocks.
- A newly designed stainless shaft rudder adapts to banking posture and also protects the screw.
- 24T 540-class motor installed with water-cooling jacket maintains performance over long drive times.
- Equipped with Kyosho Speed House KA060-91W 60A waterproof ESC that controls high 60A current.
- RC Surfer is an RC model propelled by a screw. It cannot be used to surf without electric power.
- The figure is not movable.
- Max speed or usage time can vary depending on usage conditions.

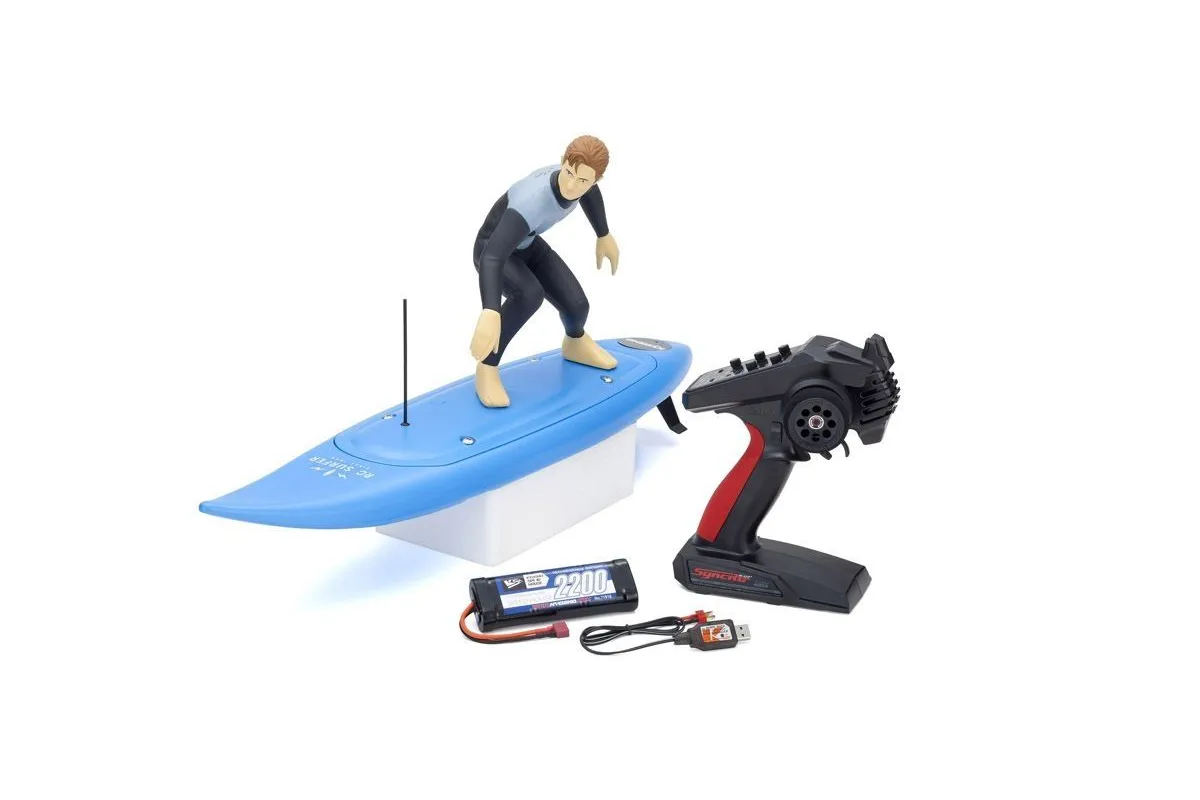

In the box
- 1x Pre-Coloured Surf Board installed with R/C System, complete with linkages
- 1x Complete Pre-Painted Surfer Figure
- 1x KT-231P 2.4GHz 2ch Pistol Grip Type Transmitter
- 1x 7.2V-2200mAh SCR Ni-MH Battery
- 1x Ni-MH Battery Dedicated Delta Peak USB Charger
You'll need
- 4 x AA Batteries For Transmitter
Highlights

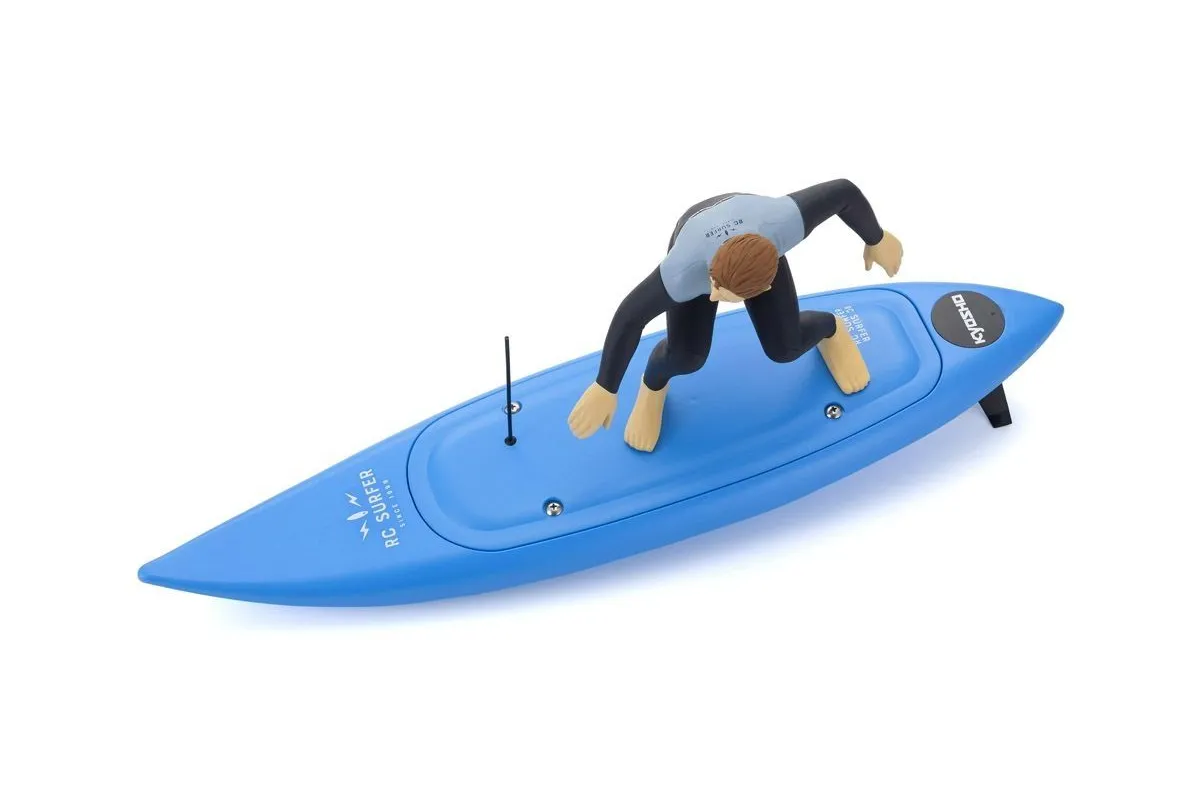

Blue Surfer Figure And Board
Kyosho RC Surfer 4 in blue graphic scheme, pre-assembled with surfer figure mounted on the surfboard.

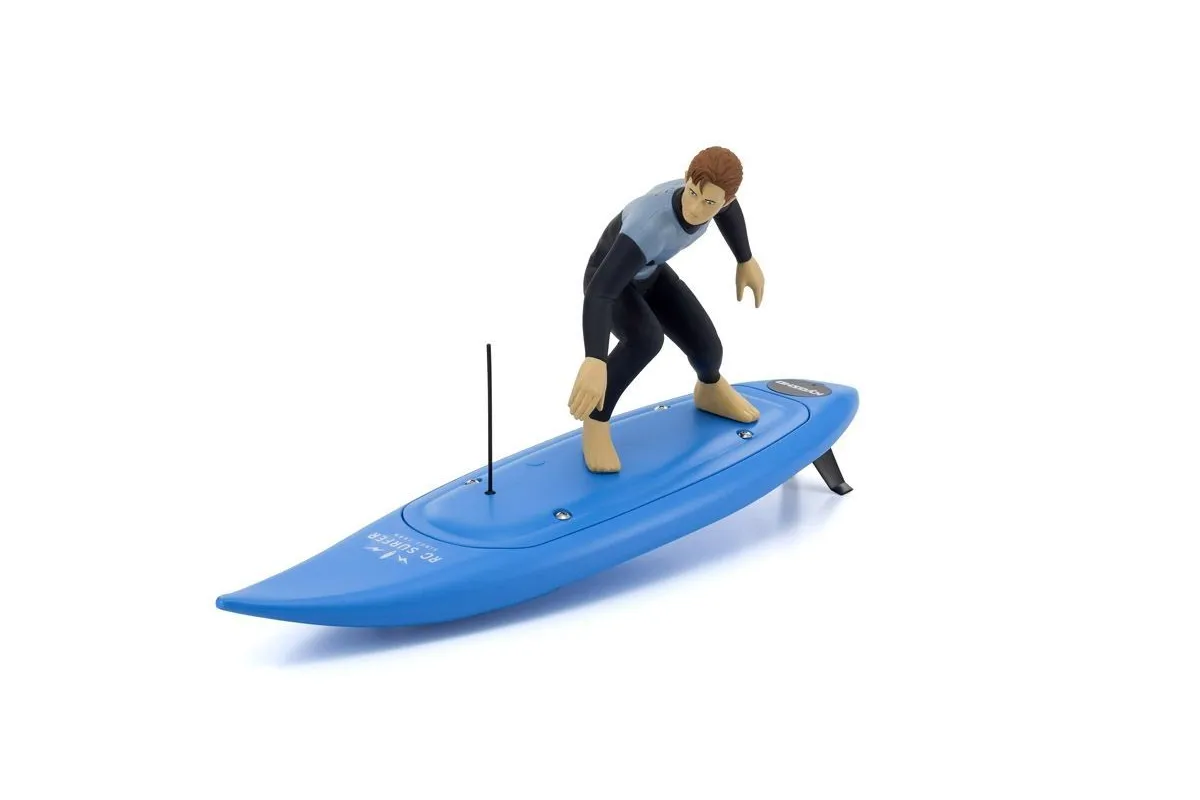

Balance Float Surfer Figure
Additional angle showing the board design and surfer figure that functions as a balance float for auto-recovery.

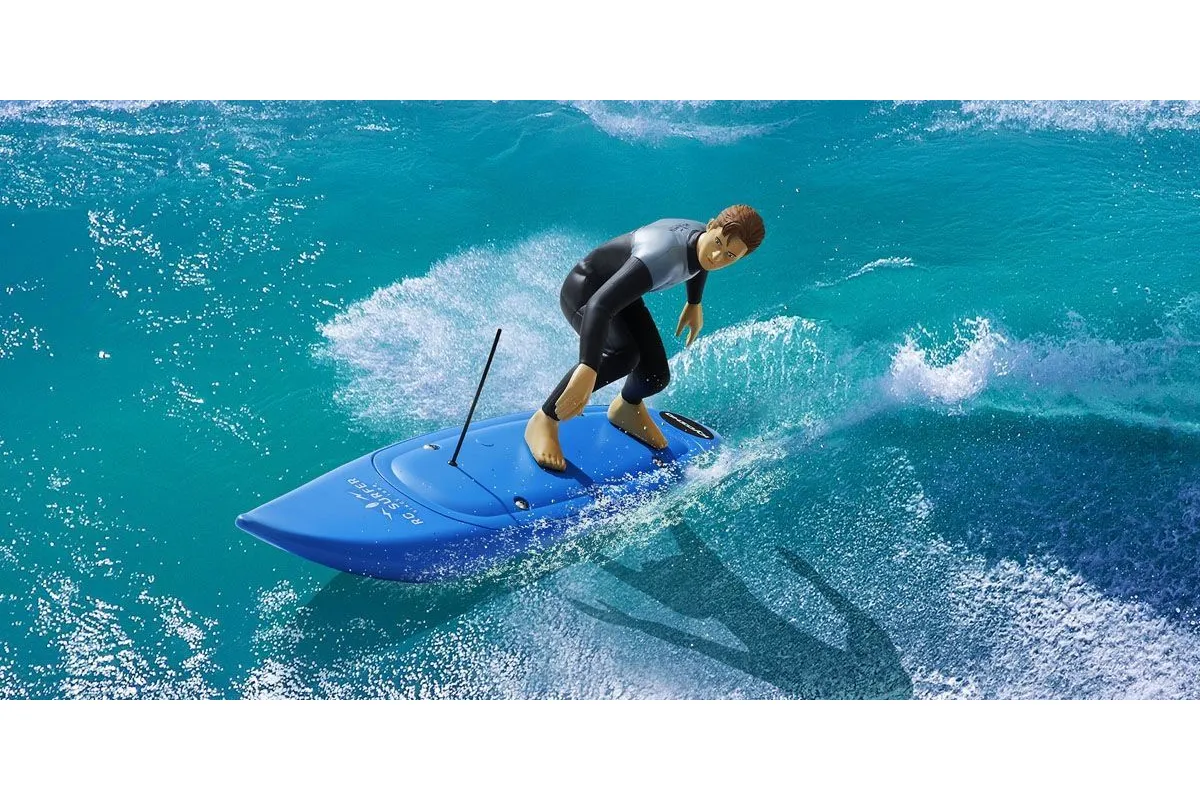

RC Surfer 4 Blue — board and float detail
Detail shot highlighting the waterproof board design and unsinkable built-in float construction.

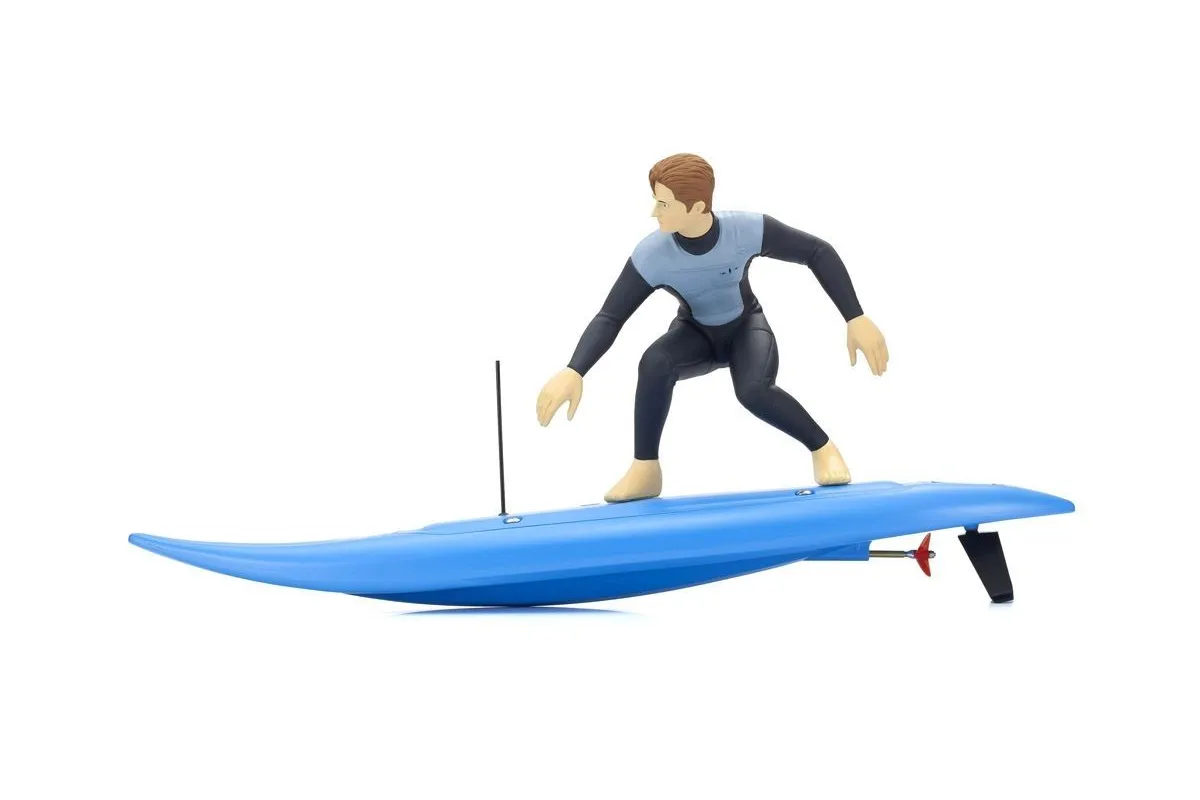

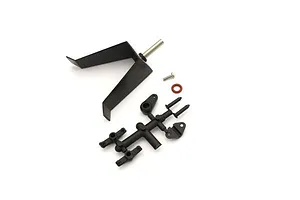

RC Surfer 4 Blue — rudder detail
Close-up detail of the stainless shaft rudder and screw protection mechanism.

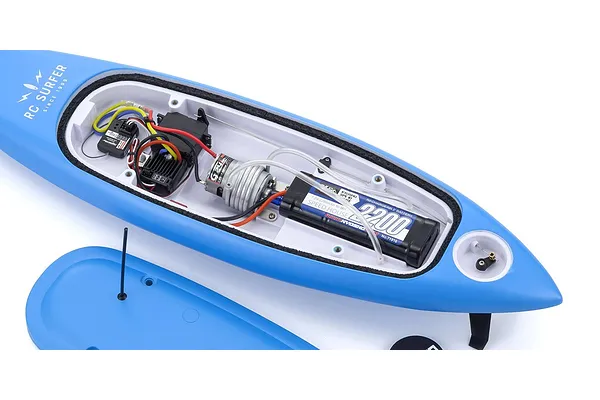

RC Surfer 4 Blue — ESC and motor detail
View showing the KA060-91W 60A waterproof ESC and 540-class motor with water-cooling jacket.

RC Surfer 4 Blue — surfer figure detail
Product shot illustrating the reinforced pre-painted male surfer figure with hollow float structure.

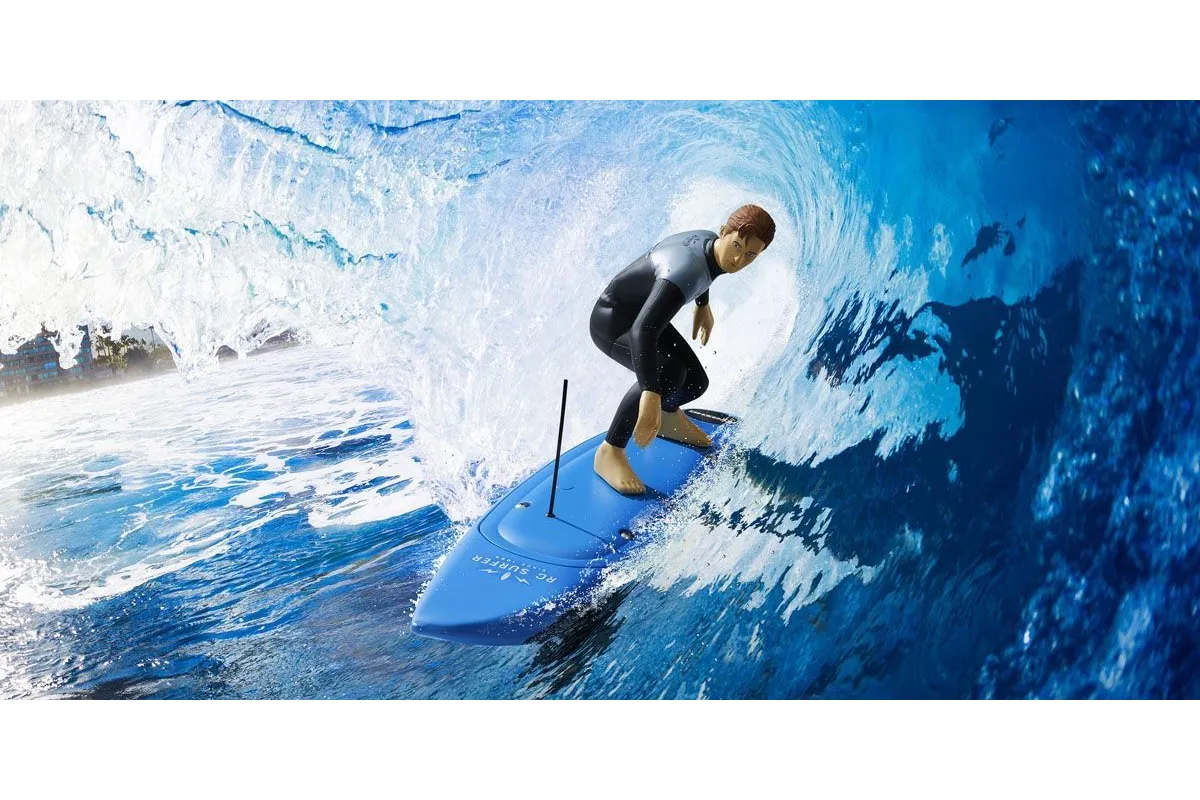

RC Surfer 4 Blue — surfboard graphic scheme
Final gallery shot showing the redesigned colour scheme and graphic design of the surfboard.
Specifications
| Length | 660mm (26") |
|---|---|
| Width | 160mm (6.3") |
| Height | 325mm (12.8") |
| Weight | 1,500g (3.3lbs) approx. |
| Motor | 540-class G24 motor with water-cooling jacket |
| Screw | D31 x P1.4 (polycarbonate) |
| Charging Time | 8 hours approx. |
| Speed | 16km/h (9.94mph) approx. |
| Operation time | 7 min approx. |
Boat
| Power Source | Electric |
|---|---|
| Experience | Beginner |
