Name: Kyosho 2.4Ghz FPV Onboard Monitor with LiPo & USB Charger
Brand: Kyosho
SKU: KYO-82724BC
Price: 236.24 AUD
Availability: Discontinued

Overview

The Kyosho Onboard Monitor brings FPV (first person view) control to hobby R/C models, operating on 2.4GHz FHSS frequency to minimise image transmission delay. Unlike most systems that operate on 5.8GHz (which can require an amateur radio license), the Onboard Monitor operates on 2.4GHz. The wireless camera incorporates a transmission unit that communicates independently with the monitor mounted on the transmitter. The camera tip can be moved ±20° for manual angle adjustment. The 4.3-inch colour LCD monitor features a micro SD card slot, AV output terminal, and five control buttons (SNAP, REC, VIEW, UP, DOWN). The monitor attachment is compatible with Kyosho KT-231(+), KT-331P, and KT-531P transmitters, and the monitor is also equipped with a camera screw so it can be attached to a standard tripod.

Note

Cannot be installed on MINI-Z Buggy. Rear shocks need to be removed when installing on MINI-Z Racer. Not compatible with all body styles. Requires a regulator if connecting to a high voltage receiver. Available for LiFe 2-cell (6.6V) as power supply if connecting to a general purpose receiver.

Features

2.4GHz FHSS wireless transmission — minimises image transmission delay and does not require an amateur radio license
Camera tip adjustable ±20° for manual angle adjustment
Compact camera weighing only 12g
480×272 video resolution (130,000 pixels)
4.3-inch colour LCD monitor with 480×272 pixel resolution and adjustable contrast
5 monitor buttons: SNAP (still shots), REC (record start/stop), VIEW (replay photos and video), UP and DOWN (menu scroll)
Power switch on right side of monitor; micro SD card slot on left side
AV output terminal for connecting to an external display (AV cable sold separately)

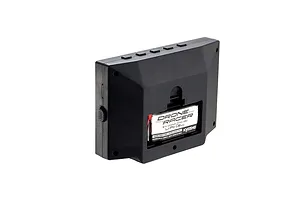

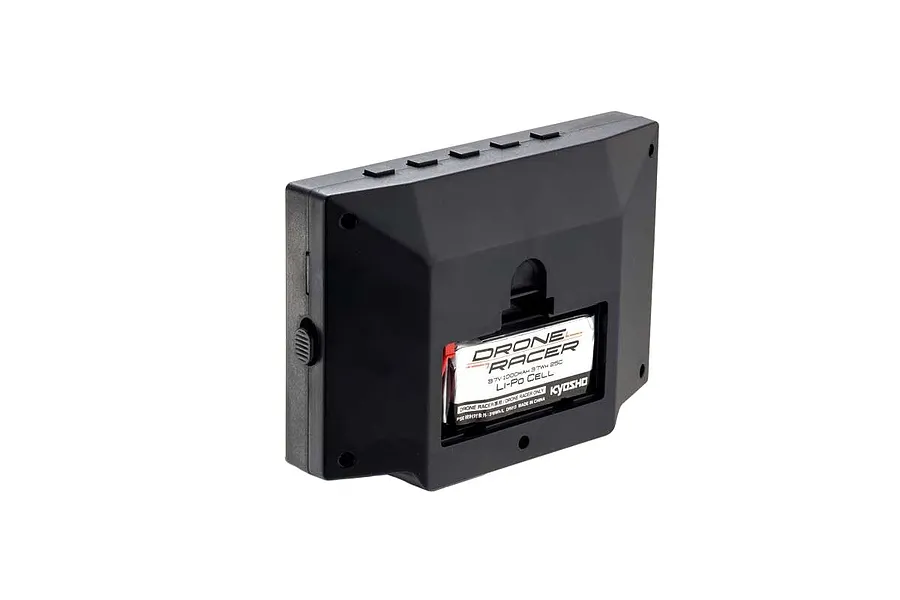

Monitor uses the same 3.7V-1000mAh LiPo battery as the Drone Racer
Monitor attachment compatible with KT-231(+), KT-331P, and KT-531P transmitters; angle freely adjustable
Monitor equipped with camera screw (nut) for attachment to a standard camera tripod
Wireless camera bolts straight on to the Drone Racer
Compatible with MINI-Z Racer using included conversion connector
Compatible with other R/C models with a standard receiver using included conversion connector

In the box

1× Wireless camera
1× Monitor
1× Attachment for KT-231P+, KT-331P & KT-531P
1× EVA cushion tape (4)
1× LiPo battery for monitor
1× USB charger
1× Conversion connector for receiver
1× Conversion connector for MINI-Z

You'll need

Micro SD card

Highlights

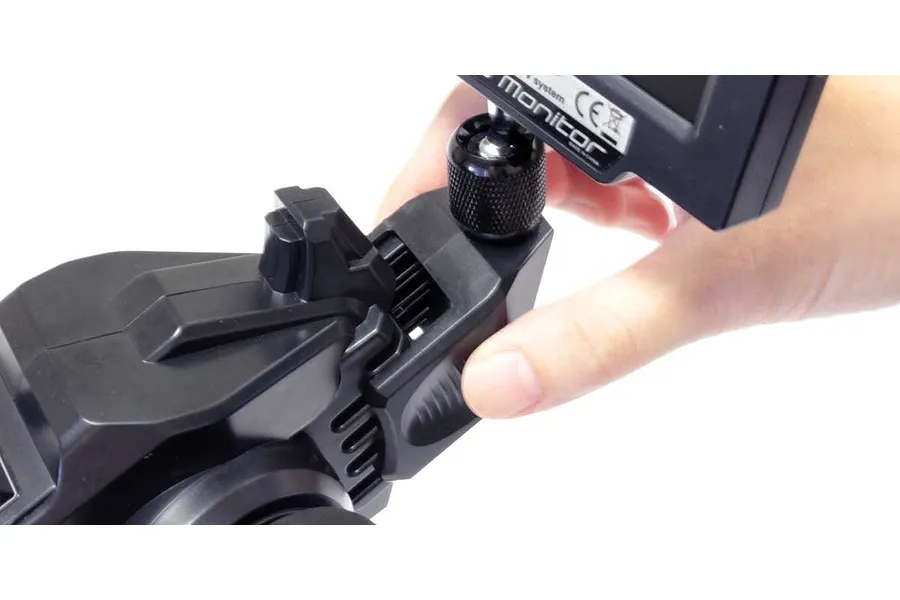

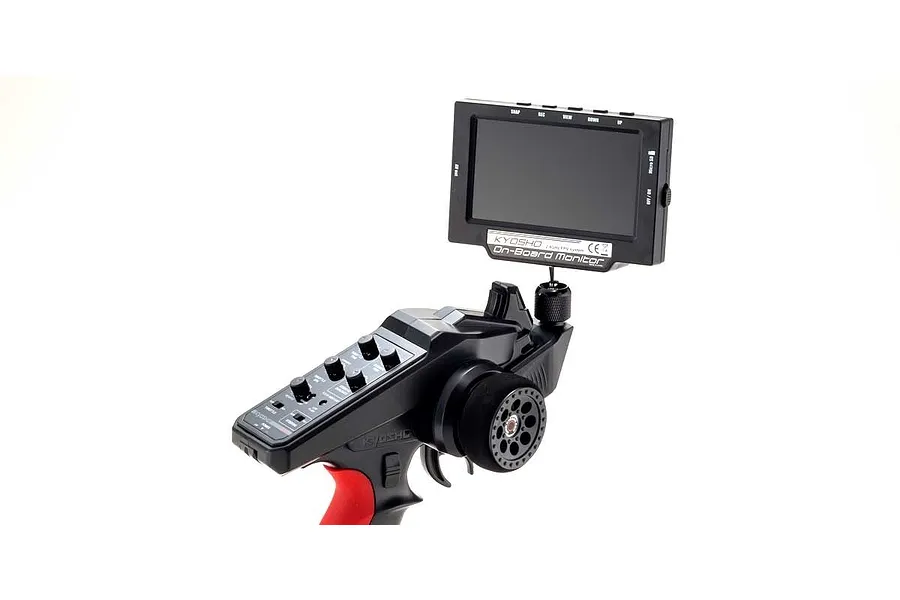

Kyosho FPV monitor attachment and transmitter mounting

Attachment to fit the monitor is compatible with the Kyosho KT-231(+), KT-331P, and KT-531P transmitters with freely adjustable angle.

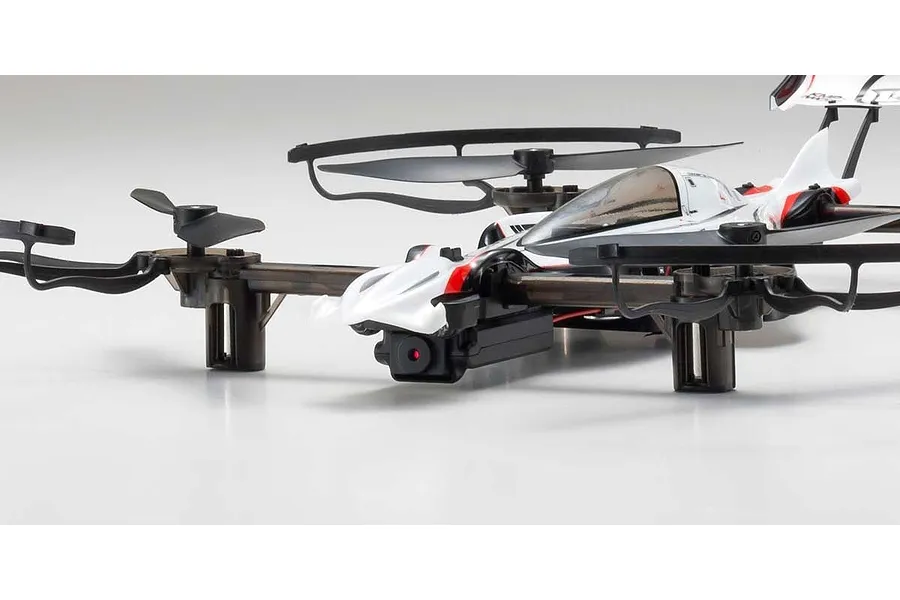

Wireless camera installation on R/C model

The wireless camera bolts straight onto the Drone Racer and can also be installed on the MINI-Z Racer with the included conversion connector.

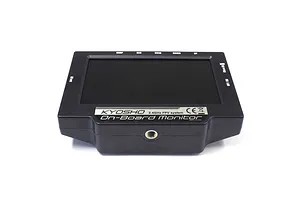

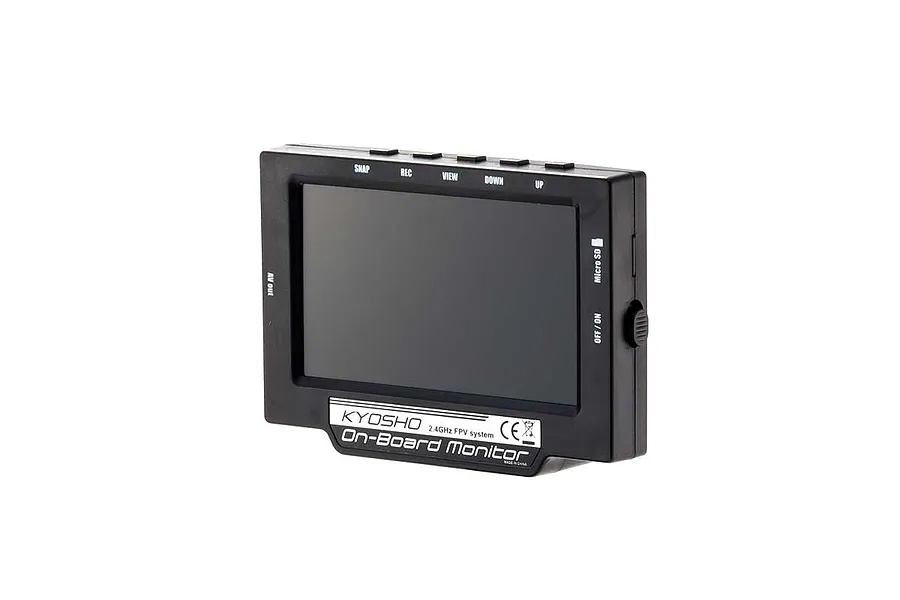

FPV monitor controls and interface

Five buttons available: SNAP for still shots, REC for recording, VIEW for replay, UP and DOWN for menu navigation.

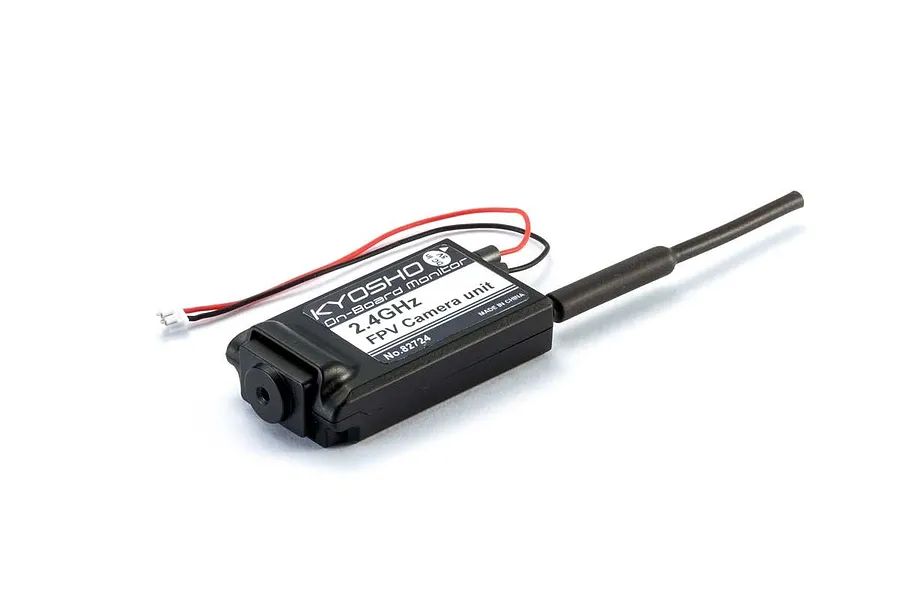

Wireless camera angle adjustment

The tip of the wireless camera can be moved ±20° for manual adjustment of camera angle; weighing only 12g with 480x272 video resolution.

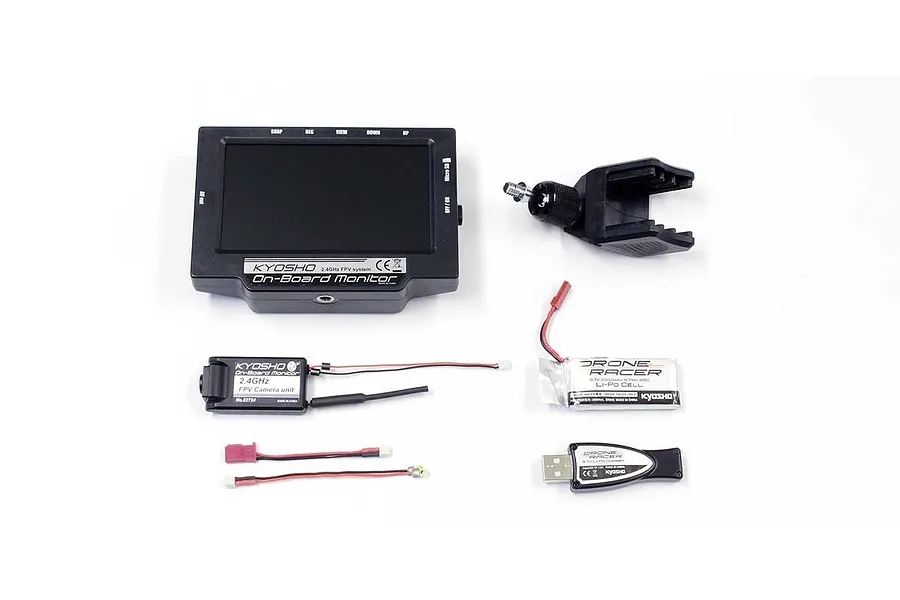

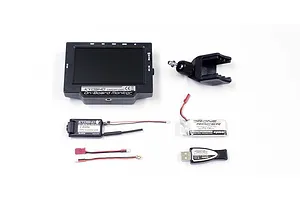

FPV Onboard Monitor set contents

Set includes wireless camera, monitor, attachment for KT-231P+/KT-331P/KT-531P, EVA cushion tape, LiPo battery, USB charger, and conversion connectors.

Kyosho FPV Onboard Monitor complete set

Experience FPV first person view control as you fly or drive your existing R/C airplane or car with the KYOSHO ONBOARD MONITOR.

Specifications

Wireless Camera External Dimensions	L48 × W25.5 × H13.3mm
Wireless Camera Weight	12g approx.
Wireless Camera Resolution	480 × 272 pix
Wireless Camera Frame Rate	30fps
Wireless Camera Angle of View	60°
Wireless Camera Frequency	2.4GHz
Wireless Camera Power	DC 3.6–6.6V
Wireless Camera Current	270mA
Wireless Camera Transmission Range	60m (can vary depending on conditions)
Monitor Screen Size	4.3 inch TFT (480 × 272)
Monitor Weight	150g (incl. battery)
Monitor Battery	3.7V-1000mAh LiPo (sold separately)
Monitor Video File Format	AVI
Monitor Video Output	NTSC
Monitor Media	Micro SD card (sold separately)
Monitor Power Consumption	260mA
Monitor External Dimensions	L125 × W85.7 × H28mm
