Kyosho Fazer Mk2 Mad Van FZ02L-BT Series RC Monster Truck Electric 4WD 1/10 Scale RTR - Champagne

Kyosho Fazer Mk2 Mad Van FZ02L-BT Series RC Monster Truck Electric 4WD 1/10 Scale RTR - Champagne

Videos

Kyosho Fazer Mk2 Mad Van FZ02L-BT Series RC Monster Truck Electric 4WD 1/10 Scale RTR - Champagne

Brand: Kyosho | SKU: 34412T1
sold out
$380.27
Kyosho Fazer Mk2 Mad Van RC Monster Truck: A unique monster truck features a retro van body, sporty 4WD chassis and impressive off-road capabilities.
  • 76T spur gear and 20T pinion gear deliver powerful performance
  • Large-diameter tyres for excellent grip on a variety of surfaces
  • Waterproof steering servo for all-weather driving
  • Two-Bevel front and rear differentials
  • Perfect for beginner to pro RC enthusiasts
Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
Batteries for Controller
Batteries for Controller
Battery
Battery
LiPo Safe Charging Bag
LiPo Safe Charging Bag
Shop replacement & upgrade parts for this model
Shop Parts
Description

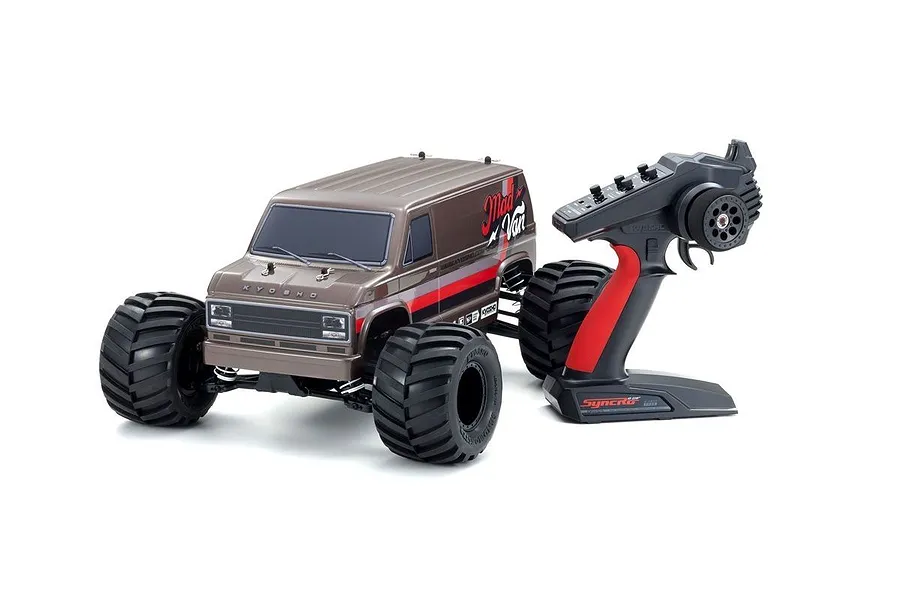

The Kyosho Fazer Mk2 Mad Van RC Monster Truck is a distinctive and fun-loving machine that combines retro American van styling with a capable and sporty chassis. This 1/10 scale monster truck is designed to deliver exciting off-road performance with a touch of unique style.
The FZ02L-BT chassis features a simple design with fewer parts for easy maintenance, yet it provides ample strength and rigidity thanks to its optimised materials and reinforced construction. The symmetrical design and balanced suspension geometry contribute to excellent control and manoeuvrability, making the Mad Van easy to handle for drivers of all skill levels. Equipped with front and rear differentials, oil shocks, and a full set of ball bearings, the Mad Van delivers smooth, efficient performance and impressive durability. The soft compound, large-diameter tyres with inner foams provide exceptional grip on a variety of surfaces, from off-road terrain to paved roads.

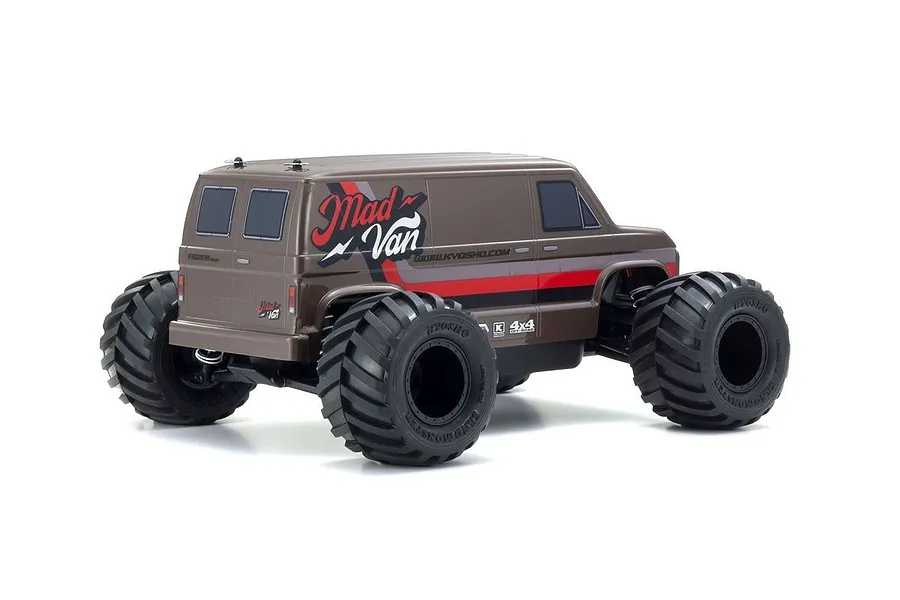

Classic Van-Style Polycarbonate Body

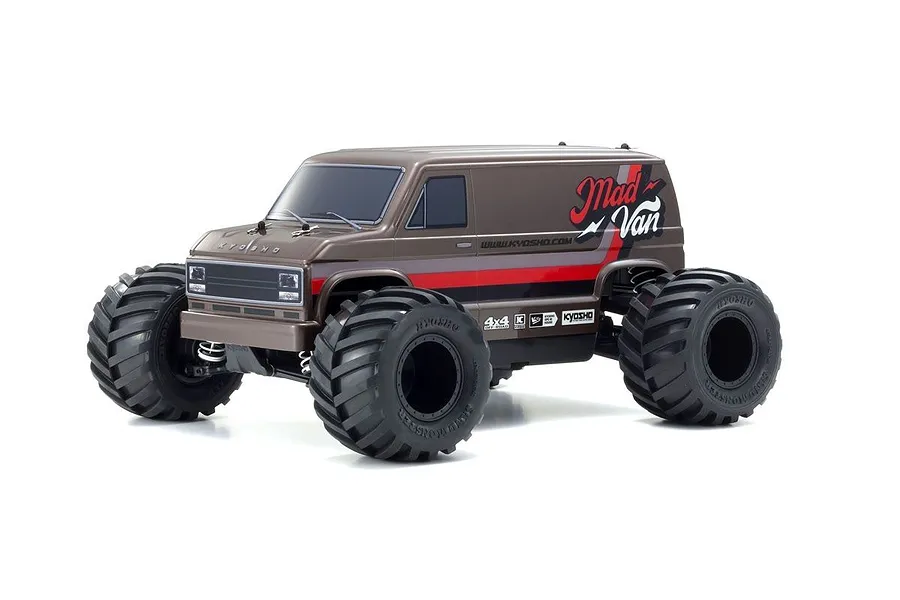

The angular polycarbonate body is inspired by classic American full-size vans from the 1970s and 1980s. Large-diameter wide tyres and a polycarbonate roof spoiler complement the body design and enhance the truck's overall look and performance.

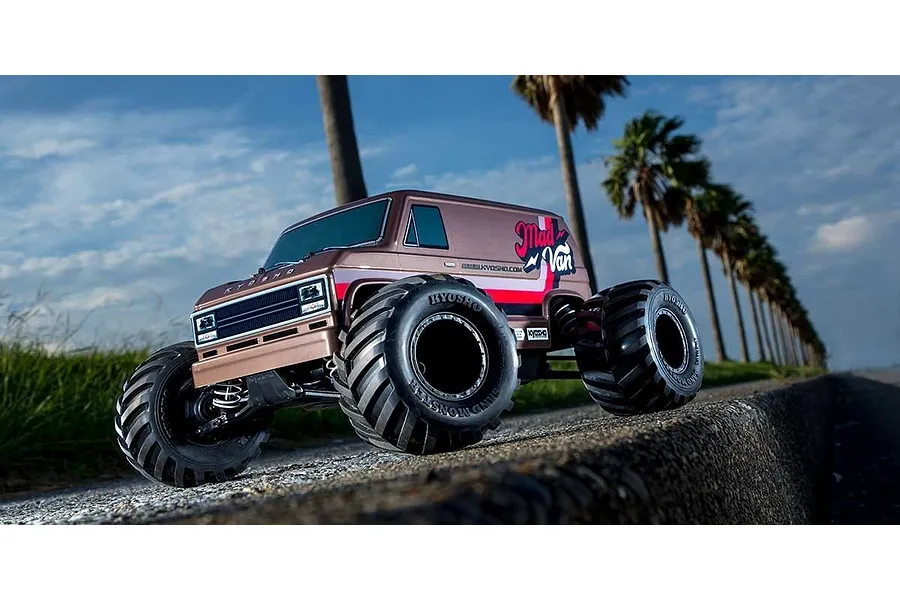

Large, Grippy Tyres for All-Terrain Versatility

Soft compound, large-diameter wide tyres provide exceptional grip on a variety of surfaces, from paved roads to dirt, sand, and grass. Enjoy confident handling and control wherever your adventures take you.

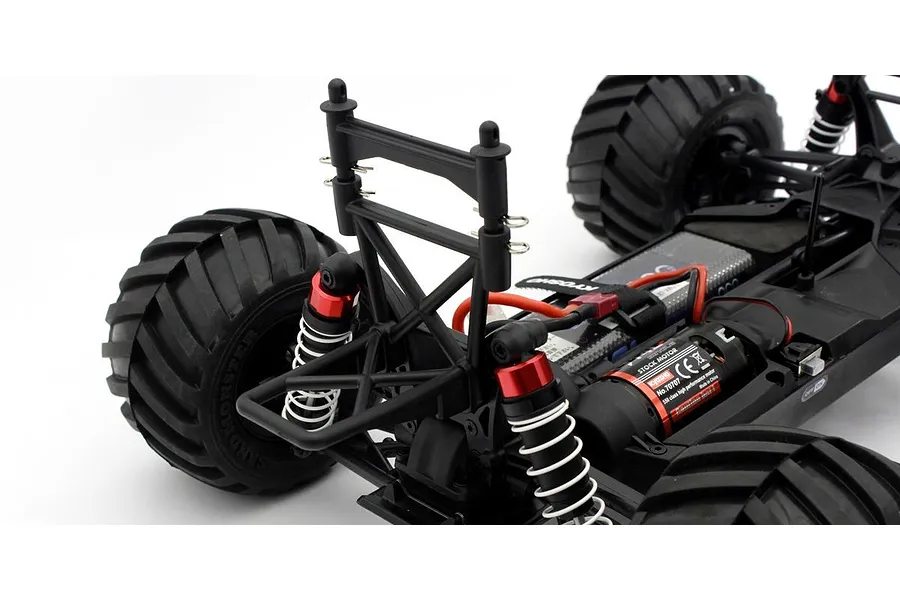

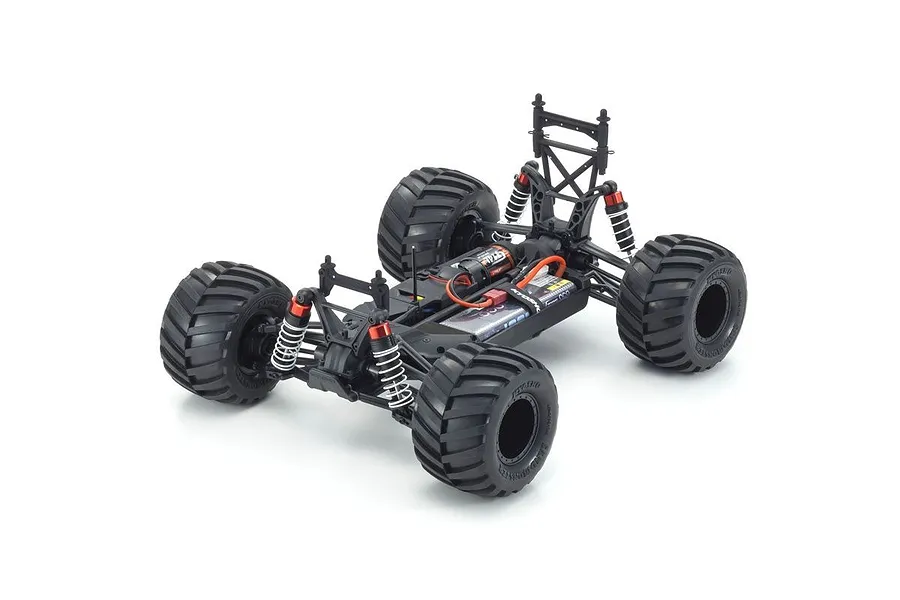

FZ02L-BT Chassis: Simple Design, Superior Performance

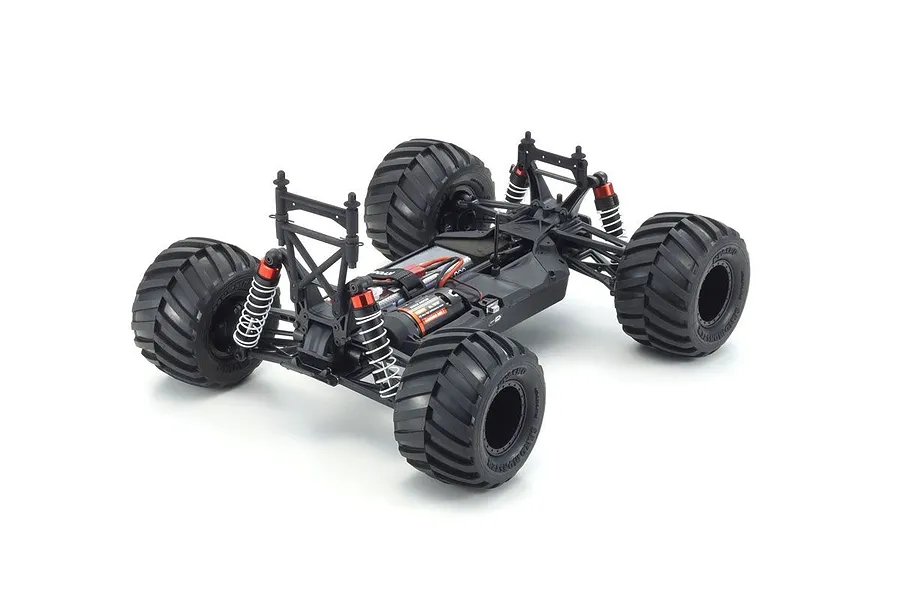

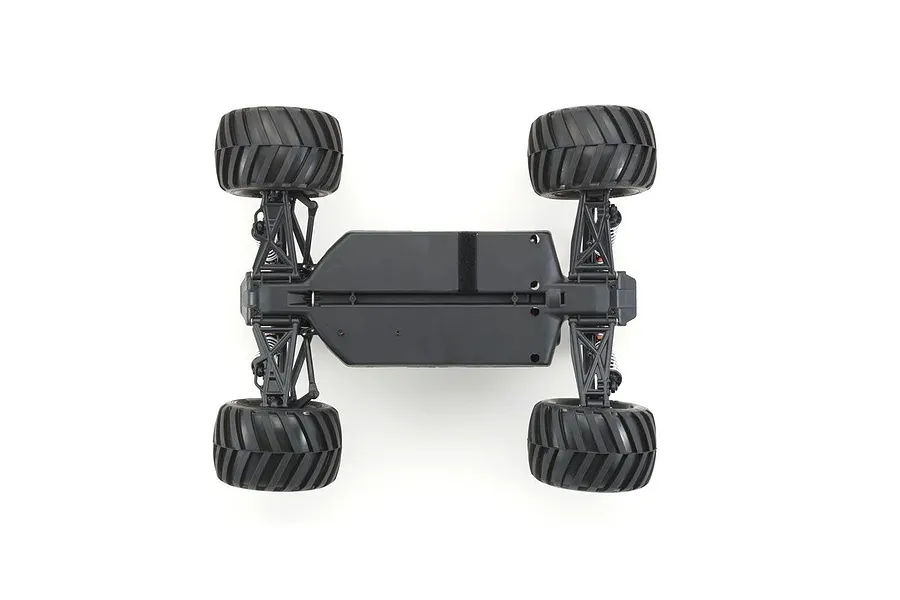

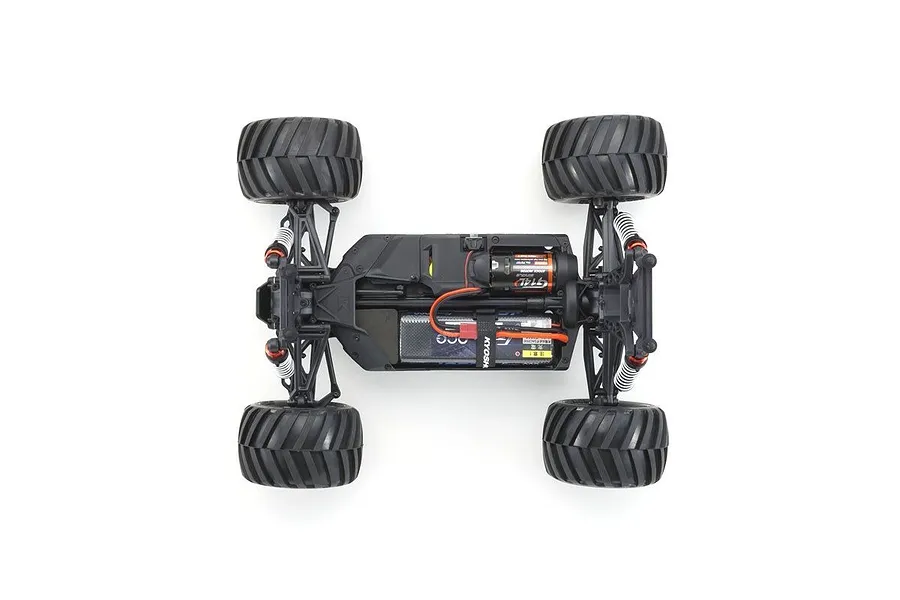

The Fazer Mk2 Mad Van features the FZ02L-BT chassis, a low centre of gravity design that prioritises both performance and ease of maintenance. The integrated gearbox optimises torsional rigidity, while the durable nylon construction provides a lightweight and impact-resistant platform.

Optimised Steering for Precise Control

The front suspension geometry is optimised for responsive and predictable handling, with features like bump steer and scrub radius correction. Interchangeable hub carriers improve maintenance efficiency, while ball-connected steering knuckles ensure reliable control.

Hassle-Free Maintenance

With a reduced number of parts and standardised screw sizes, maintaining your Fazer Mk2 Mad Van is a breeze. A single 2.0mm hex wrench is all you need to assemble and disassemble the truck for easy maintenance and repairs.

Oil-Filled Shocks for Stable Performance

Oil-filled shocks come standard, delivering consistent damping and stable performance in all conditions. The optimised front-rear geometry provides balanced handling and control, making the Fazer Mk2 Mad Van a joy to drive.

Tuned Gearbox for Optimal Performance

The 76T spur gear and 20T pinion gear are optimised for big-tyre performance, and a wide range of pinion gears (20T-29T sold separately) allows for customised gear ratios. The motor mount design makes backlash adjustment simple, ensuring efficient power delivery.

Powerful Brushed Motor for Wheelie-Popping Fun

The Fazer FZ02L-BT is equipped with a long 550-size 14-turn brushed G14L motor that delivers ample torque for exciting wheelies and dynamic big-tyre performance.

Kyosho Speed House 60A ESC

The included Kyosho Speed House 60A ESC features a Deans connector and offers three control modes for customised performance. It's also compatible with LiPo batteries for increased power and runtime.

Features
  • Shaft-driven full-time 4WD FZ02L-BT chassis
  • Factory-assembled Readyset
  • 2.4GHz Syncro KT-231P+ transmitter with adjustable settings
  • Two-bevel grease-filled gear differentials
  • Large-size driveshafts and cup joints offer improved durability
  • Belt battery mount for versatile battery compatibility
  • Full ball bearing specifications
  • KS202W waterproof steering servo
  • Newly designed body with decals applied
  • Wide range of optional parts available
  • Genuine Kyosho Product
Specifications
  • Length: 383mm (15.1")
  • Width: 323mm (12.7")
  • Height: 200mm (7.9")
  • Wheelbase: 273mm (10.7")
  • Weight: 2050g (4.5lbs) approx
  • Chassis: FZ02L-BT
  • Suspension: Independent with Oil Shocks
  • Drivetrain: Shaft-driven 4WD
  • Motor: 550 size G14L Brushed
  • ESC: Kyosho Speed House KA060-91W 60A
Included Items
  • 1x Factory Finished Body With Decals Applied
  • 1x Syncro KT–231P+ Transmitter
  • 1x Hex Wrench 1.5mm / 2.0mm / 2.5mm
  • 1x Integrated Spanner 5 / 5.5 / 7 / 8mm
Required Items
  • 4x AA Batteries for Transmitter
  • 1x 7-Cell NiMH or 2S LiPo Battery
  • 1x Compatible Battery Charger
Note
  • Please refer to the instruction manual for specific waterproof standards, safety precautions, and operating instructions.
Videos
Specifications
Factory Specs
Rear Differential Oil
Wheel Hex Size
12mm
Rear Shock Oil
Front Differential Oil
Front Shock Oil
Max LiPo Power
3S (11.1v)
Pinion Gear
20T
Spur Gear
76T
Battery Connector
Deans
Centre Differential Oil
RC Car
Skill Level
Beginner
Max LiPo Power
3S (11.1v)
On/Off Road
Off Road, On Road
Drivetrain
4WD
Chassis Type
Monster Truck
Power Source
Electric Brushed
Completion
Ready to Run
Scale
1/10

Parts
