Kyosho KA120-91WC Water Cooled Brushless 120A ESC

Brand: Kyosho | SKU: 82246
1 in stock

$253.32

Fits 3 Vehicles

Login to My Garage to check compatibility.

Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

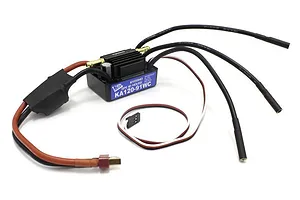

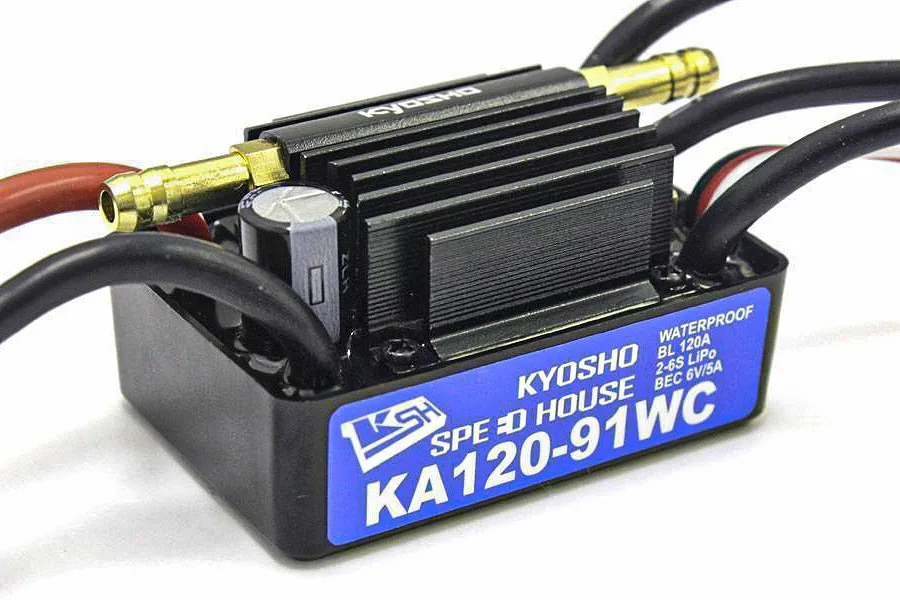

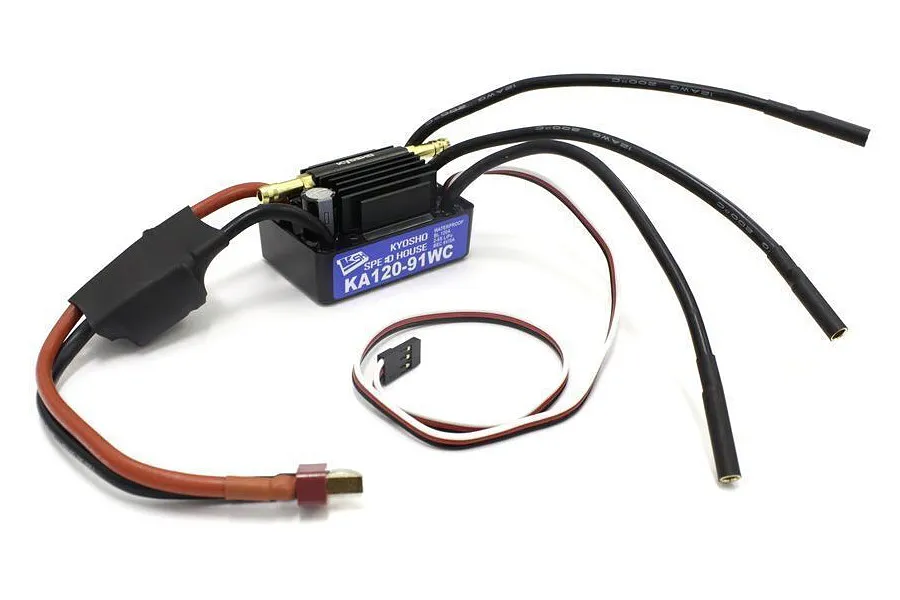

The Kyosho KA120-91WC Water Cooled Brushless 120A ESC is a high-performance speed controller designed for RC marine applications. With its robust construction, water cooling capabilities, and compatibility with various battery types, it's ideal for powering a wide range of RC boats.

Features
  • High-performance brushless ESC for marine use
  • Water cooled for efficient heat dissipation
  • Easy to use and set up
  • High-current output for demanding applications
  • Reliable and durable construction
  • Genuine Kyosho Product
Specifications
  • Length: 68.5mm (2.70 in)
  • Width: 39.4mm (1.55 in)
  • Height: 32mm (1.26 in)
  • Weight: 150g (5.29 oz)
  • Continuous/Peak Current: 120A/720A
  • Waterproof: Yes
  • Motor Limit: N/A
  • BEC: 6.0/7.4V
  • Voltage Limit: 2-6S LiPo/6-18 Cells NiMH
  • Programmable: Yes
  • Scale: N/A
  • Sensored: No
Included items
Description QTY
Kyosho KA120-91WC Water Cooled Brushless 120A ESC 1
Specifications
ESC (Electronic Speed Controller)
For Motor Type: Brushless
Max Voltage: 22.2v
Waterproof Design: Yes
Burst Amps: 720
Continuous Amps: 120
Motor Connectors: 4.0mm Bullet
Battery Connector: Deans
LVC: Yes
Programmable: Yes
Cooling Method: Water
BEC Voltage:
Dual Motor: No
