Part no. 34701T1

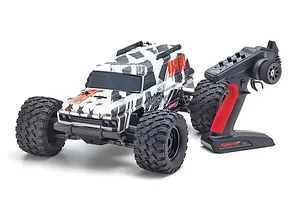

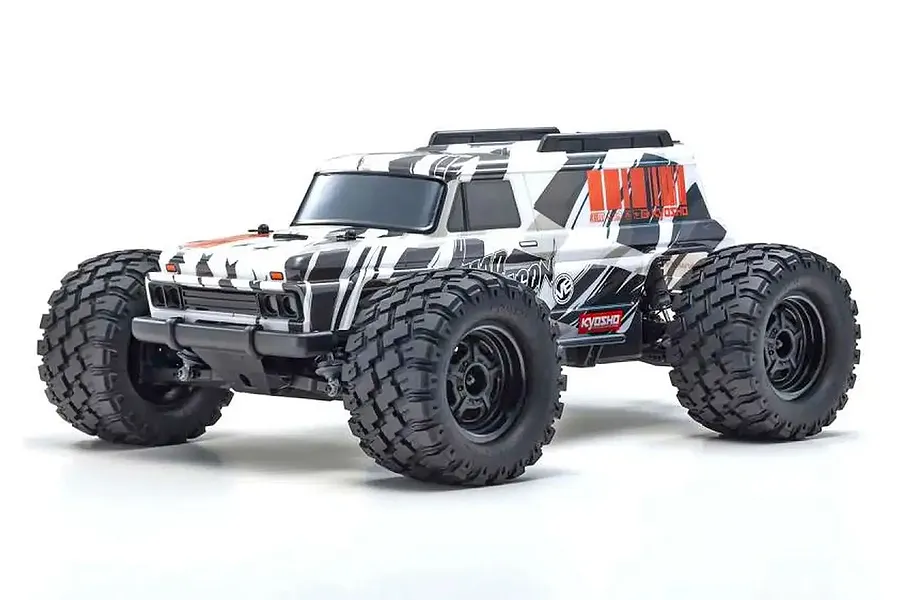

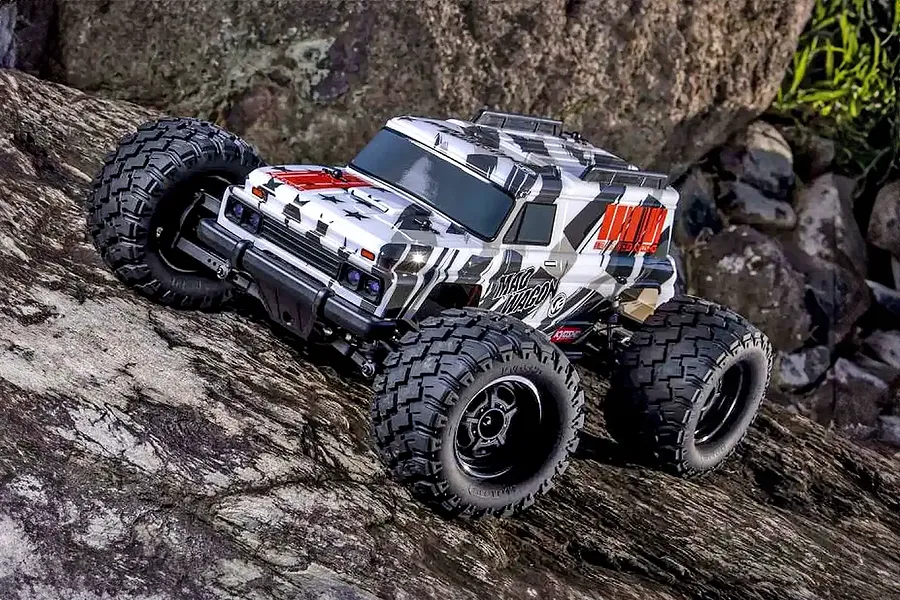

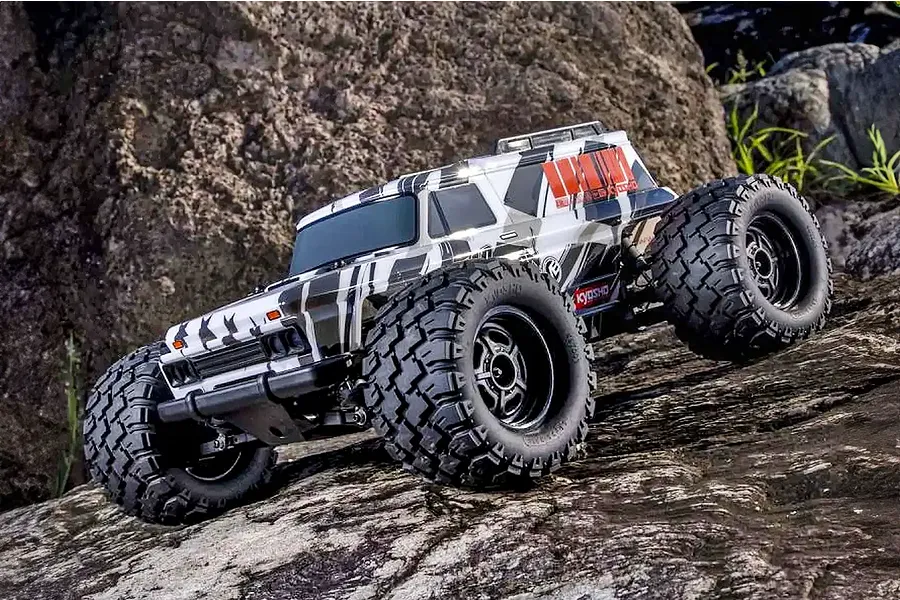

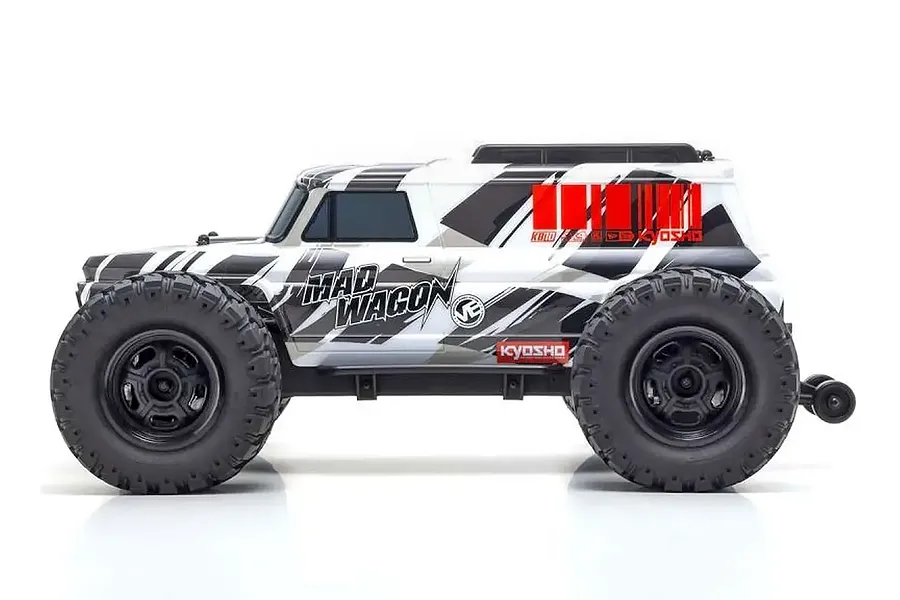

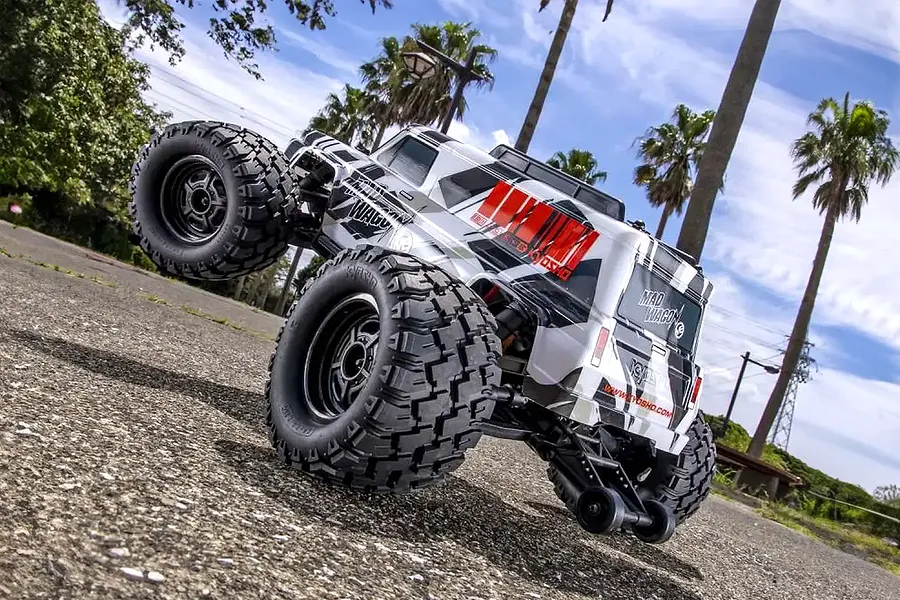

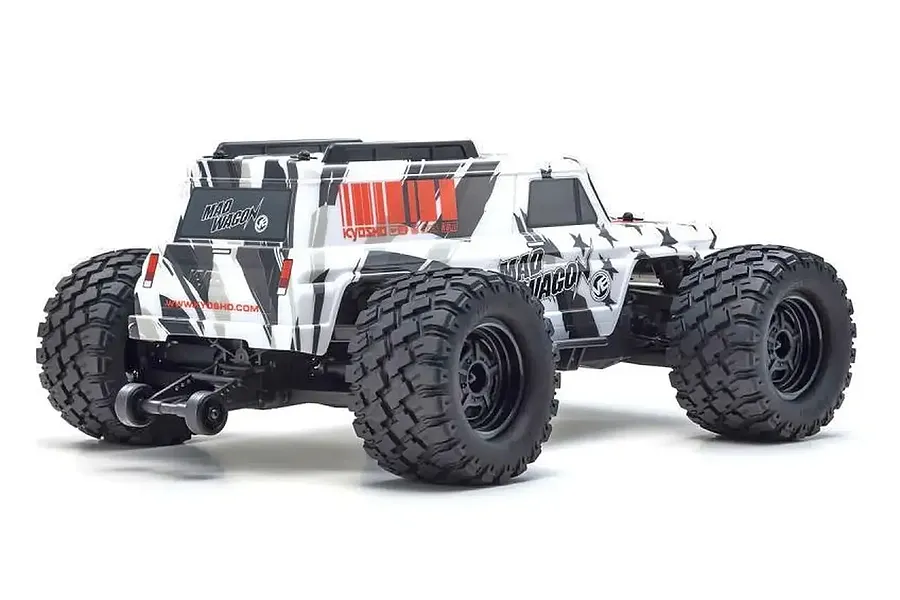

Kyosho Mad Wagon VE 1/10 scale brushless 4WD monster truck in Black/White with 75km/h top speed and 'Ultra Scale' 1980s van body.
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Ready to send today if you order before 1pm.
The Monster Truck, otherwise referred to as the 'Basher' category, has grown in popularity over many generations. With a pickup truck body mounted on a tough chassis and large diameter tyres, monster trucks, including R/C model versions, are built to go anywhere from the badlands to stadium courses. Now the Mad Wagon VE puts a unique style on a brute R/C machine!

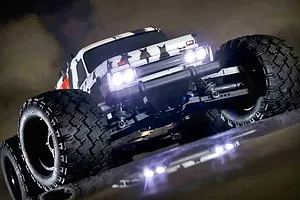

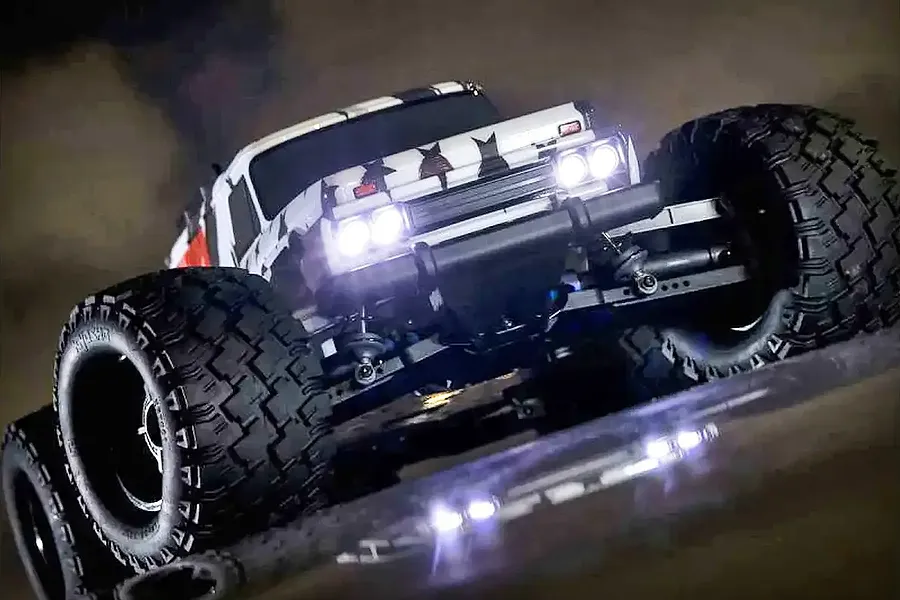

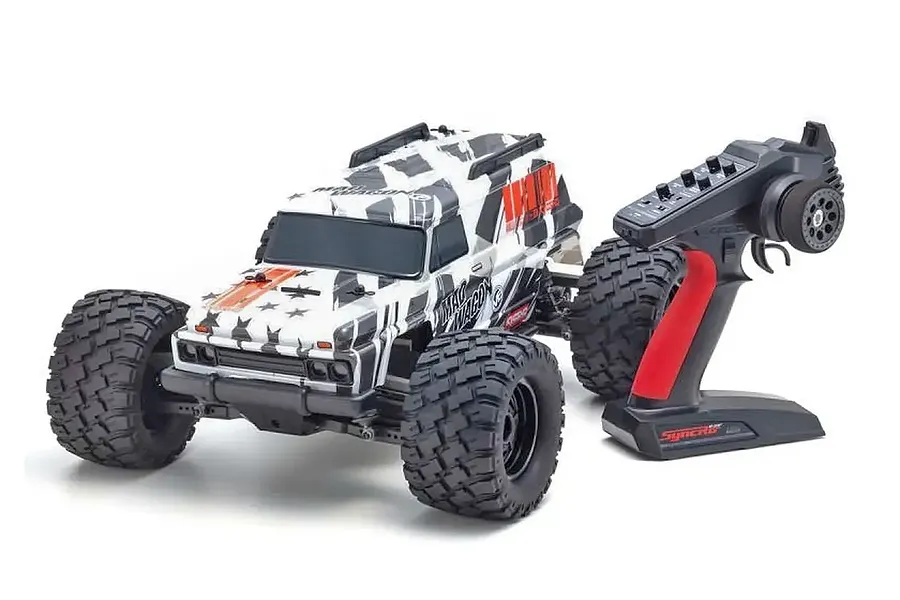

The completely new KB10 4WD chassis design is compatible with 3S (11.1V) high-power lithium polymer (LiPo) batteries and features a newly developed brushless motor and speed controller as standard. Delivering an optimal balance of high-speed and power, the aluminium main chassis of the KB10 combines front/rear blocks incorporating a split frame and double wishbone suspension to drive the all-terrain 2.8" wheels and tyres. Drivetrain parts are shared with the 1/8 scale Inferno NEO ST 3.0, providing more than enough capacity for a 1/10 scale machine. The original 1980s-style van body design is produced in 'Ultra Scale' realism. While the body included in the kit is pre-painted, you could create your own custom body colouring design with a clear body, as well as elevating the realism with the optional LED light unit (No.97054-4B). The Mad Wagon VE is packaged as a pre-assembled Readyset and requires only batteries for the chassis and charger to get up and running. A wide range of optional parts are available to expand and extend your enjoyment of the R/C car hobby.
Note
Consult the manual for waterproof standards and maintenance.

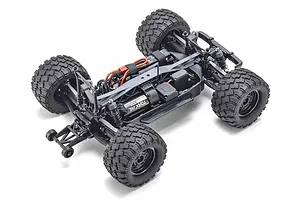

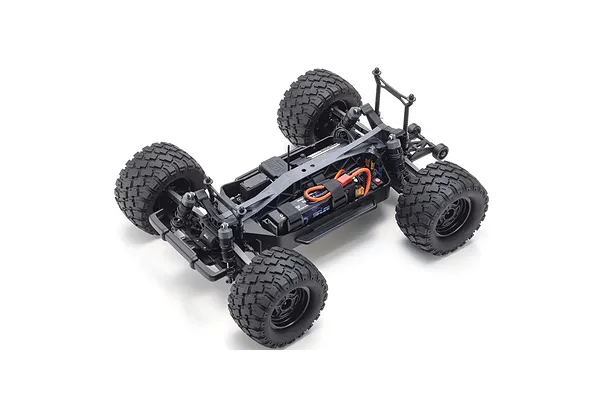

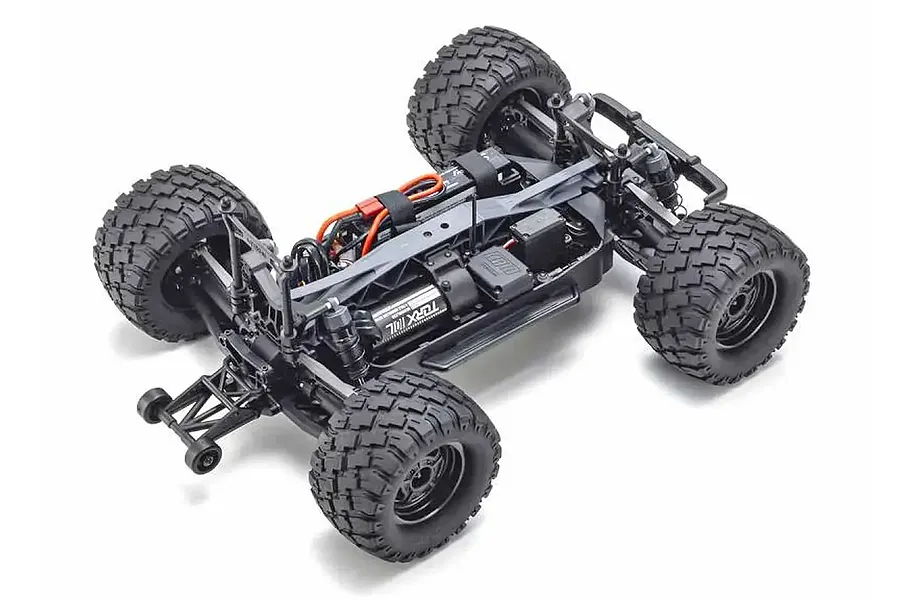

The Mad Wagon VE features a robust chassis design that combines an aluminium main chassis with a vertical resin frame for optimal rigidity and flex. This combination provides a strong and durable foundation for handling various terrains and driving styles.

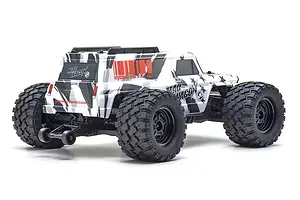

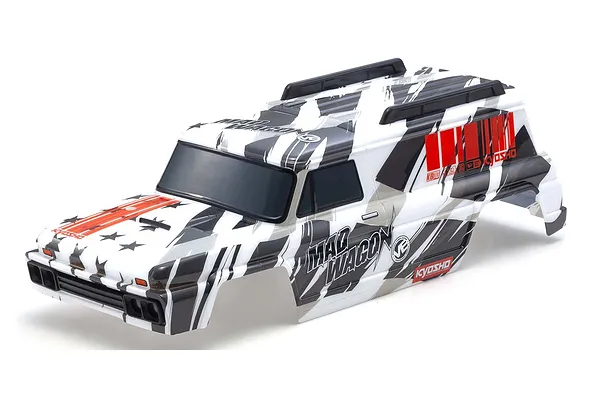

The Mad Wagon VE sports a newly designed polycarbonate body inspired by 1980s van styling. This "Ultra Scale Body" includes a painted finish, decals, and separately moulded grille and light parts for enhanced realism.
Experience impressive speed and torque with the newly developed TORX 10L brushless motor. This high-performance motor efficiently converts power from the 3S LiPo battery into exhilarating performance.

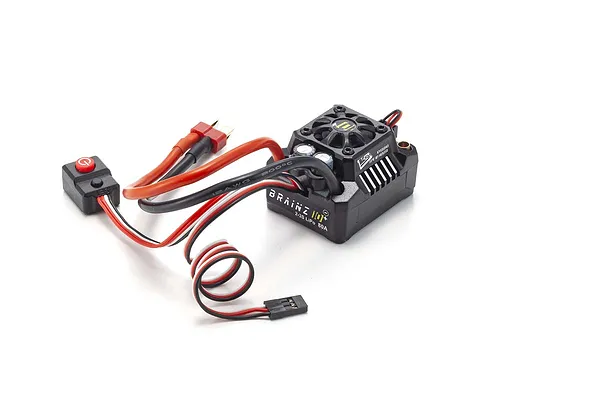

The Mad Wagon VE is equipped with a BRAINZ 10+ waterproof ESC with an 80A capacity. A top-mounted cooling fan manages heat generation for consistent performance even during extended runs.

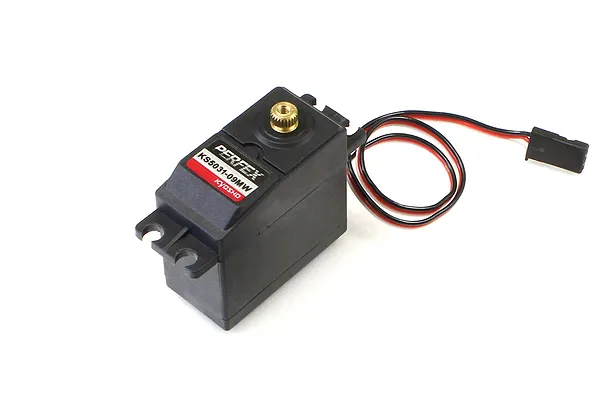

Enjoy precise and reliable steering control with the KS5031-91MW servo. This high-torque servo features all-metal gears and delivers 9kg/cm of torque for responsive handling.

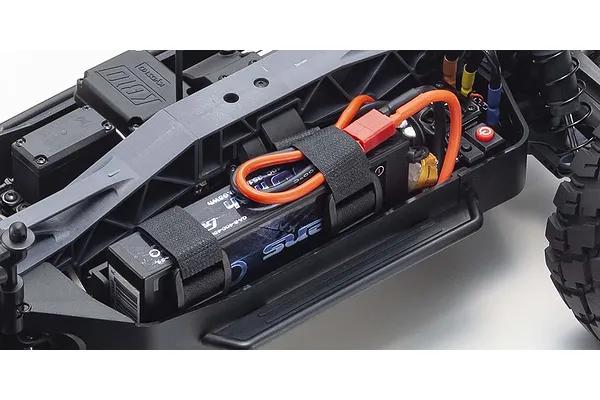

The battery holder accommodates both 3S and 2S LiPo batteries, providing flexibility in your power setup. The offset left-side mount allows for customised weight balance.
Newly designed oil shocks on the front and rear suspension deliver smooth damping and enhanced control. Customise your suspension settings by installing optional springs to suit various running conditions and surfaces.
The Mad Wagon VE features a durable 4-bevel differential gear from the Inferno NEO ST 3.0 buggy. This high-capacity differential is built to handle powerful drive units and offers easy maintenance with simple diff gear replacement.
The newly designed slipper clutch protects the drivetrain from excessive loads while enhancing acceleration. The aluminium shoe provides optimal slip characteristics for smooth and consistent performance.

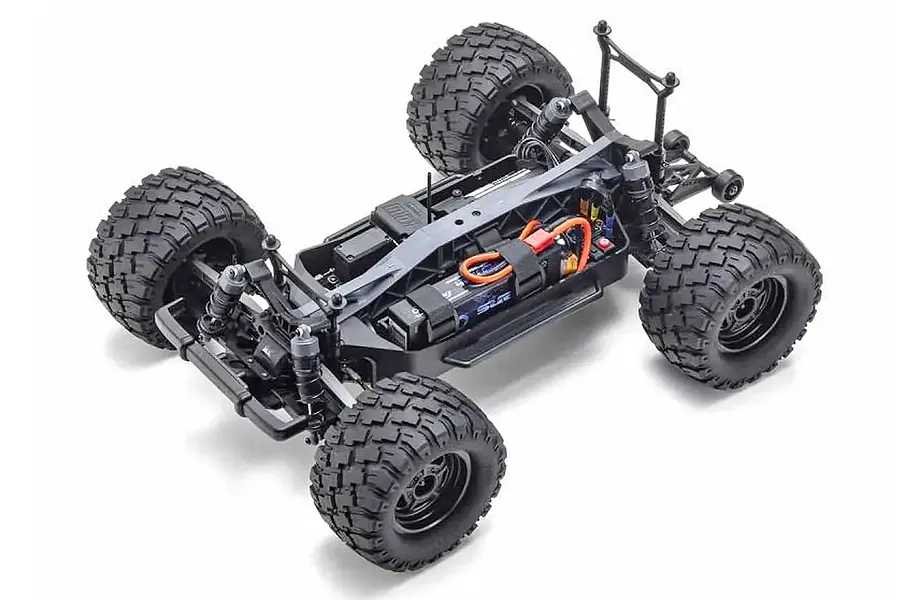

The aluminium main chassis combines with the superior pitch rigidity of the vertical resin frame to create a high-strength structure that delivers optimal balance of high rigidity and suppleness.
Based on 1980s era van styling, this newly designed body is made from durable polycarbonate and finished with paint scheme and decals applied.
Includes newly developed TORX 10L brushless motor producing 2850Kv, efficiently converting power from the 3S LiPo battery into speed and torque.
Equipped with BRAINZ 10+ waterproof ESC that boasts 80A capacity; top mounted cooling fan manages heat generation to reduce power loss even with extended running times.
Features the KS5031-91MW servo with 9kg/cm of torque and all-metal gears, promising reliable steering control.
Features battery holder suitable for mounting 3S LiPo battery; by offsetting the left side mount, left-right weight balance can be set to the driver's preference.
Newly designed oil shocks on front and rear suspension deliver smooth shock absorber function; change suspension settings by installing optional springs.
Features the 4-bevel differential gear from the Inferno NEO ST 3.0 1/8 scale buggy, allowing easy diff gear replacement for superior maintenance efficiency.
Newly designed slipper clutch effectively protects the drive system from excessive power loads; aluminium shoe delivers optimal slip characteristics and improved acceleration.
| Length | 472mm (18.5") |
|---|---|
| Width | 350mm (13.7") |
| Height | 198mm (7.79") |
| Wheelbase | 295mm (11.6") |
| Tread F/R | 278mm (10.9") |
| Tyres F/R | 128 x 70mm (5.0" x 2.75") |
| Gear Ratio | 15.22:1 |
| Weight | approx. 3,610g |
| Motor | TORX 10L Brushless Motor 2850kV |
| Scale | 1/10 |
|---|---|
| Max LiPo Power | 3S (11.1v) |
| Completion | Ready to Run |
| Skill Level | Beginner |
| Power Source | Electric Brushless |
| Chassis Type | Monster Truck |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
| Battery Connector | Deans |
|---|---|
| Pinion Gear | 13T 1Mod |
| Wheel Hex Size | 12mm |
