Part no. 32529GR

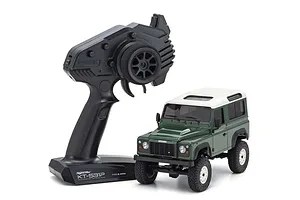

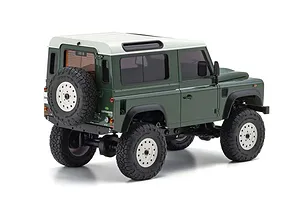

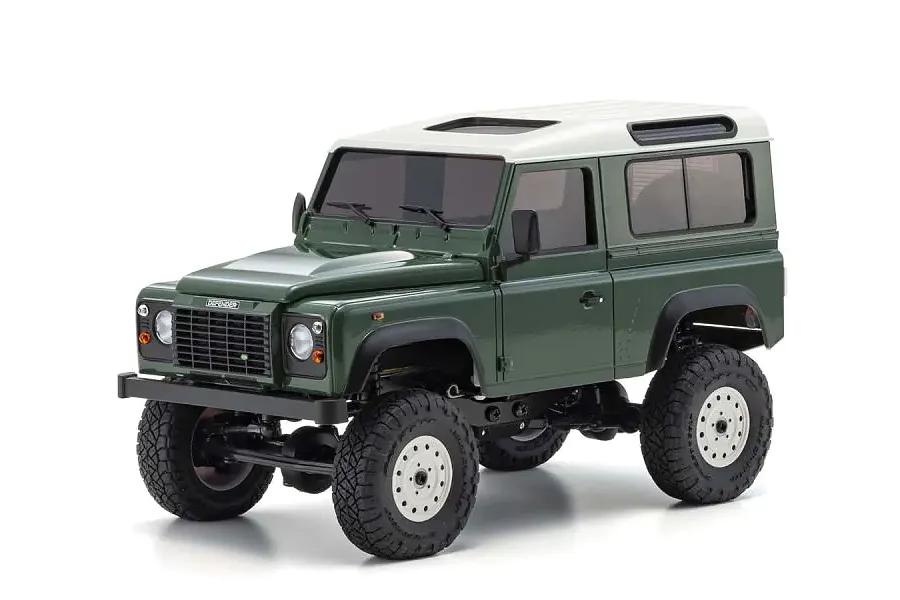

Kyosho Mini-Z Land Rover Defender 90 RTR 4WD mini crawler with 3-link suspension, metal drivetrain, and official Land Rover licence.
Checking delivery dates…
60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·
Now $349.99was $387.86 Save $37
In 2019, Kyosho Mini-Z marked over two decades of performance and scale realism in the hobby-grade RC realm. To continue pushing the boundaries, Kyosho introduced the Mini-Z 4x4 design. This series stands out with its exceptional overall design, driving capabilities, and top-notch injection-moulded scale body construction. The body features enhanced durability, crafted with thicker material to withstand rough terrain and resist damage from crashes.
Inspired by the ladder-style frame found in real 4WD vehicles, the Mini-Z 4x4 boasts a 3-link rigid axle suspension that combines two upper links into a single upper A-arm, ensuring maximum suspension travel. A specially designed high-torque steering servo handles challenging terrain with ease, excelling in demanding rock-crawling conditions. The high-torque 130-size motor is perfectly geared for low to medium-speed ranges.
Utilising advanced injection moulding techniques to attain an unprecedented level of detail, this meticulously crafted shell has a detail usually only seen in die-cast models. It proudly bears an official license, demonstrating an unwavering commitment to faithfully replicate every aspect of the actual vehicle.
Tyres and wheels that are specific to each model are a major focus of the Mini-Z 4x4. This model features a scale reproduction of the Toyo Tyre's export brand "Nitto Ridge Grappler" tyres mounted on custom wheels.
The Mini-Z 4x4 incorporates a ladder frame design with steel vertical plates, in combination with various moulded parts to deliver the ultimate balance of rigidity and flex for superior performance and durability.
The Mini-Z 4x4 is equipped with advanced coil-over shocks, meticulously designed with a thoughtful 360-degree spring retainer. This ingenious feature ensures that you won't lose any vital components while navigating challenging terrains, keeping the springs securely in place even during the most extreme suspension movements. It's the perfect combination of practical engineering and innovation, enhancing your off-road experience.
The Mini-Z 4x4 features a specially-designed high-torque motor that is unique to the Mini-Z World. It's optimised for maximum torque, and develops more power at lower speeds.
The Mini-Z 4x4's gearbox is a marvel of engineering, boasting carefully crafted moulded covers, precision ball bearings, and a selection of six pinion gears. This versatile gearbox provides you with the flexibility to fine-tune your vehicle's performance to match your chosen terrain. Just like its Mini-Z counterparts, adjusting the gear mesh is a breeze thanks to the included spacers, ensuring your RC adventure is both seamless and exhilarating.
| Length | 185.8mm (7.31") |
|---|---|
| Width | 83mm (3.27") |
| Height | 104mm (4.09") |
| Wheelbase | 110mm (4.33") |
| Weight | 248.6g (8.76oz) |
| Tyre Diameter/Width F/R | 42/14.3mm (1.65/0.56") |
| Chassis | Crawler |
| Drivetrain | 4WD |
| Gears | 55.4:1 / 46.2:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1 |
| Suspension | Coil over shock absorbers |
| Motor | 130 Sized Brushed Electric |
| ESC | N/A |
| Scale | Mini-Z |
|---|---|
| Completion | Ready to Run |
| Skill Level | Beginner |
| Power Source | Electric Brushed |
| Chassis Type | Rock Crawler |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
| Battery Connector | AAA |
|---|---|
| Pinion Gear | 10T, 12T, 14T, 16T, 18T, 20T |
