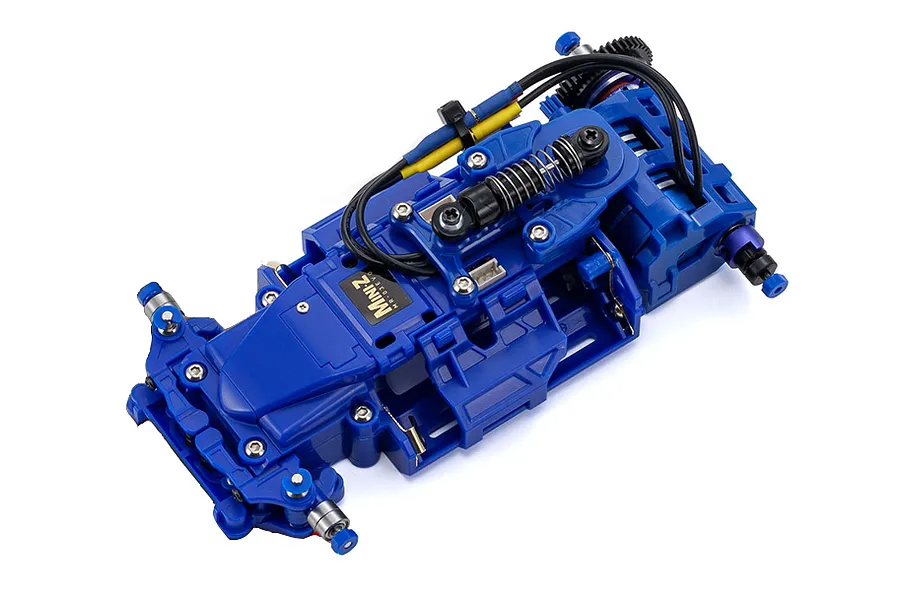

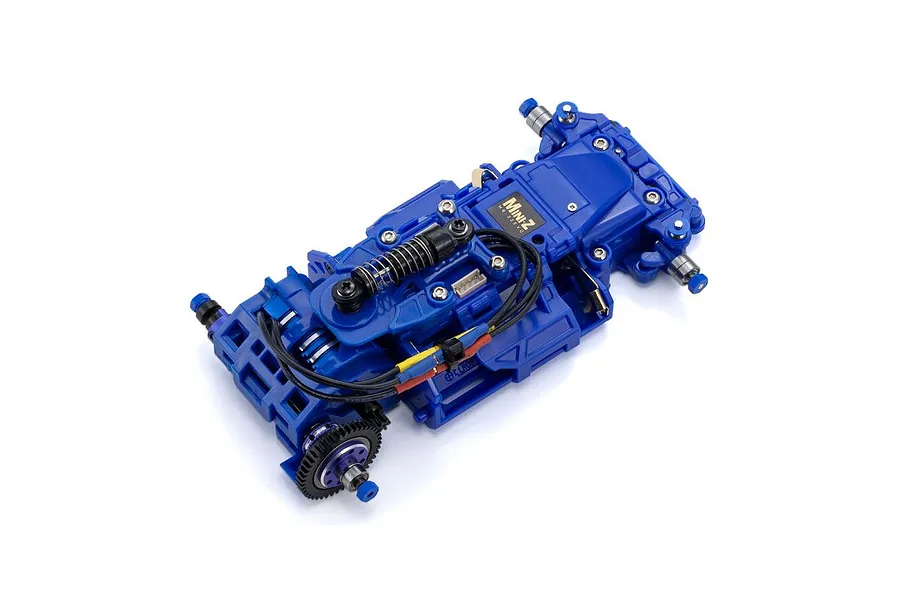

Name: Kyosho Mini-Z MR-03EVO SP Limited RC Car Electric Brushless RWD Mini-Z Scale Chassis Set - Blue
Brand: Kyosho
SKU: KYO-32793SP
Price: 351.69 AUD
Availability: OutOfStock

Overview

Please Note:

This is a chassis set and requires a separate body, receiver unit, and transmitter.

The Kyosho Mini-Z MR-03EVO SP Limited Chassis Set takes Mini-Z racing to the next level with its advanced features and limited-edition design. This chassis set features independent ESC and receiver units, allowing for improved performance and compatibility with various transmitters. The included KYOSHO SPEED HOUSE XSPEED 56 brushless motor delivers exhilarating speed and acceleration, while the new CPU provides faster feedback and a more precise steering feel.

The MR-03EVO SP Limited also features a range of SP spec parts, including nickel-plated hex screws, an oil shock, and a blue anodised ball diff. The I.C.S manager allows for detailed parameter adjustment and even allows for switching between brushless and brushed motor modes. With its enhanced performance and striking blue colour scheme, the Kyosho Mini-Z MR-03EVO SP Limited Chassis Set is the perfect choice for serious Mini-Z racers and tuners.

Note

This is a chassis set and requires a separate body, receiver unit, and transmitter.

Features

Limited edition blue anodised motor and ball diff
Blue plastic parts throughout the chassis
MR-03EVO chassis with independent ESC and receiver
KYOSHO SPEED HOUSE XSPEED 56 brushless motor (5600Kv)
I.C.S manager for detailed parameter adjustment and brushed motor compatibility
Nickel-plated hex screws
Improved SP chassis
Oil-filled shock
Ball diff with blue anodising
New upper arms with various caster angles (1 deg./2 deg./3 deg.)
Compatible with optional parts for the MR-03 chassis
Genuine Kyosho Product

In the box

1x MR-03EVO-N-MM2 Factory Assembled Chassis With KYOSHO SPEED HOUSE XSPEED 56 Brushless Motor (5600kv)
1x Parts Set For Changing Front Tread
1x 6T, 7T, 8T, 9T Pinion Gears
1x Wheel Wrench
1x Tools For Pinion Gears
1x Spare Wheel Nuts

You'll need

1x Receiver Unit
1x Transmitter Compatible With Receiver Unit & Batteries
1x Auto Scale Collection Body (Body Set, Wheels, Tyres)
4x AAA Alkaline Batteries or Ni-MH Batteries For Chassis

Highlights

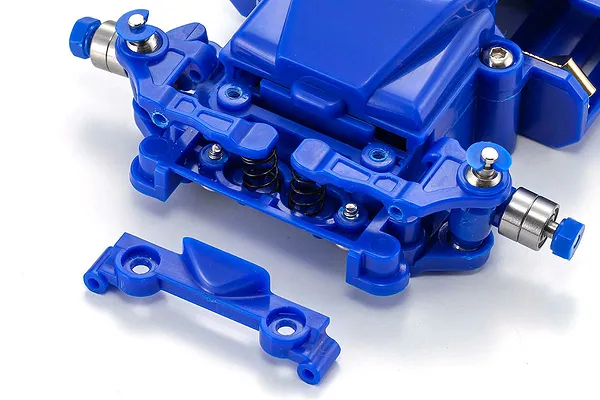

Enhanced Chassis Design

Based on the MR-03VE PRO chassis, the Mini-Z MR-03EVO SP features newly designed front upper arms and mount for easier tread adjustment and fine-tuning. This refined design allows for precise customisation and improved handling.

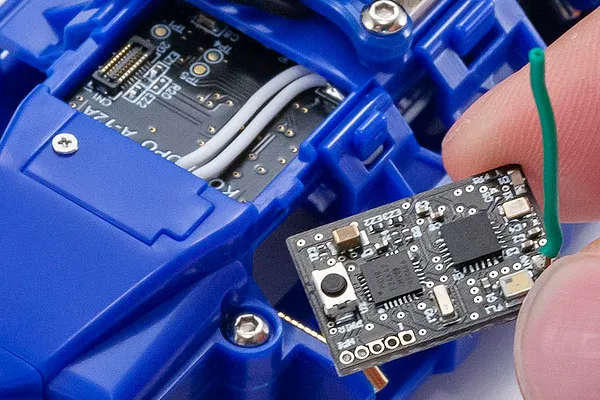

Versatile Receiver Compatibility

The Mini-Z MR-03EVO SP is compatible with receiver units for various transmitters, including KYOSHO, KO, FUTABA, and FlySky Noble. Easily attach or detach the receiver by removing the receiver cover from the upper chassis.

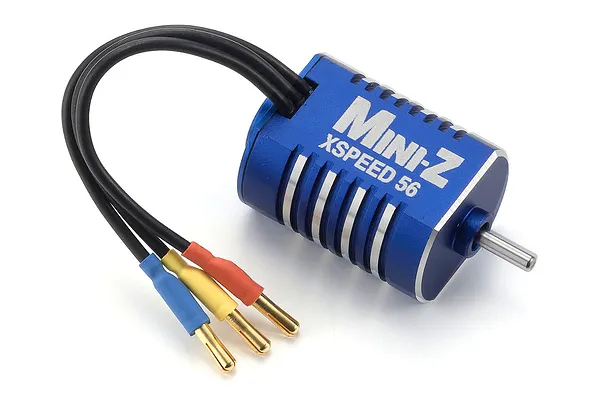

High-Performance Brushless Motor

The KYOSHO SPEED HOUSE XSPEED 56 brushless motor (5600KV) delivers impressive power and performance. Its one-piece aluminium case provides efficient heat dissipation, ensuring consistent operation and extended lifespan.

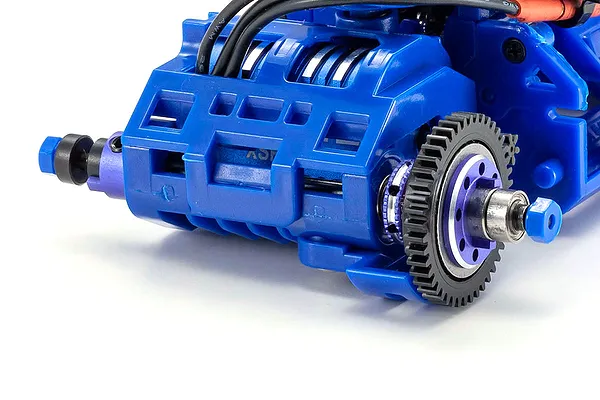

Lightweight Ball Diff Set II

The included Ball Diff Set II features blue anodised aluminium parts that reduce weight and optimise balance, enhancing the Mini-Z's handling and responsiveness. This essential upgrade is frequently used in competition-level racing.

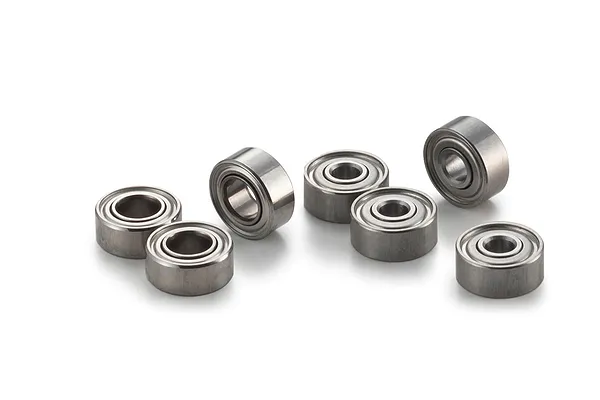

Full Ball Bearings for Maximum Efficiency

The Mini-Z MR-03EVO SP Limited is equipped with full ball bearings throughout the drivetrain, minimising friction and maximising efficiency. This design reduces power loss and ensures smooth operation for optimal performance.

Specifications

Length	120.5mm (4.74")
Width	70-76mm (2.76-3")
Height	35mm (1.38")
Wheelbase	94mm (3.7") (L)
Weight	135g (4.76oz)
Chassis	MR-03EVO
Suspension	Oil Shocks
Drivetrain	RWD
Motor	KYOSHO SPEED HOUSE XSPEED 56 (5600Kv)
ESC	Independent ESC

RC Car

Scale	Mini-Z
Max LiPo Power	2S (7.4v)
Completion	Chassis Set
Skill Level	Intermediate
Power Source	Electric Brushless
Chassis Type	Car
On/Off Road	On Road
Drivetrain	RWD
