Kyosho Mini-Z MR04 720S McLaren GT3 RC Car Electric RWD RTR - White

  • 2WD
  • RTR
  • Brushed

Part no. 32364W

DiscontinuedNo reviews yet
1 / 11
1 / 11

Overview

The latest evolution in high-performance micro R/C is now available in the Kyosho Mini-Z RWD (Rear-Wheel Drive) Series, now built on the advanced MR-04 chassis and topped with a stunning McLaren 720S GT3 body. This Readyset package delivers blistering speed and excellent handling right out of the box, suitable for both newcomers and seasoned racers.

The MR-04 chassis is a significant step forward, boasting a lower centre of gravity (CG) due to a revised battery layout. A completely redesigned front suspension and new steering knuckles provide sharper, more linear control and improved stability during cornering. This factory-assembled chassis comes equipped with a 130-class brushed motor, a full set of ball bearings, and a smooth geared differential for consistent performance.

The included Syncro KT-531P transmitter features a selectable training mode that limits the car's top speed, allowing new drivers to learn at a comfortable pace. With its incredible, display-quality scale detail and top-tier handling, this Mini-Z offers an authentic R/C experience for all skill levels. Just add AAA batteries to the car and transmitter to start racing.

Note

Requires a total of 8x AAA batteries (4 for the car, 4 for the transmitter) to be fully operational.

Features

  • A complete ReadySet package with a fully assembled chassis, body, and transmitter
  • Features the latest high-performance MR-04 RWD chassis with a low centre of gravity
  • Includes a stunning, pre-painted McLaren 720S GT3 body finished to a display model standard
  • Redesigned front suspension and knuckles provide a sharper and more linear steering feel
  • A full set of ball bearings is included as standard for maximum drivetrain efficiency
  • The included KT-531P transmitter features a training mode for new drivers
  • Compatible with a huge range of optional parts for tuning, including a gyro unit (sold separately)
  • Genuine Kyosho Product

In the box

  • 1x Factory Assembled MR-04 Chassis
  • 1x Pre-Painted McLaren 720S GT3 Body
  • 1x Syncro KT-531P 2.4GHz Transmitter
  • 1x Front Tread Adjustment Parts Set
  • 4x Pinion Gears (6T, 7T, 8T, 9T)
  • Spare Wheel Nuts and Wrench
  • 1x Instruction Manual

Highlights

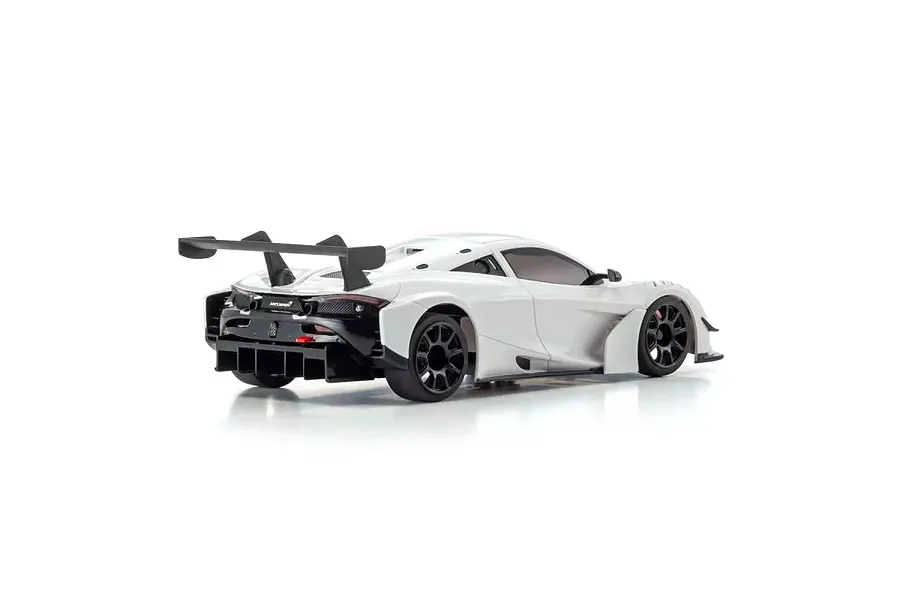

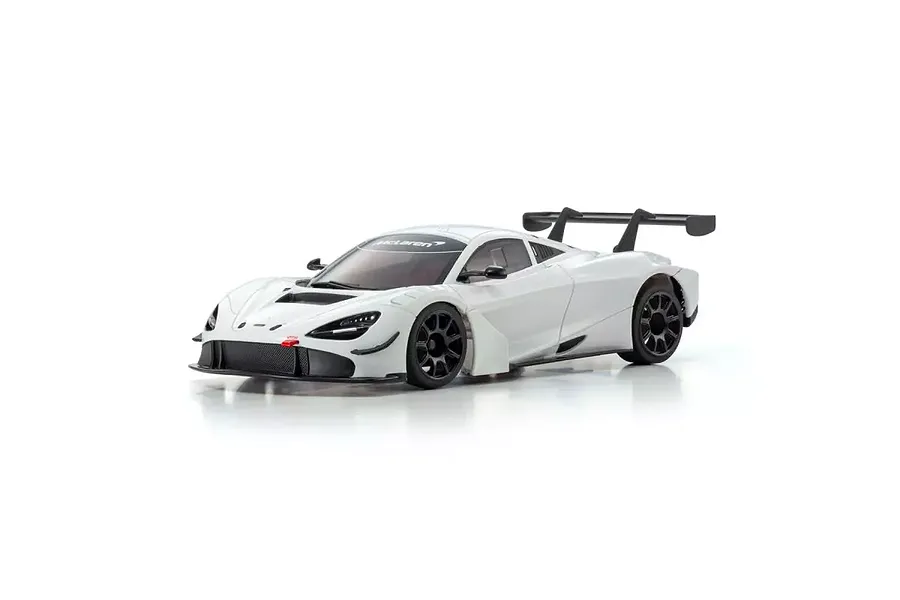

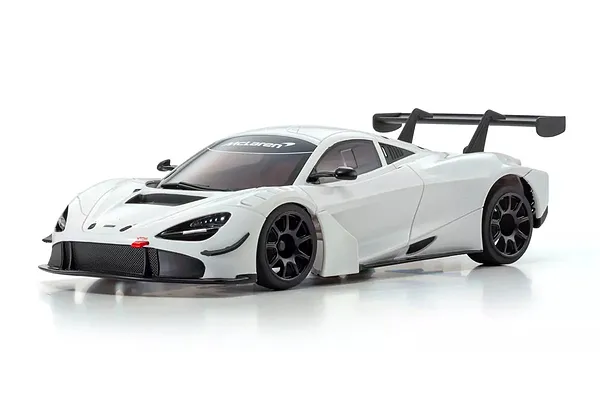

Micro in Size, Scale in detail

Micro in Size, Scale in detail

The McLaren GT3 is a high-performance car built by McLaren, a brand famous for its F1 legacy. This FIA GT3 race version has an output of 720 horsepower. Features like a rear wing and front canards, which aren't found on the road version, clearly show its racing pedigree. This car is all about speed, performance, and its history in motorsport.

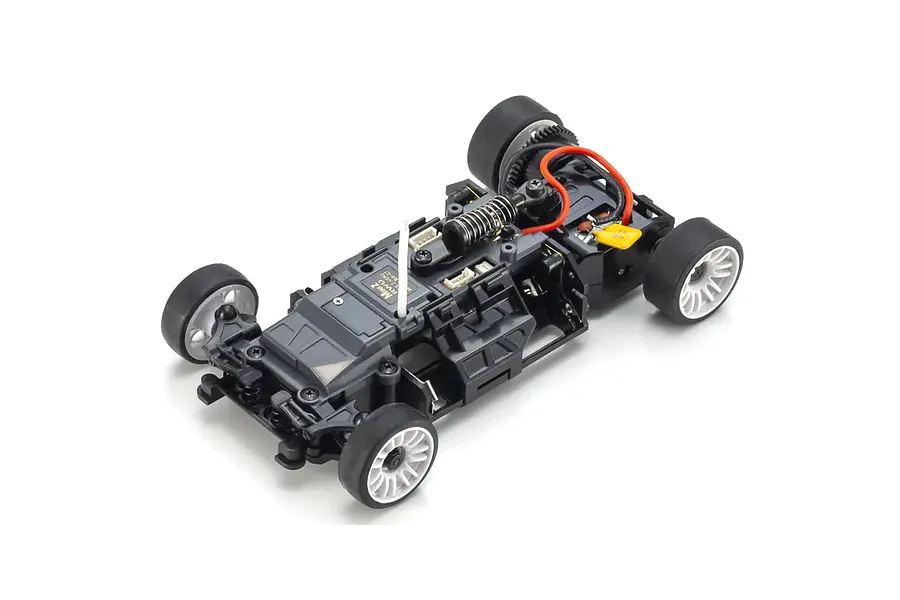

New Chassis Design

New Chassis Design

While keeping all the great parts of the MR-03, the new MR-04 chassis has a lower centre of gravity. This gives you some serious boosts in performance. The MR-04 is also much easier to control, making it the perfect way to get into the exciting world of RC cars without a steep learning curve.

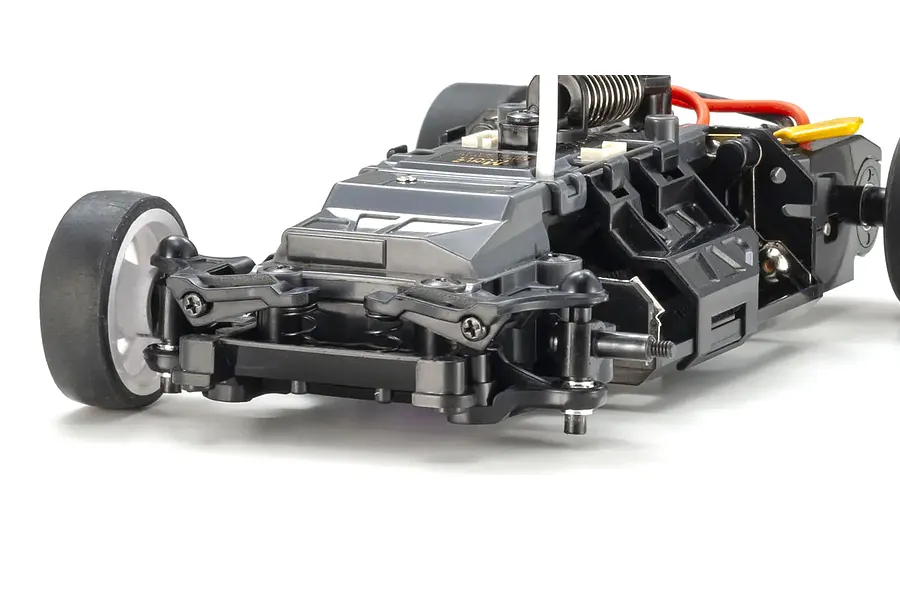

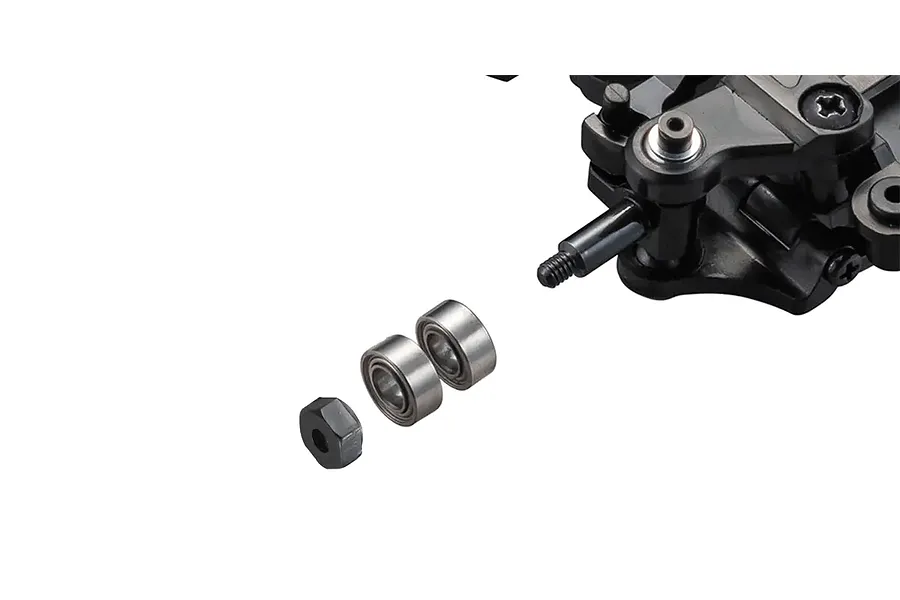

Better Front End Controll

Better Front End Controll

New front knuckles with integrated kingpins reduce scrub by 1.5mm on each side compared to the MR-03. This gives you a much sharper and more direct feel in your steering. The switch to 3mm inner diameter ball bearings also means the wheels spin with less friction, giving you smoother and faster control.

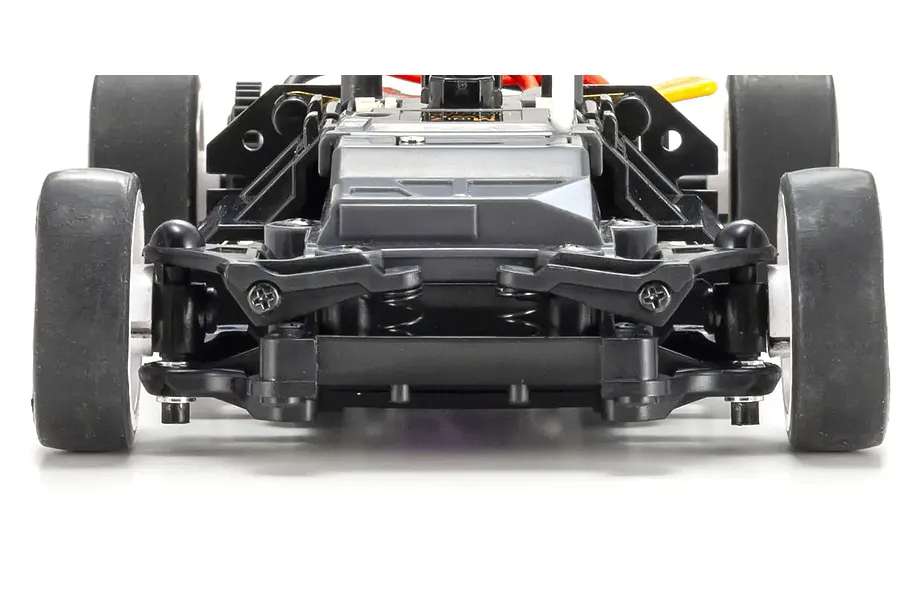

New Front Suspension

New Front Suspension

The car's front suspension is all about getting the most out of your tyres. It dynamically changes the camber angle with the movement of the upper arm, which helps to maintain optimal tyre contact during cornering. A revised caster angle also gives you a better steering feel and faster response.

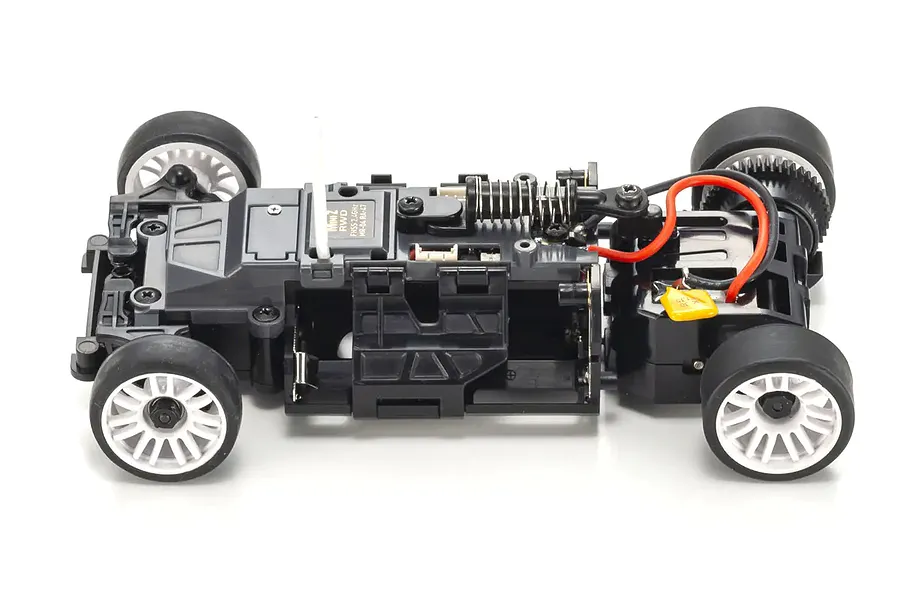

Lower Battery Mount

Lower Battery Mount

This car is powered by four AAA batteries, which are mounted lower than in the MR-03. This design choice gives the entire chassis a lower centre of gravity. The result is better stability in corners and a more predictable, planted feel when you're driving at speed.

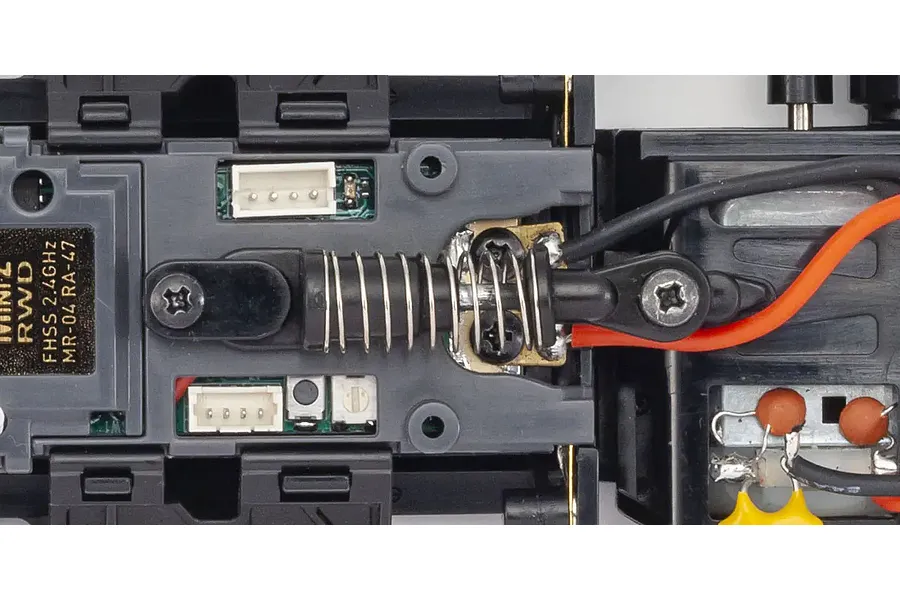

Coil Over Rear Suspension

Coil Over Rear Suspension

The rear suspension uses a coil spring damper to absorb bumps from the road and give you a much more stable drive. You can also upgrade it to an optional oil-filled shock absorber, which can give you even better performance and more tuning options to suit your driving style and the track con

Stylish Syncro KT-531P Transmitter

Stylish Syncro KT-531P Transmitter

The included Syncro KT-531P transmitter offers precision control with steering/throttle trim and dual-rate adjustment for steering angle. Its user-friendly Training Mode limits speed for easy learning, making it perfect for beginners. This stylish transmitter provides the perfect blend of functionality and aesthetics.

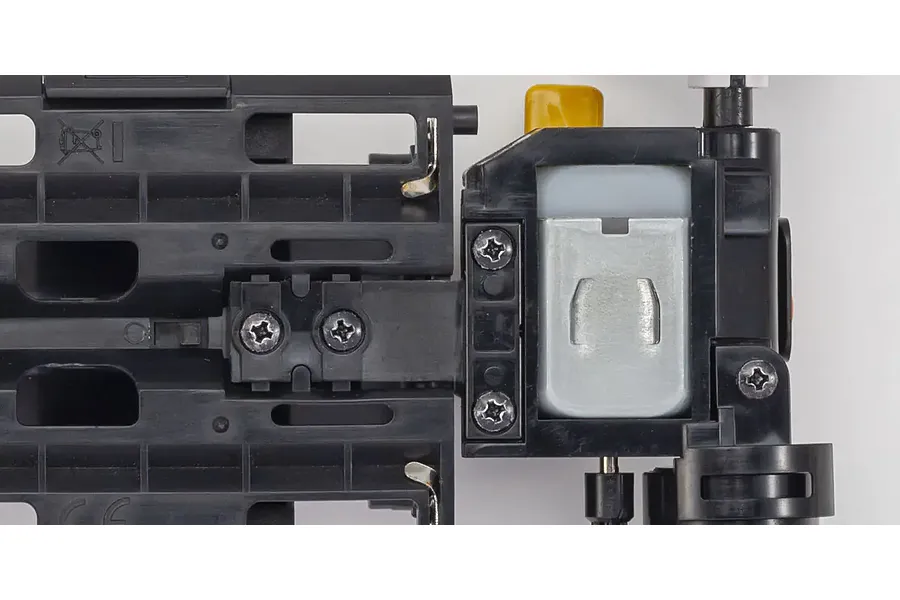

Flexible Rear T-Bar

Flexible Rear T-Bar

The rear suspension features a flexible T-bar plate that supports the motor and rear axle. The flexible design gives the car great suspension effects, which helps to keep the tyres firmly on the track. This gives you more traction and a more stable feel in corners.

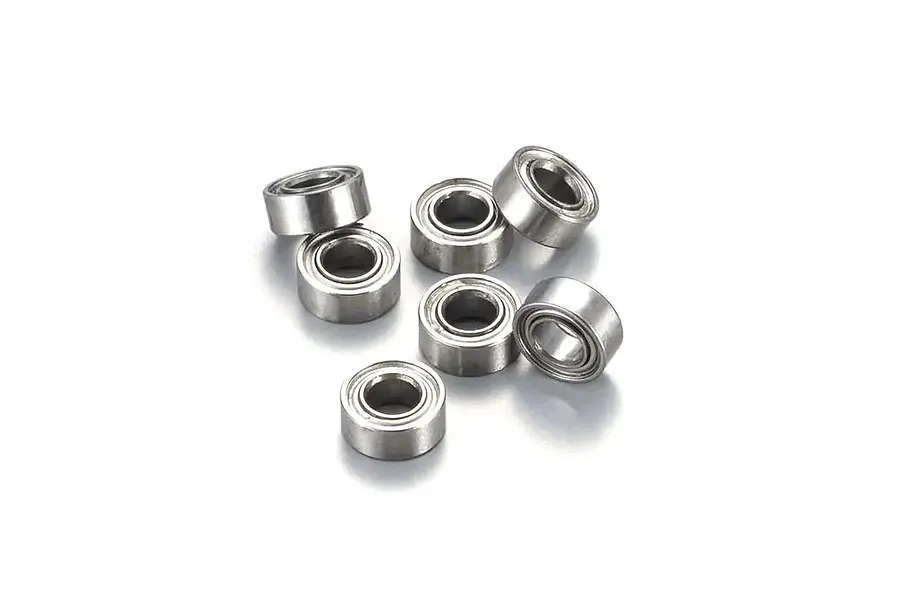

Smooth and Fast

Smooth and Fast

All axles are equipped with low rotational resistance ball bearings as standard. These ball bearings are the same size for both the front and rear axles, which makes it easier to keep spare parts on hand. The low resistance means you get smoother and faster performance from the car.

Changeable Wheel Offset

Changeable Wheel Offset

The MR-04 is designed for easy customisation. A parts set is included that lets you easily change the front tread to fit different bodies. You can also adjust the rear tread by changing the wheel offset. This gives you the freedom to build a car that is truly unique.

Specifications

Length173.0mm (6.8")
Width78.3mm (3.1")
Height45.64mm (1.8")
Wheelbase98.0mm (3.9")
Weight169g (6.0 oz)
ChassisMR-04 (On Road)
Drivetrain2WD
SuspensionCoil Over Shock Absorber
Motor130 Sized Brushed Motor
ESCN/A

RC Car

ScaleMini-Z
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeCar
On/Off RoadOn Road
DrivetrainRWD

RC Kit

Suited Motor/ESC TypeBrushed

Factory Specs

Battery ConnectorAAA
Pinion Gear8, 7, 6, 9
Wheel Hex Size7mm
