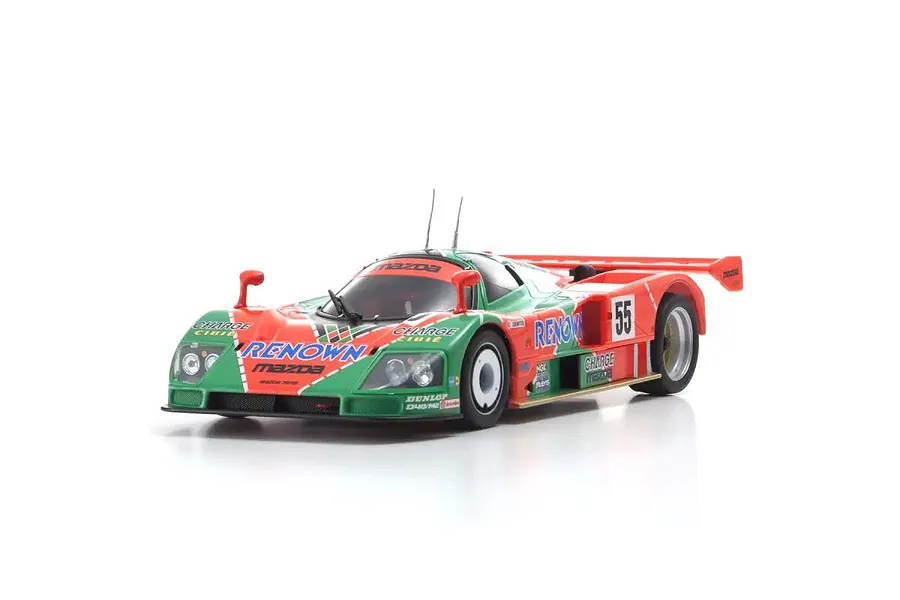

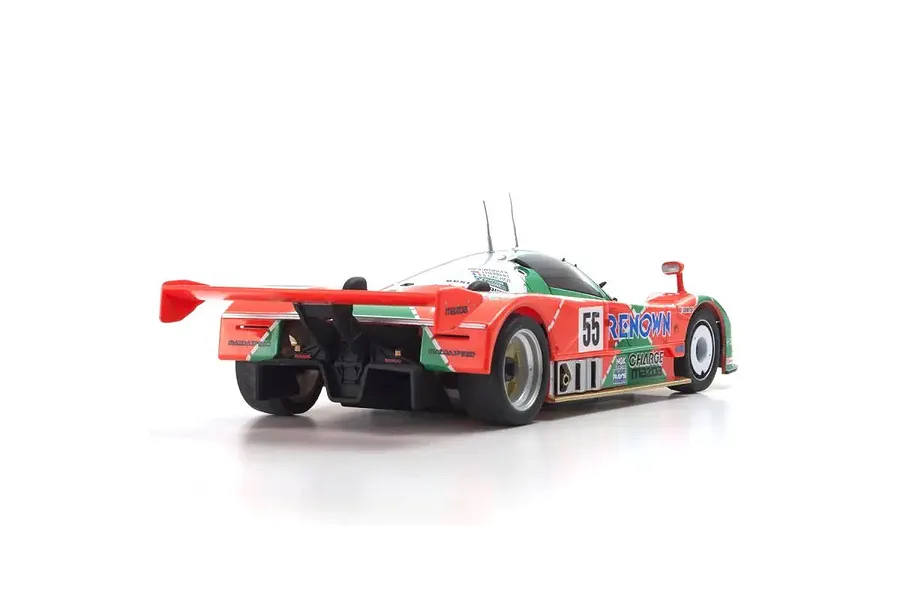

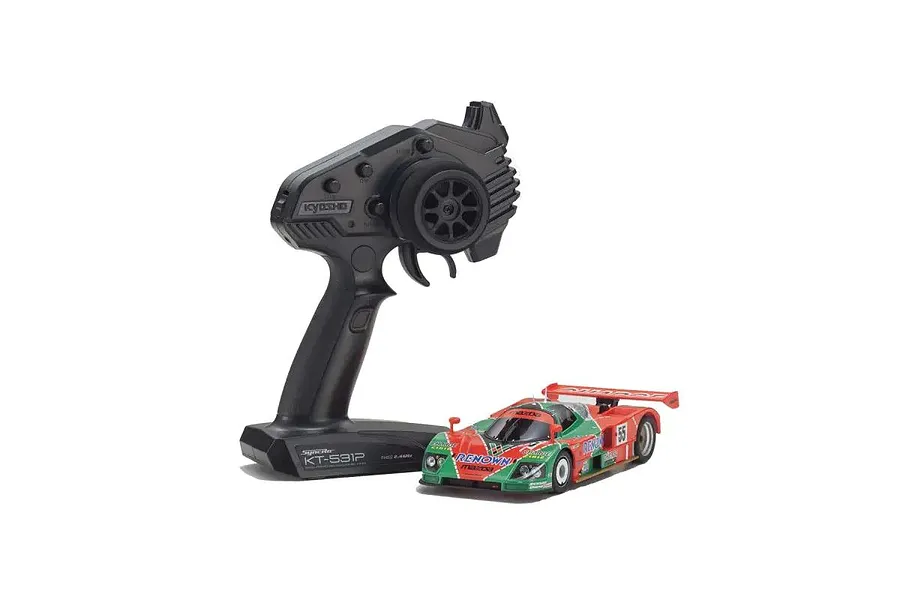

Kyosho Mini-Z MR-04 Mazda 787B No.55 LM 1991 RC Car Electric RWD RTR - Renown Charge

Kyosho Mini-Z MR-04 Mazda 787B No.55 LM 1991 RC Car Electric RWD RTR - Renown Charge

Kyosho Mini-Z MR-04 Mazda 787B No.55 LM 1991 RC Car Electric RWD RTR - Renown Charge

Brand: Kyosho | SKU: 32361RE
sold out
$315.68
Kyosho Mini-Z MR-04 RC Car: Iconic 787B Le Mans winner fun! Latest MR-04 chassis & superior RWD handling!
  • Latest MR-04 chassis for superior handling
  • Requires only 8 x AAA batteries to run!
  • Immaculate replica Mazda 787B Le Mans winner
  • Compact Mini-Z size RWD handling focus
  • From Beginner to Pro you can drive a legend and race for fun!
Add to Wishlist
Save Time & Add These Now
Complete your setup with these required items.
AAA Batteries
AAA Batteries
Description

Get ready to race a legend with the Kyosho Mini-Z MR-04 Mazda 787B No.55 LM 1991 RC Car! This Mini-Z is an immaculate replica of the iconic Renown Charge 787B, the first Japanese Le Mans 24 Hours winner. Experience the fun of high-performance RWD handling in a compact Mini-Z size, perfect for driving indoors and easy for newcomers, thanks to the latest MR-04 chassis!

The 4th generation MR-04 chassis offers superior handling with its lower centre of gravity and remodelled steering design. Includes a reliable 130-class brushed motor and the user-friendly KT-531P transmitter. Key features like VCS front suspension and full ball bearings deliver smooth performance. Easily tuneable with optional parts, like a gyro. Just add 8 x AAA batteries to car & transmitter for authentic Le Mans racing fun!

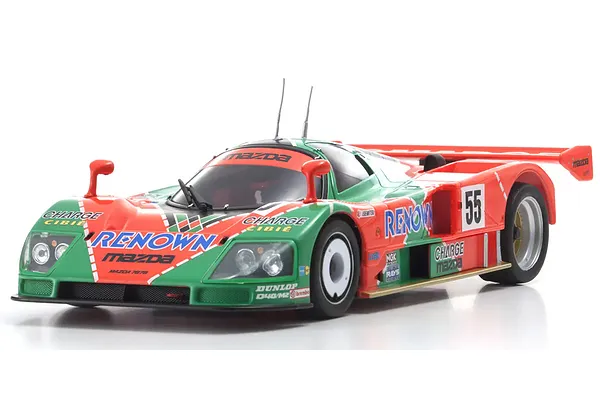

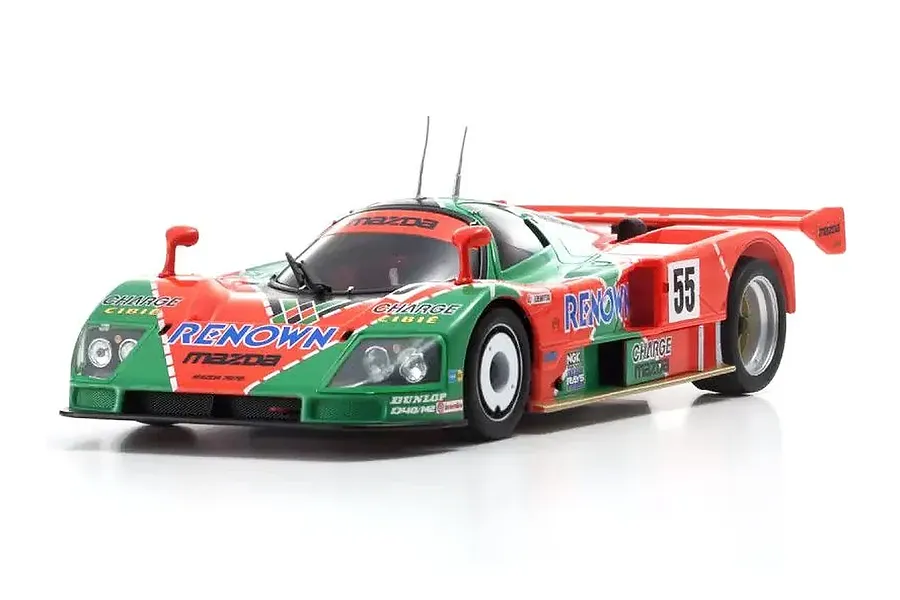

Immaculate Scale Mazda 787B Le Mans Winner

An immaculate reproduction of the Mazda Renown Charge 787B! This iconic car was the first Japanese car to claim the legendary Le Mans 24 Hour endurance race trophy in 1991, which was notably the last year open to rotary engine cars. A true piece of motorsport history in stunning Mini-Z scale detail.

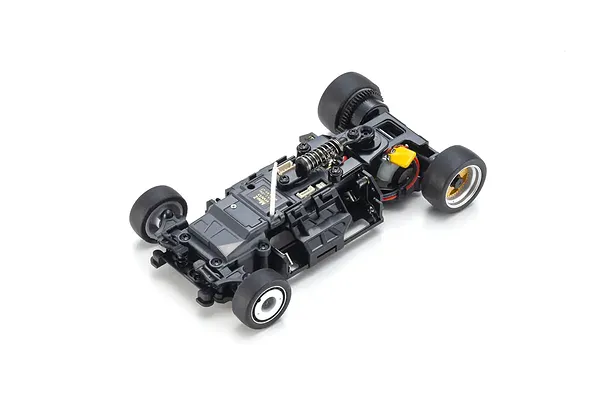

New MR-04 Chassis with Lower CG

While retaining the best aspects of the proven MR-03, the lower centre of gravity of the new MR-04 chassis delivers significant performance improvements. The easier control of the MR-04 makes it an ideal and accessible introduction to RC cars for beginners, enhancing stability and handling on smooth surfaces.

New Front Hubs Improve Control

New front hubs with integrated kingpins reduce scrub by 1.5mm on each side compared to the MR-03 design, realizing sharper and more linear control. The change to 3mm inner diameter ball bearings also reduces rotational resistance, further enhancing steering precision and smoothness.

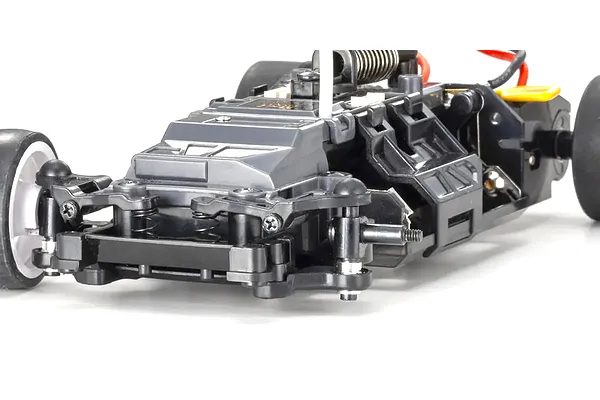

Optimised Front Suspension Geometry

Front suspension dynamically aligns the camber angle with movement of the upper arm to maintain optimal tyre contact during cornering. Revised caster angle also delivers improved steering response, ensuring the chassis reacts precisely to inputs for controlled and responsive handling on the track.

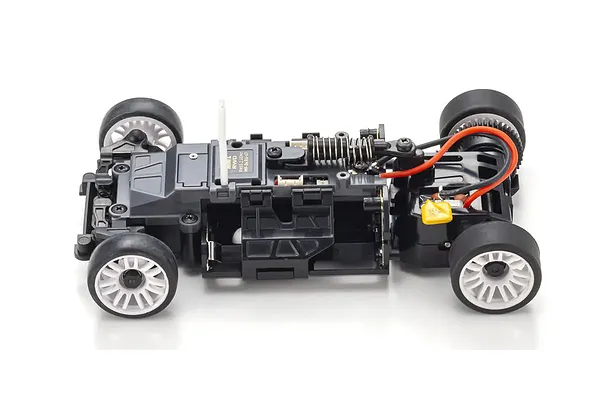

Lower Battery Mount for Improved Handling

The chassis is powered by four AAA alkaline or rechargeable nickel-metal hydride (NiMH) batteries (sold separately). The batteries are mounted lower than on the MR-03. This strategically lowers the centre of gravity of the entire chassis to deliver improved cornering stability and straight-line handling.

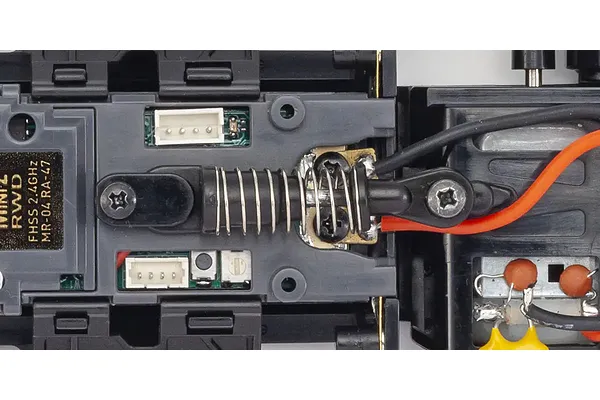

Rear Suspension with Coil Spring Shock

The rear suspension uses a coil spring shock to cushion rough riding from the road surface and improve driving stability. This standard setup provides reliable performance and can be upgraded to an optional oil-filled shock absorber for enhanced damping and tunability to suit different track conditions.

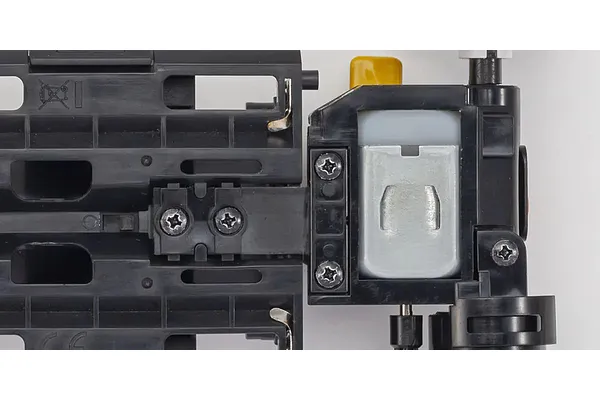

Flexible T-bar Rear Suspension Plate

Flexibility of the T-bar rear suspension plate that holds the entire rear pod, including the motor and rear axle, produces excellent suspension effect. This design is a key part of the rear chassis' performance and feel. Optional parts are also available in FRP and carbon for tuning the flexibility and handling characteristics.

Ball Bearings as Standard

All axles are equipped with low rotational resistance ball bearings as standard. The same size ball bearings are used for both front and rear for spare parts efficiency. This reduces friction and wear, ensuring smooth operation and durability throughout the drivetrain.

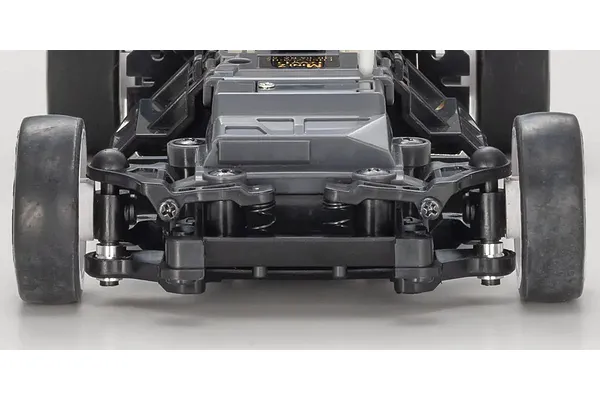

Adjustable Tread and Wheelbase for Body Swaps

Flexibility for using different body styles! When changing from the stock body, a parts set is included to change the front tread (vehicle width) to match the replacement body to be installed if needed. Rear tread can be changed by changing the wheel offset (Requires parts to be purchased separately).

Features
  • Latest MR-04 chassis, a major evolution from MR-03
  • Lower centre of gravity & remodelled steering for improved handling
  • Highly detailed, factory-finished replica Mazda 787B body
  • Powered by reliable 130-class brushed motor
  • Full ball bearing specifications for smooth performance
  • Front suspension with VCS optimises handling
  • Compatible with optional gyro unit & wide range of tuning parts
  • Fully assembled and Ready-To-Run with included KT-531P transmitter
  • Requires only 8 x AAA-size batteries for car and transmitter
  • Genuine Kyosho Product
Specifications
  • Length: 180.0mm (7.09")
  • Width: 78.0mm (3.07")
  • Height: 40.0mm (1.57")
  • Wheelbase: 102.0mm (4.02")
  • Weight: 0.13kg (0.29lbs) approx.
  • Chassis: MR-04W-LM
  • Suspension: VCS Front, Coil Spring Rear
  • Drivetrain: 2WD, Geared Differential, Ball Bearing
  • Motor: 130-Class Brushed
  • ESC: Integrated Electronic Speed Control
Included Items
  • 1x Factory Assembled Mini-Z MR-04 Chassis (With Electronics Installed)
  • 1x Pre-Painted And Finished Body (Mazda 787B No.55 LM 1991 Renown Charge)
  • 1x Perfex KT-531P 2.4GHz Transmitter
  • 1x Set Of Front Tread Adjustment Parts
  • 1x Set Of Front Suspension Adjustment Spacers
  • 4x Pinion Gears (6T, 7T, 8T, 9T)
  • 1x Set Of Spare Nuts
  • 1x Wheel Wrench
  • 1x Pinion Gear Tool
  • 1x Set Of Tyres
  • 1x Set Of Wheels
Required Items
  • 4x AAA Batteries For Chassis
  • 4x AAA Batteries For Transmitter
Specifications
Factory Specs
Pinion Gear
6T, 8T, 9T, 7T
Battery Connector
AAA
RC Car
Drivetrain
2WD
Completion
Ready to Run
On/Off Road
On Road
Chassis Type
Car
Power Source
Electric Brushed
Skill Level
Beginner
Scale
Mini-Z
