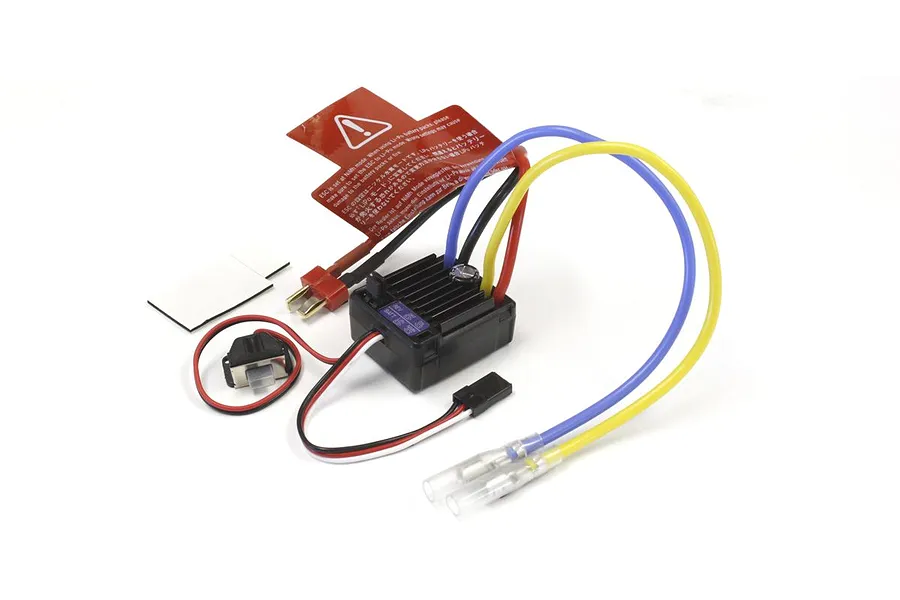

Name: Kyosho Orion Brushed ESC 45A Marine w/ Deans Plug
Brand: Kyosho
SKU: KYO-82243MS
Price: 96.02 AUD
Availability: Discontinued

Overview

The Kyosho Orion Brushed ESC 45A Marine w/ Deans Plug is a reliable and waterproof electronic speed controller designed for RC boat applications. Its compact and lightweight design makes it easy to install in a variety of models.

Features

Waterproof design for marine environments
45A continuous current handling
Suitable for 1/10 scale RC boats
Compatible with brushed motors up to 540 size and 12 turns
Programmable for custom tuning
Genuine Kyosho product

In the box

1x Kyosho Orion Brushed ESC 45A Marine w/ Deans Plug

Specifications

Length	36mm (1.42 in)
Width	40mm (1.57 in)
Height	23mm (0.91 in)
Weight	50g (1.76 oz)
Continuous/Peak Current	45A/180A
Waterproof	Yes
Motor Limit	540 size, 12 turn
BEC	N/A
Voltage Limit	7.4V (2S LiPo)
Programmable	Yes
Scale	1/10
Sensored	No

ESC (Electronic Speed Controller)

For Motor Type	Brushed
Max Voltage	7.4V
Waterproof Design	Yes
Continuous Amps	45A
Motor Connectors	Basic Bullet
Battery Connector	Deans
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes
Cooling Method	Air
Dual Motor	No
