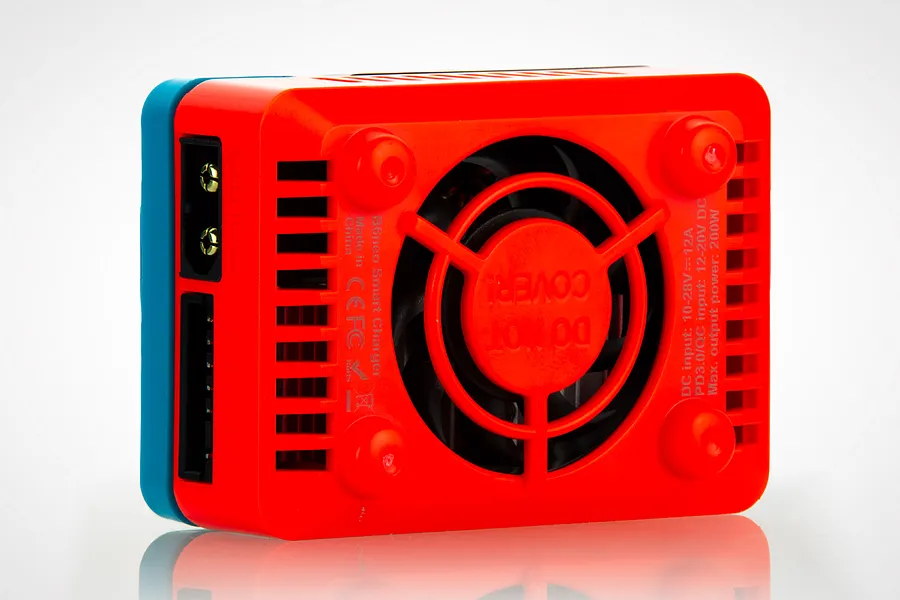

SkyRC B6neo Smart Charger - Crimson Sky
SkyRC B6neo Smart Charger - Crimson Sky
Next-gen compact RC charger: up to 200 W DC / 80 W USB-C PD, supports LiPo, NiMH, NiCd, Pb and more.
- Up to 200 W charging power via DC input (10–28 V)
- Up to 80 W charging via USB-C PD3.0/QC (12–20 V)
- Supports LiPo, LiFe, LiIon, LiHV, NiMH, NiCd, and Pb battery chemistries
- Compact credit-card-sized design (70 x 50 x 32 mm, 82 g)
- Colour TN display — 1.77 inch, 262K colours
SkyRC's legendary iMax B6 charger was an iconic charger back in 2006, and the B6neo is the next-generation successor. Almost 1/4 the size of its predecessor and smaller than a credit card, the B6neo still packs a powerful punch. Unlike the rugged aluminium case of the B6, the B6neo features stunning colour schemes in sleek plastic cases.
When powered by DC, the B6neo can charge up to an impressive 200W, while it can handle up to 80W with USB PD input. This is a significant improvement over the B6, which can only charge up to 50W on DC and does not support PD input — a feature that has become the de-facto must-have in the household.
- Shell material: PC-ABS V0
- Size: 70 x 50 x 32 mm
- Weight: 82 g
Display
- Display type: TN
- Size: 1.77 inch
- Panel active area: 28.03 x 35.04 mm
- Resolution: 128 x RGB x 160 pixel
- Number of colours: 262K
Power
- DC input voltage: 10–28.0 V
- PD3.0/QC input voltage: 12 V–20 V
- Charger power (DC): 200 W
- Charger power (PD): Max. 80 W (20 V, 5 A)
- Discharge power: Max. 24 W based on 6S (4.2 V/S)
Battery compatibility
- LiPo / LiFe / LiIon / LiHV: 1–6 cells
- NiMH / NiCd: 1–15 cells
- Pb: 3S / 6S
Charge and discharge
- Charge current (LiPo / LiFe / LiIon / LiHV / NiMH / NiCd / Pb): 0.1–10.0 A
- Discharge current (LiPo / LiFe / LiIon / LiHV / NiMH / NiCd / Pb): 0.1–2.0 A
- Balance current (LiPo / LiFe / LiIon / LiHV): Max. 500 mA
Operation modes
- LiPo / LiFe / LiIon / LiHV: Balance charging, Charging, Discharging, Storage
- NiMH / NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
- Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge
-
Output Connector Type
- XT60
-
Compatible With
- LiPo, Li-Ion, LiFe, LiHV, NiMH, NiCd
-
Maximum Amps
- 10A
