SkyRC Bluetooth Corner Weight System
SkyRC Bluetooth Corner Weight System
SkyRC Bluetooth Corner Weight System — real-time 0.1g-precision corner weight data via app for 1/8, 1/10 and 1/12 RC.
- App-enabled real-time corner weight display via Bluetooth 5.0
- High-precision measurement to 0.1g increments, max 2000g per corner
- Automatic calculation of corner weight, front/rear and cross-weight totals
- Up to 30 hours continuous use on CR2450 coin batteries
- Password protection for use at busy racing tracks
Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.
RC cars can run off track, tip over, or wear tyres eccentrically due to incorrect CG (Center of Gravity) caused by unbalanced four-wheel weight distribution. Uneven weight distribution causes the car to sway more in one direction, making it unstable and difficult to control.
The SkyRC SCWS2000 Bluetooth Corner Weight System allows RC drivers to easily measure and view their RC car's corner weight distribution through the app, with 1g accuracy. High-quality aluminium is used for the I-shaped sensor with a precision measurement algorithm. The system uses Bluetooth 5.0 for a faster and more stable connection and full-screen intuitive display when connected to a phone.

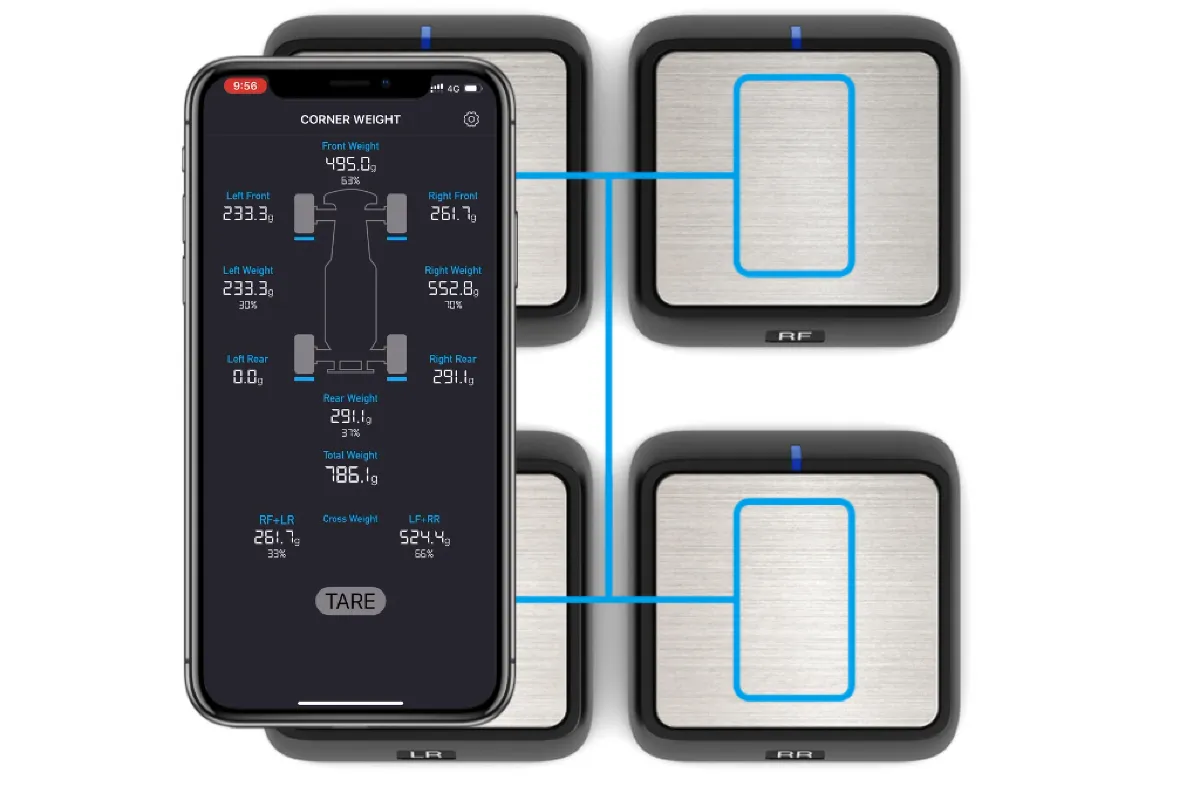

The app simulates practical scenarios intuitively — diagonal wheels are highlighted in orange to indicate selection. Weight and data are transmitted to the app in real-time via Bluetooth, and the total diagonal weight is automatically calculated. Bluetooth 5.0's low power consumption allows a CR2450 lithium coin battery to deliver up to 30 hours of continuous performance. Password protection prevents interference at busy tracks.
- Compatible with 1/8, 1/10 and 1/12 scale RC drift and touring cars
- Real-time data display via the dedicated SkyRC smartphone app
- Ultra-fast and stable Bluetooth 5.0 connectivity
- High-precision measurements in 0.1g (0.01oz) increments
- Maximum weight capacity of 2000g per scale (8000g total)
- Measures corner weight, front/rear distribution and cross weights
- Switchable between gram and ounce units
- Up to 30 hours of continuous use on four CR2450 coin batteries
- Password protection to prevent interference at busy racing tracks
- Compact, portable design with plastic housing
- Supports 4 languages in-app
- 4x Corner Scales
- 4x CR2450 Batteries
Compatible iOS or Android smartphone (for the SkyRC app)
-
Dimensions
- 68 x 68 x 22.5mm
-
Net Weight
- 70g (per scale)
-
Rated Voltage
- 2.6V – 3.6V
-
Rated Current
- <10mA @ DC3V
-
Battery Type
- CR2450 3V Lithium Coin Battery
-
Maximum Weight Capacity
- 2000g (per scale)
-
Tolerance
- ±0.1g / 0.1oz
-
Resolution
- ±0.1g / 0.01oz
-
Electric Vehicle Accessory Type
- Setup Tool
-
Accessory Type
- Setup Tool
-
Measuring Tool Type
- Balancing
-
Tool Type
- Special
