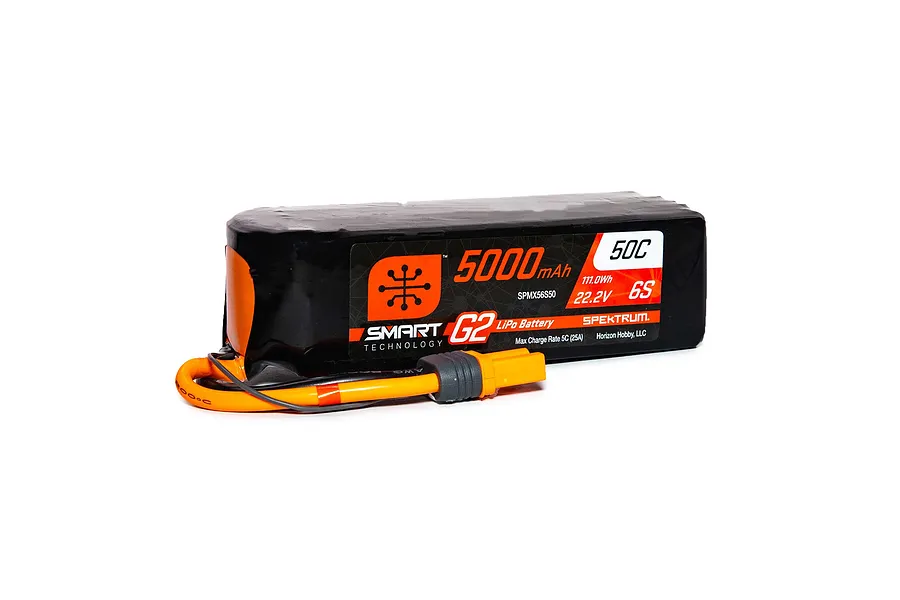

Spektrum Smart G2 22.2V 5000mAh 50C 6S Soft Case LiPo Battery
Part no. SPMX56S50
Videos
Videos
Overview
When powering your vehicle, Spektrum Smart G2 LiPo batteries offer a simpler and safer experience. This 6S 5000mAh pack provides serious performance, with a 50C discharge rating for demanding applications. The main advantage of the G2 system is its simplicity; all balancing information travels through the data wire of the IC5 connector, meaning only a single connection to your Smart charger is needed. There's no separate, fiddly balance lead required. Another key feature is the maintenance-free Auto Storage function, which automatically discharges the battery to a safe voltage after 72 hours of inactivity, helping to preserve the pack's lifespan and performance. With thicker internal metal plates for improved heat dissipation and protection, this battery is built for longevity. Smart technology takes care of the details, so you can focus on driving.
Note
Note: Requires a Spektrum Smart Charger for full functionality
Features
- Delivers high performance and longevity with a powerful 50C continuous discharge rating
- Balance charges through the IC5 connector data wire with only one connection required
- Features a faster Auto Discharge function for safe, maintenance-free storage
- An integrated microchip stores unique parameters and health data for each battery
- Thicker internal metal side plates protect cells and improve heat dissipation
- The IC5 connector is also backwards compatible with the EC5 style for wider use
- Provides a simple, single-plug connection when used with a Spektrum Smart charger
- Genuine Spektrum Product
In the box
- 1x Spektrum Smart G2 6S 22.2V 5000mAh 50C LiPo Battery
You'll need
- 1x LiPo Safe Bag
Specifications
| Type | Smart G2 LiPo |
|---|---|
| Capacity | 5000mAh |
| Voltage | 22.2V |
| Configuration | 6S1P |
| Maximum Continuous Discharge | 50C |
| Connector | IC5 G2 |
| Number of Cells | 6 |
| Application | Air / Surface |

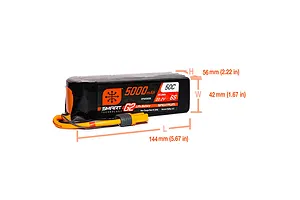

| Length | 144mm (5.67") |
| Width | 42mm (1.67") |
| Height | 56mm (2.22") |
| Weight | 770g (27.16oz) |
Battery
| Cell Voltage | 3.7V |
|---|---|
| Total Voltage | 22.2V |
| Capacity | 5000mAh |
| Discharge C Rating | 50C |
| Chemistry | LiPo |
| Connector | IC5 |
| Length | 144mm |
| Width | 42mm |
| Height | 56mm |
| Weight | 770g |
| Configuration | Flat |
| Main Connector Wire Gauge | 10AWG |
| Case Type | Soft Case |
| Battery Cable Position | Side |
| Balance Lead Connector | G2 Smart |
| Stick Size | No |
| R.O.A.R Approved | No |
