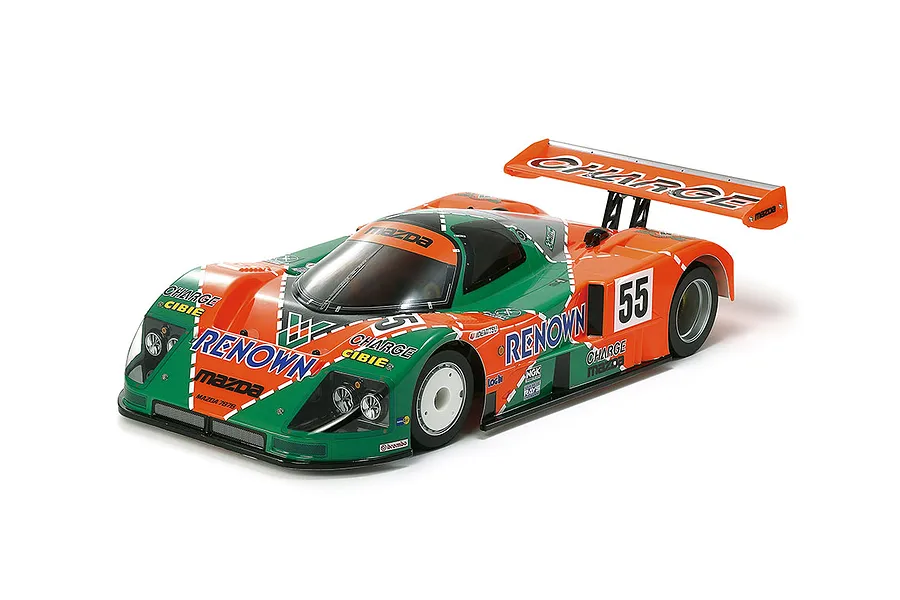

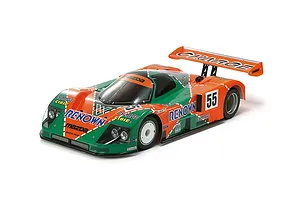

Name: Tamiya Group C Mazda 787B RC Touring Car Electric 2WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-47518
Availability: Discontinued

Overview

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

The Tamiya Mazda 787B is a 1/10 scale RC replica of the groundbreaking race car that made history at the 1991 24 Hours of Le Mans. This meticulously crafted model pays tribute to the first Japanese-made car to achieve overall victory in this prestigious race, capturing the innovative design and powerful performance of the Mazda 787B. The polycarbonate body faithfully recreates the car's sleek and aerodynamic form, while detailed features like the distinctive rear wing and air intakes add to the realism.

Underneath the body, the 787B is built on a high-performance chassis that delivers exceptional handling and speed. The 4WD shaft-driven system, combined with a lightweight and balanced design, ensures a responsive and agile driving experience. The powerful R26B 4-rotor rotary engine, a marvel of engineering, is accurately represented in the model, showcasing its advanced technologies and impressive 700-horsepower output.

Whether you're a motorsport enthusiast, a fan of Japanese automotive innovation, or simply appreciate a beautifully crafted RC model, the Tamiya Mazda 787B is a must-have. Celebrate a historic victory and experience the thrill of driving a true racing legend.

Features

Fully licensed Mazda 787B polycarbonate body shell
Separately moulded polycarbonate body, front and rear light cases, and wing for a detailed and realistic appearance
Fully licensed Mazda 787B polycarbonate body shell with distinctive vivid colouring (pre-painted and marked)
Black ABS plastic wing stays for added durability and support
Direct and split steering system for responsive and precise handling
Plastic space frame for increased front rigidity and improved handling
Front: independent left and right kingpin/coil spring suspension for optimal responsiveness
Rear: 1.5mm thick FRP T-bar controlled by a CVA oil damper for stable and adjustable performance
Adjustable chassis roll by tightening screws for fine-tuning handling characteristics
Composite frame with ABS resin bathtub, space frames, and FRP plate for a balance of strength and flexibility
Adjustable front and rear suspension with multiple settings for customisation
Sports-tuned motor with direct-drive 2WD system for efficient power transfer
Ball differential with limited slip effect for smooth cornering
One-piece wheels with high-grip sponge tyres for optimal traction on various surfaces
Genuine Tamiya product

In the box

1x Tamiya Group C RC Chassis Kit
1x Tamiya 540 Sized Sport Tuned Brushed Motor
1x Tamiya Brushed ESC
1x 1/10 Mazda 787B Unpainted Body Shell

You'll need

1x Compatible 7.4V LiPo or 7.2V NiMH Battery
1x Compatible Charger
1x Compatible 1/10 Scale Servo
1x 2+ Channel Transmitter & Receiver
Polycarbonate Safe Paint
AA Batteries For Chosen Transmitter

Highlights

Iconic Styling

This Group C Chassis sports the famous and beloved Mazda 787B LeMans winning livery. Featuring an exceptional level of attention to detail, this kit is sure to be a joy to build as you slowly piece together this legend of motorsport.

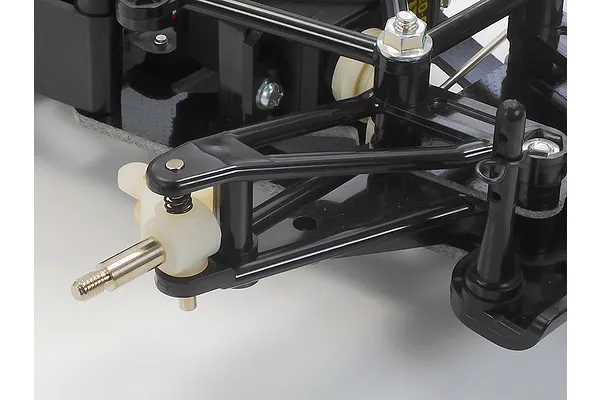

Independent Front Suspension

This Tamiya comes with an independent front suspension set up which delivers a crisp, responsive driving experience when combined with its composite chassis design and Kingpin/coil spring front.

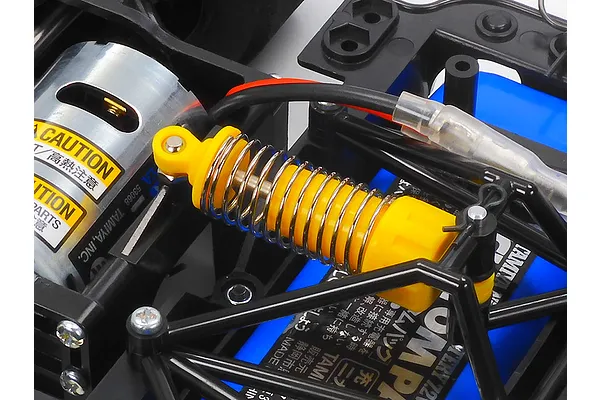

Precise Handling

Independent front suspension and a rear T-bar suspension with CVA oil damper ensure superb traction and handling on smooth surfaces.

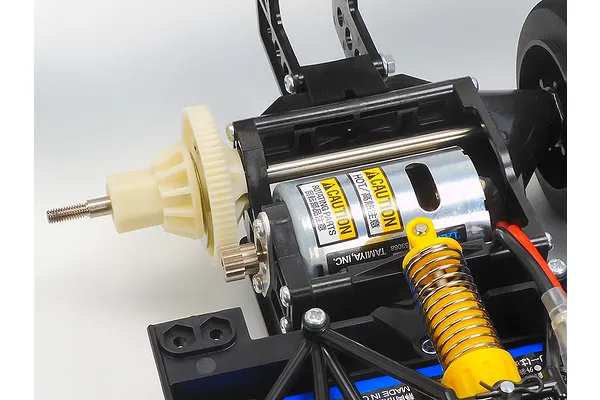

Sport-Tuned Performance

The included Sport-Tuned motor and ball differential provide smooth acceleration and responsive cornering.

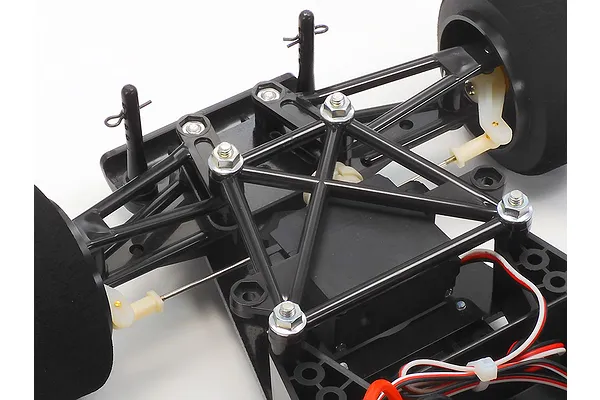

Adjustable Setup

Features adjustable ground clearance and chassis roll for fine-tuning the car's handling characteristics.

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

Specifications

Length	475mm (19.02")
Width	217mm (8.54")
Height	106mm (4.25")
Wheelbase	270mm (10.63")
Weight	835g (1.84 lbs)
Chassis	Composite ABS Plastic Bathtub On Road (On Road)
Drivetrain	2WD
Suspension	Oil Filled Coil Over Shock Absorber
Motor	Tamiya 540 Sized Sport Tuned Brushed Motor
ESC	Tamiya Brushed ESC
