Tamiya M05L Alfa Romeo MiTo Rc Car Electric 2WD 1/10 Scale Kit

Tamiya M05L Alfa Romeo MiTo Rc Car Electric 2WD 1/10 Scale Kit image 49791

Videos

Tamiya M05L Alfa Romeo MiTo Rc Car Electric 2WD 1/10 Scale Kit

Brand: Tamiya | SKU: 58453

discontinued

write a review

Shop replacement & upgrade parts for this model

Shop Parts

Description

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

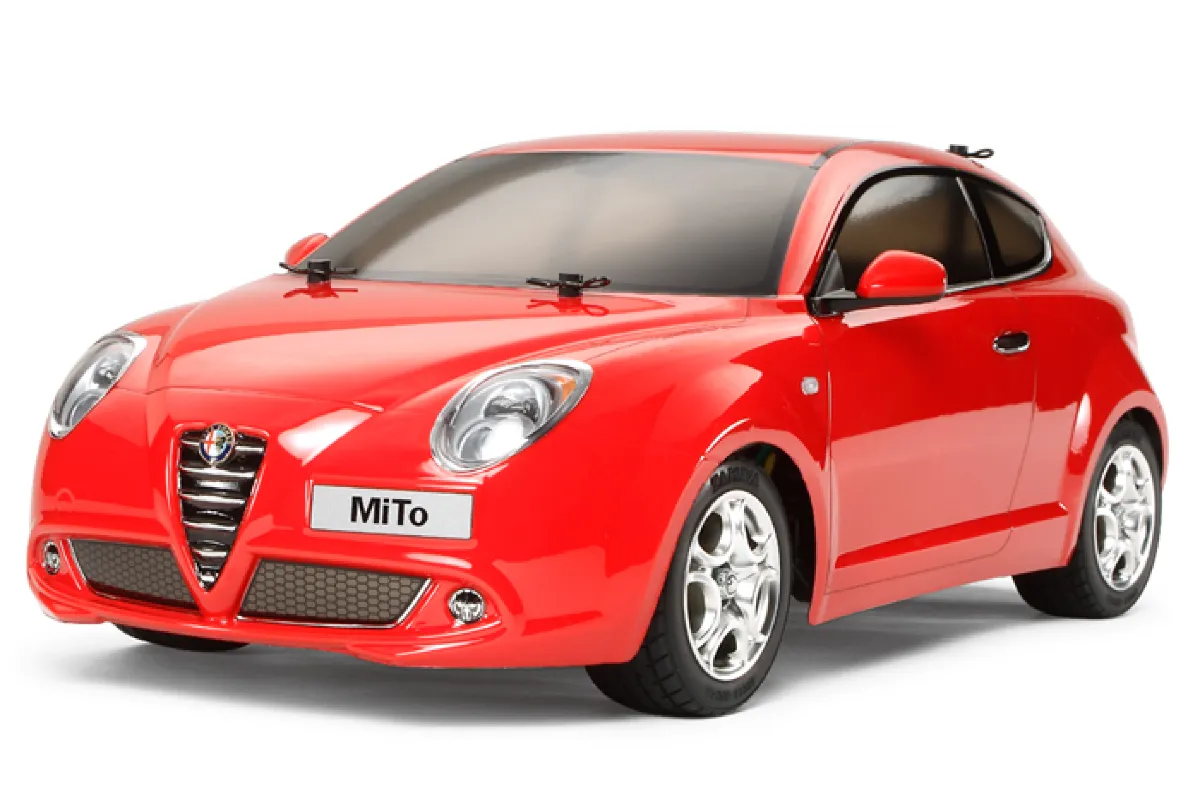

The Tamiya Alfa Romeo MiTo is a 1/10 scale RC replica of the stylish and sporty three-door hatchback. This assembly kit faithfully recreates the MiTo's distinctive design, from its sleek curves to its iconic shield-shaped front grille. The durable polycarbonate body captures the essence of the "Baby Alpha," while separate light case parts add a touch of realism.

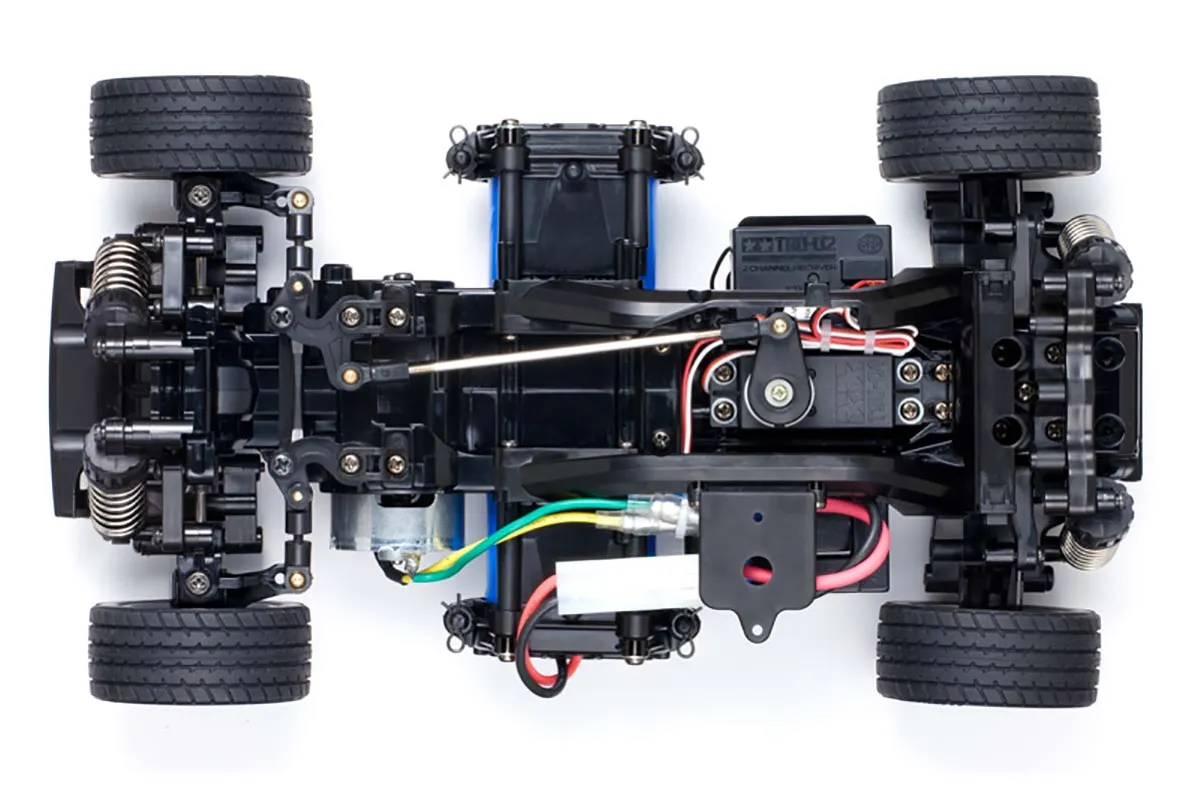

The Alfa Romeo MiTo is built on the front-wheel-drive M-05 chassis, known for its nimble handling and responsive performance. The lightweight and durable semi-monocoque resin frame, combined with a low centre of gravity and balanced weight distribution, ensures a stable and enjoyable driving experience. The 4-wheel independent double-wishbone suspension and 3-piece steering linkage provide precise control and high-speed cornering capabilities. The realistic 60D radial tyres and C-spoke wheels complete the authentic look of this stylish RC car. Whether you're a fan of Italian cars or simply appreciate a fun and agile driving experience, the Tamiya Alfa Romeo MiTo is a great choice.

Features

Highly detailed 1/10th scale self-assembly kit
M-05 Front Wheel Drive chassis system
Light-weight, durable and easy to assemble resin monocoque chassis
Gearbox, battery pack, receiver, servo & ESC are positioned for optimum weight distribution and low centre of gravity
3-Piece Tie-Rod steering linkage offers sharp cornering performance
Choose from three different wheelbases to assemble (210mm, 225mm, 239mm)
Adjustable chassis length allows fitment of after-market bodyshells
Popular Alfa Romeo MiTo polycarbonate bodyshell
The unmistakable body shape is accurately reproduced
Full assembly manual

Specifications

Dimensions

Length: 385mm (15.1")
Width: 170mm (6.69")
Wheelbase: 239mm (9.04")

Tyres

Tread: 138mm (5.43") Front & Rear
Width: 25mm (0.98") Front & Rear
Diameter: 59mm (2.32") Front & Rear

Engine

Engine Mount: Front
Wheel Drive: Front

Differential

3-Piece Bevel Gear
Gear Ratio: 5.8:1
Drive Line: Closed Gear Box

Steering & Suspension

3-Piece Tie-Rod
Friction Dampers: Front & Rear
4-Wheel Independent Double-Wishbone Suspension
3-Piece Steering Linkage
3-Piece Steering Tie-Rod

Electronic Speed Controller

Model: Tamiya TEU-104BK Brushed ESC
Control System: High-Frequency Wave Drive System
Max Cont. Current (FET Spec): Forward 60A
Output

Forward: 100%
Reverse: 50%

Compatible Motor: Brushed Electric
Driving Frequency: 1kHz
Receiver Output Voltage: 6.6-7.2V
Dimensions: 39.4x36x15mm
Weight: 47g
Requires Receiver w/ BEC

Included Items

1x 1/10 M-05L Alfa Romeo MiTo RC Kit
1x TEU-104BK Brushed ESC
1x Decals

Required Items

2Ch+ Transmitter & Receiver
Standard Servo
7.2V NiMH Stick Battery w/ Tamiya Plug & Compatible Charger
Paint
Tools

Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. To view the entire range of polycarbonate safe paints, please CLICK HERE

Paints

Recommended by Tamiya

TS-8 Italian Red

X-18 Semi-Gloss Black
