Tamiya MB-01 Fiat Abarth 1000TCR Berlina Corsa RC Rally Car Electric 2WD 1/10 Scale Kit (No ESC) - Blue/Grey

Tamiya MB-01 Fiat Abarth 1000TCR Berlina Corsa RC Rally Car Electric 2WD 1/10 Scale Kit (No ESC) - Blue/Grey

Tamiya MB-01 Fiat Abarth 1000TCR Berlina Corsa RC Rally Car Electric 2WD 1/10 Scale Kit (No ESC) - Blue/Grey

Brand: Tamiya | MPN: 47492A
discontinued
Tamiya
Tamiya
Description
Please Note:

This kit comes without an, ESC, Servo, Battery, Charger, or Transmitter and will come with a painted body that may require cutting and drilling.

The MB-01 is the latest addition to the M-chassis series, which has been popular among users of all levels since its inception in December 1994. The series is known for its cost-effective kits, a wide variety of bodies to choose from, and ease of maintenance and control.

The all-new MB-01 chassis offers a continuation of the popular M-chassis series by providing cost-effective kits with easy maintenance and control for users of all levels. With the ability to choose from three types of wheelbases and a front or rear-wheel drive system, the MB-01 allows for six unique setups. Additionally, it comes with the option to recreate the Fiat Abarth 1000 TCR Berlina Corse, a compact 2-door car that was developed with high-level tune-ups.

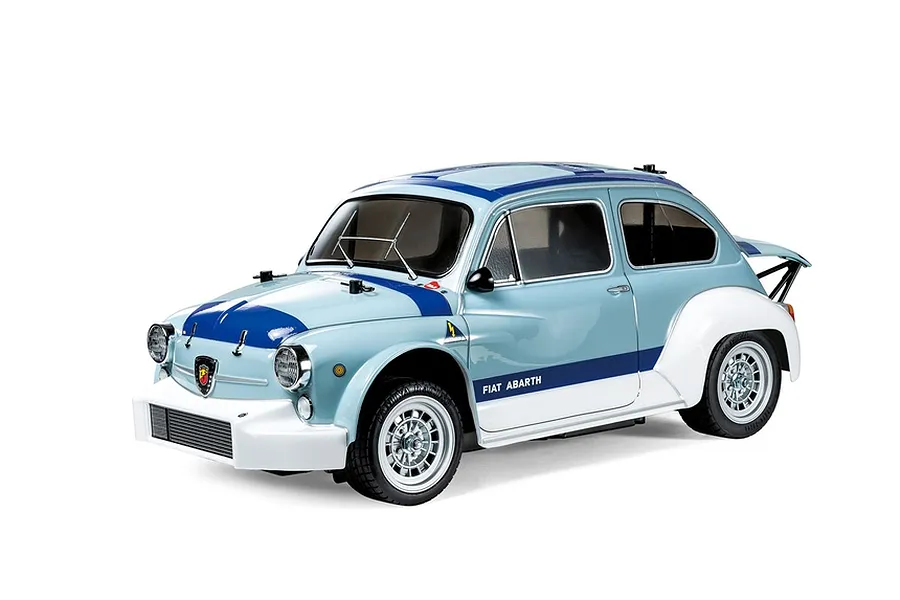

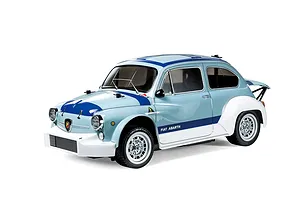

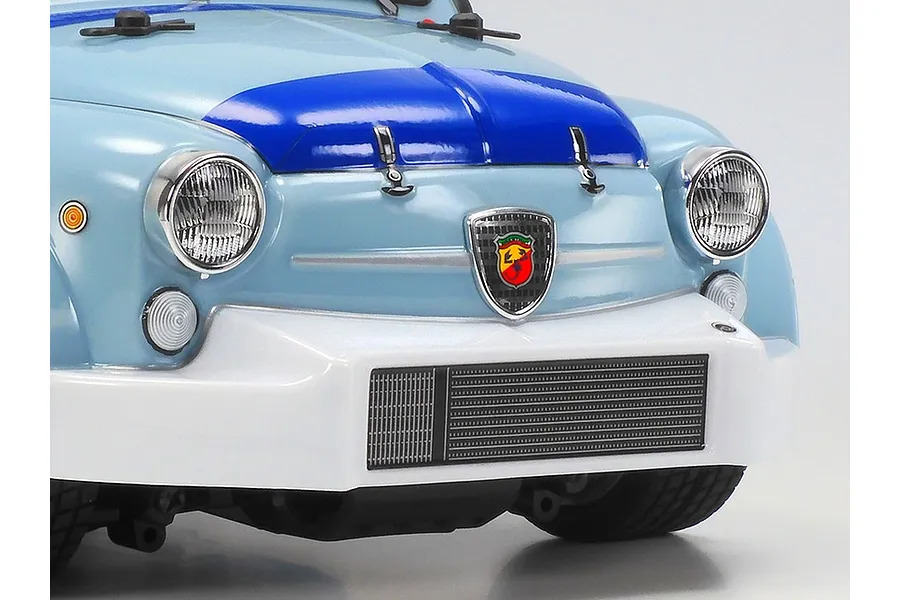

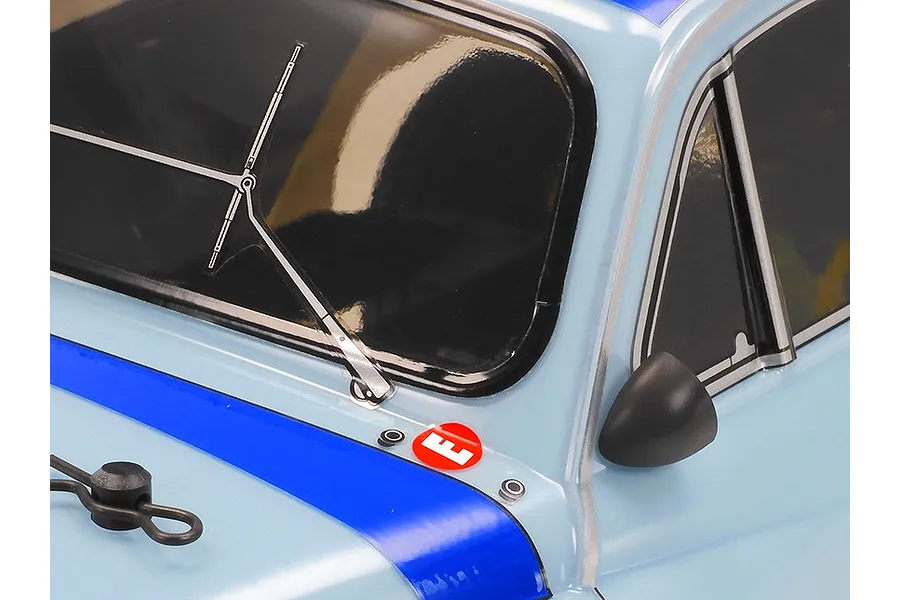

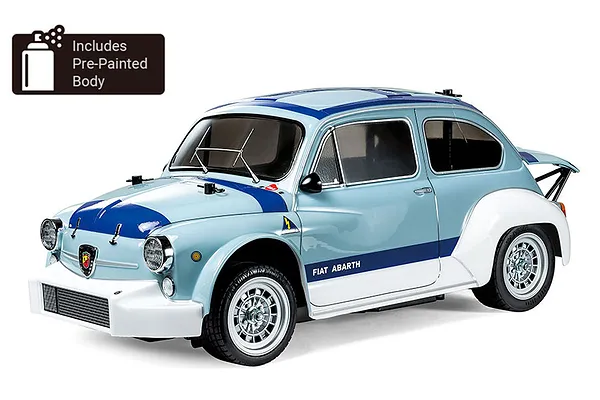

Factory Painted Body Shell
Factory Painted Body Shell

This MB-01 Fiat Abarth 1000 comes with a factory painted body shell that takes away the stress of cleaning, prepping and painting the body.
Instead, you can admire the renowned Tamiya factory finish workmanship and focus on building the incredible MB-01 chassis.

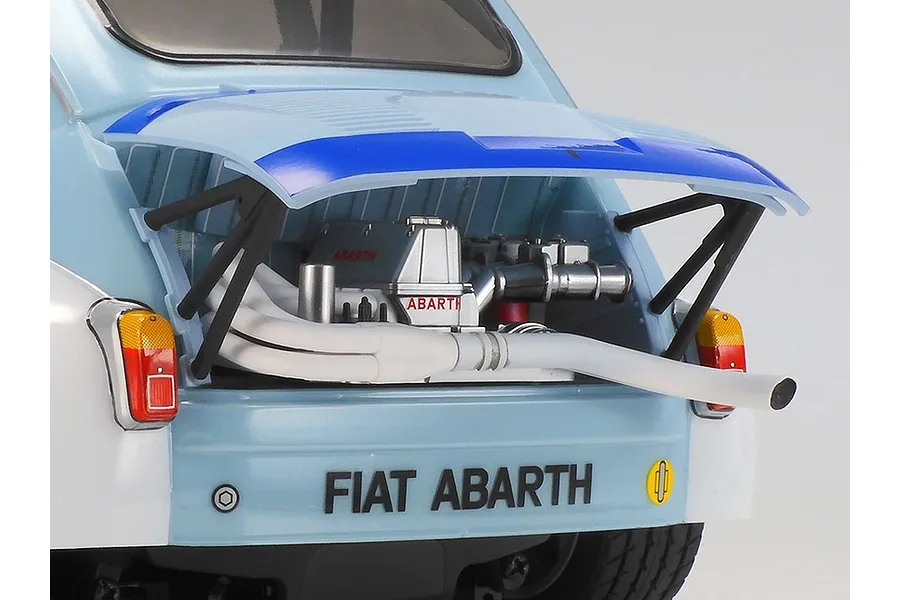

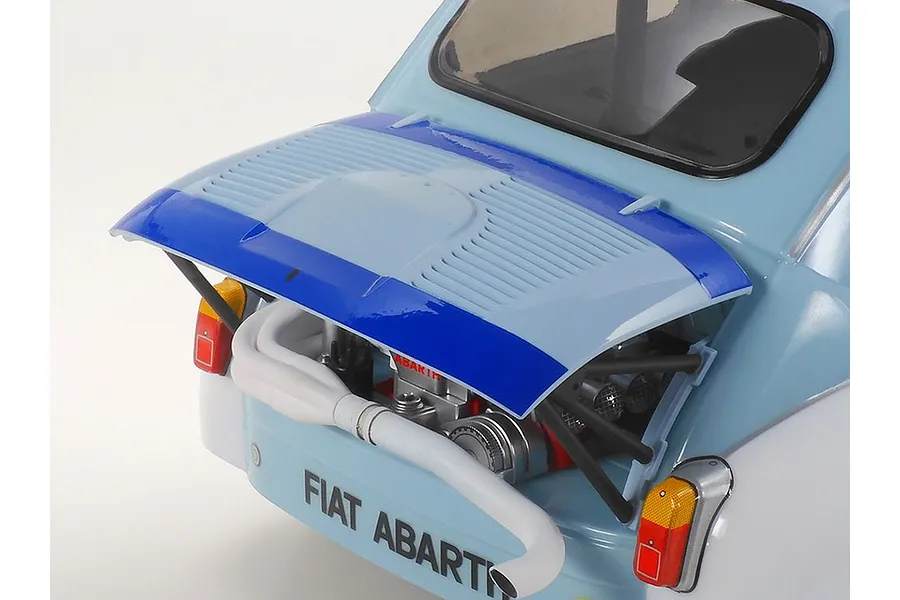

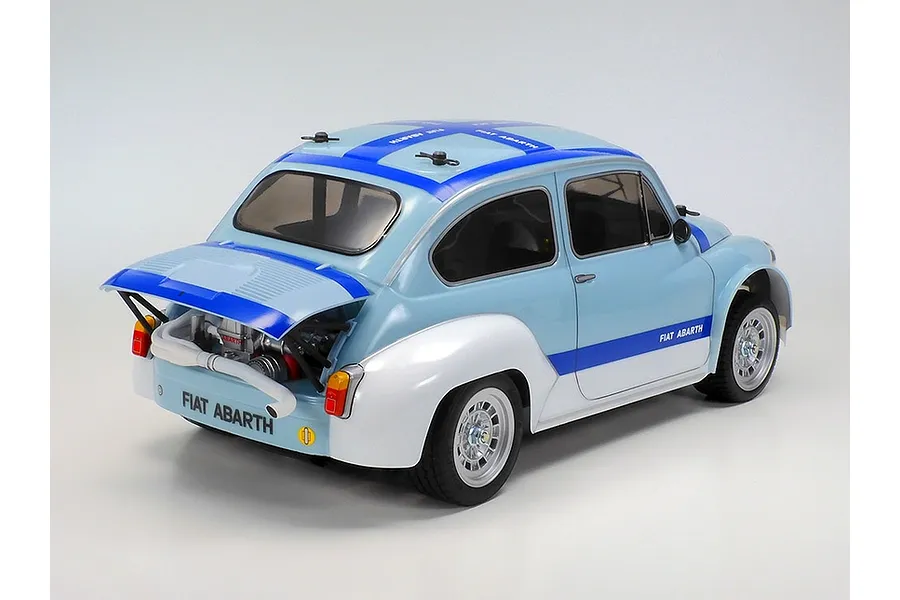

Incredible Scale Detail
Incredible Scale Detail

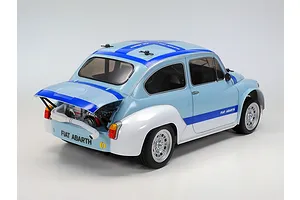

This MB-01 features an incredible level of scale detail. The Fiat Abarth is a legendary rally car, and Tamiya have spared no expense in making sure that this model lives up to the name.
With powerful over fenders, rear open engine hood, engine head and exhaust pipes, and much, much, more.

Centre Motor Mounting
Centre Motor Mounting

The rear left mounted motor delivers power directly to the rear wheels via a driveshaft, providing a classic rear-wheel-drive driving experience with fast and responsive acceleration and exciting handling.
Additionally, this central motor mounting position creates better weight bias.

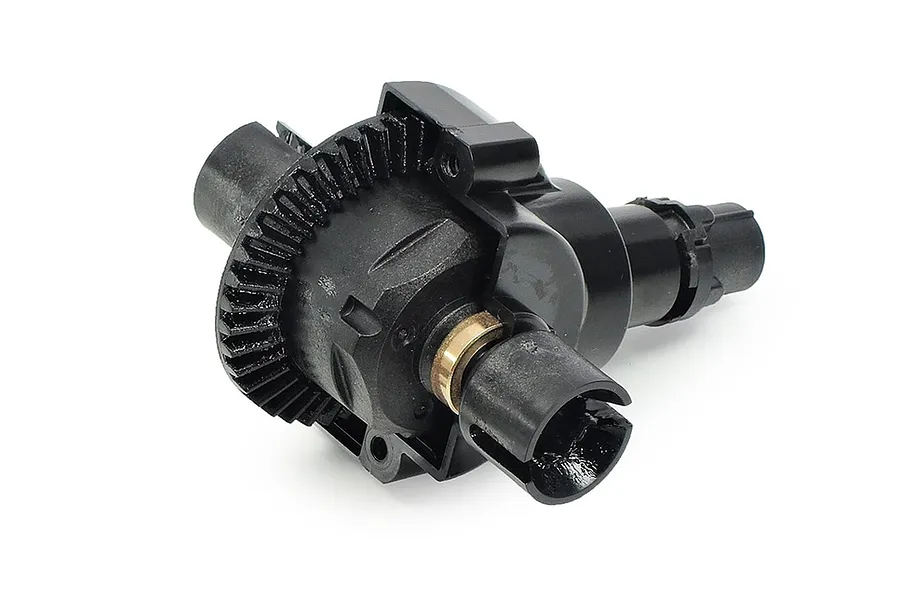

TT-02 Differentials
TT-02 Differentials

The MB-01 chassis utilises the same durable 4-bevel differential gear as the TT-02 chassis, making access to replacement parts much easier.  For those seeking further customisation, the differential can be upgraded with optional TT-02 ball differentials or oil-filled gear differentials.

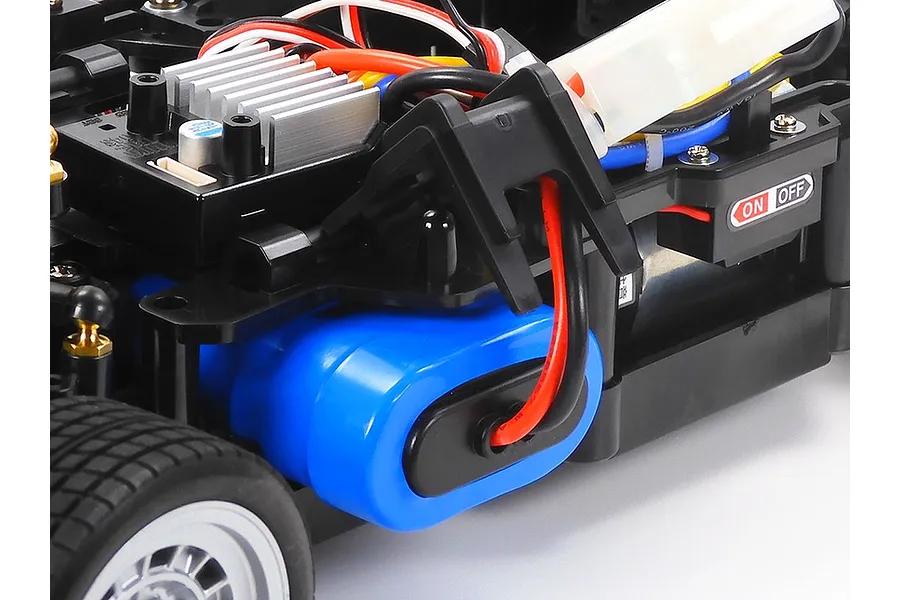

Quick Battery Swaps
Quick Battery Swaps

Designed for hassle-free battery replacement, the MB-01 features an innovative flip-up battery holder. This clever design allows you to quickly swap out batteries without any fuss, keeping the action going.

Compact Design
Compact Design

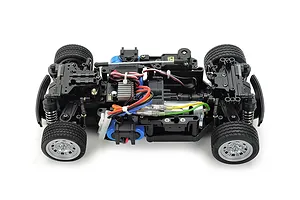

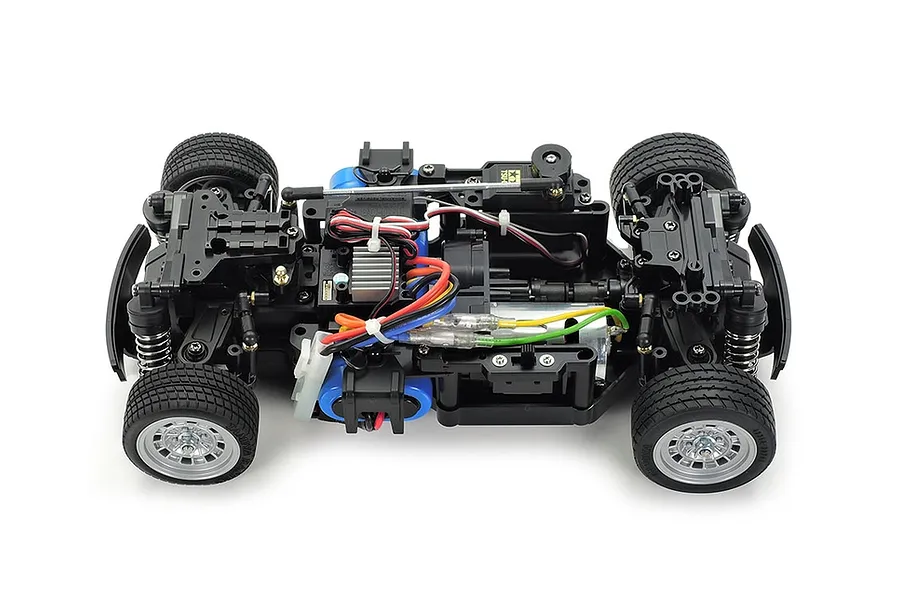

The MB-01 chassis is built with performance and customisability in mind. The MB-01 has a highly adjustable platform that's perfect for a variety of driving styles and can be adjusted to a wide range of wheelbase options, 209mm for short, 224mm for medium, and 239mm for long.
Additionally, you can set this versatile chassis up in a front wheel drive or rear wheel drive setting, making the MB-01 one of the most customisable machines!

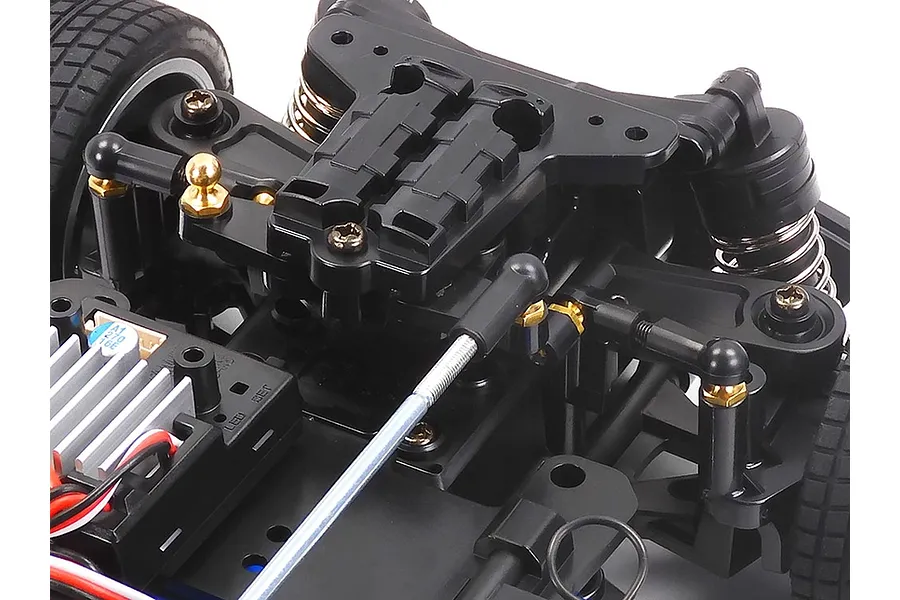

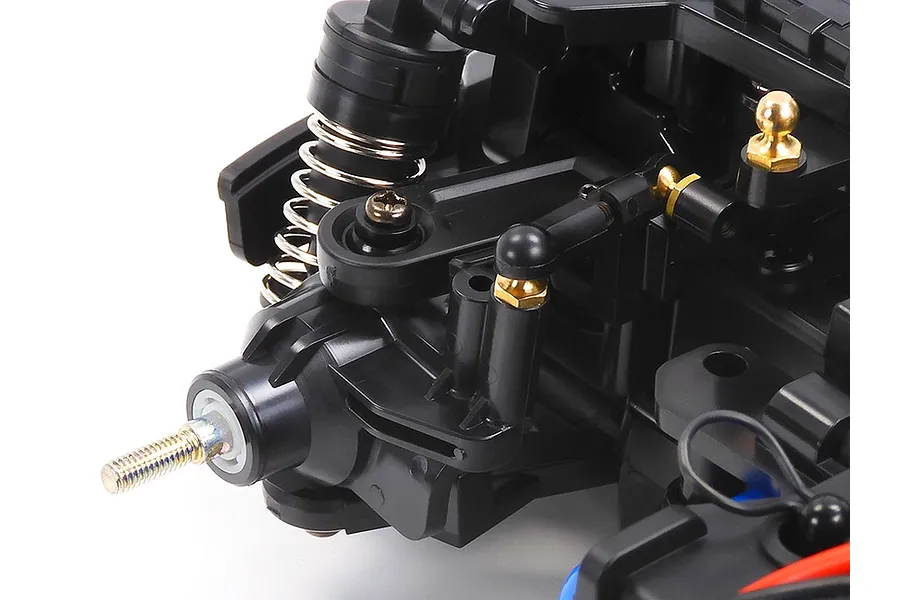

Three Section Steering System
Three Section Steering System

The three-section steering system, operated by a long link rod connected to a rear-mounted servo, provides precise and responsive steering control for confident handling on a wide range of terrains.

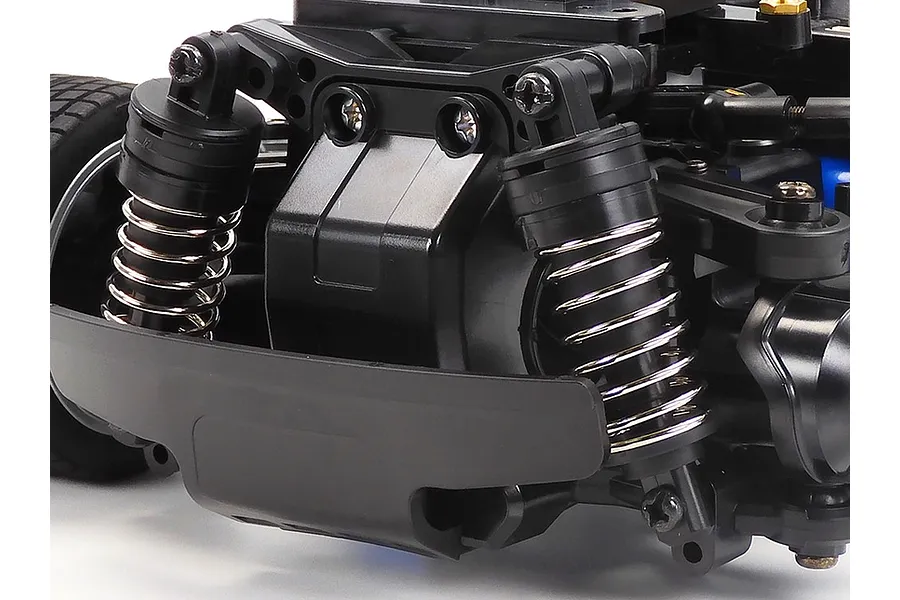

Double Wishbone Suspension

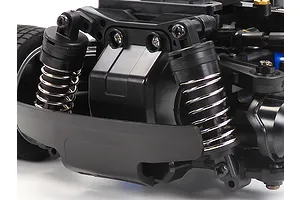

Double Wishbone Suspension

The double wishbone suspension, with its symmetrical suspension arms, provides balanced handling and predictable performance. This design ensures consistent response and control, allowing you to hit the apex everything time.

Easy Maintenance
Easy Maintenance

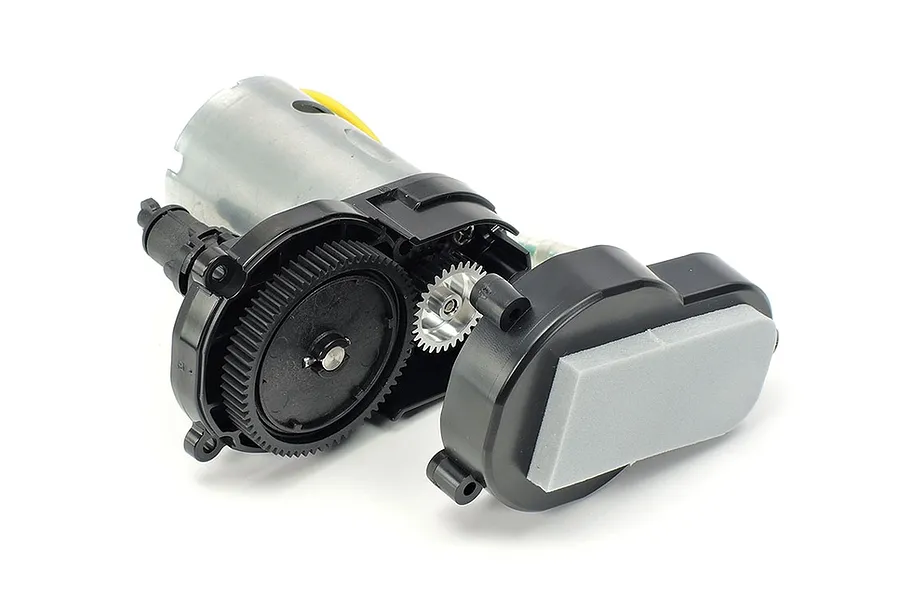

Maintenance is a breeze thanks to the MB-01's unitised motor mount. Secured with just two screws, it allows for quick and easy access to the motor for adjustments or upgrades.

Features
  • The MB-01 chassis is 2WD and offers three options for wheelbases and front- or rear-wheel drive system
  • The attachment directions of final gears and steering linkage can be changed to switch between front- and rear-wheel drive
  • The rear-wheel drive cars can choose a low or high motor position
  • Pre-painted Shell provides a factory quality finish
  • Motor mount and final gears sections are designed to facilitate assembly and maintenance
  • The 4-wheel double wishbone suspension has a symmetrical structure and friction shocks
  • Multi-link suspension is compatible with tyres featuring the same compound and rear tyre with toe-in as 4WD models, despite being a 2WD model
  • It features a gear ratio of 5.83:1 (when using kit-standard 29T pinion gear)

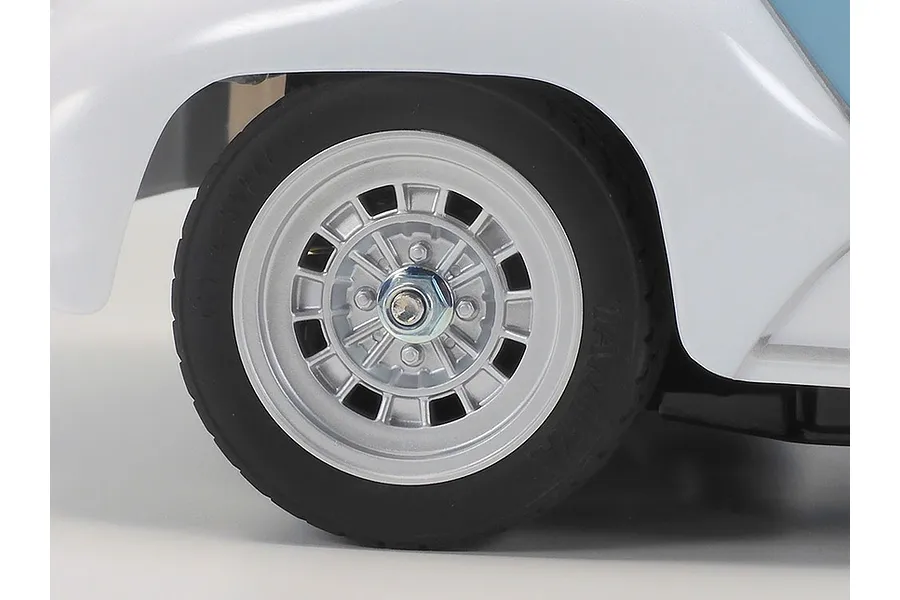

  • The model has 55mm diameter front tyres and 60mm diameter rear tyres, creating an authentic car stance
Included Items
  • 1x Tamiya 1/10 MB-01 Fiat Abarth 1000 TCR 2WD Electric RC Rally Car Kit w/o ESC — Blue/Grey
Required Items
  • 7.2V NiMH Battery & Compatible Charger
  • Standard Sized Servo
  • Electronic Speed Controller (ESC)
  • 2Ch Transmitter & Receiver
Note

This kit comes without an Electronic Speed Control.

Specifications
Length
322mm (12.6")
Width
163mm (6.4")
Wheelbase
209mm (S) / 224mm (M) / 239mm (L) (8.22"/8.81"/9.40") — Fiat Abarth uses the LONG wheelbase setup
Tyre Diameter F/R
55/60mm (2.16/2.36")
Chassis
MB-01
Drivetrain
2WD
Suspension
Friction Shocks
Gear Ratio
5.83:1
Motor
540 Brushed Type

RC Car
Scale
1/10
Max LiPo Power
2S (7.4v)
Completion
Kit
Skill Level
Intermediate
Power Source
Electric
Chassis Type
Car
On/Off Road
On Road
Drivetrain
2WD
Factory Specs
Max LiPo Power
2S (7.4v)
Battery Connector
Tamiya
Pinion Gear
29T
Spur Gear
65T
