Tamiya Plasma Edge II RC Buggy Electric 4WD 1/10 Scale Kit

Name: Tamiya Plasma Edge II RC Buggy Electric 4WD 1/10 Scale Kit
Brand: Tamiya
SKU: TAM-58630
Price: 191.03 AUD
Availability: OutOfStock
Rating: 5 (1 reviews)

1/10
4WD
Kit
Brushed

Part no. 58630

Sold out5.0

1 review

1 / 4

Videos

$191.03

or 4 fortnightly payments of $47.76 with afterpay or PayPal, or zip

Tamiya Plasma Edge II 1/10 4WD buggy kit — TT-02B chassis, torque-tuned motor included, CVA oil shocks, and fluorescent yellow star-dish wheels.

Shaft-driven 4WD TT-02B buggy chassis with sealed front and rear gearboxes
4-wheel independent double-wishbone suspension with CVA oil-filled shocks and high-grip square spike tyres
Torque-tuned motor included
Fluorescent yellow star-dish wheels and stylish polycarbonate body with rear wing

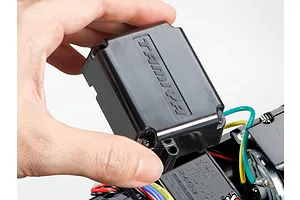

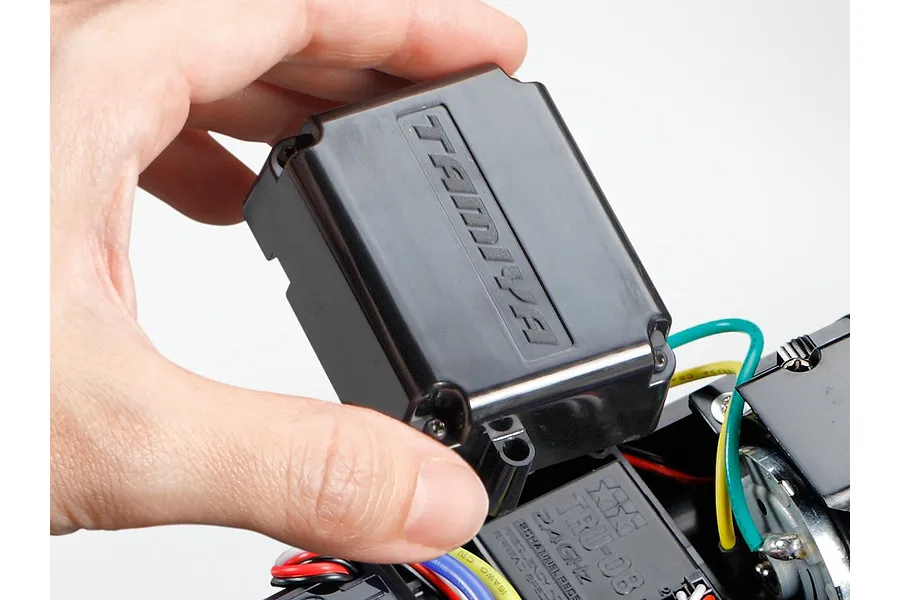

Receiver case and motor cover included for protection against dirt and debris

Ordered 10 Nov · we're waiting on our supplier

Checking delivery dates…
Free 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

In stock now: similar

Tamiya Grasshopper RC Buggy Electric 2WD 1/10 Scale Kit
$169.99
Tamiya Frog RC Buggy Electric 2WD 1/10 Scale Kit
$246.25
Losi Micro-B 2S RC Buggy Electric 2WD 1/24 Scale RTR - Silver
Now $149.99~~was $209.99~~ Save $60

Videos

Overview

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

The exciting Plasma Edge II is a shaft-driven 4WD RC Buggy Kit including a stylish polycarbonate body and rear wing parts, alongside marking stickers, yellow star dish rims, and white oil-filled shocks. The TT-02B is a dedicated off-road buggy chassis that offers hassle-free assembly and maintenance, as well as superb handling.

The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame with a 4-wheel independent double-wishbone suspension setup and oil-filled shocks. The front and rear gearboxes include sealed 4-bevel differentials for smooth, dust-free operation. The characteristics of the buggy can be modified with four differential gear ratios utilising three additional types of pinion gears (sold separately). The Plasma Edge II includes a receiver case and motor cover for protection against dirt and debris.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

Torque-tuned motor is included
The TT-02B Chassis is the buggy evolution of Tamiya's popular 4WD entry level unit, the TT-02 Chassis
Bathtub-type frame has longitudinal battery and R/C mechanism placed flat for low centre of gravity
4-wheel double wishbone suspension features long arms and white colour CVA shock units, combined with high-grip square spike tyres for excellent traction
Fluorescent yellow star-dish wheels
Includes stickers to decorate the body, plus masking stickers for use when painting
Front and rear gearboxes have differentials to ensure smooth cornering

In the box

1x 1/10 Plasma Edge II 4WD Electric Off Road RC Buggy Kit

You'll need

4 x AA Batteries
7.2V NiMH Battery
NiMH Charger
Servo
Radio Transmitter & Receiver
Electronic Speed Controller (ESC)
Tamiya PS Paint

Highlights

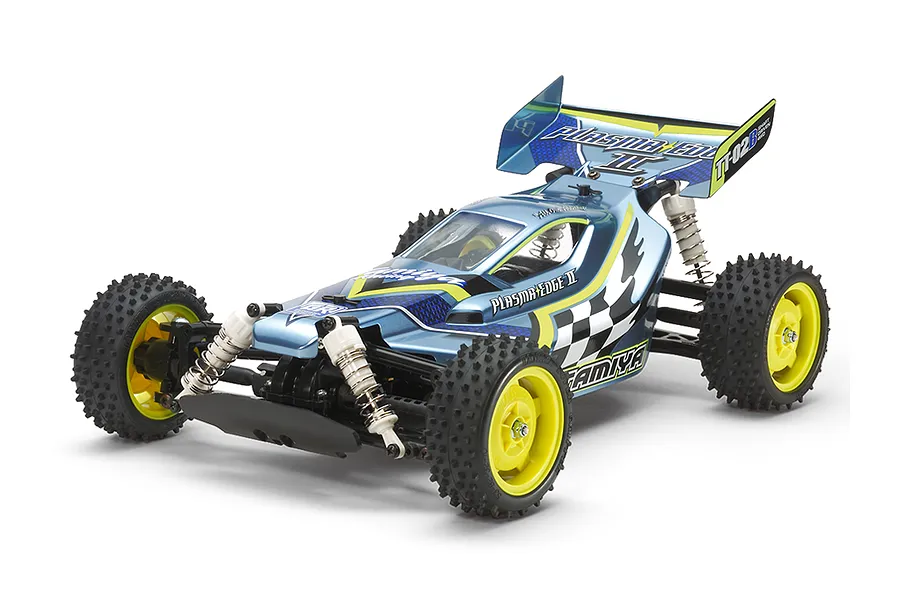

Plasma Edge II RC Buggy — overview

The exciting Plasma Edge II is a shaft driven 4WD RC Buggy Kit with a stylish polycarbonate body, rear wing, fluorescent yellow star-dish rims, and white CVA oil-filled shocks.

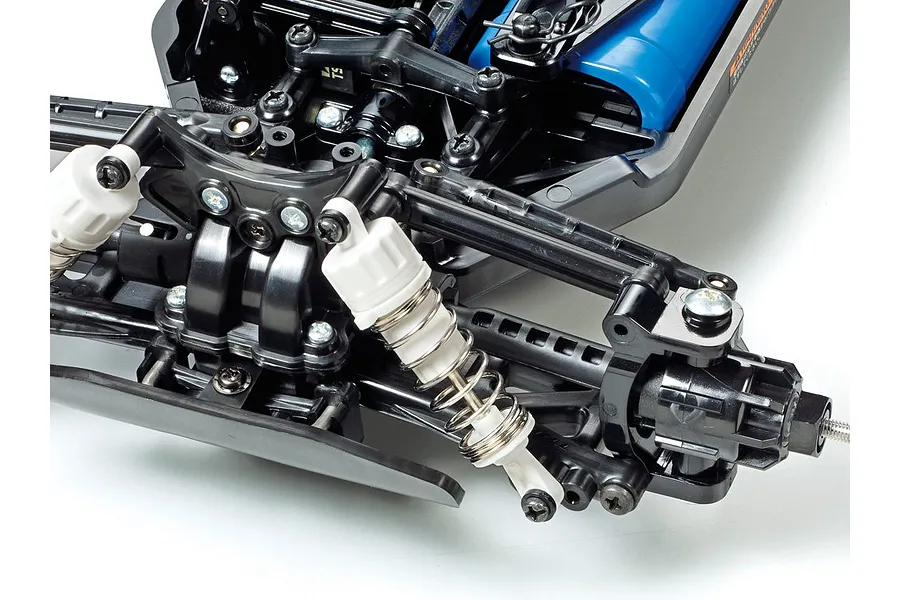

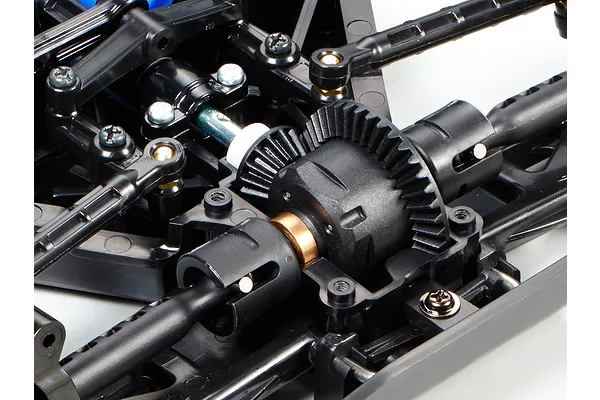

Plasma Edge II — TT-02B chassis detail

4-wheel independent double-wishbone suspension is fitted with long arms and CVA oil-filled shocks.

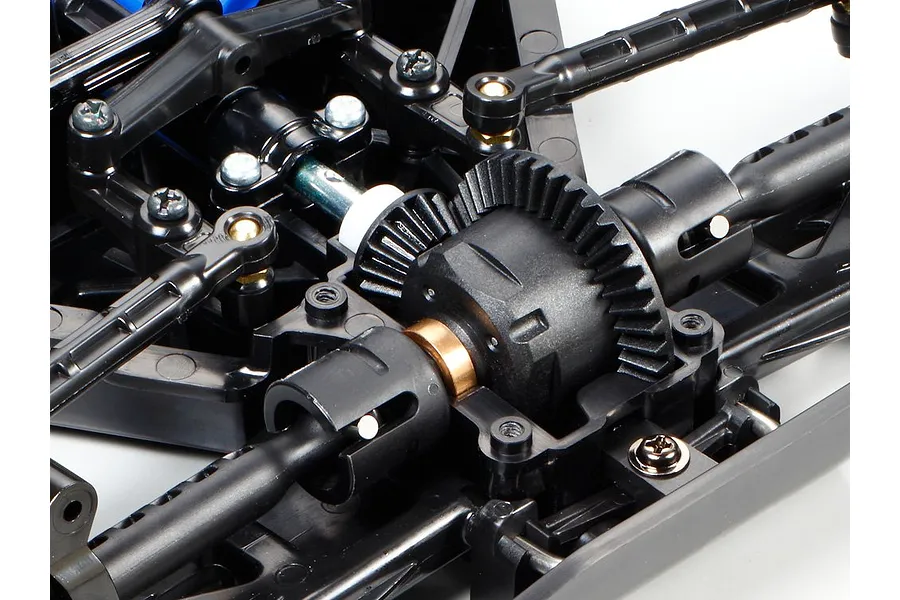

Plasma Edge II — shaft-driven 4WD drivetrain detail

Reliable shaft-driven 4WD system employs front and rear sealed gearboxes offering easy maintenance.

Specifications

Scale	1/10
Type	Assembly Kit
Length	370mm (14.5")
Width	250mm (9.84")
Height	160mm (6.29")
Wheelbase	266mm (10.4")
Tread	Front 217mm (8.54"), Rear 208mm (8.18") Spike Tyres
Frame	Bathtub-type ABS
Drivetrain	Shaft-Driven 4WD
Differential	Front/Rear 4-Bevel Differentials
Steering	3-Piece Tie-Rod
Suspension	4-Wheel Double Wishbone
Tyre Width/Diameter	Front 32/82mm (1.25/3.22"), Rear 41/82mm (1.61/3.22")
Shocks	CVA Oil-Filled Shocks
Gear Ratio	10.71:1 (with kit-included pinion gear)
Motor	Type 540 Motor
