Name: Tamiya TT-02B Neo Scorcher RC Buggy Electric 4WD 1/10 Scale Kit (No ESC)
Brand: Tamiya
SKU: TAM-58568A
Price: 184.26 AUD
Availability: Discontinued

Overview

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

The Scorcher, a popular and speedy 4WD racing buggy from the late-1980s Tamiya line-up, is back with a new name and updated body. Made from durable polycarbonate and featuring a stylish large rear wing, the body design drew heavily upon the original Scorcher for inspiration, and can be decorated with the large stickers included. It runs on the easy-assembly shaft-driven 4WD TT-02B, marrying the chassis' controllability with square spike tyres for superior grip on rough surfaces.

The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame with 4-wheel independent double wishbone suspension using long arms and CVA shocks. Left and right suspension arms and uprights are identical to facilitate hassle-free assembly. Front and rear gearboxes include 4-bevel differentials for smooth operation and are sealed to keep out dust. Four different gear ratios can be applied using three separately-sold types of pinion gears, allowing you to match the car's characteristics to the conditions. A receiver case and motor cover protect the electronics from dirt and debris.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

Includes 540 RS Torque Tuned Motor
Uses the TT-02 base bathtub main chassis and drive-train for easy maintenance
Longitudinally-placed battery and R/C gear placed flat for a low centre of gravity
Uses robust plastic dog-bones for high durability and easy maintenance

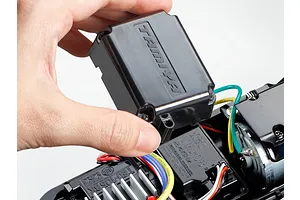

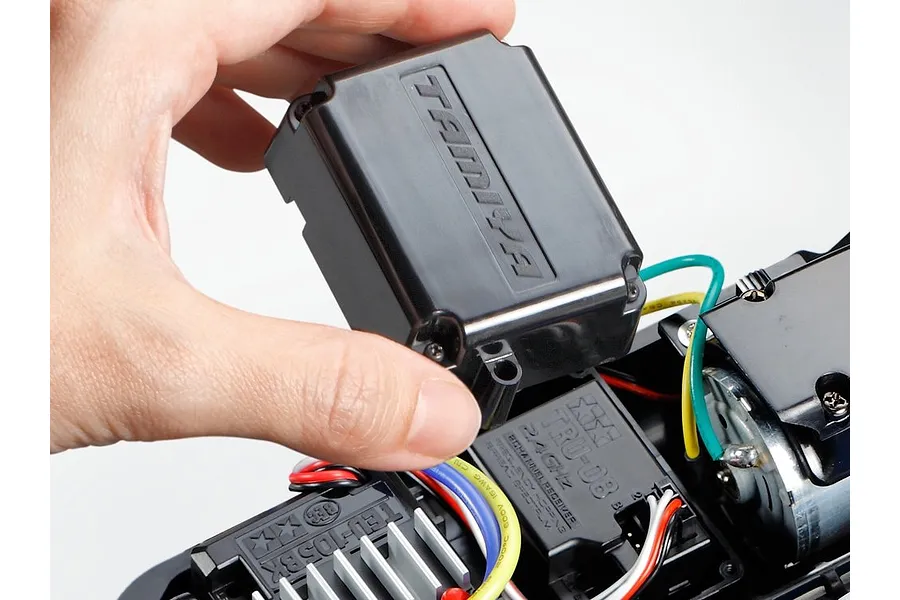

Includes sealed compartment to keep dirt and debris from receiver

In the box

1x 1/10 Neo Scorcher Buggy Kit

You'll need

4 x AA Batteries
7.2V NiMH Battery
NiMH Charger
Servo
Radio Transmitter & Receiver
Electronic Speed Controller (ESC)
Tamiya PS Paint

Highlights

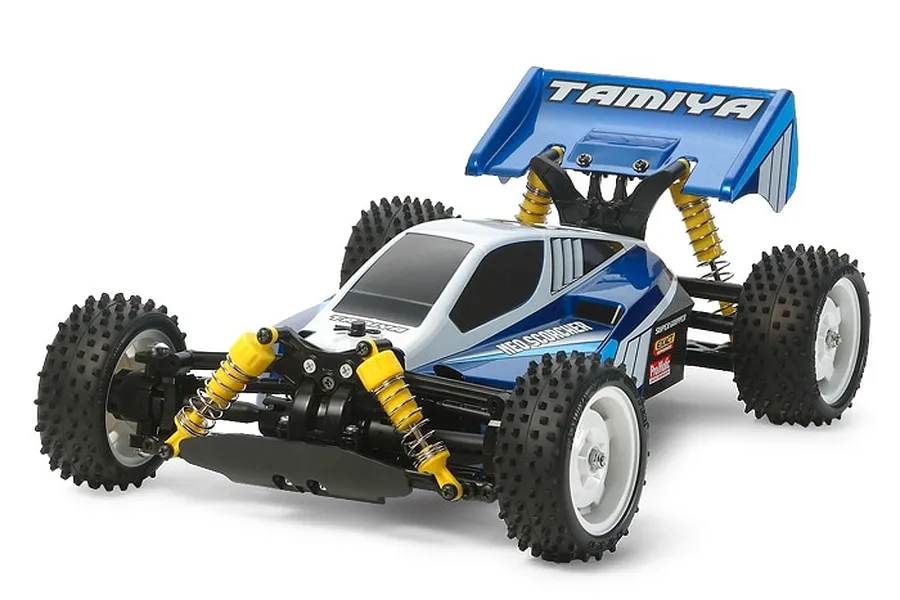

Neo Scorcher RC Buggy — overview

The Neo Scorcher features a durable polycarbonate body with a stylish large rear wing, inspired by the original Scorcher from the 1980s.

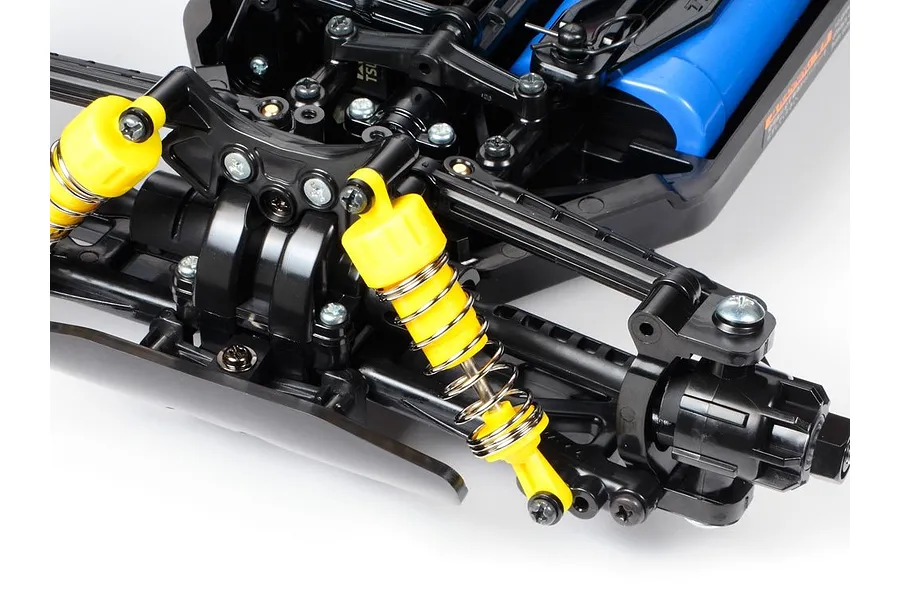

Neo Scorcher — TT-02B chassis and suspension detail

4-wheel independent double wishbone suspension features long arms and CVA shock units for assured handling.

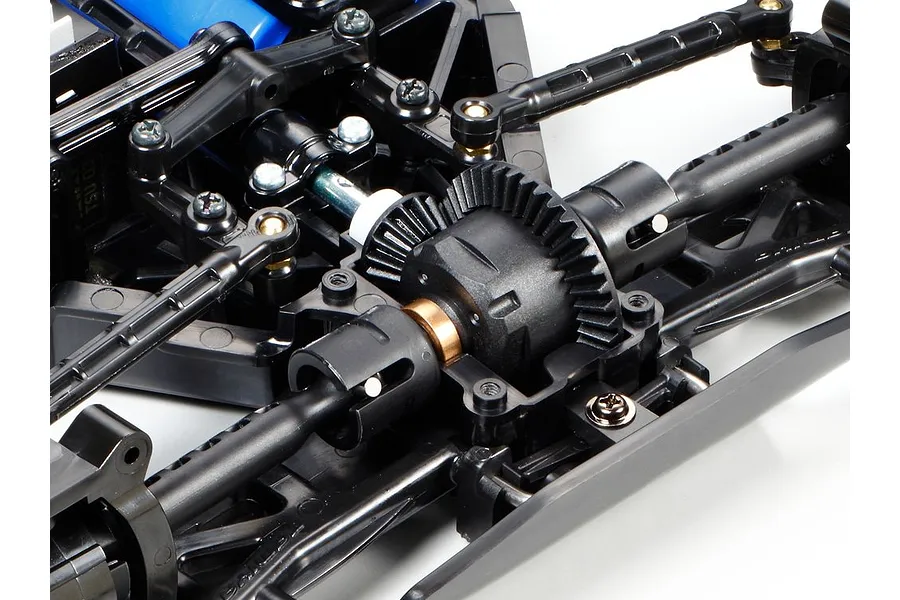

Neo Scorcher — sealed gearbox and drivetrain detail

Reliable shaft-driven 4WD uses sealed front and rear gearboxes for stress-free maintenance.

Specifications

Scale	1/10
Type	Assembly Kit
Length	380mm (14.9")
Width	250mm (9.84")
Height	145mm (5.70")
Wheelbase	266mm (10.4")
Chassis	ABS Bath Tub
Drivetrain	4WD
Differential	4-Bevel Resin Differentials
Steering	3-Piece Tie Rod
Suspension	4-Wheel Double Wishbone Suspension
Tyre Width/Diameter	Front 32/82mm (1.25/3.22"), Rear 41/82mm (1.61/3.22")
Shocks	Oil-Filled Shock
Gear Ratio	10.71:1 (using kit-included pinion gear)
Motor	Type 540 Motor
