Tamiya

Tamiya Terra Scorcher RC Buggy Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit
  • Brushed

Part no. 47442

DiscontinuedNo reviews yet
1 / 2
1 / 2

Videos

This product has been discontinued.

Contact us

Videos

Overview

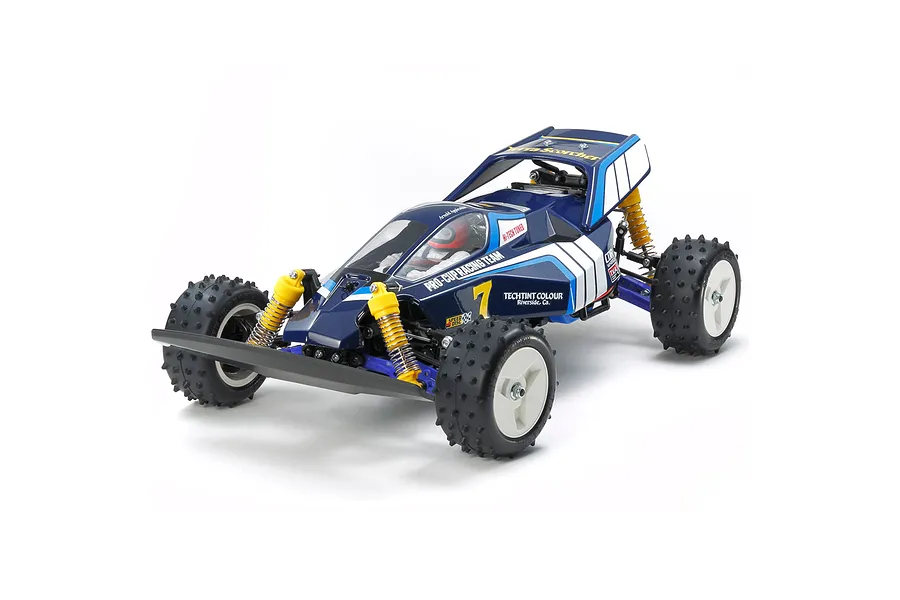

A legend returns — the Terra Scorcher has been a trusty off-road assembly kit for R/C enthusiasts since 1988! It makes a welcome comeback in the shape of this limited-edition kit, which features a modern chassis and some updates to the livery marking scheme.

The polycarbonate body is paired with the 4WD chassis previously employed on the re-issued Fire Dragon (Item 58403), with further upgrades. Updated marking stickers keep the flavour of the 1988 original.

Note

This body shell comes completely unpainted and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as the Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface.

Features

  • 1/10 scale R/C model assembly kit
  • Polycarbonate body paired with 4WD chassis previously used on the re-issued Fire Dragon (Item 58403), with further upgrades
  • Updated marking stickers keep the flavour of the 1988 original
  • Shaft-driven 4WD drivetrain with universal joints and 3-bevel gear differentials in front and rear sealed gearboxes, enhanced by full ball bearings
  • Streamlined double wishbone suspension with upper I-arms and lower H-arms with CVA oil dampers; upper arms are adjustable
  • Stabilisers front and rear for nimble handling and precision
  • Includes Tamiya TBLE-02S ESC capable of running sensor brushless motors and brushed motors alike (21.5 Turn BL motor limit / 23 Turn brushed motor limit)

In the box

  • 1x Tamiya Terra Scorcher RC Buggy Kit
  • 1x Tamiya TBLE-02S ESC
  • 1x Clear Polycarbonate Body Shell
  • 1x Detailed Sticker Sheet
  • 1x Assembly Instruction Manual

You'll need

  • 2-channel radio
  • Steering servo
  • 7.2V battery pack
  • Compatible charger
  • Tamiya PS paint
  • Tools

Highlights

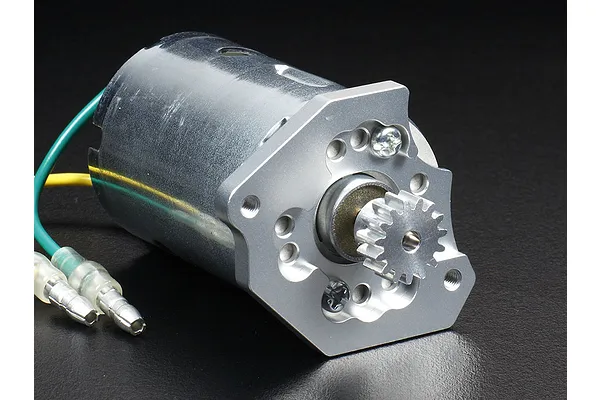

Tough Aluminium Motor Mount

Tough Aluminium Motor Mount

This machine comes equipped with a high-strength aluminium motor mount for rock-solid rigidity and superior heat dissipation. The metal construction draws heat away from your motor to keep performance peaking during long and intense racing sessions. It is a sturdy mechanical upgrade that ensures your drivetrain stays efficient under extreme load.

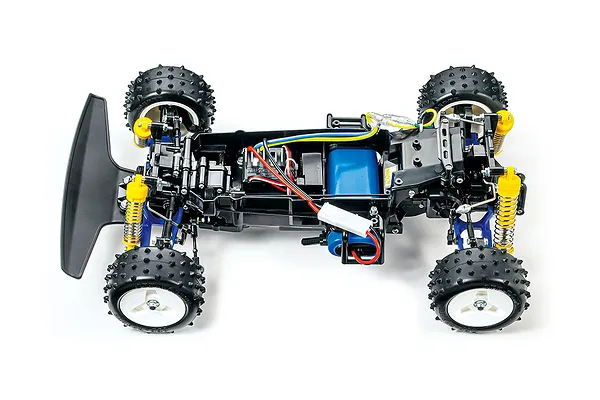

Ultra Strong Bathtub Type Frame

Ultra Strong Bathtub Type Frame

The RC mechanics are protected inside a lightweight yet strong bathtub-type frame for maximum performance. This rigid structure delivers the mechanical toughness required to survive the wildest jumps and high-speed impacts. It is a dependable foundation that ensures your internal components stay safe while you dominate the track.

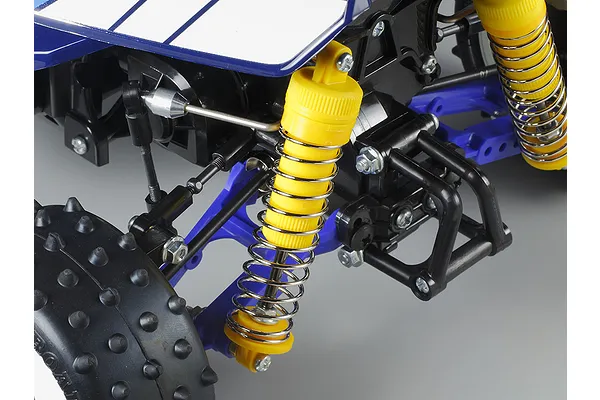

Independent Suspension With Dual Stabilisers

Independent Suspension With Dual Stabilisers

Experience an impressive scale experience with a double wishbone four-wheel independent suspension system and four CVA oil dampers. Front and rear stabilisers eliminate body roll during aggressive cornering to keep your buggy flat and fast on the dirt. It is a high-performance setup that provides the stability needed for the most technical off-road manoeuvres.

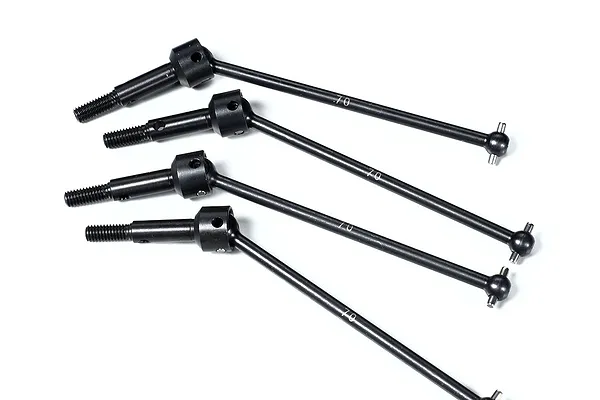

Heavy Duty Universal Drive Shafts

Heavy Duty Universal Drive Shafts

High-efficiency universal drive shafts at the front and rear transmit every bit of power to the wheels without loss. These rugged components are designed to stay securely in place even during the most violent crashes or accidents. It is a dependable drivetrain setup that delivers the mechanical grit needed for continuous high-speed racing.

Specifications

Drivetrain4WD
WeightComing Soon
WheelbaseComing Soon
Ground ClearanceComing Soon

Dimensions

LengthComing Soon
WidthComing Soon
HeightComing Soon

RC Car

Scale1/10
Power SourceElectric Brushed
Drivetrain4WD
Chassis TypeBuggy
CompletionKit
On/Off RoadOff Road
Skill LevelBeginner, Intermediate, Experienced
Max LiPo Power2S (7.4v)

RC Kit

Suited Motor/ESC TypeBrushed, Brushless

Factory Specs

Battery IncludedIncluded battery type or if sold separately.Not Included
Battery ConnectorTamiya
Pinion Gear15T
