Tamiya TT-02FT Landfreeder Quadtrack RC Truck Electric 4WD 1/10 Scale Kit

  • 1/10
  • 4WD
  • Kit
  • Brushed

Part no. 58690

Sold outNo reviews yet
1 / 6
1 / 6

Videos

$484.01

or 4 fortnightly payments of $121.00 with afterpay or PayPal, or zip

Tamiya TT-02FT Landfreeder Quadtrack: unique three-sided track units, pre-painted body, 540 motor and ESC included. 1/10 scale 4WD assembly kit.

  • Unique three-sided track units replace wheels for outstanding traction on rough terrain
  • Polycarbonate body pre-painted in PS-5 black with PS-31 smoke windows — no painting required
  • 540-brushed motor and ESC included; ESC supports brushless (sensored) upgrades of 21.5T and higher
  • Two track link types (standard and grouser) included for setup options
  • TT-02FT chassis with four-bevel differentials and polycarbonate chassis cover

Videos

$484.01

Overview

Please Note:

This kit comes without a Servo, Battery, Charger, or Transmitter and will come with an unpainted body that may require cutting and drilling.

The Landfreeder Quadtrack is a fresh new twist on the fun world of Tamiya R/C. This kit uses a new variant of the TT-02 chassis with three-sided track units in place of wheels, delivering awesome traction that can take on rough terrain. The polycarbonate truck body comes already pre-painted in Tamiya PS-5 black with Smoke (PS-31) windows, and separate plated parts recreate the grille cover, fog lamps and roll bar.

Features

  • TT-02FT chassis — a variant of the TT-02 with four tracks replacing wheels
  • Each three-sided track unit is 39.3mm wide with a 60mm contact area; tracks require assembly from link parts
  • Two types of elastomer track link included — standard and grouser — for setup options
  • Track units attach to suspension arms via plates and feature a sprocket and four rollers; the third roller is sprung for enhanced performance
  • Each track unit pivots on a point at the top of its roller arm
  • Polycarbonate chassis cover and wheel well liners protect against dust and dirt during off-road driving
  • TT-02 four-bevel differentials and identical suspension arms used
  • Includes 540-brushed type motor
  • ESC included — compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over

In the box

  • 1x 1/10 TT-02FT Landfreeder Quadtrack Electric Off-Road RC Truck Kit

You'll need

  • 2-channel radio system (transmitter & receiver) & batteries
  • Compatible battery pack & charger
  • Servo

Highlights

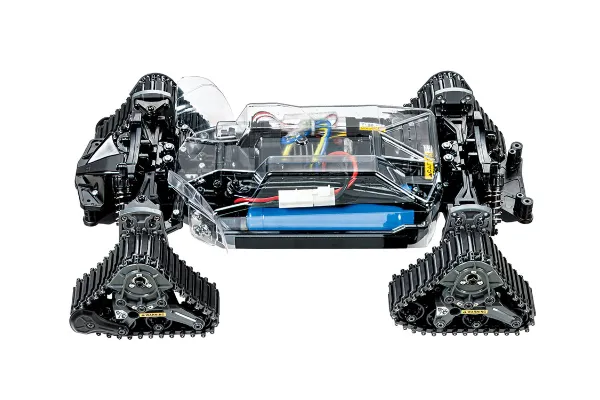

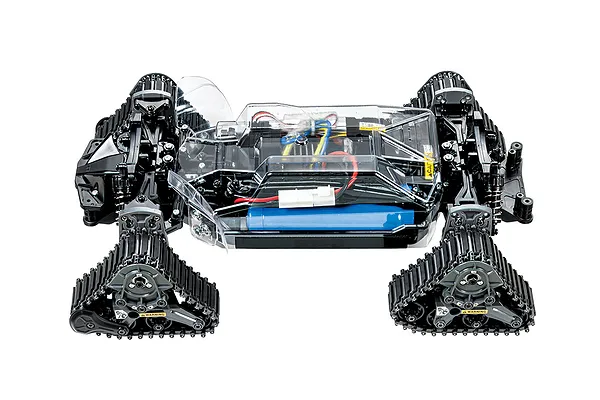

TT-02 Chassis

TT-02 Chassis

The Landfreeder Quadtrack utilises the proven TT-02 chassis as its foundation, providing a balanced shaft-driven 4WD system for exceptional traction and control. Track units replace traditional tires, further enhancing the truck's off-road capabilities.

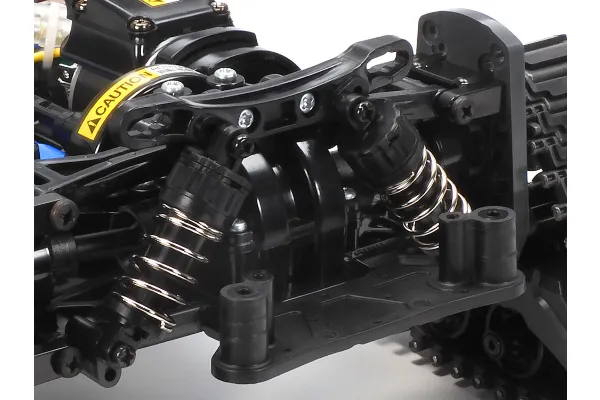

Rear Double-Wishbone Suspension

Rear Double-Wishbone Suspension

The TT-02 chassis boasts a sophisticated rear double-wishbone suspension system. Coil-over shock absorbers provide effective damping for enhanced stability and responsiveness, leading to a more enjoyable and predictable driving experience.

Designed for Easy Maintenance

Designed for Easy Maintenance

The TT-02 chassis is engineered for effortless upkeep. Its sealed gearbox features a four-screw top cover that's easily removable, allowing for quick routine maintenance and ensuring your car runs at its best for longer.

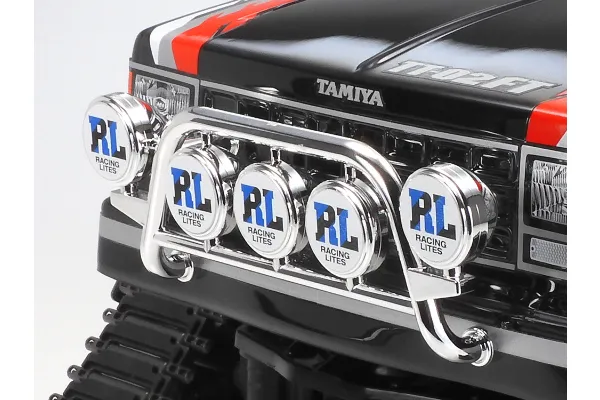

Scale Detail

Scale Detail

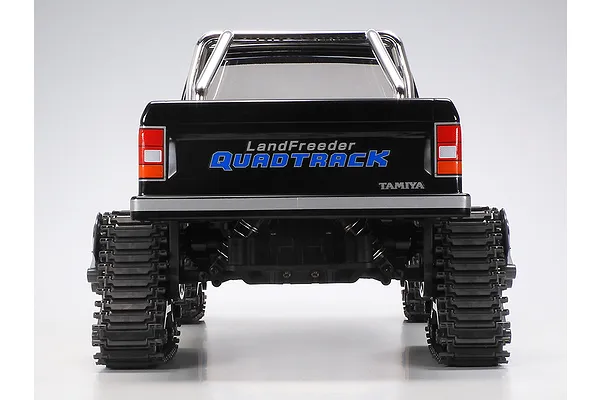

The Landfreeder Quadtrack is a head-turner, thanks to its 1980s-inspired truck body and four massive tracks. Chrome-plated details, like the bull bars, fog lamps, and roll bar, enhance the realism and create a truly eye-catching model.

Superb Ground Clearance

Superb Ground Clearance

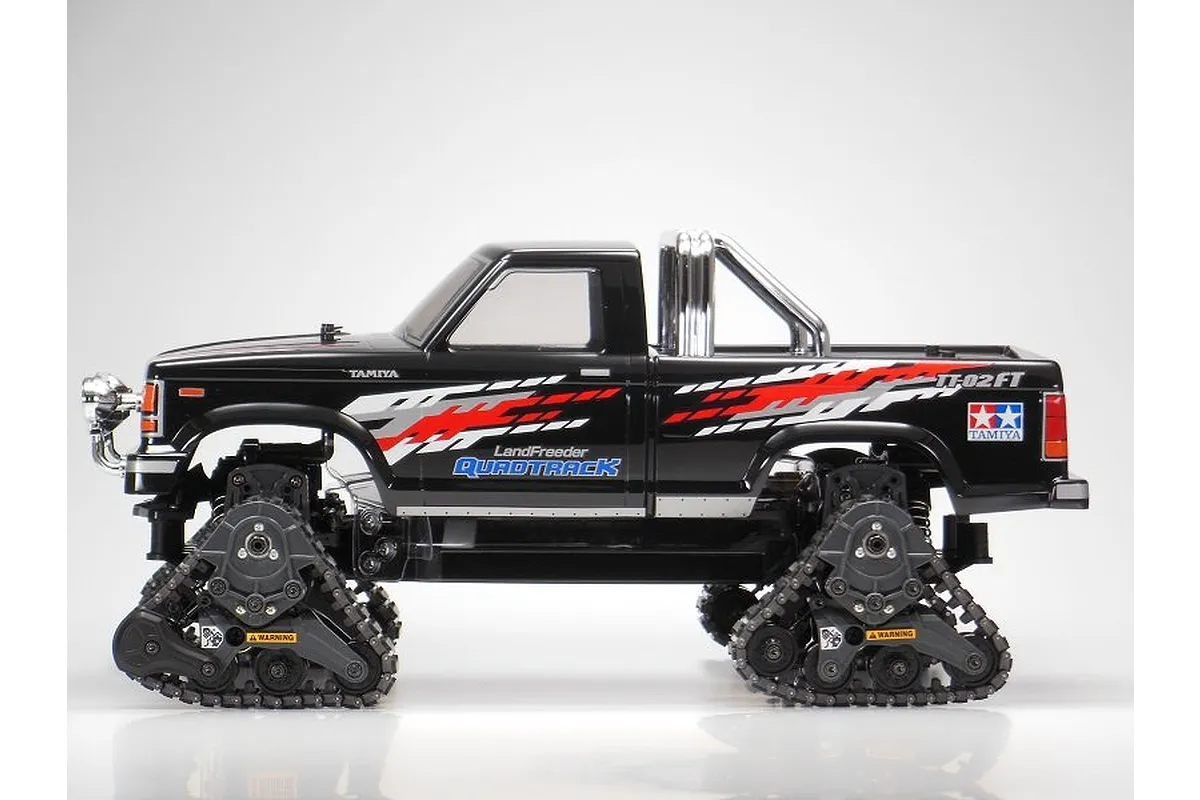

With its impressive ground clearance, the Landfreeder Quadtrack is ready to tackle anything. Rocks, ruts, and uneven terrain are no match for this high-riding machine.

Double Wishbone Suspension

Double Wishbone Suspension

The Landfreeder Quadtrack's double wishbone suspension, equipped with coil over shock absorbers on both axles, delivers a balanced and comfortable ride. This setup provides excellent control and stability, allowing you to navigate challenging terrain with confidence.

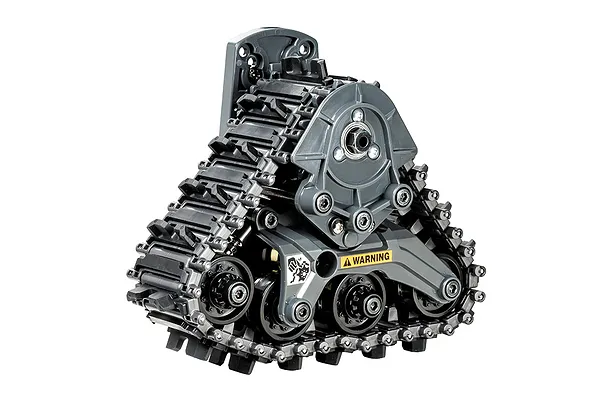

Innovative Track Units

Innovative Track Units

The innovative track units feature eight individual rollers and a sprung third roller for exceptional adaptability and grip. These tracks can even swing to maintain contact with the surface, ensuring maximum traction on any terrain.

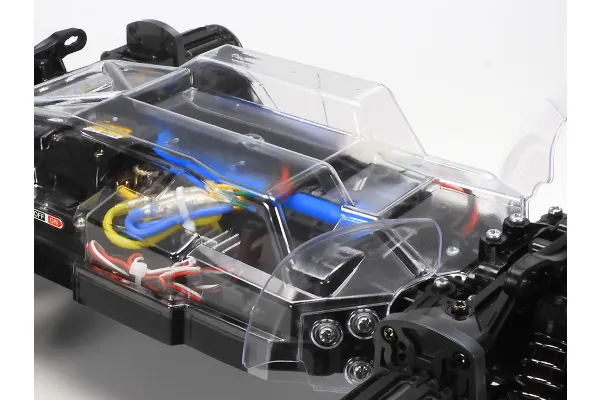

Polycarbonate Cover

Polycarbonate Cover

The Landfreeder Quadtrack is designed for durability and easy maintenance. A polycarbonate chassis cover with wheel well liners helps keep dirt and debris out, protecting vital components and minimising cleaning time.

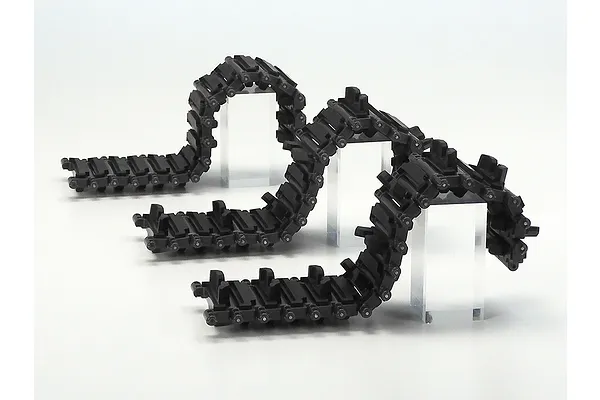

Customisable

Customisable

The Tamiya Tracked range offers customisable grip with two included link types: grouser and standard. Configure the links in different patterns to achieve the optimal traction for your chosen terrain.

Learn How to Paint an RC Body Shell

Learn how to paint your own custom RC body shell with this step by step guide. Hamish will walk you through the process of painting your RC body shell as he paints a clear 1/10 Subaru Impreza for his 1/10 MST MS-01D drift car.

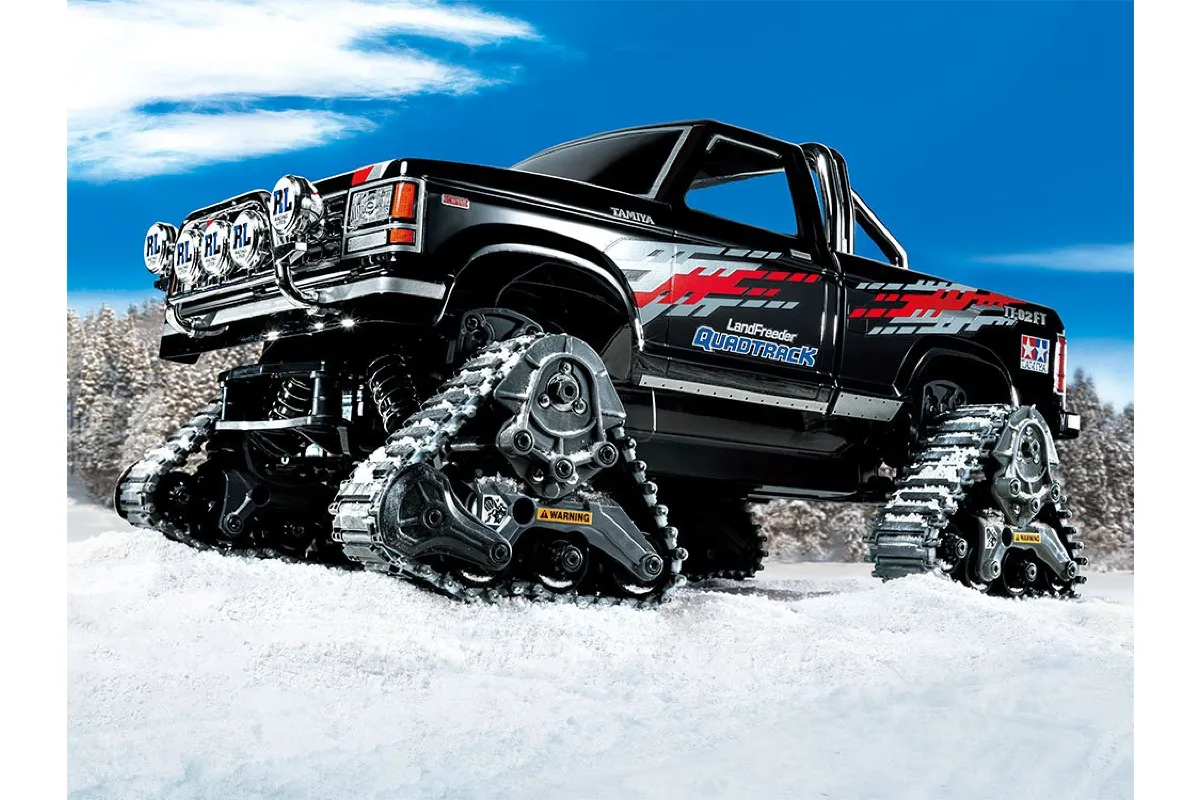

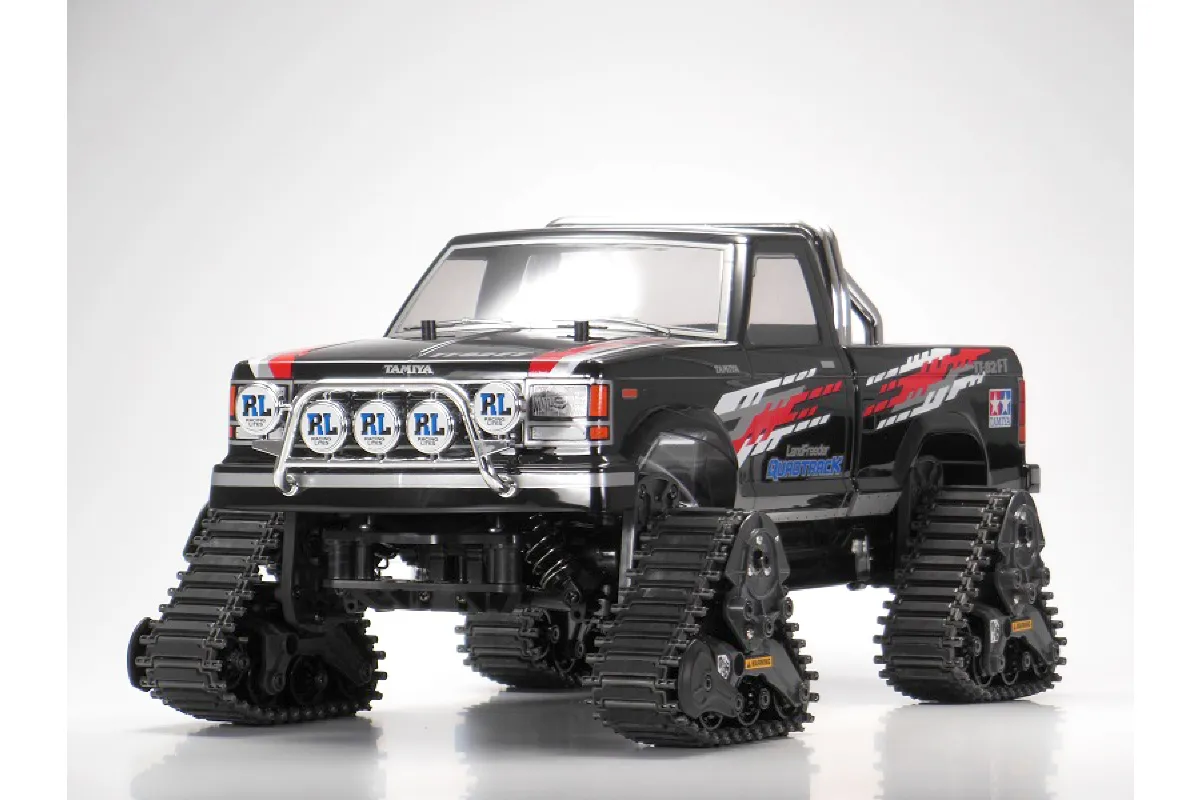

Landfreeder Quadtrack overview

Landfreeder Quadtrack overview

The Landfreeder Quadtrack is a fresh new twist on the fun world of Tamiya R/C, using track units in place of wheels for awesome traction.

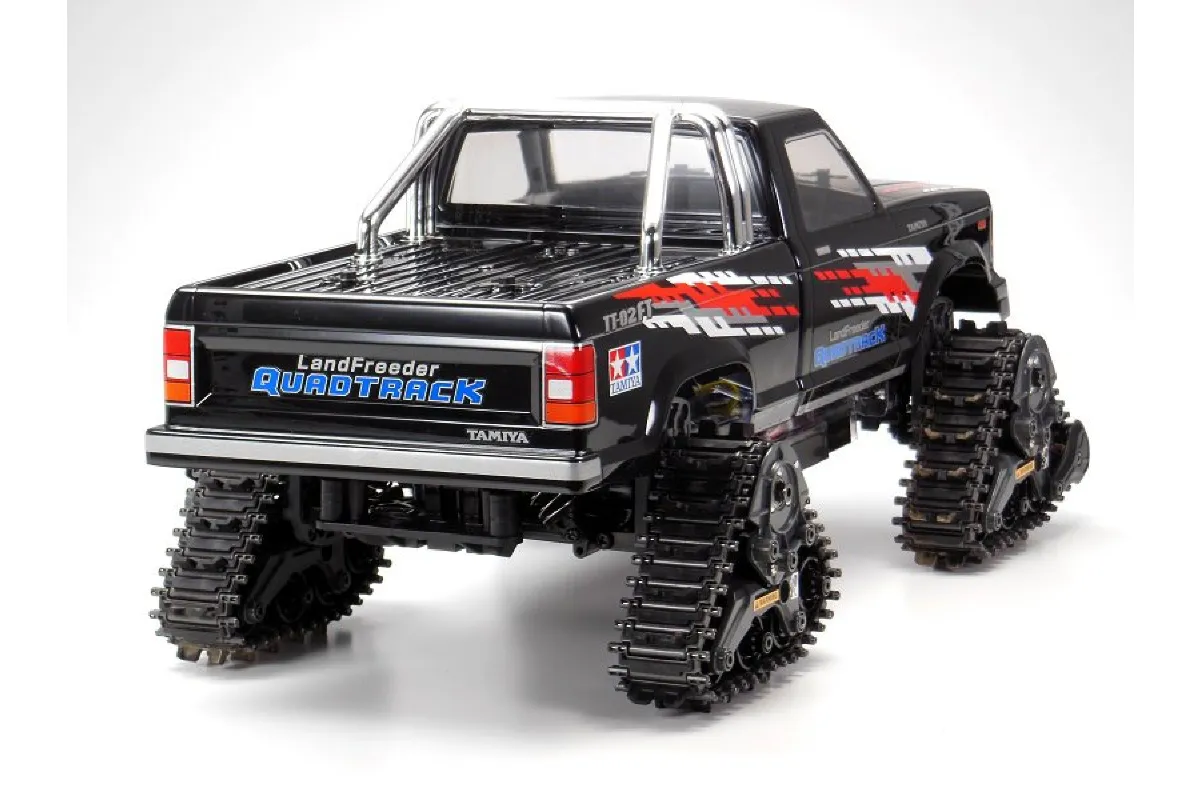

Pre-Painted Polycarbonate Body

Pre-Painted Polycarbonate Body

The body is moulded in polycarbonate, pre-painted Black (PS-5) with Smoke (PS-31) windows.

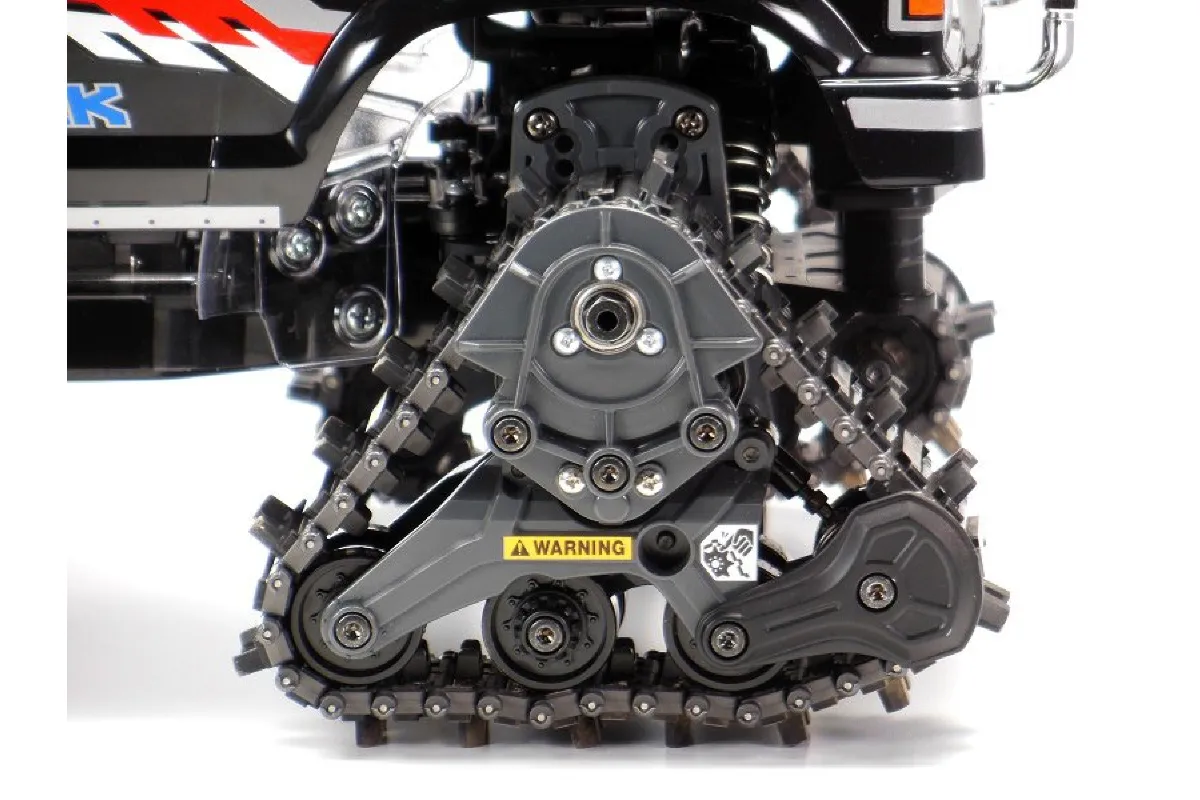

Landfreeder track unit detail

Landfreeder track unit detail

Track units are attached to suspension arms via plates, and each features a sprocket and four rollers.

Landfreeder track assembly

Landfreeder track assembly

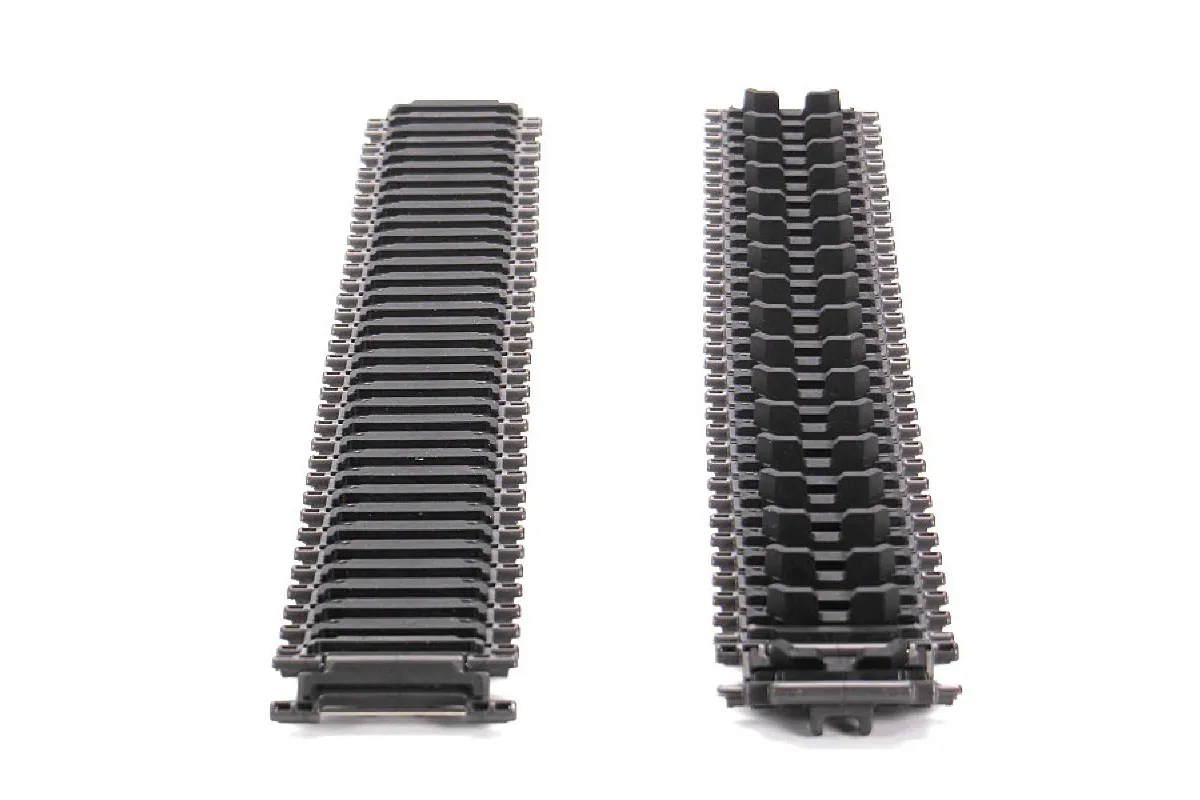

Tracks require assembly from links and offer efficient traction; two types of link (standard and grouser) are included.

Landfreeder sprung roller detail

Landfreeder sprung roller detail

Each track unit pivots on a point at the top of its roller arm; the sprung third roller further enhances your ride.

Specifications

Scale1/10
Adjustable Gear RatioYes
BearingsPlastic bushing
Body MaterialPolycarbonate pre-painted
Body StickersIncluded
Chassis MaterialABS Plastic
Chassis TypeTT-02FT
Construction TypeAssembly Kit
Differential TypeGear
Drive Type4WD
ESCCompatible with brushless motors (sensored) 21.5 turns and higher, and Tamiya brushed motors 25 turns and over
Motor540-brushed type
Terrain UseMulti-Purpose

Dimensions

Length425mm
Width247mm

RC Car

Scale1/10
Power SourceElectric Brushed
Drivetrain4WD
Chassis TypeTruck
CompletionKit
On/Off RoadOff Road
Skill LevelBeginner

Factory Specs

Max LiPo Power2S (7.4v)
Battery ConnectorTamiya
