Tamiya WR-02CB Comical Hornet RC Buggy Electric 2WD 1/10 Scale Kit

  • 1/10
  • 2WD
  • Kit
  • Brushed

Part no. 58666

DiscontinuedWrite a review
1 / 14
1 / 14

Videos

This product has been discontinued.

Contact us

Videos

Overview

Painting Required

This body shell comes completely UNPAINTED and may require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. If you require paint, we recommend the polycarbonate safe paints.

Catch the Buzz Again!

The original Hornet needs little introduction. It was a Tamiya legend which inspired legions of fans since the 1980s. For many, it was their very first introduction into the world of radio control assembly kits. The original Hornet is still among Tamiya?ÇÖs best-selling kits to this day. Now the legend is re-imagined as the Comical Hornet, with a new body inspired by the famous original. The re-imagined body, which includes a newly designed driver figure, sits on a new and dedicated variant of the proven off-road chassis: the WR-02CB.

The WR-02CB chassis is an exciting chassis at home on- and off-road, providing smooth driving and the potential for exciting wheelies! It features a pre-assembled gearbox with motor already attached to save hassle in the assembly process. Long suspension arms and CVA oil dampers make for excellent off-road performance, while underguard and side guards give great protection. A rear wheelie bar helps support the model when it leans back, maintaining a fun wheels-in-the air stance as the model plunges forward. Green and white 2-piece wheels are joined by bubble tyres (front: ribbed, rear: round block) for a fun look and drive.

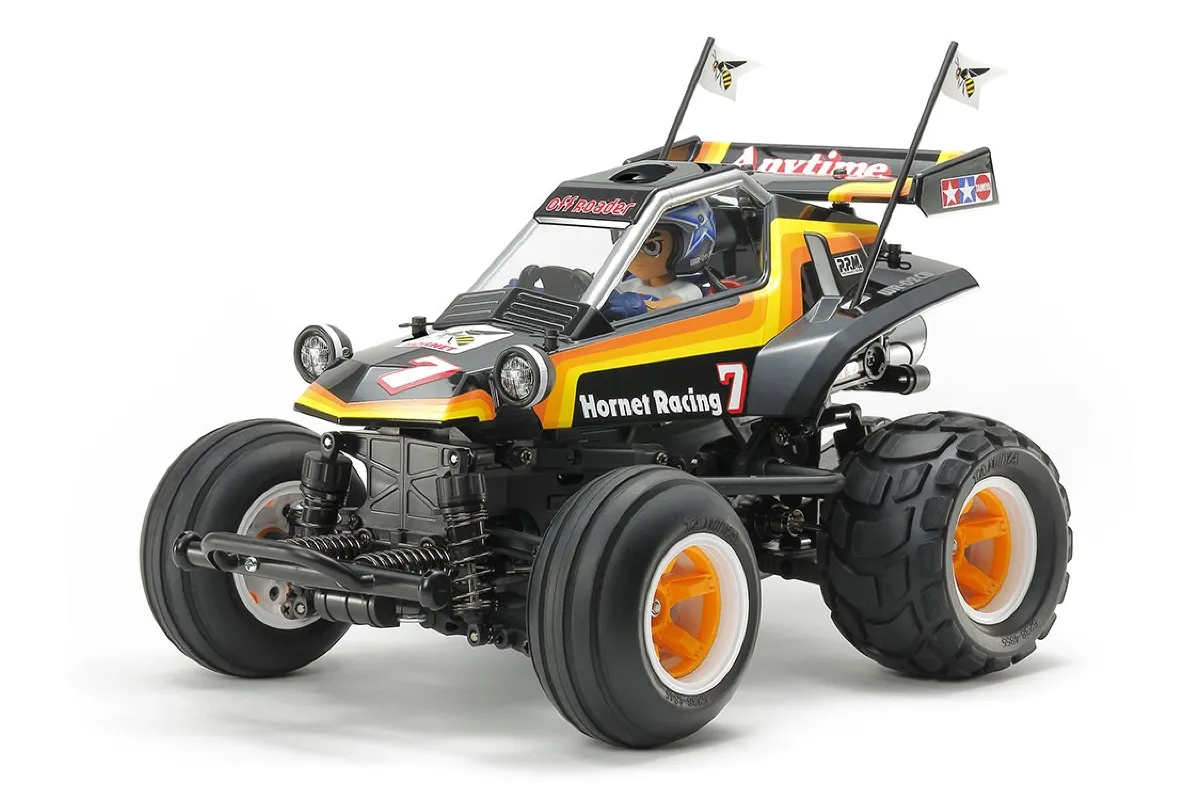

Our designers have come up with this comical version of the classic Hornet body, infused with charm.

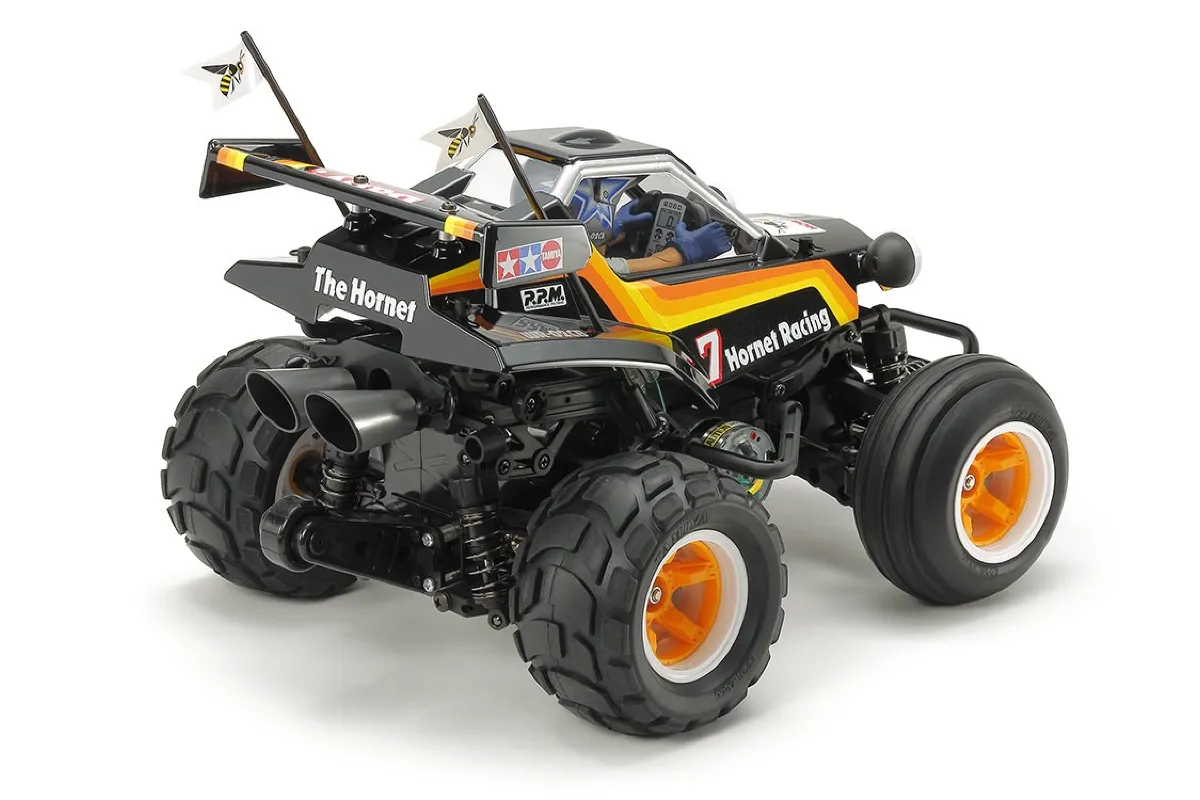

This rear view of the model shows off the trademark Hornet rear wing, plus the chunky, comical bubble tyres.

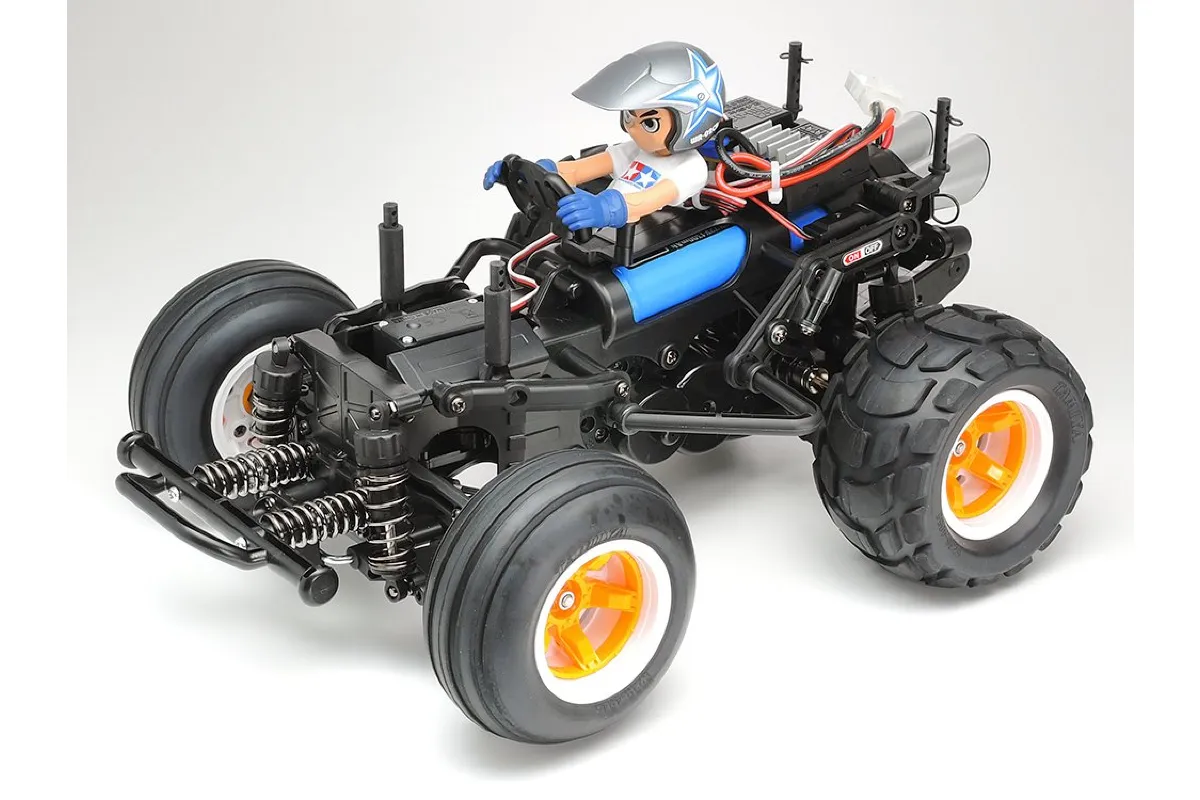

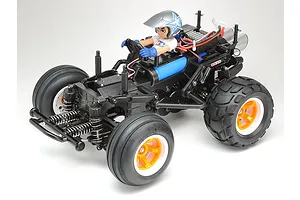

Removing the body gives a better look at the fun WR-02CB chassis - wheelies and off-road fun await!

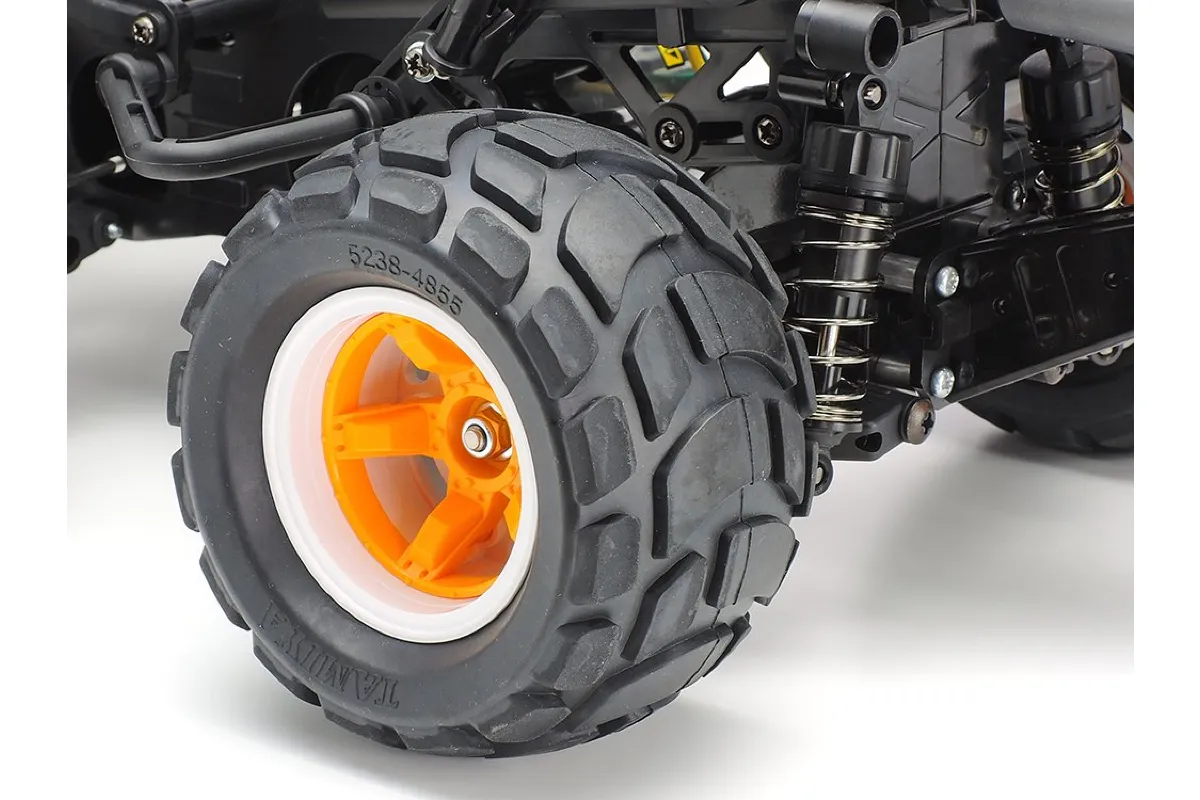

A closer look at a round block bubble tyre on the rear, as well as a 2-piece wheel with orange rim.

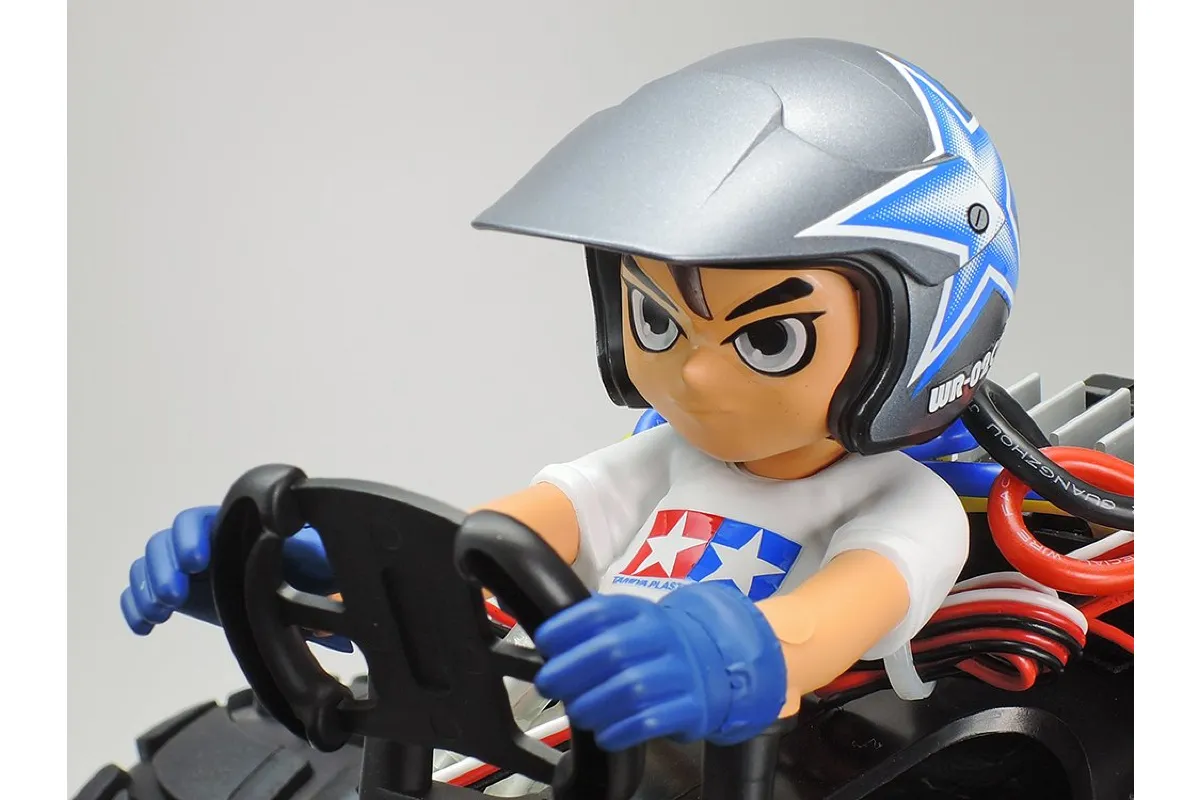

Here is the latest Tamiya R/C model figure, which offers an easier paint job thanks to separate face part.

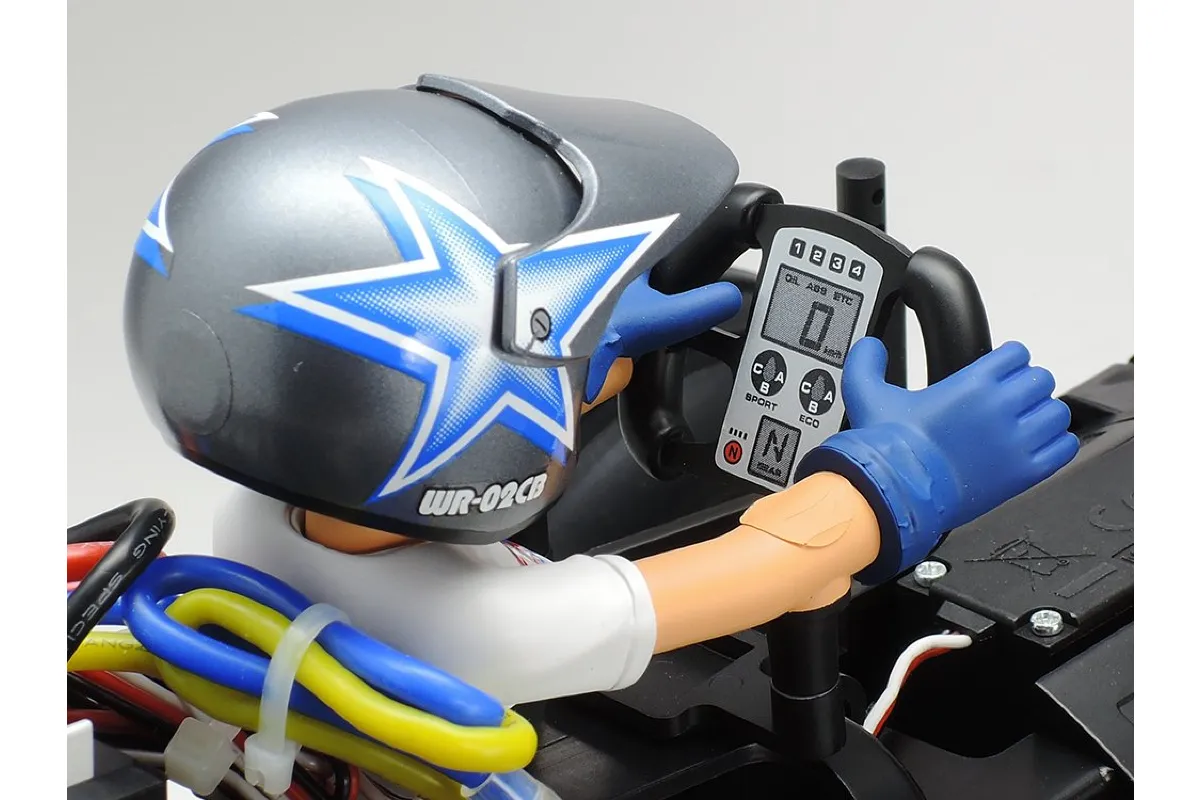

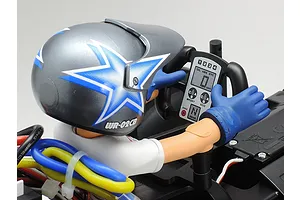

A racy steering wheel fits the model's tone, with sticker-recreated instrumentation and display.

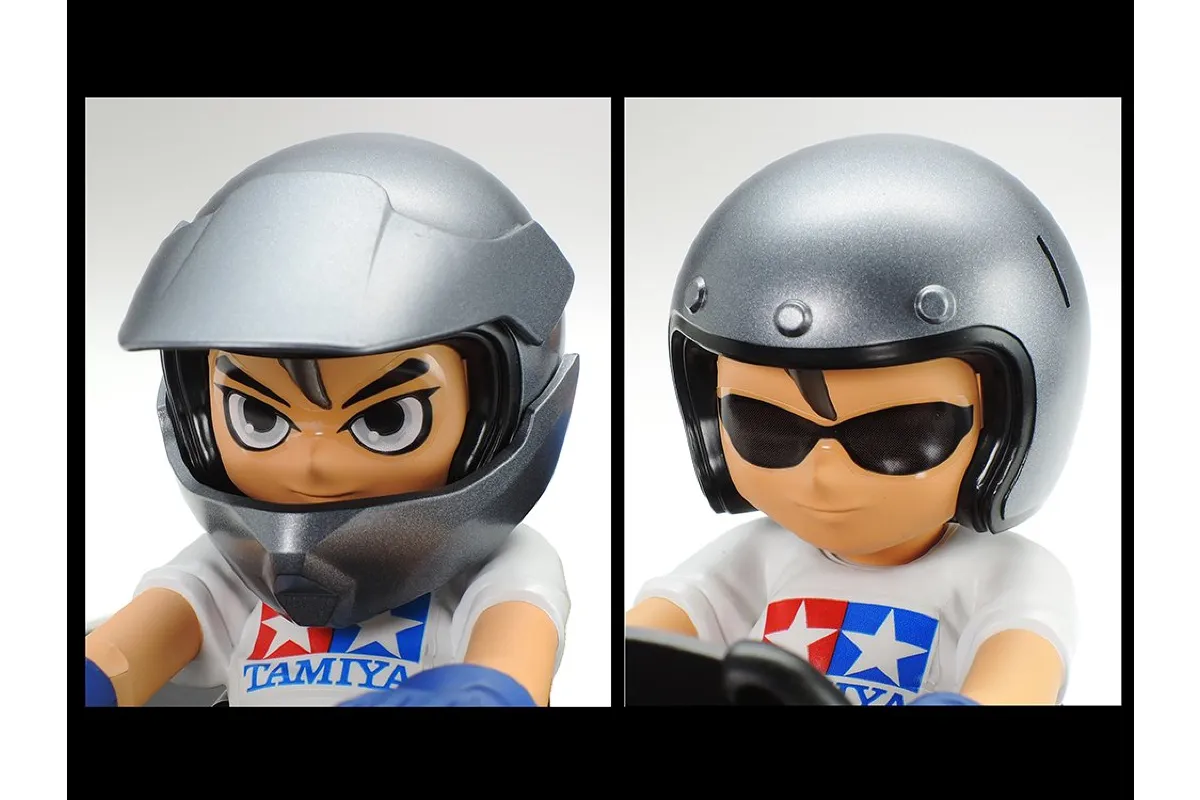

Pick and choose from a number of different looks, with different helmet parts and stickers included.

Take a closer look at the comprehensive sticker sheet for the figure in this image.

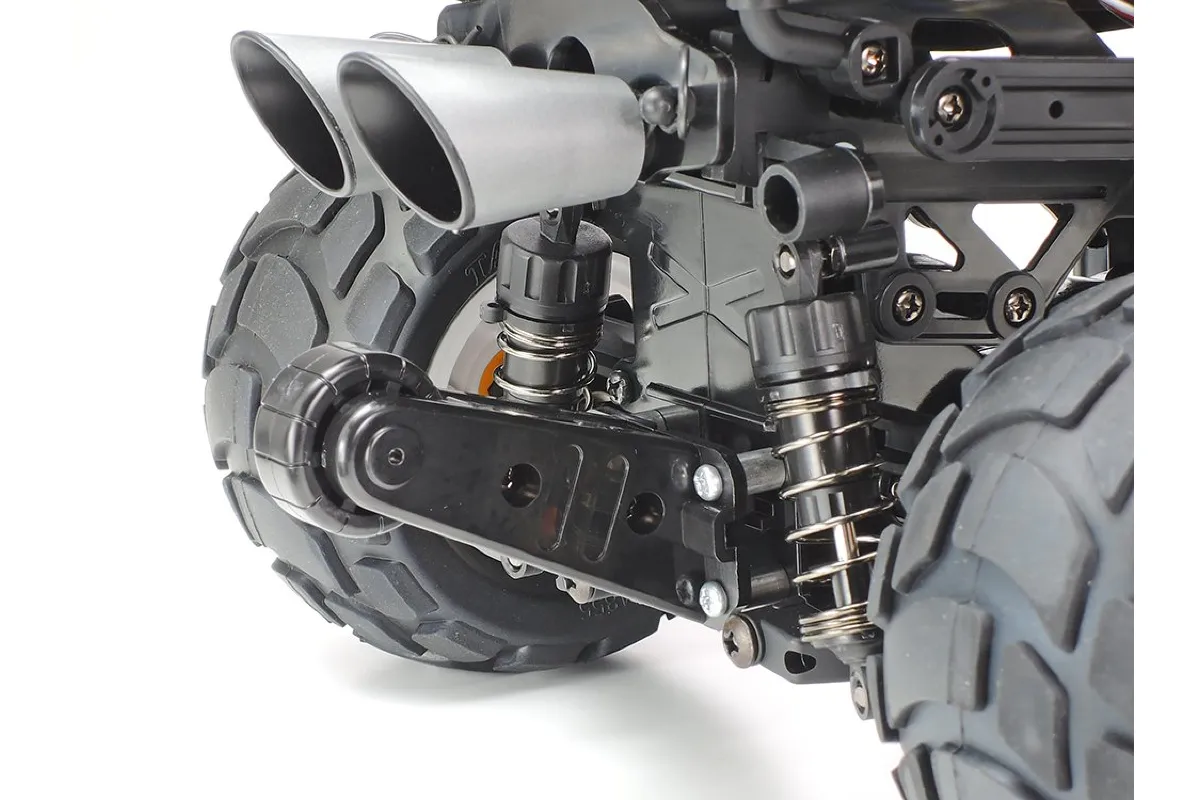

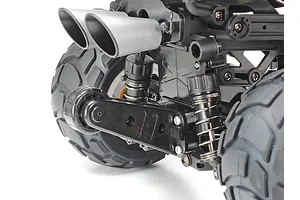

A wheelie bar on the rear of the chassis helps the Comical Hornet maintain exciting 2-wheel action.

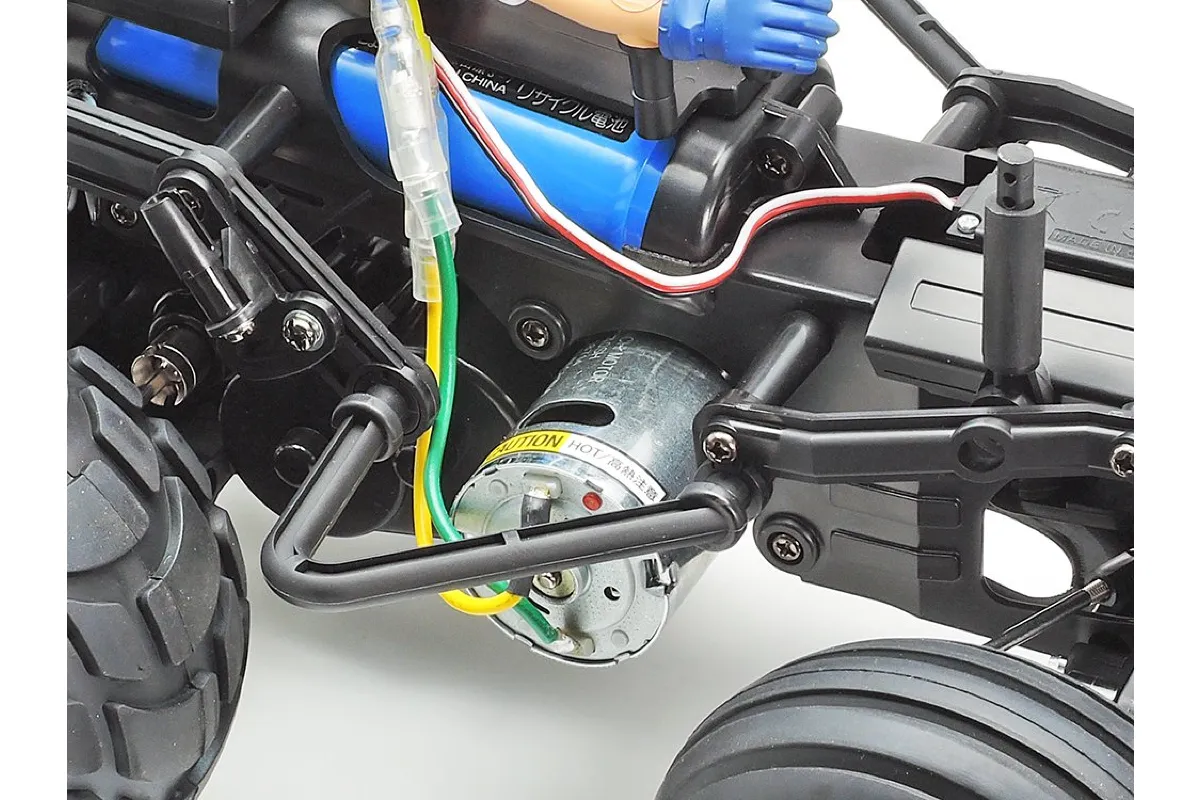

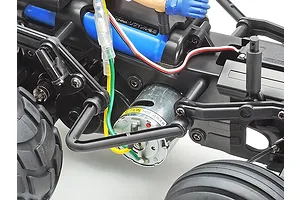

The slimline WR-02CB monocoque has its motor in the center with gears routing power to the rear wheels.

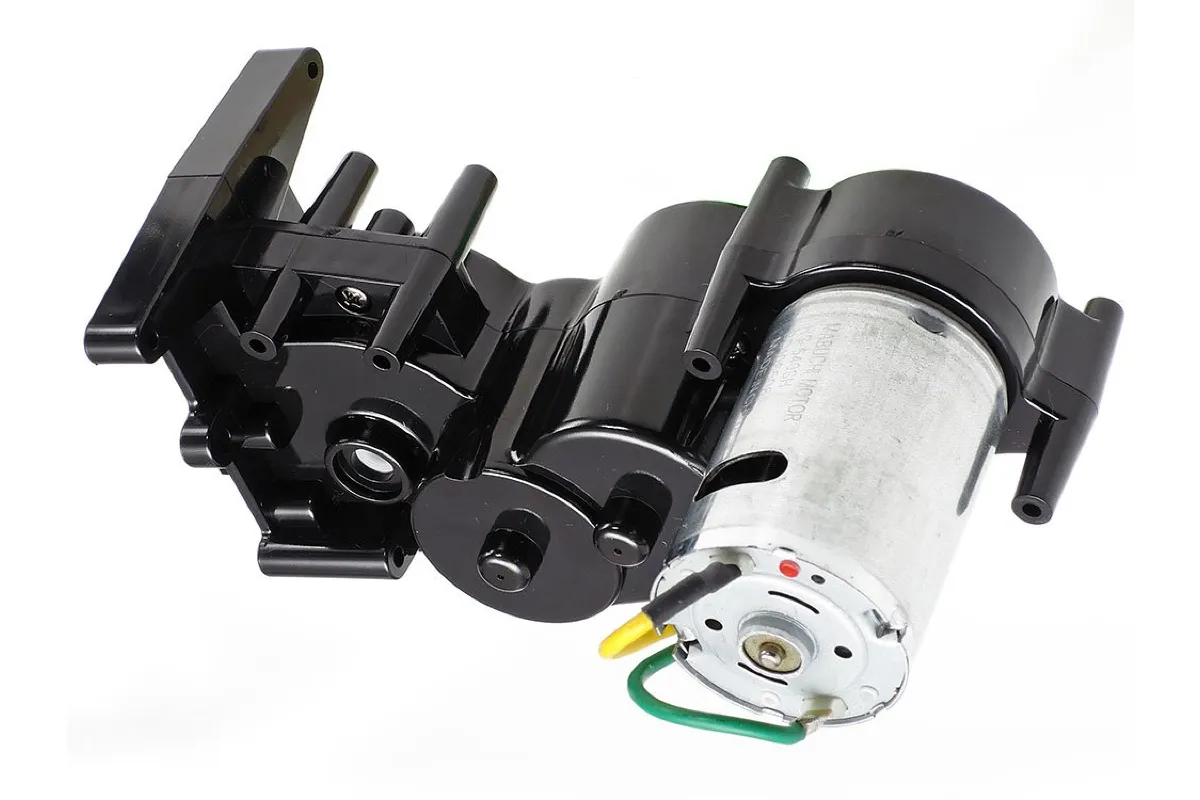

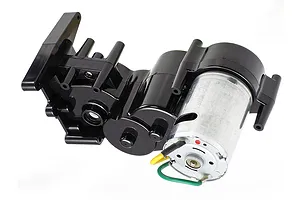

A pre-assembled gearbox unit makes this model a great choice for beginners to the R/C hobby.

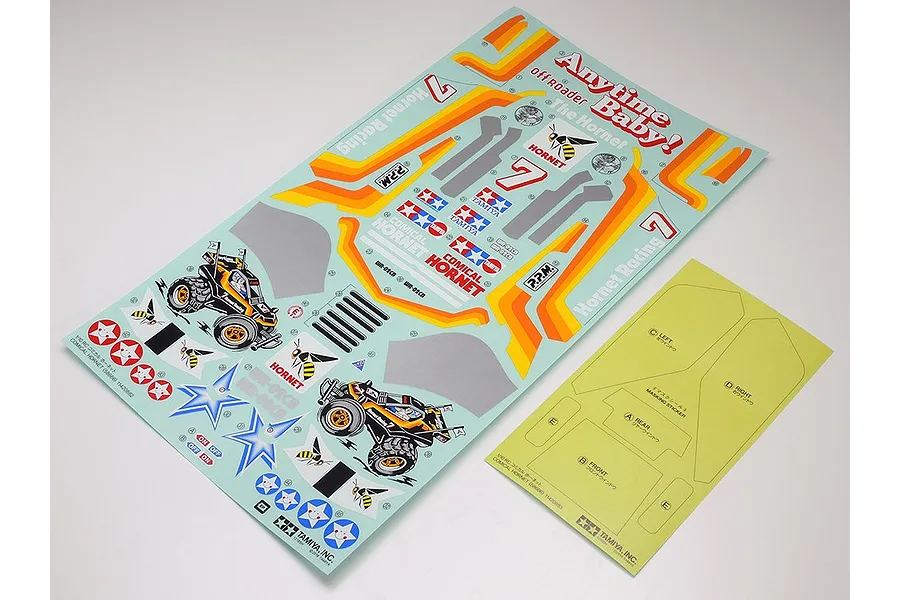

Also included in the box are a big sheet of marking stickers, plus masking stickers for use in the paint job.

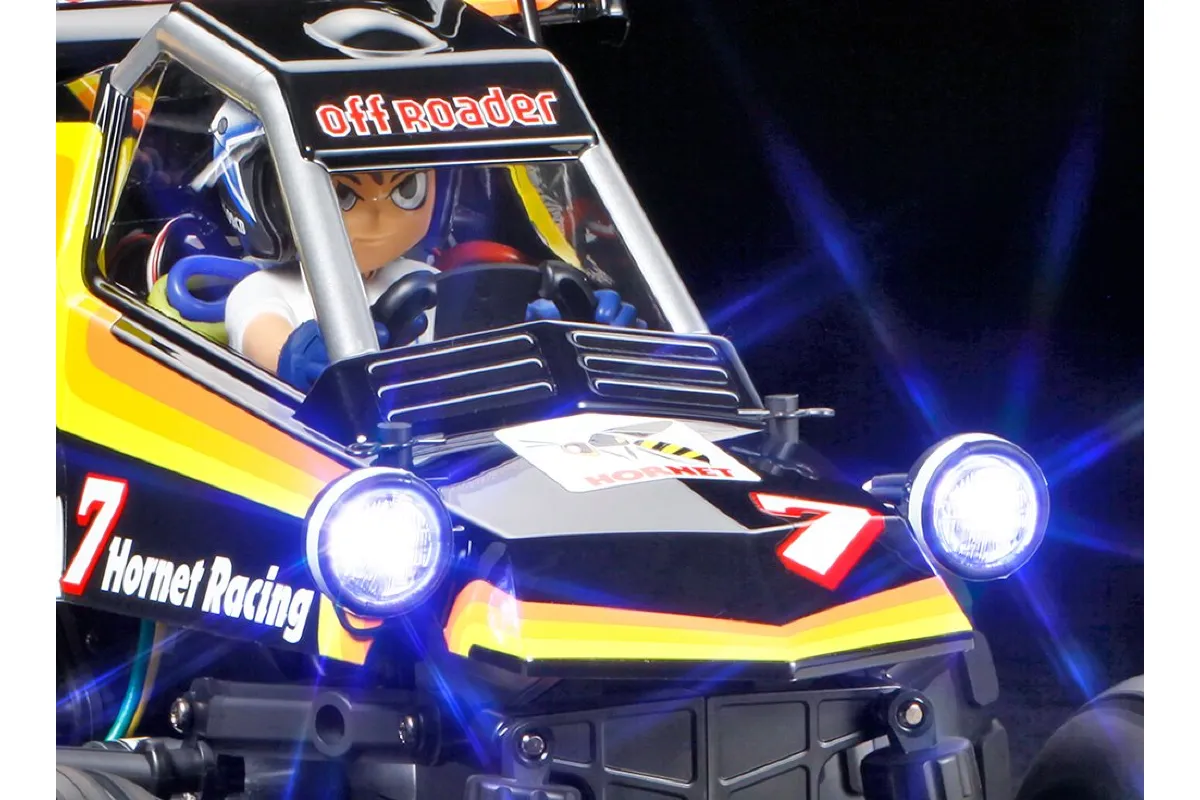

Why not fit the light cases (front and rear) with 5mm LEDs for a truly thrilling version of the Comical Hornet?

Note

This body shell comes completely UNPAINTED and may or may not require body post holes to be drilled. Only use a polycarbonate style paint such as The Tamiya PS series to finish these bodies, as standard paints will not adhere and/or cause damage to the body shell's surface. To view the entire range of polycarbonate safe paints, please CLICK HERE

Features

  • Durable monocoque centrepiece and inline battery pack position, 4-wheel double wishbone suspension and 2-piece steering tie-rod set up.
  • Polycarbonate body with sticker design based on the original Hornet.
  • Orange and white 2-piece wheels use bubble tyres (front: ribbed, rear: round block)
  • Includes headlight cases, allowing installation of separately sold 5mm LEDs. They use separate polycarbonate lens components.
  • Comes with a newly designed helmeted driver figure with hands gripping a steering wheel.
  • Suspension arms feature multiple damper attachment holes for easily adjustable performance.
  • Oil-filled CVA Mini shock units provide superb cushioning, even on rough off-road surfaces.
  • Includes Tamiya TBLE-02S ESC (electronic speed control) Capable of running sensor brushless motors and brushed motors alike. (21.5 Turn BL motor limit) (23 Turn brushed motor limit).
  • Includes 540-type brushed motor.
  • Internal Gear Ratio: 18.3:1.
  • Includes wheelie bar.

In the box

  • 1x 1/10 WR-02CB Comical Hornet 2WD Electric Off Road RC Buggy Kit
  • 1x Wheelie Bar
  • 1x Decal Sheet Set

You'll need

  • 2ch+ Radio System
  • Steering Servo
  • 7.2v Battery & Compatible Charger
  • Polycarbonate Paint

Highlights

WR-02CB Chassis - Great Fun Awaits!

WR-02CB Chassis - Great Fun Awaits!

The WR-02CB chassis is an exciting chassis at home on- and off-road, providing smooth driving and the potential for exciting wheelies! It features a pre-assembled gearbox with motor already attached to save hassle in the assembly process. Long suspension arms and CVA oil dampers make for excellent off-road performance, while underguard and side guards give great protection. A rear wheelie bar helps support the model when it leans back, maintaining a fun wheels-in-the air stance as the model plunges forward. Green and white 2-piece wheels are joined by bubble tyres (front: ribbed, rear: round block) for a fun look and drive.

Specifications

Scale1/10
Construction TypeAssembly Kit
Adjustable Gear RatioYes
BearingsPlastic bushing
Body MaterialPolycarbonate
Body StickersIncluded
Chassis MaterialABS Plastic
Chassis TypeWR-02CB
Differential TypeGear
Drive Type2WD
Electronic Speed Controller (ESC)Tamiya TBLE-02S
Led LightsNot Included, but sold separately
MotorBrushed 540 Type
Shock DamperCVA Oil Filled
Suspension4-wheel fully independent double wishbone
Terrain UseMulti-Purpose

RC Car

Scale1/10
CompletionKit
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeBuggy
On/Off RoadOff Road
Drivetrain2WD

Factory Specs

Battery ConnectorTamiya
