Description
Please Note:

This kit comes without an ESC, Motor, Servo, Battery, Charger, Transmitter or Body Shell.

The Team Associated DR10 Team Kit is a 1/10 scale 2WD electric drag race car kit that's designed for serious drag racing enthusiasts. This kit provides the foundation for building a competitive drag car, with features like a three-position wheelie bar, lightweight drag race inspired wheels, and a rear anti-roll bar. The DR10 Team Kit also includes a 2.6:1 ratio gearbox with a heavy-duty sealed gear differential and an externally adjustable V2 slipper clutch for precise tuning.

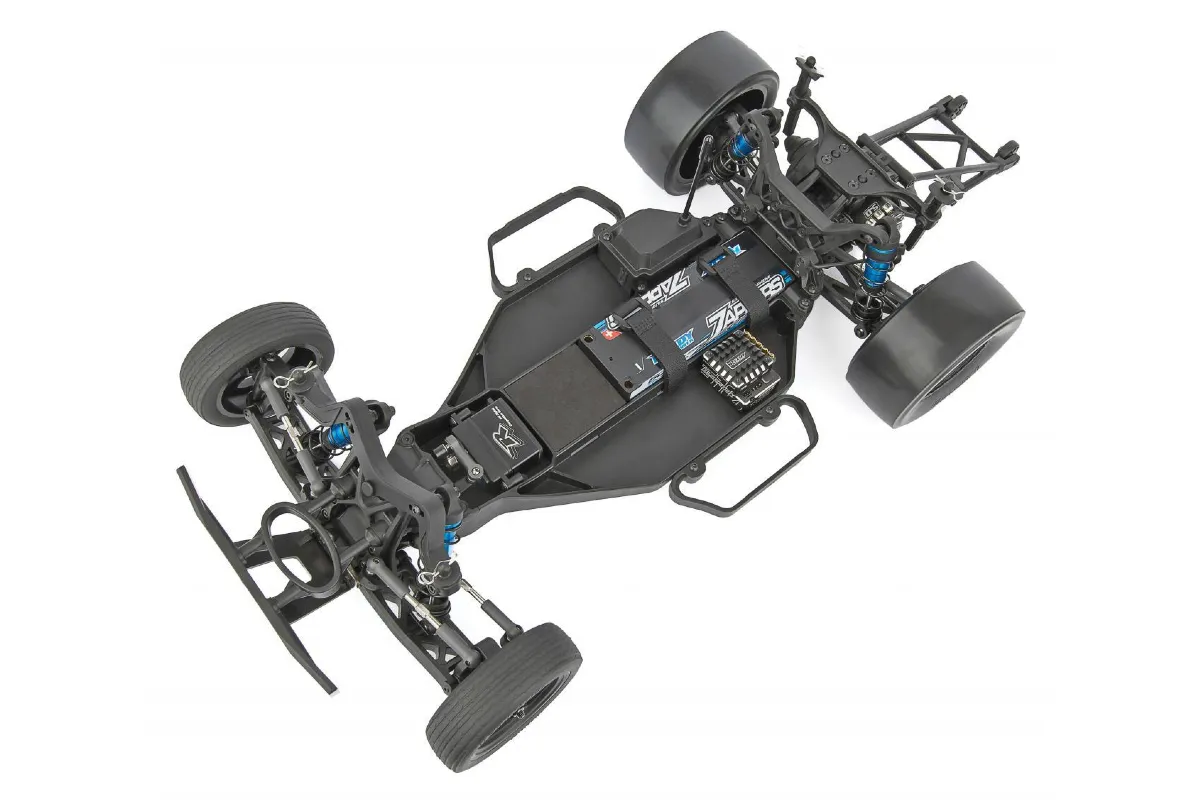

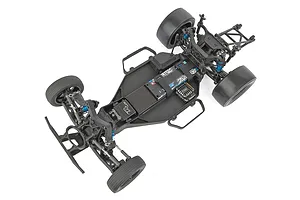

The DR10 Team Kit is built on a durable and lightweight aluminium top shaft and a low centre-of-gravity moulded composite chassis. The water-resistant enclosed receiver box protects the electronics from the elements, while the fully adjustable suspension and vertical ball ends allow for precise roll centre adjustments. This kit requires electronics and a body for completion, giving you the freedom to customise and personalise your drag car.

Features
  • 1/10 scale 2WD electric drag race car kit
  • Three-position wheelie bar
  • Lightweight drag race inspired wheels
  • Rear anti-roll bar
  • Rear silicone diff fluid
  • Durable and lightweight aluminium top shaft
  • Low centre-of-gravity moulded composite chassis
  • Hook-and-loop battery straps that accommodate NiMH and 2/3s LiPo packs
  • Durable front and rear body mounts
  • Rear CVA driveshafts
  • 12mm big bore coil-over shock absorbers
  • 2.6:1 ratio gearbox with heavy-duty sealed gear differential
  • Externally adjustable V2 slipper clutch
  • Rugged steel turnbuckles
  • Fully adjustable suspension geometry
  • Vertical ball ends for roll centre adjustments
  • Water-resistant enclosed receiver box
  • Metric hardware throughout
  • 26 precision ball bearings
  • Genuine Team Associated Product
Specifications
  • Length: Varies With Body Choice
  • Width: 272mm (10.71")
  • Height: Varies With Body Choice
  • Wheelbase: 322mm (12.68")
  • Weight: Varies With Electronics And Body
  • Chassis: Low Centre-Of-Gravity Moulded Composite
  • Suspension: 12mm Big Bore Coil-Over Shocks
  • Drivetrain: 2WD
  • Motor: Not Included
  • ESC: Not Included
Included Items
  • 1x Team Associated DR10 Team Kit
  • 1x Instruction Manual
Required Items
  • 1x 540-Size Electric Motor
  • 1x Electronic Speed Control
  • 1x 2-3 Cell 7.4V-11.1V LiPo Or 6-7cell NiMH Battery Pack
  • 1x Radio Control Battery Charger
  • 1x 2-Channel RC Car Surface Transmitter And Receiver
  • 1x Steering Servo (#27101 RT1508 Digital HV Hi-Torque Competition Servo Recommended)
  • 1x 1:10 Scale 2.2" / 3.0" Rear Tyres And 2.2" Front Tyres
  • 1x Ca Glue For Tyres And Wheels
  • 1x 1:10 Scale Drag Racing (No-Prep) Body (#71082 Dr10 Reakt Drag Body, Clear Recommended)
  • 1x Polycarbonate-Specific Spray Paint For Body
  • 1x Body Scissors
  • 1x 48-Pitch Pinion Gear
Note
  • This is a kit and requires assembly. Additional components are required for operation.
