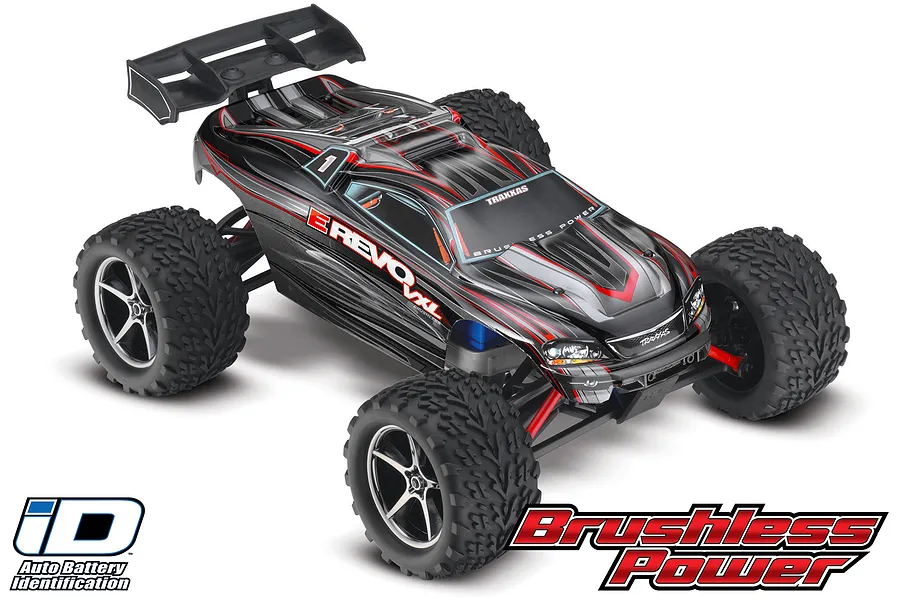

Traxxas E-Revo VXL RC Truck Electric Brushless 4WD 1/16 Scale RTR
- 1/16
- 4WD
- RTR
- Brushless
Part no. 71074-1
This product has been discontinued.
Contact usNo longer made. In stock now: similar
Recommended products
Overview
The Traxxas 1/16 E-Revo VXL is scaled down from the Traxxas 1/10 E-Revo. With a capable speed of 50 mph (80 kph) and 30 mph (48 kph) straight out of the box with no modification, it is great size, easy to transport, and doesn't take up too much space.

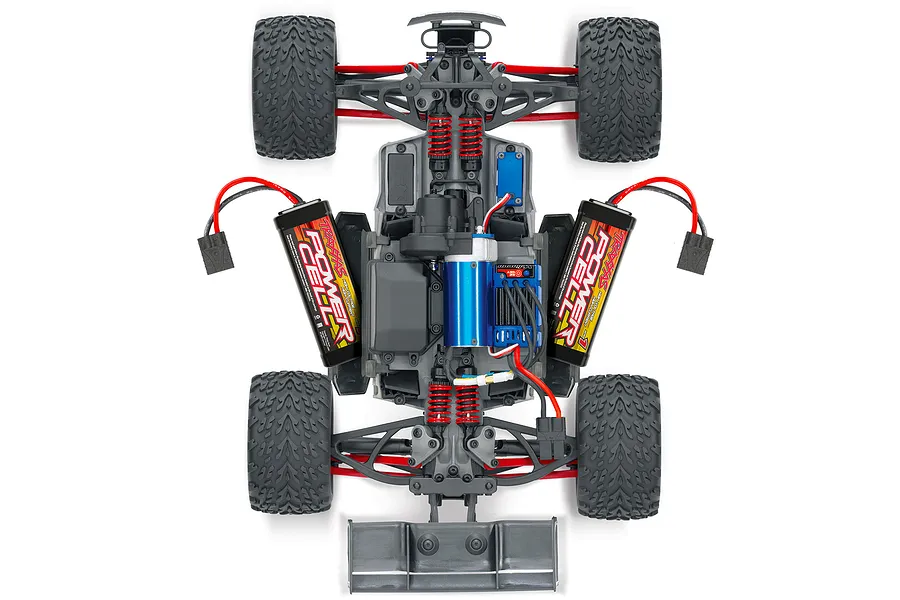

Traxxas has designed the chassis so it can fit 2 batteries for unbeatable torque and speed.
Hobbies Direct recommends using Traxxas' patented Training Mode as it limits the power output of the model to 50%, which makes practising much easier and safer — also a great idea when giving friends a try.
Hobbies Direct stocks 100% of the spare parts for the Traxxas 1/16 E-Revo VXL.
Training Mode: Traxxas' patented Training Mode reduces the power output of the car to 50%.
VXL-3m ESC: The Velineon VXL-3m speed control delivers maximum power to the motor. When running a LiPo battery, two-stage low voltage detection prevents the battery from being over-discharged, and advanced circuit design gives smooth power delivery at any speed.
Velineon 380 Motor: A 380-sized brushless Velineon motor delivers tyre-shredding power.
Traxxas ID Connectors: Secure, easy to use, high-current, with an RFID chip that tells the charger what settings to charge on.
40 Minute Charge: Charge with Traxxas' 4 Amp fast charger — just plug it into your car's cigarette port and start charging.
Note
The charger included can only charge from a 12v cigarette lighter port (e.g. your car). If you need to charge from a standard wall plug (240v) you need to purchase the Traxxas 13.8v 3.5A Power Supply separately.
Features
- Quick 4-amp 12-volt DC peak detecting fast charger
- 7-cell NiMH battery with ID plug
- Revo-spec torque-control slipper clutch system
- 2.4GHz TQi pistol grip transmitter
- VXL-3m Velineon ESC (Electric Speed Control)
- Fully waterproof electronics
- Perfect for beginner or advanced hobbyists
You'll need
- 4 AA Batteries
Highlights

Training Mode feature illustration
Traxxas' patented Training Mode is a fantastic way to learn how to drive an RC car; once set, the power output of the car gets reduced to 50%.

VXL-3m ESC feature illustration
The Velineon VXL-3m speed control is loaded with high-grade technology to deliver maximum power to the motor, with two-stage low voltage detection for LiPo batteries.

Velineon 380 brushless motor feature illustration
Traxxas have packed a mighty 380 sized brushless Velineon motor into this little beast to unleash some tyre shredding power.

Traxxas ID Connector feature illustration
Secure, easy to use, high-current, also has an RFID chip that tells the charger what settings to charge it on.

4-amp fast charger feature illustration
Stop waiting around for your batteries and charge with Traxxas' 4 Amp fast charger, just plug it into your car's cigarette port and start charging.
Specifications
| Length | 328mm (12.9") |
|---|---|
| Width | 239mm (9.4") |
| Height | 117mm (4.6") |
| Weight | 1.09kg (2.4 lbs) |
| Wheelbase | 202mm (7.9") |
| Ground Clearance | 43mm (1.7") |
| Drivetrain | 4WD Shaft |
RC Car
| Scale | 1/16 |
|---|---|
| Skill Level | Intermediate |
| Power Source | Electric Brushless |
| Chassis Type | Truck |
| On/Off Road | Off Road |
| Drivetrain | 4WD |
Factory Specs
| Rear Shock Oil | 30w |
|---|---|
| Wheel Hex Size | 12mm |
