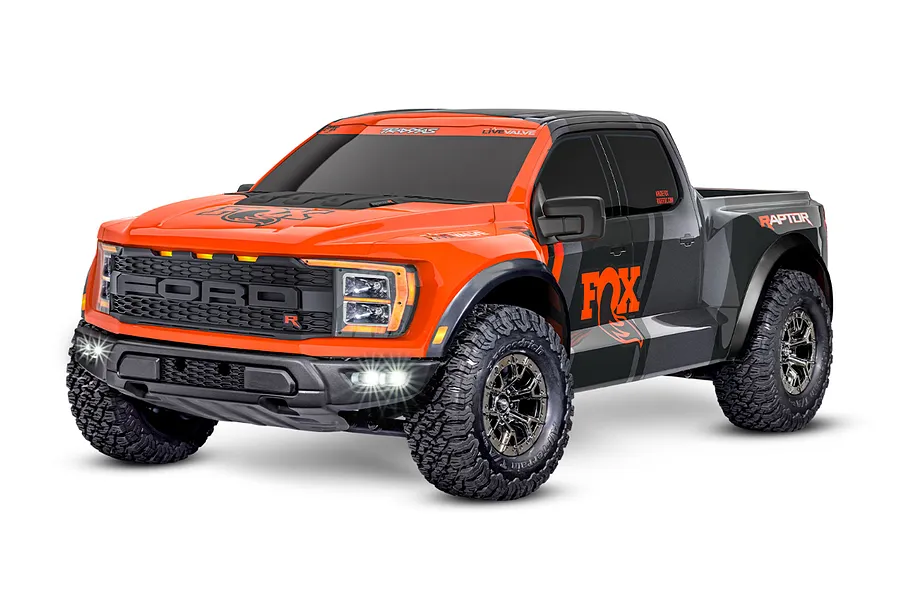

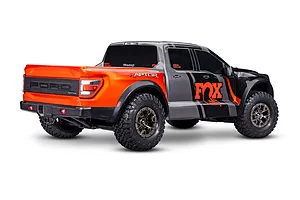

Traxxas Ford F-150 Raptor R Ultimate RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR
Traxxas Ford F-150 Raptor R Ultimate RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR
- Colour-Matched Aluminium Upgrade Parts
- Clipless Body Mounting for Easy Access
- Capable of Achieving a Top Speed in Excess of 95 KPH
- Included Traxxas Link Wireless Module for Real-Time Telemetry
Experience the next level of Traxxas Pro Scale with the Ford Raptor R 4X4 Ultimate. This truck combines exacting scale realism with brutal 4s brushless power for an unbeatable driving experience. At its heart is the extreme Velineon VXL-4s power system and massive 540XL brushless motor, capable of rocketing the Raptor R to speeds over 96 km/h (60+ mph).

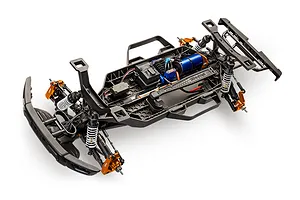

To handle this immense power, the "Ultimate" package comes fully loaded with factory-installed upgrades. This includes colour-matched aluminium caster and steering blocks, axle carriers, and GTR shocks for superior strength and handling. The Extreme HD driveline is overbuilt to form a nearly indestructible 4WD system, ready for high-flying stunts and high-speed desert runs.
The beautifully detailed, Ford-licensed Raptor R body features a tough clipless mounting system for secure latching and easy chassis access. Control is handled by a high-performance, waterproof metal-gear servo delivering up to 35 kg-cm (486 oz-in) of torque, while the included Traxxas Link Wireless Module allows for real-time telemetry and tuning via your mobile device. This is Pro Scale performance and realism, perfected.

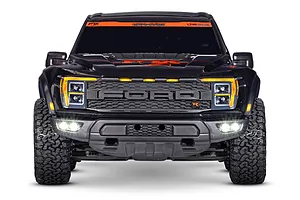

The Traxxas Raptor R 4X4 Ultimate sets a new standard for realism, blending pro-level performance with the authentic look and feel of a real Ford Raptor R. It commands attention with its Ford-licensed body and meticulously moulded replica parts, providing maximum scale authenticity. This stunning appearance is matched by its performance credentials, featuring 4S Velineon brushless horsepower and an extreme heavy-duty 4WD driveline.
The Raptor R Ultimate arrives fully loaded with a suite of premium upgrades for brutal strength and extreme driving. Factory-installed aluminium caster and steering blocks, axle carriers, and GTR shocks provide the brute strength required to dominate any terrain. Furthermore, Extreme HD driveshafts are beefed up with extra material and overbuilt construction, forming a nearly indestructible driveline capable of handling the most demanding conditions.
The Raptor R's tough clipless body is designed for both security and convenience. Its hidden latching system firmly holds the body during extreme stunts and high-speed desert runs, yet allows for quick release in seconds when chassis access is needed. This ingenious design not only streamlines maintenance but also preserves the body’s clean, scale realism by removing unsightly clips.
The Raptor R 4X4 Ultimate is engineered for raw speed. Its Extreme 4S power comes from the Velineon 540XL brushless motor, identical to that in the Maxx® monster truck, coupled with the VXL-4s™ speed control. This formidable combination, drawing from 4S LiPo power, enables the Raptor R to achieve speeds exceeding 60 mph with astonishing, relentless acceleration.
Stay connected and in command with the Raptor R 4X4 Ultimate's included Wireless Module. This standard feature, paired with factory-installed telemetry sensors, unlocks the full capabilities of the TQiâ„¢ transmitter. Drivers can fine-tune settings remotely and record vital real-time data like speed, RPM, and battery voltage directly onto their mobile device via the Traxxas Link app.
The Raptor R Ultimate features a formidable monster servo, engineered for maximum performance. This high-torque, metal gear servo is housed in a heat-dissipating aluminium centre case and boasts a fully waterproof design with ball-bearing support. Delivering up to 486 oz-in of torque at 7.4 volts, it provides robust and precise steering control in even the most demanding environments.
- Achieves 96.6+ km/h (60+ mph) straight out of the box with its 4s VXL Power System

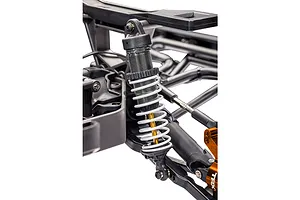

- Features aluminium GTR shocks equipped with TiN shafts for smooth operation
- Showcases colour-matched aluminium suspension components for both durability and aesthetics
- Incorporates a centre differential with 20M fluid and a robust steel spur gear
- Includes a 2275 metal gear servo with BEC tuning for precise control
- Comes with a pre-installed Bluetooth module and is telemetry ready for real-time data

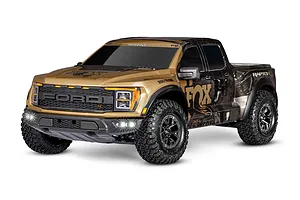

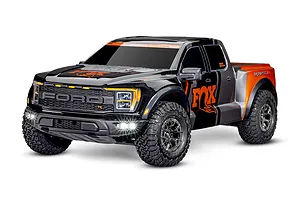

- Offers 3 colour options: Orange Fox Body, Black Fox body and Titanium Body with colour coded aluminium upgrade parts
- Includes pre-installed 4s battery expansion, ready for 5000mAh 4s packs

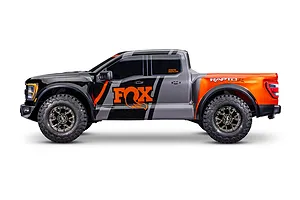

- Features a fully licensed Ford F-150 Raptor R clipless Pro Scale body for authentic realism
- Equipped with licensed Ford replica option wheels and BFGoodrich All-Terrain T/A KO2 tyres
- The tyres have a large 114mm (4.5") diameter for enhanced off-road performance
- Genuine Traxxas product
- Length: 637mm (24.98")
- Width: 289mm (11.63")
- Height: 226mm (8.91")
- Wheelbase: 384mm (15.11")
- Weight: 3.00kg (6.62 lbs)
- Chassis: Moulded Tub Chassis (Short Course Truck)
- Drivetrain: 4WD
- Suspension: Aluminium Oil Filled Coil Over Shock AbsorbersÂ
- Motor: Traxxas 540XL 2400kV Sensorless Brushless MotorÂ
- ESC: Traxxas VXL-4S Brushless ESCÂ
- 1x Traxxas Ford F-150 Raptor R Ultimate RC Short Course Truck Electric Brushless 4WD 1/10 Scale RTR
- 1x TQI Transmitter with Wireless ModuleÂ
- 1x Set of Maintenance Tools
- 1x 7.4V, 11.1V, or 14.8V LiPo Battery With Traxxas Connector (ID Connection Required for some FeaturesÂ
- 1x Compatible LiPo ChargerÂ
- 4x AA Batteries for TransmitterÂ
- 1x LiPo Safe Bag
-
Spur Gear
- 54T 32dp/0.8Mod
-
Wheel Hex Size
- 12mm
-
Pinion Gear
- 13T 32dp/0.8Mod
-
Front Differential Oil
- 30000wt
-
Rear Differential Oil
-
Rear Shock Oil
- 40wt
-
Battery Connector
- Traxxas iD
-
Max LiPo Power
- 4S (14.8v)
-
Front Shock Oil
- 50wt
-
Centre Differential Oil
-
Skill Level
- Intermediate
-
Completion
- Ready to Run
-
Drivetrain
- 4WD
-
Max LiPo Power
- 4S (14.8v)
-
On/Off Road
- Off Road
-
Chassis Type
- Truck
-
Power Source
- Electric Brushless
-
Scale
- 1/10
