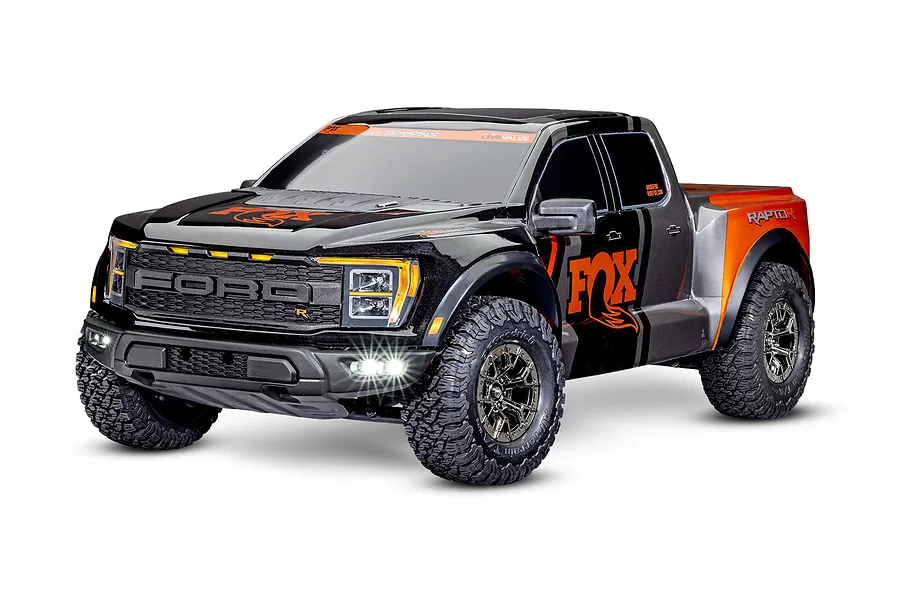

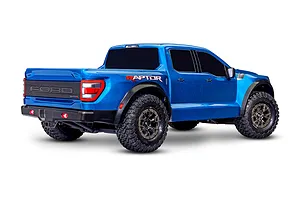

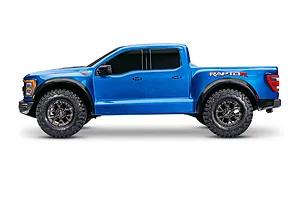

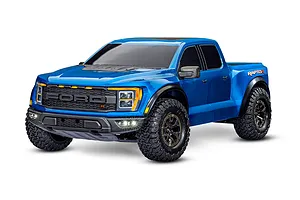

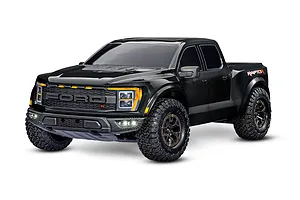

Name: Traxxas Ford F-150 Raptor R RC Pickup Truck Electric Brushless 4WD 1/10 Scale RTR
Brand: Traxxas
SKU: TRA-101076-4

Recommended products

Traxxas Power Cell 11.1v 5000mAh 25C iD LiPo Battery
3 reviews
$171.28
Sold out
Traxxas Ez-Peak 4Amp NiMH/LiPo ID Fast Charger
13 reviews
$127.52
Sold out
Team Powers LiPo Safe/Protection Bag
$19.95

Overview

The Traxxas Raptor R is the latest addition to the Traxxas Pro Scale lineup, featuring the officially licensed Ford F-150 Raptor R body with superb scale detail and proportion. Combines 4X4 traction with extreme Velineon brushless horsepower for both realism and unbeatable speed and durability. Features a clipless body with innovative quick-access design, pre-installed Extreme Heavy Duty Upgrade Kit, and waterproof electronics for all-weather driving. The extended 4X4 chassis improves high-speed stability and handling.

Features

Officially licensed Ford F-150 Raptor R body
Moulded scale details, LED lighting, body reinforcements
Clipless body mounting with quick-access design
Extreme heavy duty upgrade kit with tough cold-weather resistant composite

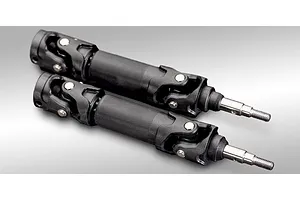

Extreme heavy duty driveshafts with VXL-3s waterproof ESC
Cooling fan, heat sink, EZ-Set, LiPo detection
Traxxas Stability Management (TSM) improves acceleration, braking and steering on low-traction surfaces
Adjustable assistance, never dulls throttle or slows truck
TQi 2.4GHz high output radio system

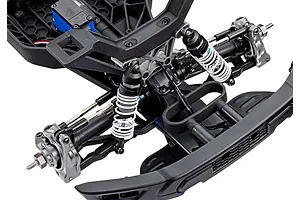

Heavy duty suspension arms with adjustable steel links
Oil-filled ultra shocks with white powder-coated springs
Velineon 3500 kV brushless motor with neodymium magnets
Efficient ball bearings, precision-balanced rotor, blue-anodised finish

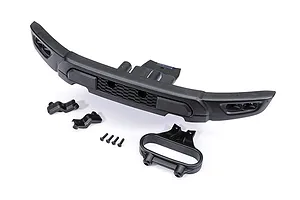

Front and rear LED bumper lighting
Waterproof electronics for all-weather operation

In the box

1x Raptor R with Velineon VXL-3s ESC and 3500 kV motor
1x quick start guide
1x TQi 2.4 GHz radio system
1 set of high quality maintenance tools

You'll need

11.1V LiPo battery
Compatible charger
4x AA batteries

Specifications

Length	637mm (24.98")
Width	289mm (11.63")
Height	226mm (8.91")
Weight (no battery)	2.74 kg (6.05 lbs)
Wheelbase	384mm (15.11")

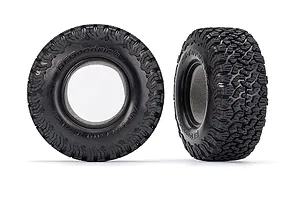

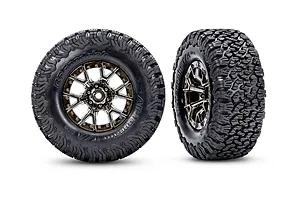

Tyre diameter	114mm (4.9")

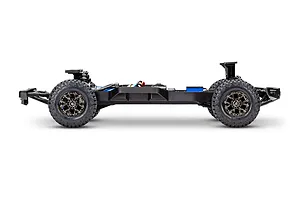

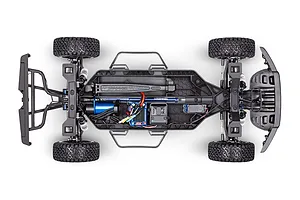

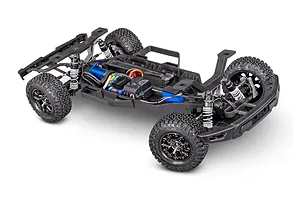

Chassis	Short course truck
Drivetrain	4WD
Gear ratio	4.154:1
Suspension	Progressive rate shock
Motor	Velineon 3500KV brushless
ESC	Velineon VXL-3S brushless

RC Car

Scale	1/10
Max LiPo Power	3S (11.1v)
Completion	Ready to Run
Skill Level	Intermediate
Power Source	Electric Brushless
Chassis Type	Truck
On/Off Road	Off Road
Drivetrain	4WD

Factory Specs

Battery Connector	Traxxas iD
Front Shock Oil	50wt
Rear Shock Oil	40w

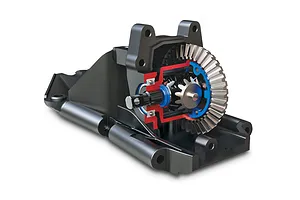

Front Differential Oil	30000w
Pinion Gear	13T 32dp/0.8Mod

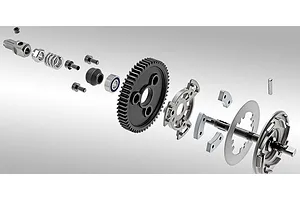

Spur Gear	54T 32dp/0.8Mod
Wheel Hex Size	12mm
