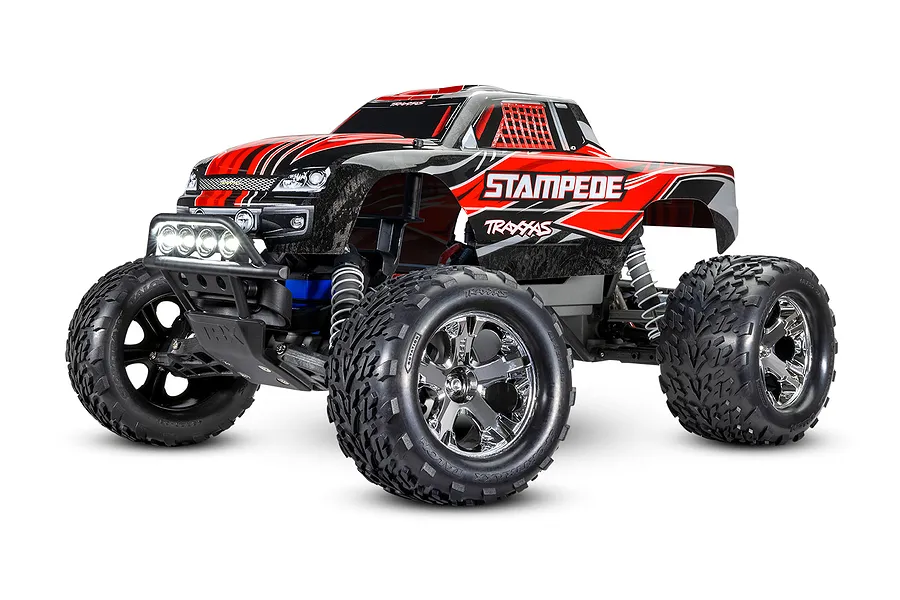

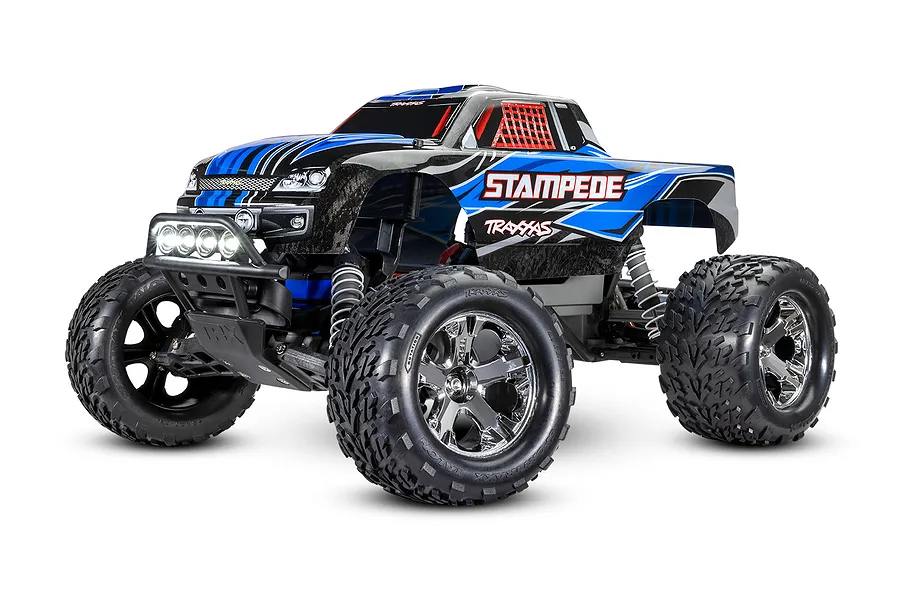

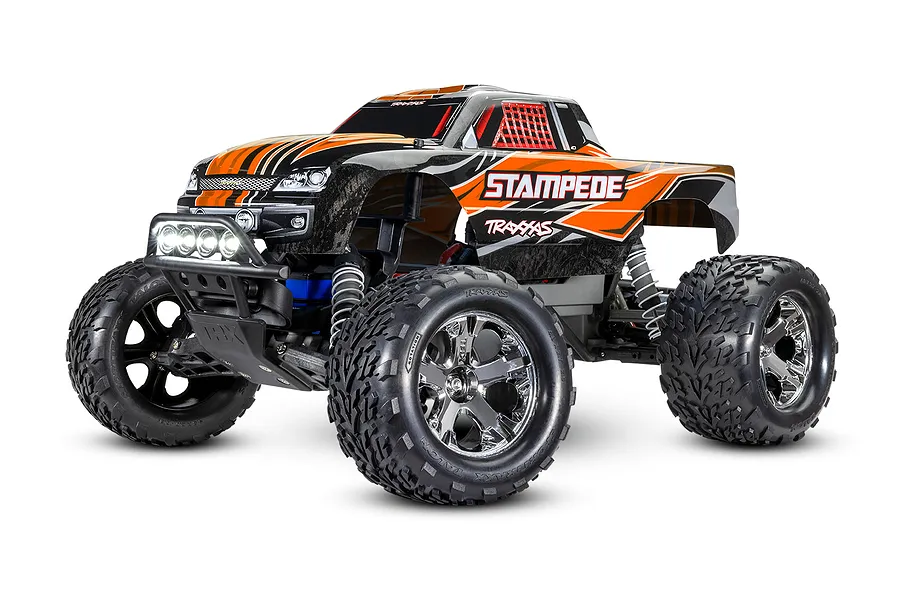

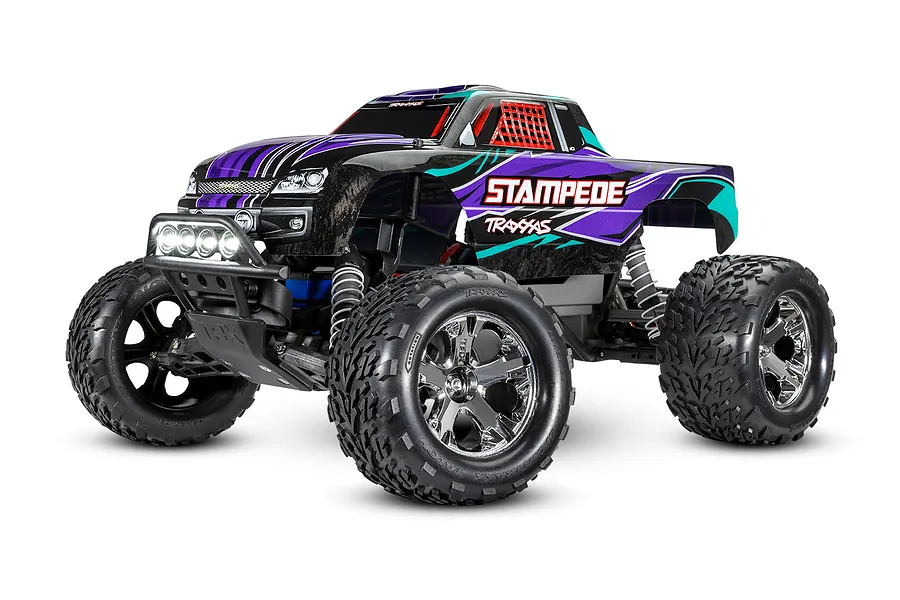

Traxxas Stampede XL-5 RC Monster Truck Electric 2WD 1/10 Scale RTR with LED Light Kit

  • 1/10
  • 2WD
  • RTR
  • Brushed

Part no. 36054-61

DiscontinuedNo reviews yet
1 / 20
1 / 20

No longer made. Replaced by:

Part Support

Replacement & upgrade parts that fit this model

Overview

The Stampede's legendary ruggedness has made its name synonymous with off-road fun. With a top speed of 30+ mph and drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Pour on the throttle, and the Titan® motor's massive torque raises the front wheels skyward for dirt-roosting wheelies and high-power jumps. Mud, puddles, and snow don't stand a chance against this high-octane monster truck thanks to Traxxas' waterproof electronics.

Note

Please refer to the instruction manual for specific safety precautions, operating instructions and waterproofing standards.

Features

  • NEW factory-installed front and rear LED lighting
  • NEW ProGraphix® paint
  • Includes battery and charger
  • 4-amp DC peak detecting fast charger
  • Traxxas 3000 mAh 8.4V 7-cell NiMH battery with iD®
  • TQ™ 2.4GHz radio system
  • Waterproof electronics for all-weather driving
  • 30+ mph top speed
  • Titan® 12-turn 550 motor
  • Powerful XL-5 waterproof electronic speed control
  • Traxxas' exclusive patented Training Mode
  • Brushless-ready metal gear Magnum 272™ transmission
  • 100% fully assembled and Ready-To-Race®

In the box

  • 1x 1/10 Stampede XL-5 w/ Lights 2WD Electric Off Road RC Monster Truck

You'll need

  • 4 x AA batteries

Highlights

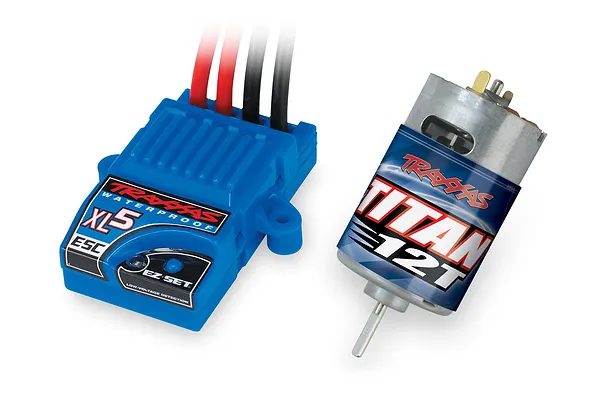

Modified Muscle

Modified Muscle

The Titan® 12T 550 motor delivers impressive power and features an integrated cooling fan for optimal performance. The XL-5 Electronic Speed Control provides smooth and reliable power delivery with EZ-Set® one-button setup and three different drive profiles for customised performance.

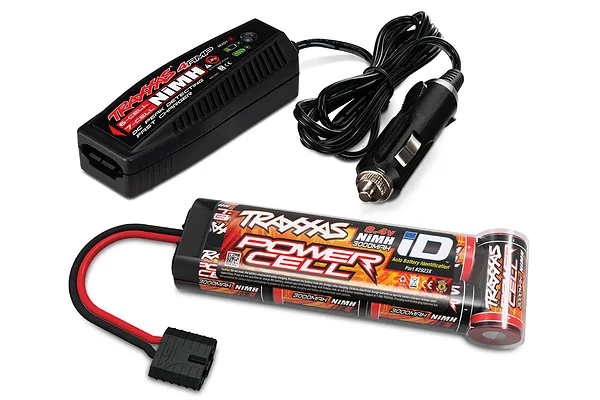

Battery and Charger Included!

Battery and Charger Included!

Stampede includes a powerful 8.4-volt 3000 mAh Power Cell rechargeable NiMH battery pack to reach its blazing 56+ km/h top speed. A powerful 4-amp 12V DC fast charger comes in the box for quick charging in the field. An optional 40-watt AC adapter (sold separately) transforms a common wall outlet into a robust power source for the included 4-amp NiMH fast charger.

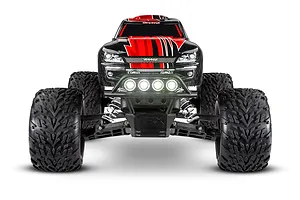

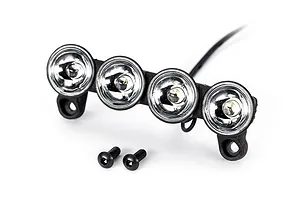

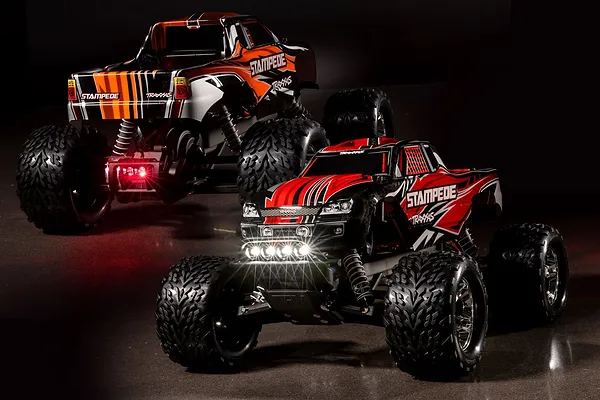

New LED Lighting

New LED Lighting

Stampede now includes LED lighting as standard equipment for more fun after dark. Thick impact-resistant bumpers protect the lights against crash damage with fully-waterproof construction for all-weather fun.

High-Torque Waterproof Steering Servo

High-Torque Waterproof Steering Servo

The powerful monster truck features a Traxxas #2056 high-torque steering servo that delivers the power and responsiveness needed for precise control. This waterproof servo utilises O-ring seals to keep the action going, even in wet conditions. With 80 oz-in (3.02 kg-cm) of torque, this servo provides the muscle to handle any terrain.

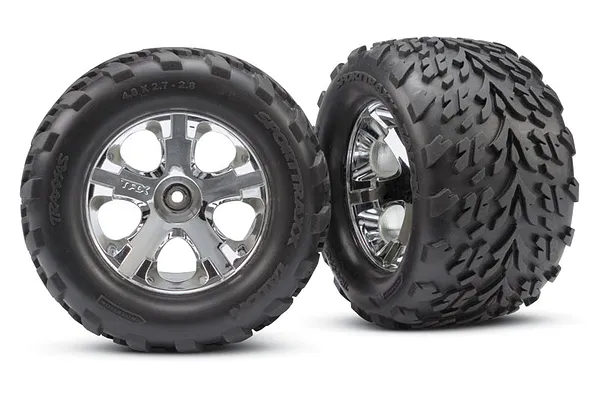

Talon™ 2.8” Pre-Glued Tyres with Foam Inserts

Talon™ 2.8” Pre-Glued Tyres with Foam Inserts

The Talon™ tyres feature an aggressive tread pattern with a soft compound rubber that provides exceptional traction on a variety of surfaces, including dirt, grass, pavement, and rocks. These high-performance tyres are mounted on mirror-chrome All-Star™ wheels with a lightweight horizontal bead that keeps the tyres securely in place, even at high speeds. Performance-designed foam inserts are standard, and all tyres come pre-glued for immediate action.

3-Channel Micro Receiver with Fail-Safe Security

3-Channel Micro Receiver with Fail-Safe Security

The TQ 2.4GHz micro receiver uses an integrated LINK button for fast and easy binding. A two-colour LED indicates power-on and bind status for fool-proof control and convenience. In the event of signal loss, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is conveniently built-in and does not need to be set or activated.

Torque-Control™ Slipper Clutch

Torque-Control™ Slipper Clutch

The Torque-Control slipper clutch provides smooth and consistent traction control, thanks to its semi-metallic friction pads and finned aluminium pressure plates. This design ensures reliable performance and allows for easy spur gear changes without affecting the slipper adjustment.

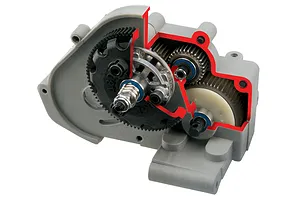

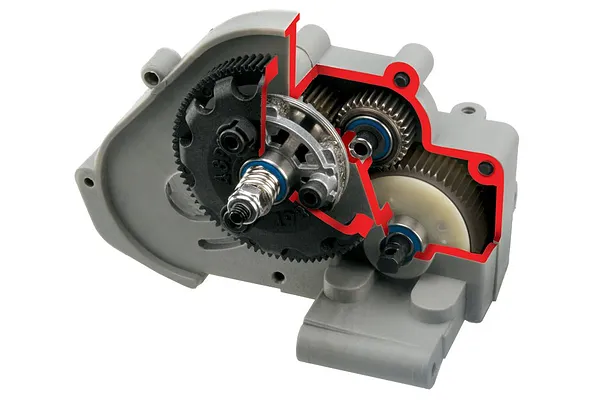

Brushless Ready Magnum 272™ Transmission

Brushless Ready Magnum 272™ Transmission

The Magnum 272 transmission features metal gears riding on ultra-smooth sealed ball bearings. Combined with the smooth 48-pitch gears, power transfers quietly to the durable telescoping U-joint driveshafts. The sealed gearbox protects the transmission components from dirt and rocks. Best of all, the Magnum 272 is built Traxxas Tough™ to handle massive brushless power without the need for costly upgrades.

Oil-Filled Ultra Shocks™

Oil-Filled Ultra Shocks™

Stampede's oil-filled Ultra Shocks utilise X-ring technology for a perfect seal and silky-smooth performance. They are easy to customise with a wide range of high-performance oils, springs, and pistons available. Features include pressure bladders for air/oil separation and spring clips to change precisely the ride height and spring preload tension. If their performance ever fades, refresh them in minutes with our inexpensive rebuild kits.

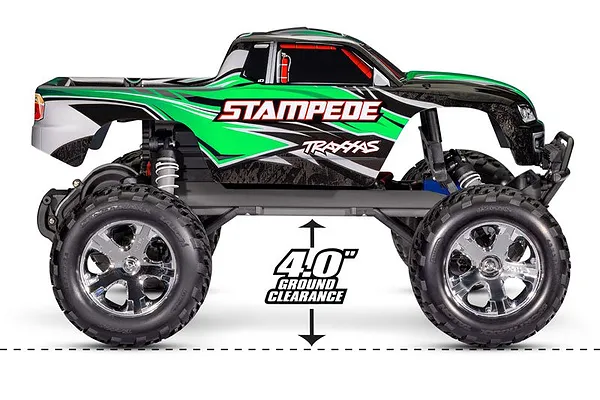

Monster 4” Ground Clearance

Monster 4” Ground Clearance

Monster 4” Ground Clearance With 4 inches (10.16 cm) of centre ground clearance, the Stampede goes places other trucks can't! Stampede easily tackles real world obstacles such as tall grass, curbs, and rocks.

30mph Off-Road Monster Truck

30mph Off-Road Monster Truck

The Stampede's legendary ruggedness has made its name synonymous with off-road fun, with a top speed of 30+ mph and drive-over-anything ground clearance.

Titan 12T 550 motor and XL-5 ESC feature illustration

Titan 12T 550 motor and XL-5 ESC feature illustration

The Titan 12T 550 motor pumps out incredible power with an integrated cooling fan, while the XL-5 ESC provides smooth reliable power delivery.

Standard LED Lighting

Standard LED Lighting

Stampede now includes LED lighting as standard equipment for more fun after dark, with thick impact-resistant bumpers to protect the lights.

High-torque waterproof steering servo detail

High-torque waterproof steering servo detail

The number 2056 high-torque waterproof servo provides 80 oz-in of steering muscle with O-ring seals for all-weather action.

Talon Tyres and Chrome Wheels

Talon Tyres and Chrome Wheels

The advanced Talon tyre tread pattern provides excellent traction on almost any surface, with mirror-chrome All-Star wheels.

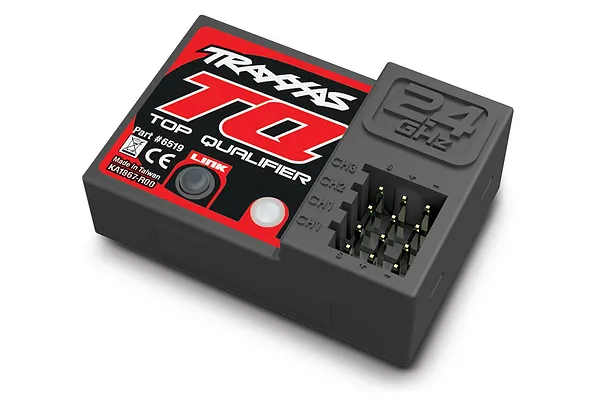

TQ 2.4GHz radio receiver detail

TQ 2.4GHz radio receiver detail

The TQ 2.4GHz micro receiver uses an integrated LINK button for fast and easy binding with a two-colour LED for status indication.

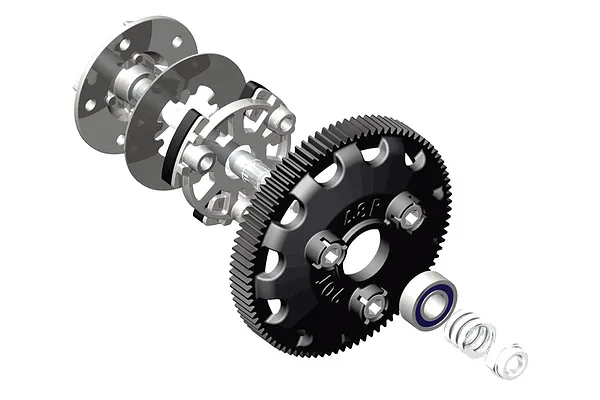

Heat-Dissipating Slipper Clutch

Heat-Dissipating Slipper Clutch

The Torque-Control slipper clutch uses special semi-metallic friction pads and finned aluminium alloy pressure plates to dissipate heat.

Magnum 272 Metal Transmission

Magnum 272 Metal Transmission

The Stampede's Magnum 272 transmission features metal gears riding on ultra-smooth sealed ball bearings, built Traxxas Tough to handle massive brushless power.

Silky-Smooth Ultra Shocks

Silky-Smooth Ultra Shocks

Stampede's oil-filled Ultra Shocks utilise X-ring technology for a perfect seal and silky-smooth performance.

4-inch ground clearance feature illustration

4-inch ground clearance feature illustration

With 4 inches of centre ground clearance, the Stampede goes places other trucks cannot, easily tackling tall grass, curbs, and rocks.

Specifications

Length16.9 inches (428 mm)
Front Track12.75 inches (324 mm)
Rear Track12.75 inches (324 mm)
Weight65.3 ounces (1.85 kg)
Height (overall)9.5 inches (241 mm)
Wheelbase10.6 inches (270 mm)
Front Shock LengthLong
Rear Shock LengthXXLong
Tyres F/RTalon™ 2.8" / Talon™ 2.8"
Rims F/RAll-Star™ 2.8" Mirror-Chrome / 2.8" Mirror-Chrome
Electronic Speed ControlXL-5™
MotorTitan® 12T 550 (12-Turn)
Steering Servo#2056 High Torque Waterproof
TransmitterTQ 2.4GHz
Receiver3-Channel Micro
Gear Ratio (internal)2.72 (final drive: 12.34)
Differential TypePlanetary
Gear Pitch48-Pitch
TransmissionMagnum 272™
SteeringSingle Point
Chassis TypeModified Tub
Chassis MaterialComposite Nylon
Top Speed30+ mph
Battery Tray Dimensions164 mm x 46 mm x 26 mm
Included Charger4-amp DC Peak Detecting Fast Charger
Included BatteriesTraxxas 7-cell NiMH battery with iD®

RC Car

Scale1/10
Max LiPo Power2S (7.4v)
CompletionReady to Run
Skill LevelBeginner
Power SourceElectric Brushed
Chassis TypeMonster Truck
On/Off RoadOff Road
Drivetrain2WD

Factory Specs

Battery ConnectorTraxxas iD
Pinion Gear16T 48dp/0.5Mod
Spur Gear90T 48dp/0.5Mod
Wheel Hex Size12mm
