Traxxas TRX-4 1972 Chevrolet K5 Blazer High Trail Edition RC Rock Crawler Electric 4WD 1/10 Scale RTR

Brand: Traxxas | SKU: 92086-4
coming soon

$ TBA
Price to be advised

Traxxas High Trail K5 Blazer RC Rock Crawler: Conquer Any Terrain with the TRX-4 K5 crawler!

Key Points
  • Waterproof electronics
  • Clipless body mounting system
  • 2 Speed transmission
  • Large range of OEM & aftermarket parts available
  • A rock-solid choice for new and experienced crawlers alike
Required to Complete
11.1V 3S Battery
Traxxas Power Cell 11.1v 5000Mah 25C iD LiPo Battery
$171.08 10+ in stock
Required QTY: 1
Traxxas iD Battery Charger
Traxxas Ez-Peak 4Amp NiMH/LiPo ID Fast Charger
$127.40 4 in stock
Required QTY: 1
Batteries for Controller
Fujitsu 1.5v AA Alkaline Batteries 4Pcs
$6.24 10+ in stock
Required QTY: 1
LiPo Safe Charging Bag
Hobbies Direct 240x180mm Small LiPo Safe Bag
$9.99 sold out
Required QTY: 1


Looking for spare parts or upgrades?
Description

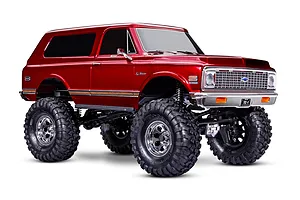

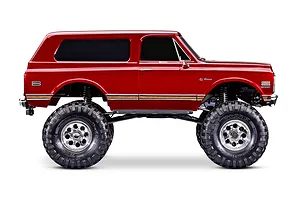

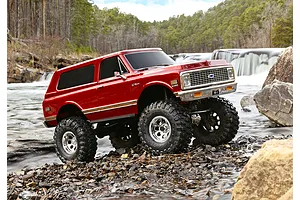

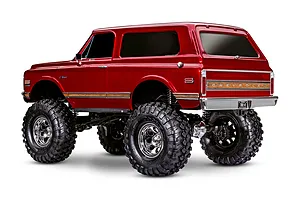

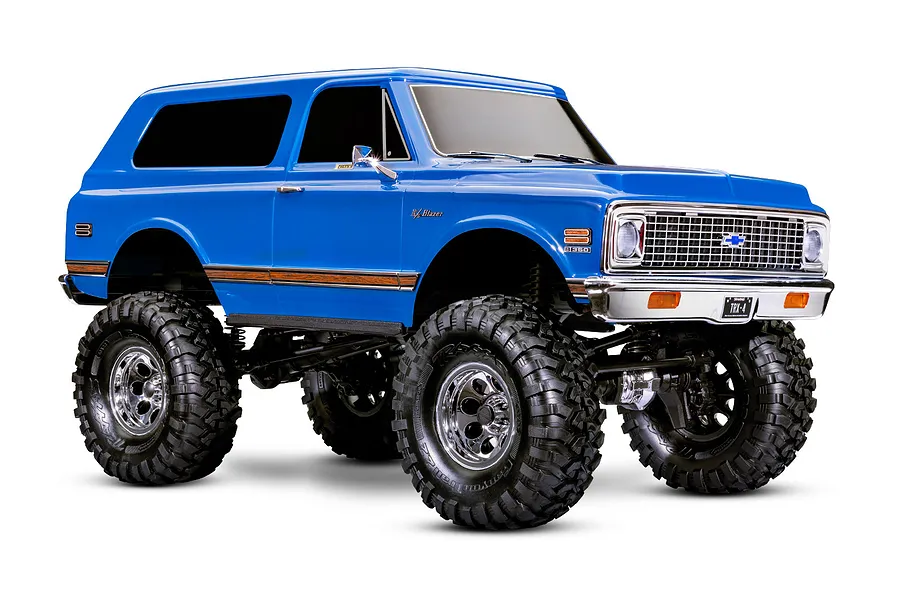

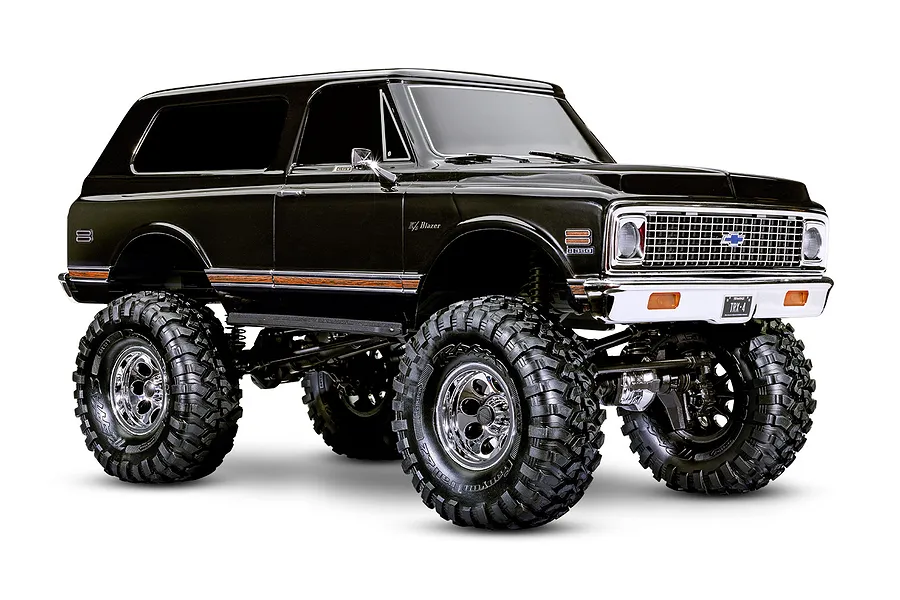

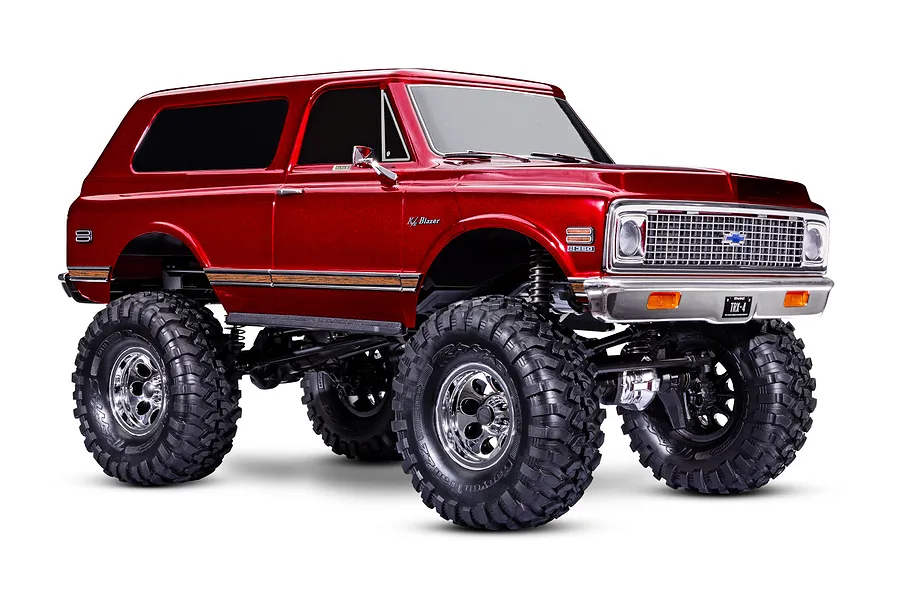

The High Trail Edition K5 Blazer takes the legendary TRX-4 platform to the next level. Over an inch of extra ground clearance thanks to a long-arm lift kit, grippy 2.2" tyres, and precision-engineered suspension devours any terrain you dare to throw at it. This isn't just a truck, it's a testament to Traxxas engineering, delivering unmatched capability and scale detailing that takes your breath away.

Features

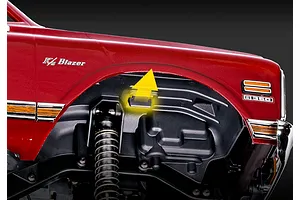

  • Clip less body mounting system enhances the scale look of the crawler

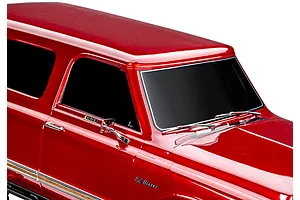

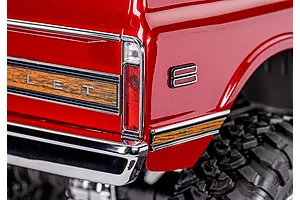

  • Detailed replica body officially licensed by Chevrolet

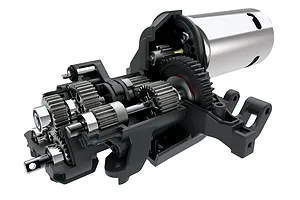

  • Two speed high and low range transmission with remote shifting
  • Remote shiftable front and rear differential lockers
  • Heavy-duty steel frame rails provide a high level of strength while enhancing the scale realism
  • Fully Licensed by Chevrolet
  • Easily set gear mesh with numbers slots for different sized pinions
  • Capable of running an 11.1V LiPo battery for enhanced run time & power
  • Factory fitted high lift kit and oversized tyres
  • Steel gear transfer case
  • Dual Battery slots allows a full sized LiPo as well as a smaller tray that can be used when front bias is needed or even to power other electronics
  • Genuine Traxxas Product

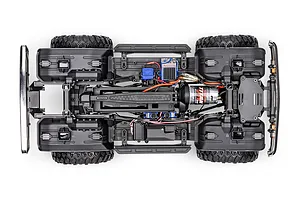

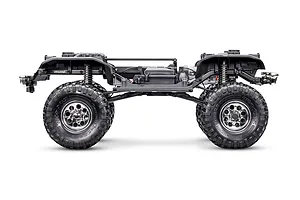

Heavy-Duty Steel Frame Rails
Heavy-Duty Steel Frame Rails

A thick 1.5mm steel ladder frame with moulded cross members provides exceptional torsional rigidity to resist even the worst chassis twisting articulation. This extremely rigid backbone lets the suspension do the work it was designed to do. You’ll feel the difference on trails, where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.

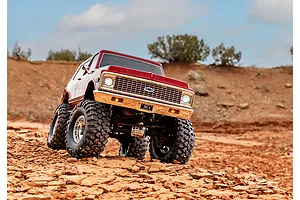

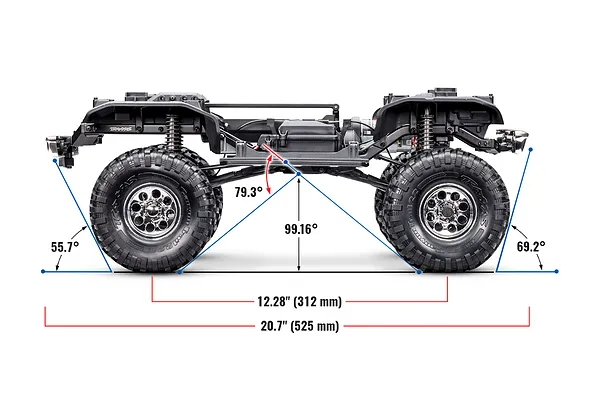

Factory Fitted High Lift Kit
Factory Fitted High Lift Kit

The K5 Blazer High Trail Edition's factory lift kit and oversized tyres deliver over an inch of extra ground clearance for conquering challenging trails. Upgraded 110 mm GTS shocks provide silky-smooth damping and increased wheel articulation, enhancing off-road performance. Extended steel links and a revised servo mount ensure the TRX-4's renowned suspension geometry remains intact for optimal handling.

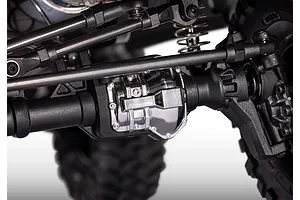

Remote Locking Differentials
Remote Locking Differentials
Conventional crawlers equipped with axle spools sacrifice turning radius for traction. Traxxas gives you the freedom and versatility to lock and unlock both the front and rear differentials to suit your driving needs, all controlled remotely from your transmitter. Leave the differentials unlocked for relaxed driving on the trail with smooth, tight turning and better handling at high speeds. When the trail gets technical, lock the front and rear differentials, or just the front differential, for superior pull and grip over extreme terrain.
2.2

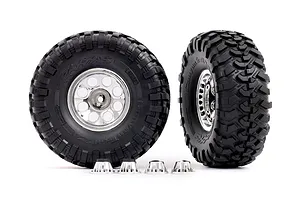

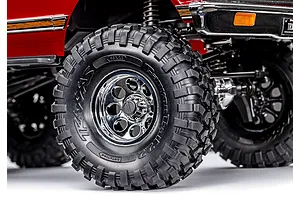

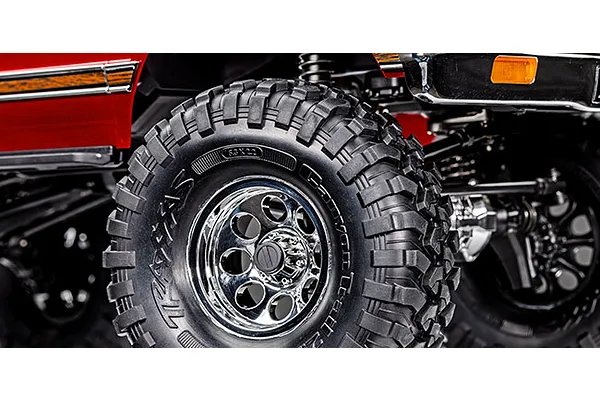

2.2" Canyon Trail Tyres
The K5 Blazer sits on oversized Canyon Trail tyres that provide additional ground clearance and enhanced grip. The S1 Compound, aggressive lug pattern, and dual density foam inserts provide unparalleled grip as well and incredible scale detail.
Dual Battery Tray
Dual Battery Tray

The TRX-4's main battery tray accommodates the full-length Traxxas 5000mAh 3-cell LiPo or 7600mAh 2-cell LiPo for extended run times. Securely mount full-size LiPo batteries for extended runtimes, or opt for smaller 1/16 scale Traxxas batteries for reduced weight and improved agility. The innovative hinged battery strap eliminates the need for pins, ensuring quick and secure battery changes in the field. The strap even flips to adjust for batteries of different heights.

Torque Twist Eliminated
Torque Twist Eliminated

On conventional rigs with the limited gear reduction in the differentials, motor torque is applied to the frame to the point of twisting you right off the rocks. The TRX-4's radical portal axle design reduces the gear ratio at the wheels, virtually eliminating torque twist through the chassis. Total axle gear reduction is over twice non-portal designs, so Titan motor torque delivers smooth forward motion, not frame twist.

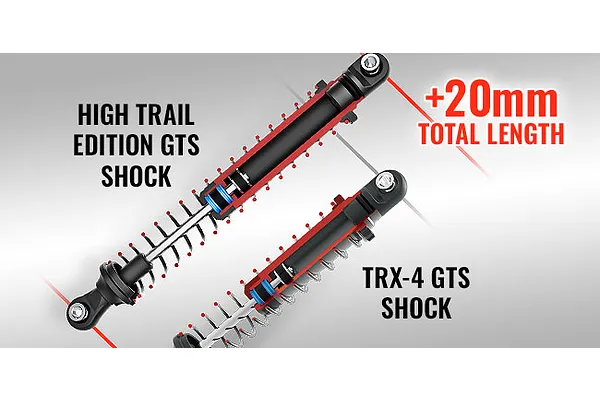

Extended Aluminium Oil Filled Shock Absorbers
Extended Aluminium Oil Filled Shock Absorbers

Extended Oil-filled coil-over GTS shocks were created exclusively for the high trail TRX-4 chassis to smooth out even the roughest trails. These silver-anodised aluminium shocks deliver silky-smooth damping and feature threaded bodies for easy ride height adjustment. The convincing scale realism looks great, and they perform even better with an O-ring cap seal and dual X-ring shaft seals.

Specifications
  • Length: 525mm (20.67")
  • Width: 270mm (10.63")
  • Height: 285mm (11.22")
  • Wheelbase: 312mm (12.28")
  • Weight: 3.3kg (7.28lbs)
  • Chassis: TRX-4 Frame Rail Crawler
  • Drivetrain: 4WD
  • Suspension: Oil Filled Coil Over Shock Absorbers
  • Motor: Traxxas Titan 550 Sized 21T Brushed Motor
  • ESC: Traxxas 18A XL5HV Brushed ESC
Included Items
  • 1x TRX-4, Ready-To-Race® model
  • 1x XL-5 HV waterproof electronic speed control
  • 1x Titan® 21T reverse rotation motor
  • 1x TQi™ 2.4 GHz radio system with cruise control
  • 1x High quality maintenance tools
Required Items
  • 1x 7.4V or 11.1V LiPo Battery
  • 1x Compatible Charger
  • 4x AA Batteries
Note
  • Refer to the vehicle's manual for the manufacturer's waterproof specifications and guidelines.
Videos
Specifications
RC Car
Max LiPo Power: 3S (11.1v)
Completion: Ready to Run
Scale: 1/10
Skill Level: Beginner
Power Source: Electric Brushed
Chassis Type: Rock Crawler
On/Off Road: Off Road
Drivetrain: 4WD
Factory specs
Battery connector: Traxxas iD
Front shock oil: 30w
Rear shock oil: 30w
Pinion gear: 10T 32dp
Spur gear: 45T 32dp
Wheel hex size: 12
