Traxxas

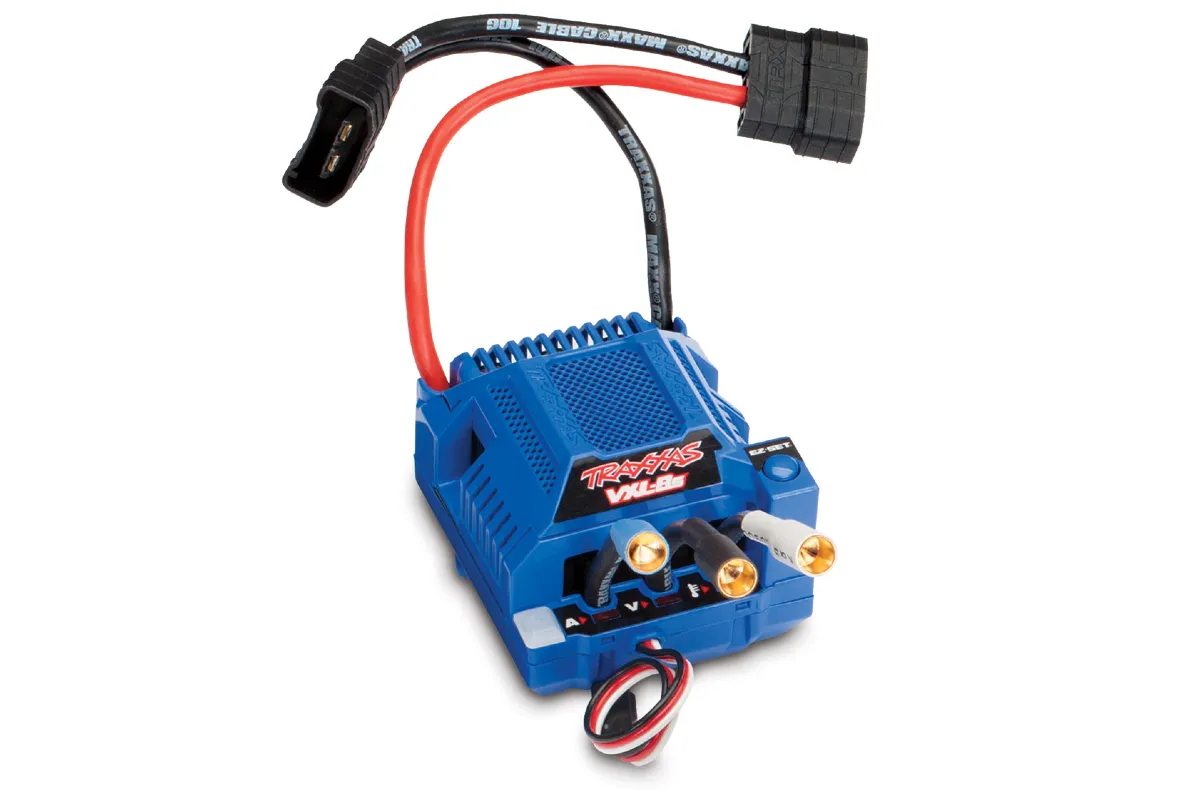

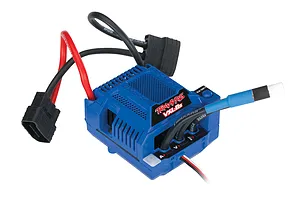

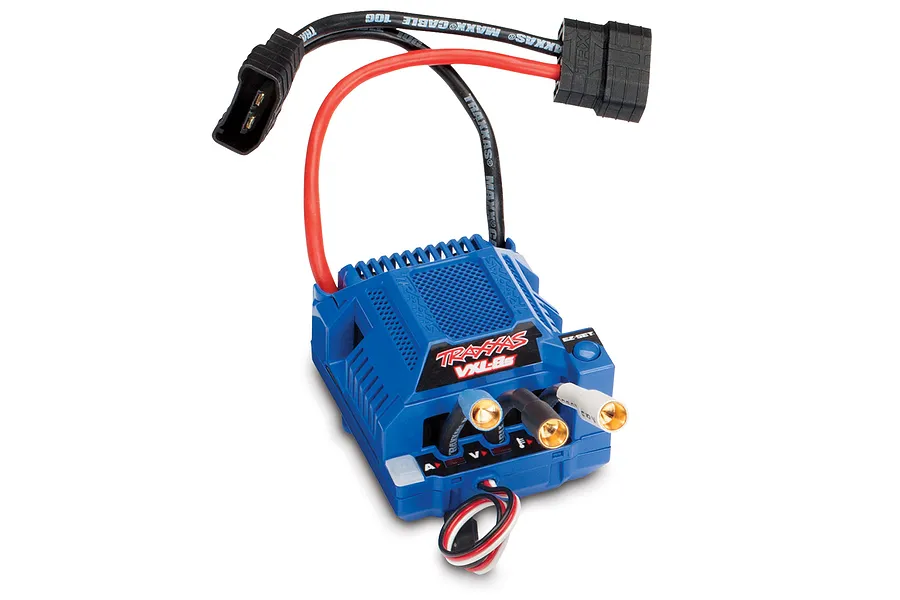

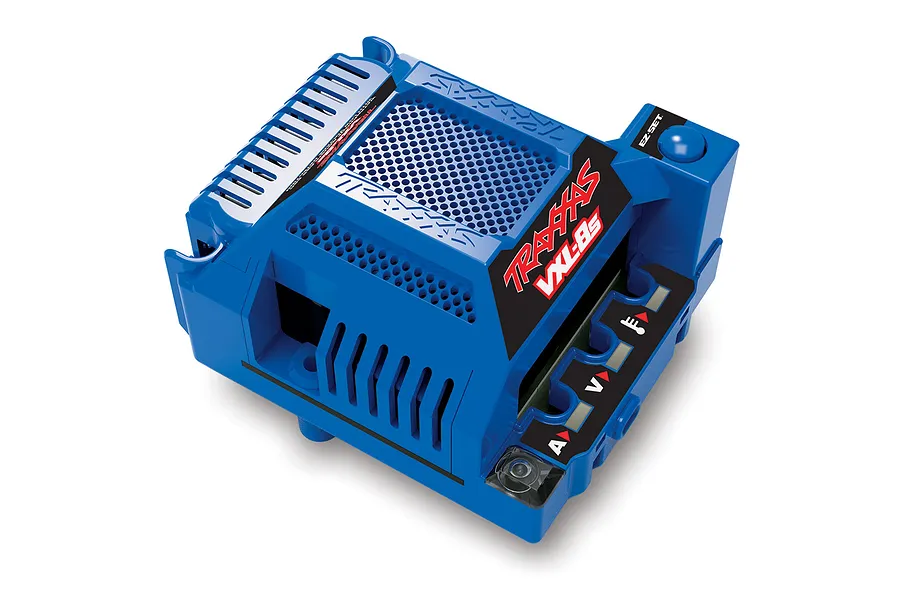

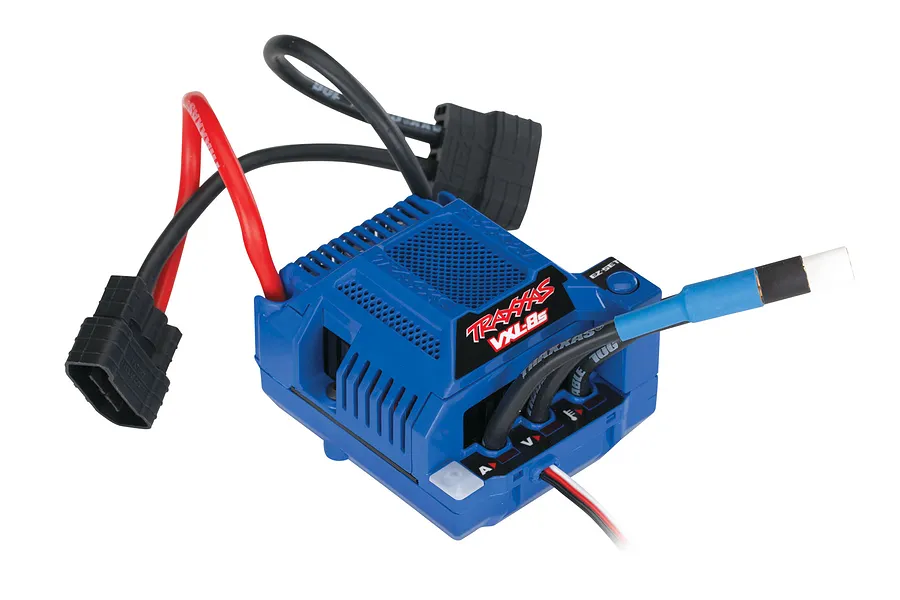

Traxxas X-Maxx VXL-8S Waterproof Brushless ESC

  • 1/5
  • Brushless

Part no. 3496

DiscontinuedNo reviews yet
1 / 3
1 / 3

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Part Support

Replacement & upgrade parts that fit this model

Overview

The Traxxas VXL-8S Waterproof Brushless ESC is designed to handle the immense power of up to 8S LiPo batteries, delivering smooth, reliable power for the X-Maxx's extreme performance in even the most demanding conditions.

Note

Notice: Brushless electric motors and ESCs have large amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • Handles 4S/6S/8S LiPo batteries (max 33.6V) for massive power
  • Waterproof design withstands even the toughest conditions
  • Built-in two-stage low voltage detection protects LiPo batteries
  • Integrated cooling fan for maximum efficiency
  • Traxxas EZ-Setยฎ one-button setup for simple programming
  • Three programmable drive profiles (Sport, Race, Training)
  • 10A continuous BEC output with 20A peak for high-powered servos
  • Genuine Traxxas product

In the box

  • 1x Traxxas VXL-8S Waterproof Brushless ESC

Specifications

Weight215.5 g (7.60 oz)
Continuous/Peak CurrentN/A
WaterproofYes
Motor LimitSensorless Brushless
BEC6.0V @ 10A (20A Peak)
Voltage Limit8S LiPo (Max 33.6V)
ProgrammableYes (EZ-Set)
Scale1/5, 1/6, 1/8
SensoredNo

Dimensions

Length58 mm (2.28 in)
Width72 mm (2.83 in)
Height46 mm (1.81 in)

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage33.6V
Waterproof DesignYes
Motor Connectors6.5mm Bullet
Battery ConnectorTraxxas iD
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V
Dual MotorNo
