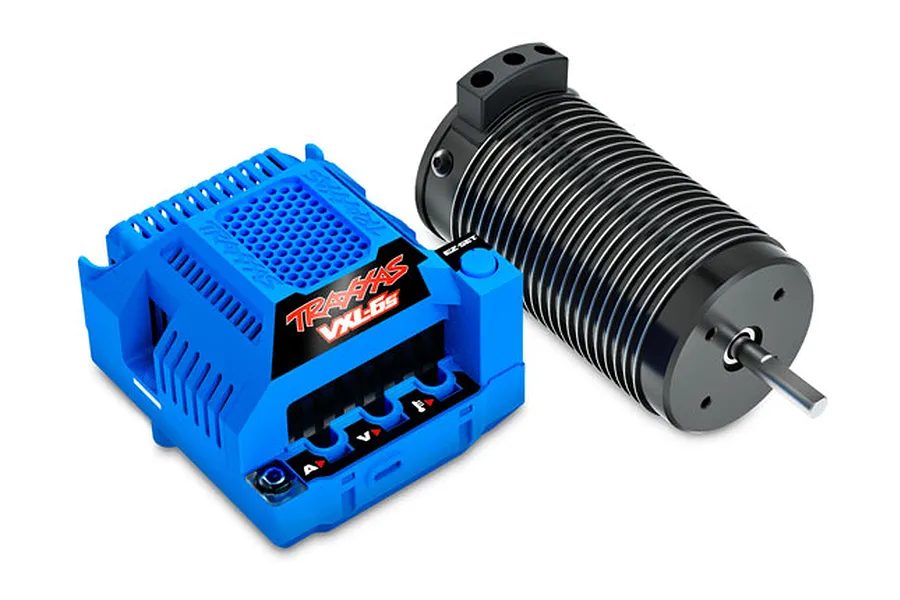

Traxxas Velineon VXL-6s ESC and 2000Kv Motor Combo

Traxxas Velineon VXL-6s ESC and 2000Kv Motor Combo

Traxxas Velineon VXL-6s ESC and 2000Kv Motor Combo

Brand: Traxxas | SKU: 3484
sold out
$579.91
Traxxas Velineon VXL-6s ESC and 2000Kv Motor Combo: Unleash extreme power with this high-performance brushless system designed for 4s-6s LiPo power.
  • Designed for 4s-6s LiPo batteries
  • 2000Kv sensorless brushless motor with a wrap-around aluminium cradle
  • VXL-6s speed control custom-tuned for optimal performance
  • Built-in bosses on the motor for easy attachment of an optional cooling fan
  • Increased mid-range punch and hard-charging acceleration
Add to Wishlist
Shop replacement & upgrade parts for this model
Shop Parts
Loading compatibility information...
Description

The Traxxas Velineon VXL-6s ESC and 2000Kv Motor Combo is engineered for extreme power and performance in large-scale RC vehicles. This powerful brushless system is designed to handle the demands of 4s-6s LiPo batteries, delivering incredible acceleration and top speeds. The 2000Kv sensorless motor is securely mounted in a wrap-around aluminium cradle, eliminating flex and ensuring efficient power transfer. Built-in bosses make it easy to attach an optional cooling fan for enhanced thermal management during intense driving sessions.

The VXL-6s speed control is custom-tuned to perfectly complement the 2000Kv motor, providing smooth and responsive throttle control throughout the RPM range. Whether you're launching off the line or powering out of corners, this combo delivers the raw power and performance you need to dominate the track or bash with authority. The high-current handling and robust construction of both the motor and ESC make this combo a reliable choice for serious RC enthusiasts.

Features
  • Designed for 4s-6s LiPo battery compatibility (Max 25.2 volts)

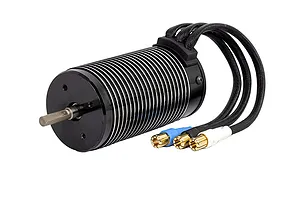

  • 2000Kv sensorless brushless motor
  • Wrap-around aluminium motor cradle for secure mounting
  • Built-in motor bosses for optional cooling fan attachment

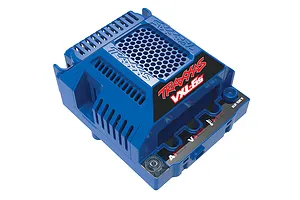

  • VXL-6s electronic speed control with custom tuning
  • High-current handling for maximum power delivery
  • 6.0-volt BEC with 10A continuous and 20A peak current
  • Reverse delay with lockout for added control
  • Multiple ports: RX input, auxiliary fan, Traxxas accessory port
  • Robust construction for durability in demanding conditions
  • Enhanced mid-range punch and hard-charging acceleration
  • 6.5mm bullet connectors for secure motor connections
  • Genuine Traxxas Product
Specifications
  • Motor Type: 2000Kv Sensorless Brushless
  • Motor Weight: 406g (14.32oz)
  • Motor Length: 76mm (2.97")
  • Motor Diameter: 42mm (1.65")
  • ESC Input Voltage: 4s-6s LiPo (Max 25.2v)
  • ESC Case Size: 58mm (2.28") x 72mm (2.83") x 46mm (1.81")
  • ESC Weight: 207g (7.30oz)
  • BEC Voltage: 6.0v
  • BEC Current Continuous: 10A
  • BEC Current Peak: 20A
Included Items
  • 1x Traxxas Velineon VXL-6s ESC
  • 1x Traxxas Velineon 2000Kv Brushless Motor
Note
  • It is recommended to use high-quality LiPo batteries and a compatible charger designed for high-power applications. Consult the user manual for detailed setup and programming instructions and waterproof standards. Ensure proper cooling is maintained, especially during high-demand operation.
Specifications
Motor
KV
RPM (Revolutions Per Minute) per Volt
2000KV
Turns
Length
Length of the motor can
77mm
Diameter
Diameter of the motor can
42mm
Type
Brushless
Sensored
Uses sensors for precise speed and position control
No
Shaft Diameter (mm)
5
ESC (Electronic Speed Controller)
Battery Connector
Traxxas iD
BEC Voltage
6V
Burst Amps
A
Waterproof Design
Yes
Cooling Method
Air
Programmable
Yes
LVC
Low Voltage Cut-Off. Required for Lithium batteries.
Yes
Max Voltage
22.2V
Continuous Amps
A
Dual Motor
No
For Motor Type
Brushless
Motor Connectors
6.5mm Bullet
