Hobbywing

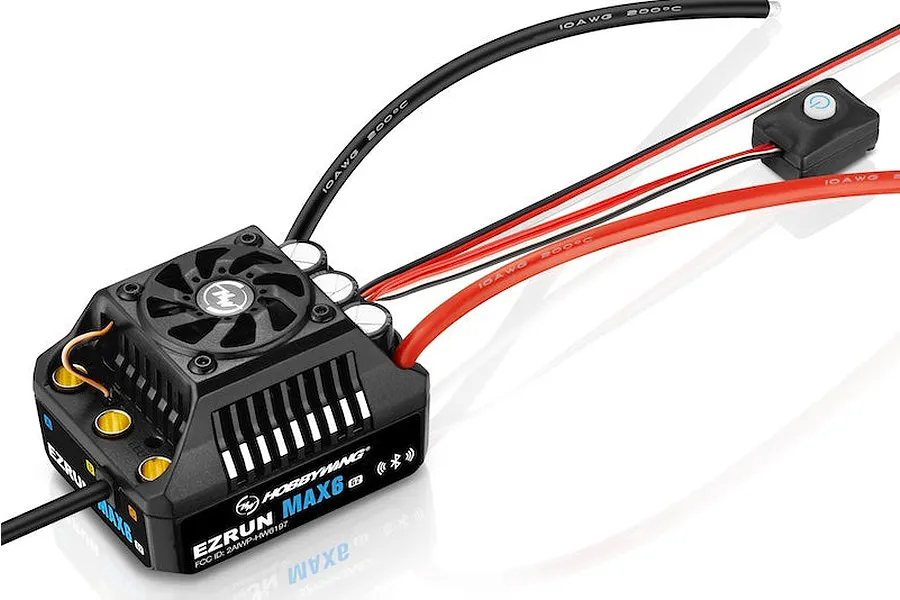

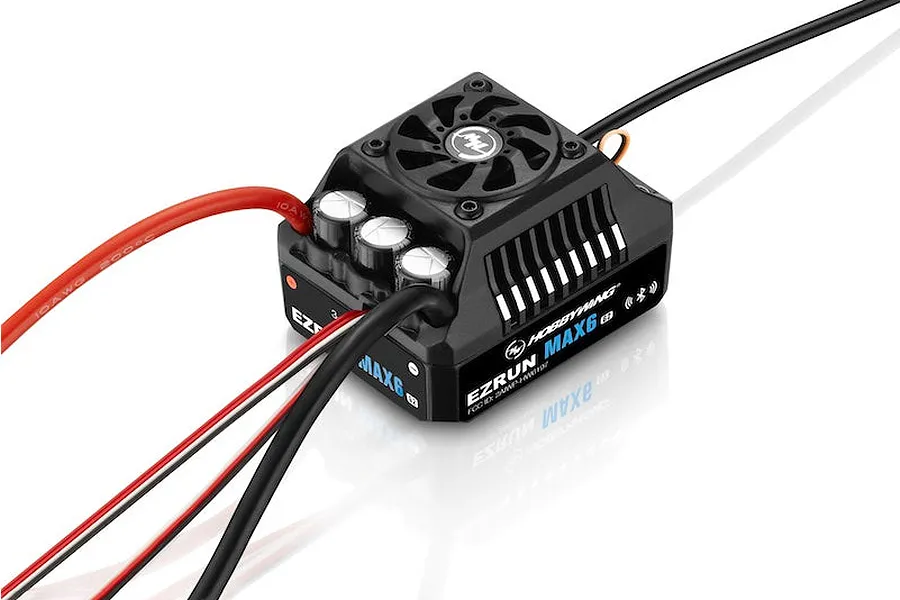

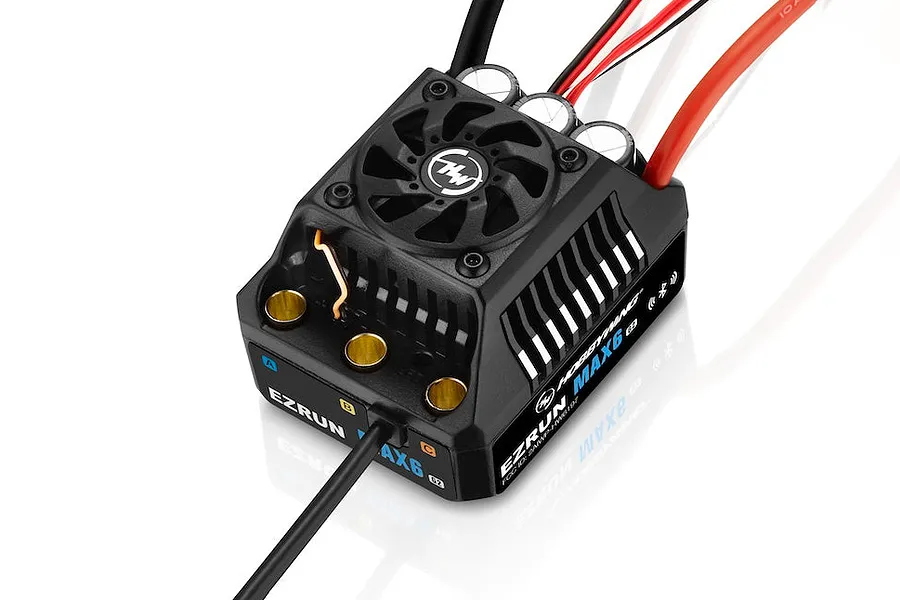

Hobbywing EzRun Max6 G2 200A Waterproof Brushless ESC

  • 1/6
  • Brushless

Part no. 30105100

3 in stock5.0
2 reviews
1 / 4
1 / 4

$283.63

or 4 fortnightly payments of $70.91 with afterpay or PayPal, or zip

  • Suitable for high end, high power application
  • Genuine Hobbywing Product
  • 8S Capable
Select Male Connector
Select Wiring Configuration

$283.63

Overview

ESC Gearing

Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

6S LiPo Compatibility

The Hobbywing MAX8 ESC manual notes that the warranty does not extend to issues resulting from 6S LiPo configurations. Please visit the Hobbywing website for information and consult the manual for proper operation guidelines.

The Hobbywing EzRun Max6 G2 200A Waterproof Brushless ESC is a high-performance, waterproof brushless ESC designed for 1/6th and 1/7th scale on-road, truck, and monster truck applications. It offers a combination of power, features, and durability, making it ideal for both serious hobbyists and competitive racers.

Features

  • Powerful and smooth with linear control throughout the RPM range.
  • Supports up to 8S LiPo battery.
  • Maximum continuous output current of 200A.
  • Intelligent freewheeling technology for improved efficiency and lower operating temperature.
  • Built-in Bluetooth module for convenient parameter setting, data reading, and firmware upgrades via a mobile phone app.
  • User-friendly with built-in data recording (up to 10 minutes) and intelligent fan control.
  • IP67 waterproof and dust-proof for all-weather driving.
  • Turbo timing technology for increased performance (up to 20%) when paired with compatible Hobbywing motors.
  • Powerful BEC with a maximum output current of 25A.
  • Genuine Hobbywing product.

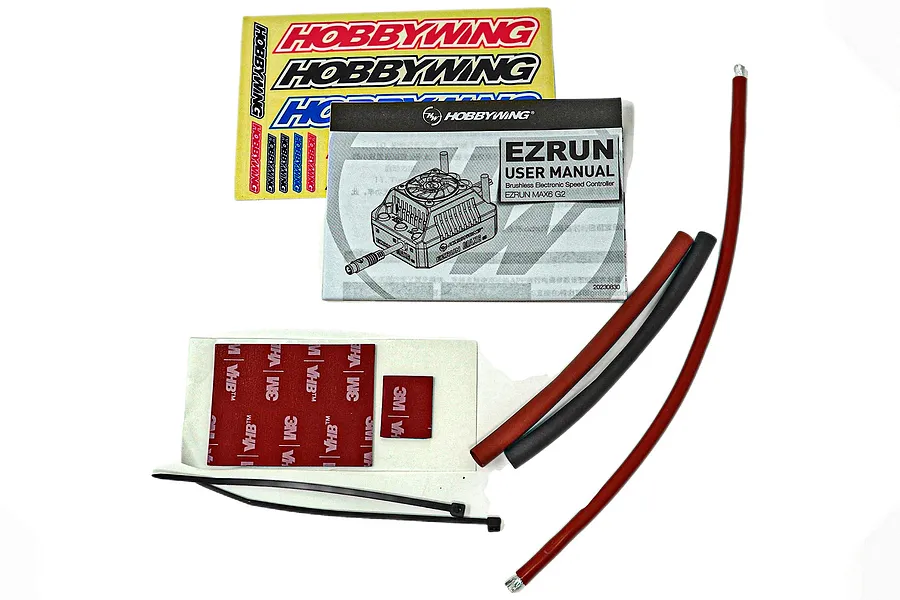

In the box

  • Hobbywing EzRun Max6 G2 200A Waterproof Brushless ESC

Specifications

Weight245g (8.64oz)
Continuous/Peak Current200A/1200A
Waterproof RatingYes (IP67)
Motor LimitN/A (Designed for 4990/5690 Size Motors)
BECSwitch-Mode 6V/7.4V/8.4V @ 8A
Voltage Limit3S - 8S LiPo
ProgrammableYes
Scale1/6, 1/7
SensoredNo

Dimensions

Length70mm (2.76")
Width56mm (2.20")
Height45.5mm (1.79")

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage29.6V
Waterproof DesignYes
Burst Amps1200A
Continuous Amps200A
Motor Connectors6.5mm Bullet
Battery ConnectorXT90
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.4V, 8.4V
Dual MotorNo
