Spektrum

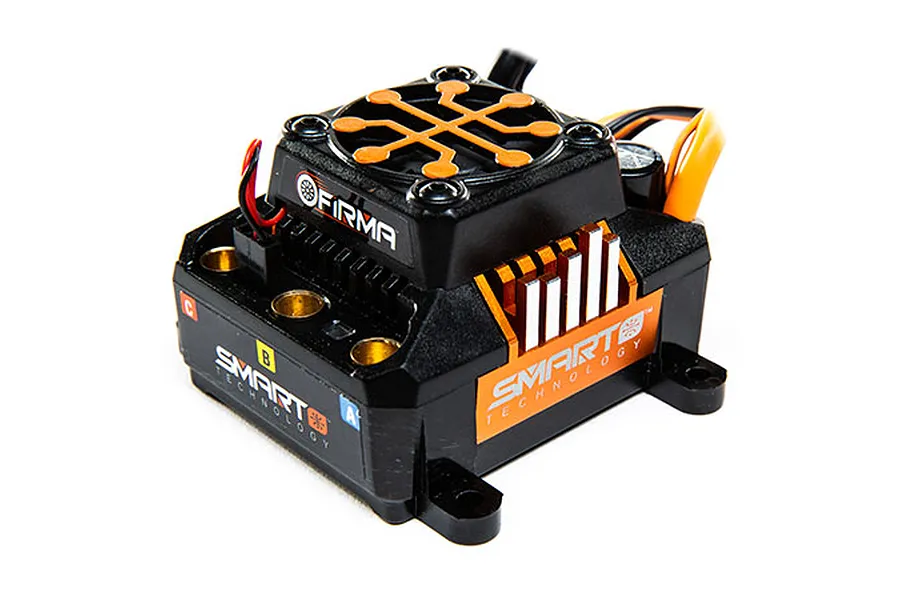

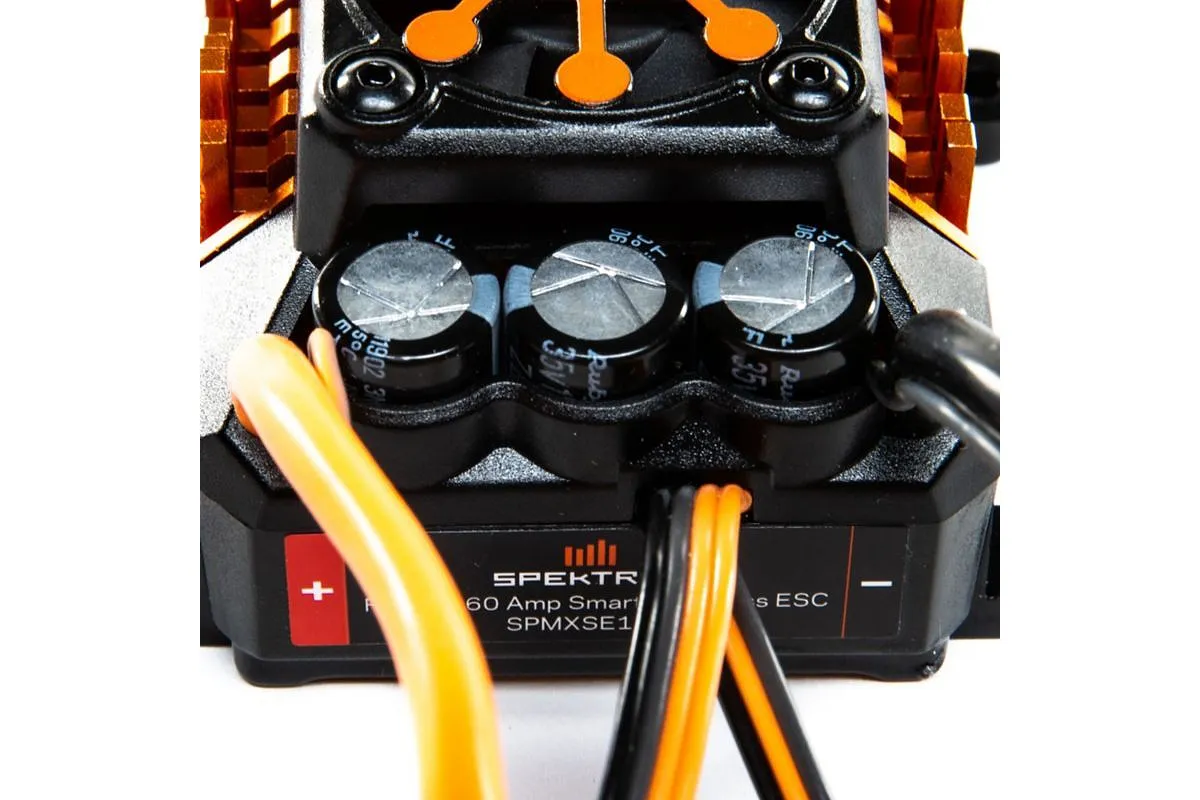

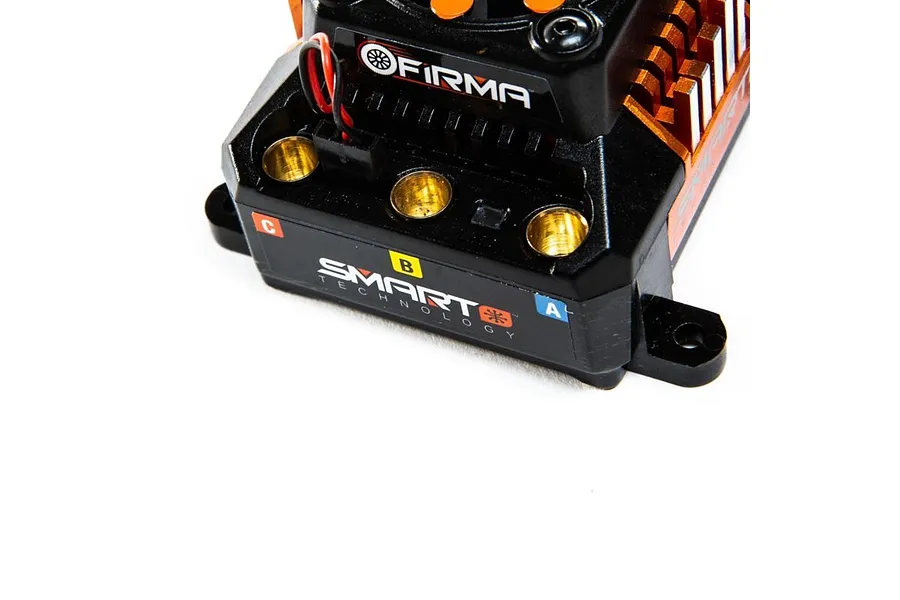

Spektrum Firma 160A 8S Brushless Sensorless Smart ESC

  • Brushless

Part no. SPMXSE1160

Expected 11 NovNo reviews yet
1 / 6
1 / 6

Videos

$329.86

or 4 fortnightly payments of $82.46 with afterpay or PayPal, or zip

Add it to My Garage

Spektrum Firma 160A 8S Smart ESC with real-time telemetry, waterproof build, 32-bit ARM M4 processor, and adjustable high-power BEC.

  • Smart all-in-one telemetry — sends RPM, temperature, voltage, and capacity to your transmitter in real time
  • Waterproof construction
  • Fast 32-bit ARM M4 processor
  • Adjustable high-power BEC
  • Ready to install — no soldering required, limited 1-year warranty

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine plug-and-play simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle. Firma Smart ESCs do much more than regulate power — they function like a virtual engineer inside your model, providing a direct path to vital operating data you need to reach peak performance.

Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best. With Firma Smart ESCs you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. No extra wires, modules, or links are needed. A Firma ESC provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, rather than only storing it for after-run study, so you can adjust settings as needed to boost performance on the go.

Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:

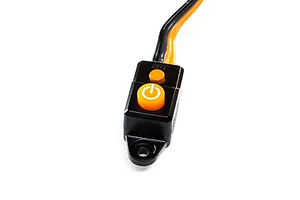

  • Button programming

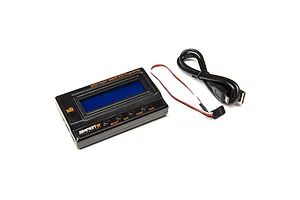

  • Smart ESC Programming Box

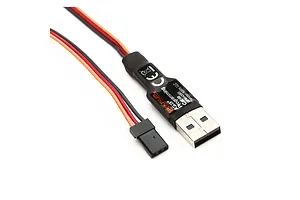

  • SmartLink USB Updating and Programmer application
  • Multi-point protection:
  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency

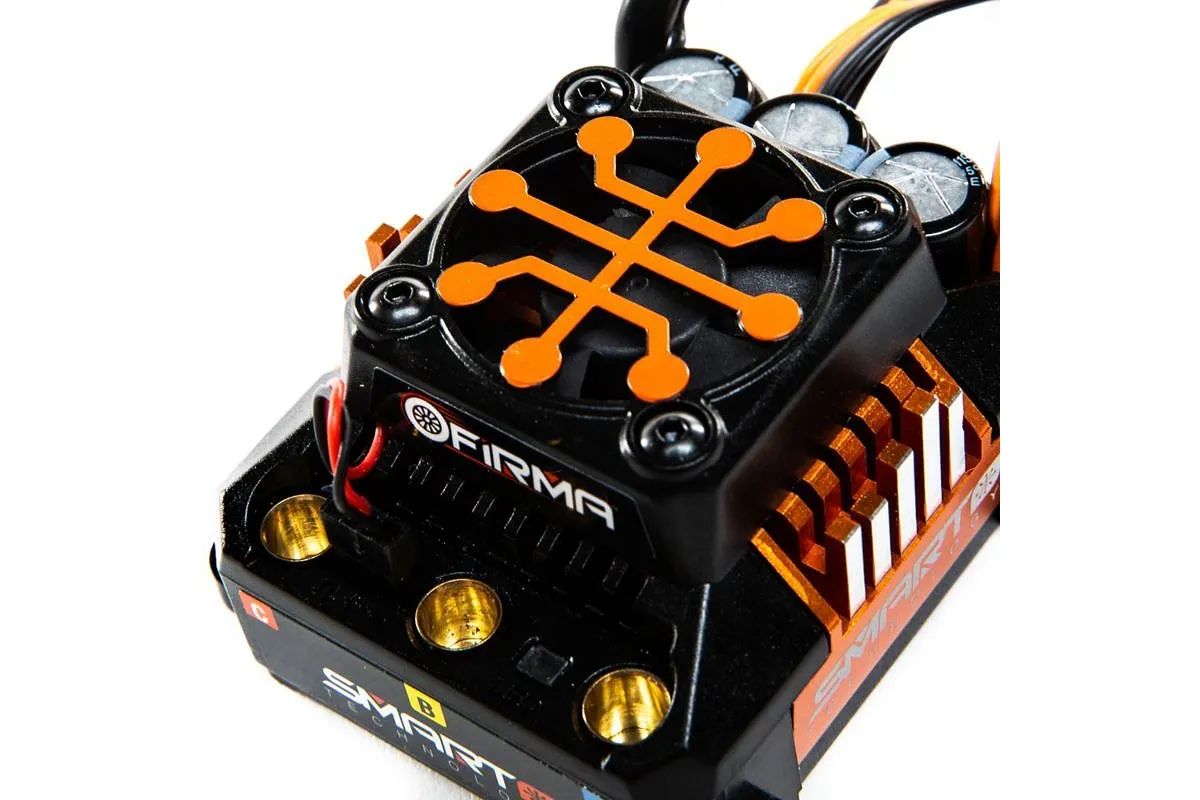

  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box

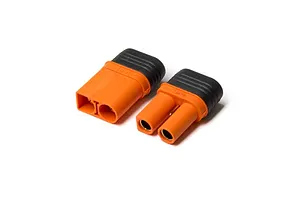

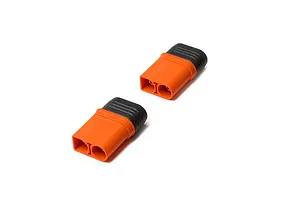

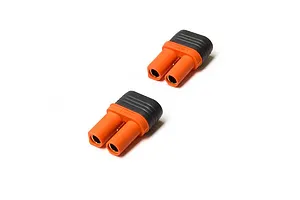

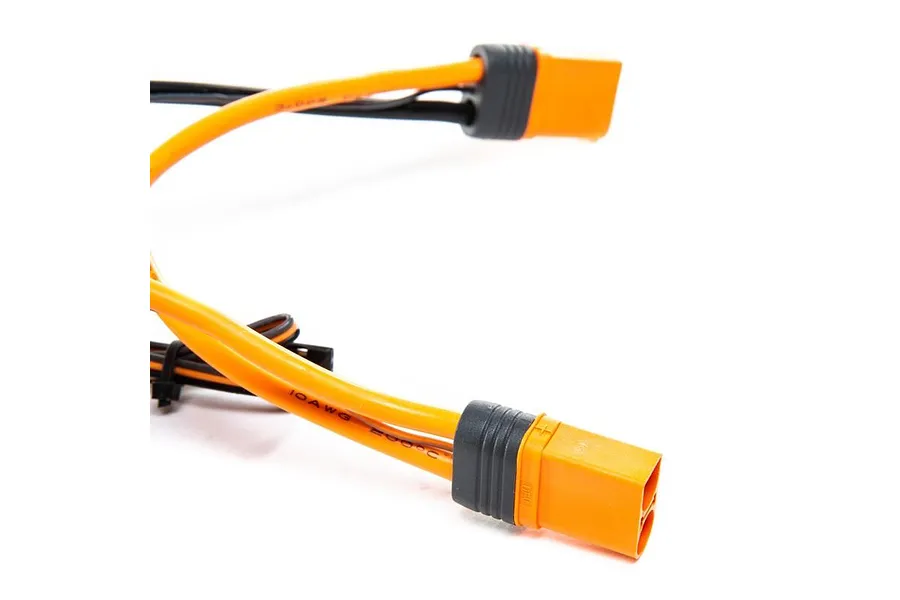

  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty

Specifications

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage29.6V
Waterproof DesignYes
Continuous Amps160A
Motor Connectors6.5mm Bullet
Battery ConnectorIC5
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 8.4V
Dual MotorNo
