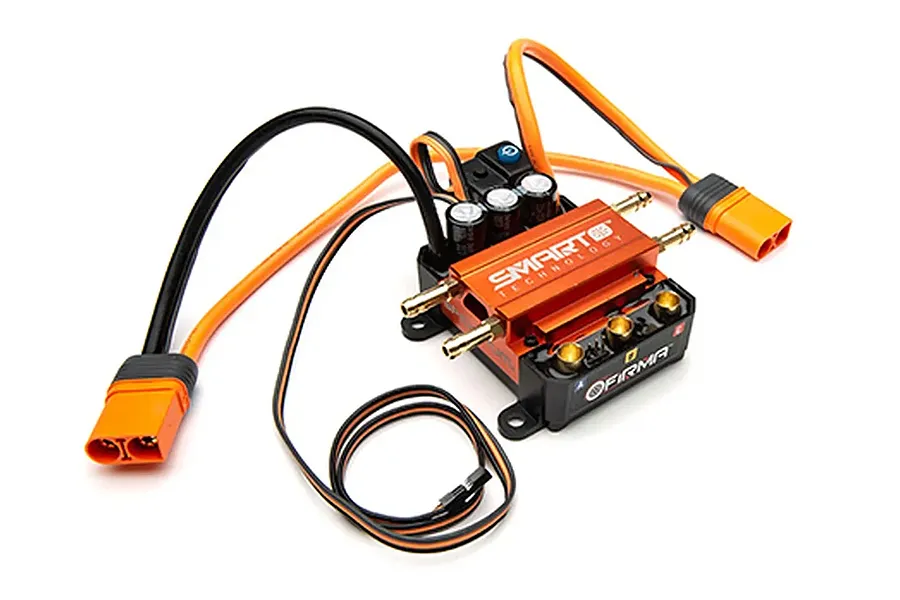

Name: Spektrum Firma 160 Amp Smart Brushless Marine ESC 3S - 8S
Brand: Spektrum
SKU: SPE-SPMXSE1160M
Price: 337.53 AUD
Availability: InStock

Overview

Note

Documentation included: Firma 160 Amp Smart Brushless Marine ESC Manual (Multilingual); Firma 160 Amp Smart Brushless Marine ESC Programming Chart.

Features

Forward: Yes
Reverse: Yes
Brake: No
Input Connector Types: IC5, length, 7.9 in (200mm)

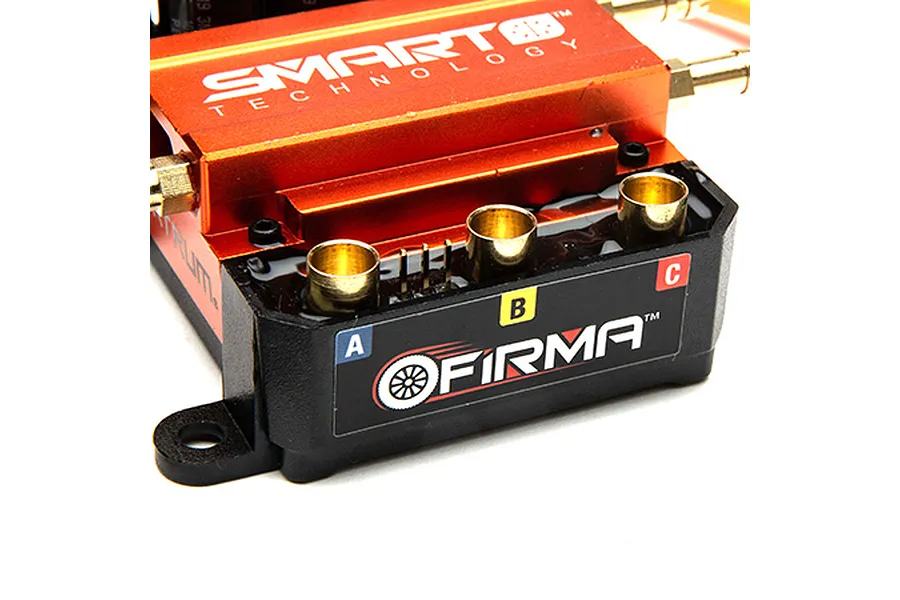

Output Connector Types: 6.5mm Bullet
Length: 3.7 in (95.7mm)
Width: 3.5 in (90.4mm)
Height: 1.4 in (35.5mm)
Weight: 9.9 oz (280g)
BEC Voltage: 8A
Overload Protection: Yes
Wire Gauge: 10 AWG
Auto Cutoff: Yes
Manual
Firma 160 Amp Smart Brushless Marine ESC Manual - Multilingual
Firma 160 Amp Smart Brushless Marine ESC Programming Chart

Specifications

Forward	Yes
Reverse	Yes
Brake	No
Input Connector Types	IC5, length 7.9 in (200mm)
Output Connector Types	6.5mm Bullet
Length	3.7 in (95.7mm)
Width	3.5 in (90.4mm)
Height	1.4 in (35.5mm)
Weight	9.9 oz (280g)
BEC Voltage	8A
Overload Protection	Yes
Wire Gauge	10 AWG
Auto Cutoff	Yes

ESC (Electronic Speed Controller)

For Motor Type	Brushless
Max Voltage	29.6V
Waterproof Design	Yes
Continuous Amps	160A
Motor Connectors	6.5mm Bullet
Battery Connector	IC5
LVCLow Voltage Cut-Off. Required for Lithium batteries.	Yes
Programmable	Yes

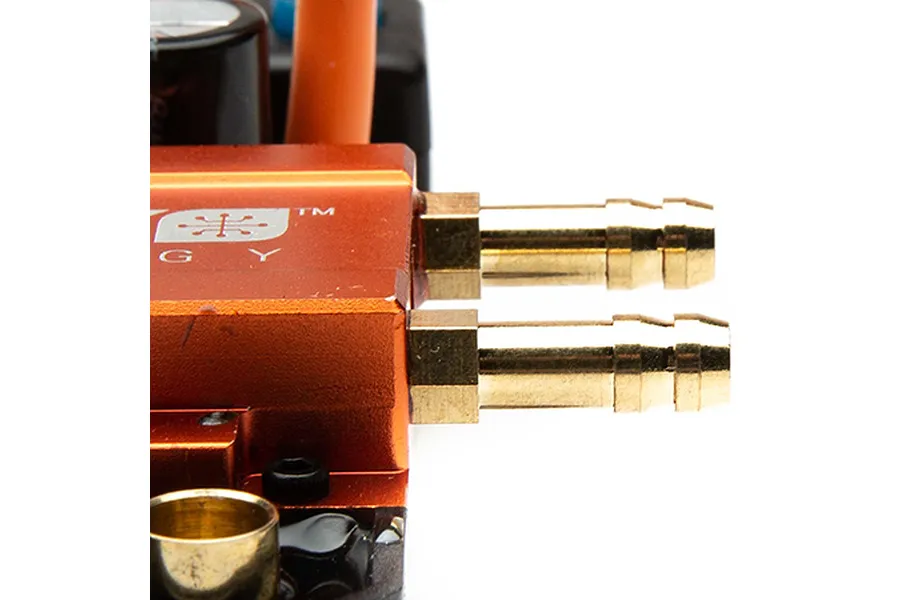

Cooling Method	Water
BEC Voltage	6V, 8.4V
Dual Motor	No
