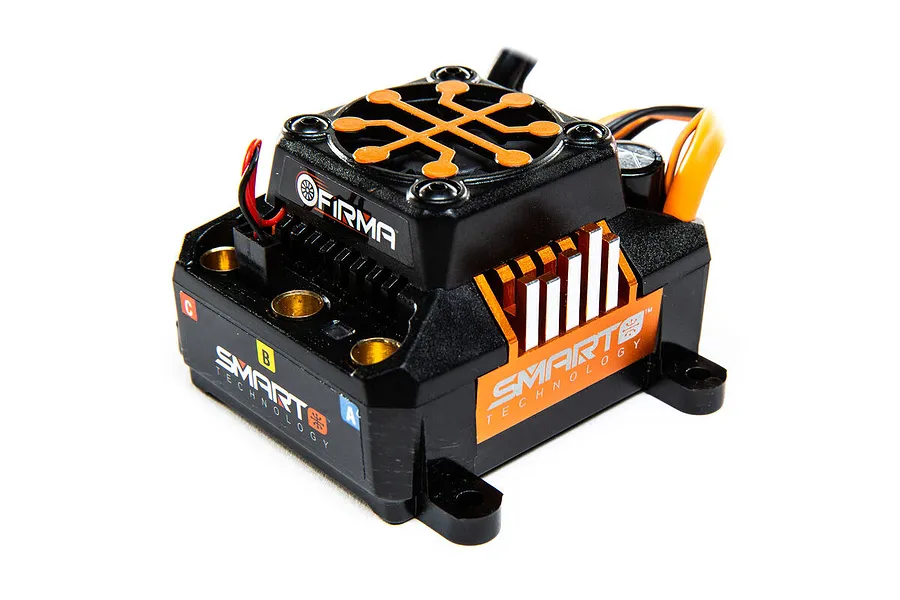

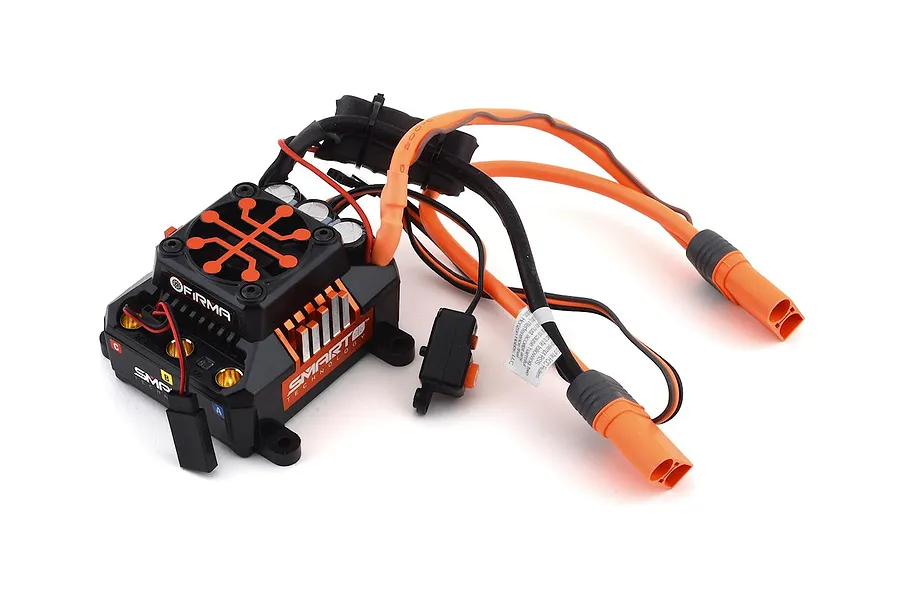

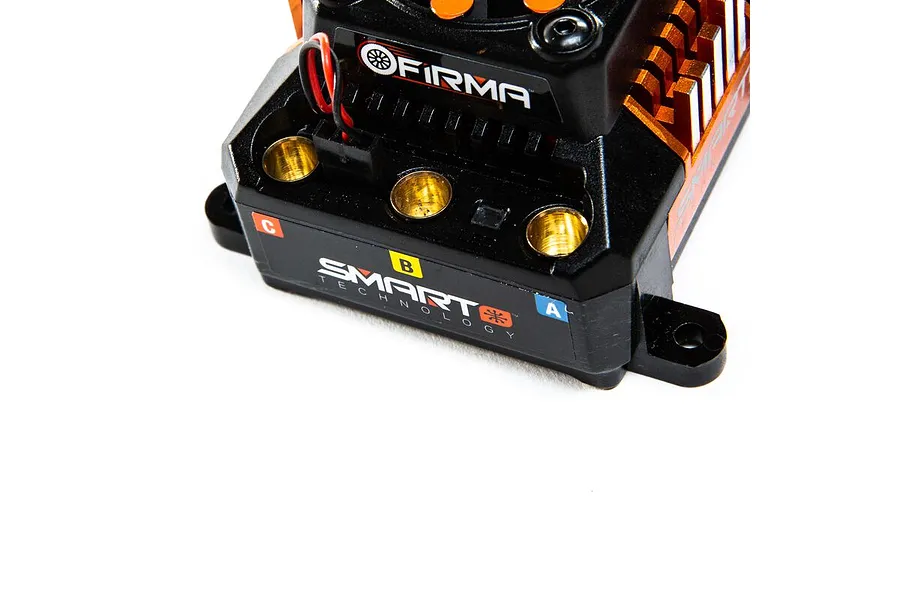

Spektrum Firma 160A 8S Brushless Sensorless Smart ESC w/ Capacitor High Output Edition
Videos
Spektrum Firma 160A 8S Brushless Sensorless Smart ESC w/ Capacitor High Output Edition
Spektrum Firma 160A 8S Smart ESC with waterproof design, Smart telemetry, and 6V/5A BEC for 1/8 scale vehicles.
- 160A continuous current / 1050A peak output
- Compatible with 3S to 8S LiPo batteries
- Waterproof design
- Spektrum Smart technology with real-time telemetry
- Programmable via SmartLink app or programmer
Unleash the raw power of your 1/8 scale vehicles with the Spektrum Firma 160A 8S Brushless Smart ESC. Engineered for extreme performance, this high-output ESC delivers a massive 160 amps of continuous current and harnesses the intelligence of Spektrum's Smart technology for seamless setup, real-time telemetry, and optimal performance.
- Powerful 160A continuous current output
- Smart technology for telemetry and easy setup
- Waterproof design for all-weather durability
- Compatible with 3S to 8S LiPo batteries
- 5A switch-mode BEC for reliable power supply
- Data logging for performance analysis
- Programmable with SmartLink app or programmer
- Genuine Spektrum product
- Length: 70mm (2.7 in)
- Width: 77mm (3.03 in)
- Height: 44mm (1.8 in)
- Weight: 280g (9.9oz)
- Continuous/Peak Current: 160A/1050A
- Waterproof: Yes
- Motor Limit: N/A
- BEC: 6V @ 5A
- Voltage Limit: 3S-8S LiPo
- Programmable: Yes
- Scale: 1/10, 1/8
- Sensored: No
- 1x Spektrum Firma 160 Amp 8S Brushless Smart ESC, High Output
Brushless electric motors and ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
-
For Motor Type
- Brushless
-
Max Voltage
- 29.6V
-
Waterproof Design
- Yes
-
Burst Amps
- 1050A
-
Continuous Amps
- 160A
-
Motor Connectors
- 6.5mm Bullet
-
Battery Connector
- IC5
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 6V
-
Dual Motor
- No
