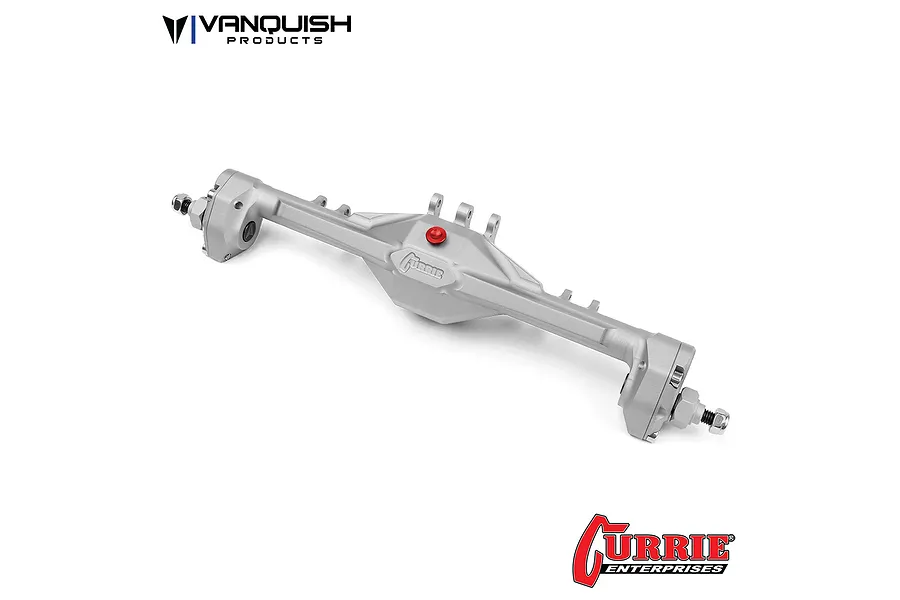

Vanquish Silver Aluminium SCX10 II Rear Solid Currie F9 Portal Axle Differential/Axle Housing

Part no. VPS08361

Sold outNo reviews yet

$298.86

or 4 fortnightly payments of $74.72 with afterpay or PayPal, or zip

Currie F9 Portal Rear Axle for SCX10-II — 13mm ground clearance gain, 1.67:1 portal gear reduction, direct AR44 replacement.

  • 13mm increase in ground clearance — equivalent to a tire over 1 inch taller
  • Gear reduction in the portal of 1.67:1 (18/30); optional 1.4:1 Overdrive ratio
  • Overall axle reduction of 6.26:1 with stock portal ratio
  • Direct replacement for Axial AR44 axle using all stock links
  • Chromoly inner shafts, stub shafts, and spool; complete Fast Eddy Bearings kit included

In stock now: similar

Will it fit?

Check fit: add your vehicle to My GarageFits 8 vehicles

Overview

Currie F9 Portal Rear Axle for SCX10-II based vehicles. The F9 Portal axles create extreme amounts of ground clearance under the center of your axle, increasing the clearance by 1/2"+ (13mm). This provides the equivalent of a tire over 1 inch taller than what is on your vehicle. The advantage of the Vanquish Currie F9 Portals is the gear reduction inside the portal (1.67:1) which can be adjusted with optional gear sets (1.4:1 Overdrive*). By adding reduction at the portal, less torque is transferred through the other upstream components in the drivetrain. These axles are a direct replacement to any Axial AR44 axle, using all stock links. These axles come with all parts needed to assemble a full rear axle.

Note

Requires the use of a 350 SLW hub or greater on Vanquish 1.9 wheels; Incision wheels will require a #4 or greater. Other wheel manufacturers offsets will vary. Axles must be used in pairs — you cannot run a front portal axle without a rear and vice versa.

*Overdrive gear sets are recommended for use in the front axle only.

Features

  • Portal box integrated into the rear housing for the most clearance at the axle ends possible and a more scale appearance
  • Gear reduction in the portal of 1.67:1 (18/30), Optional Overdrive Ratio* of 1.4:1 (20/28)
  • Included Vanquish AR44 machined gear set
  • Overall axle reduction of 6.26:1 with stock portal ratio
  • 13mm increase in ground clearance
  • Hex to hex width of 7.66 inches, only roughly 5mm wider than a stock AR44 axle with a narrow hex
  • Chromoly inner rear axle shafts are triple bearing supported
  • Chromoly stub shafts with 6mm design at the drive pin which tapers down to a 5mm thread for ultimate strength
  • Chromoly spool
  • Aluminum 12mm hex with set screw
  • Uses all SCX10-II linkage
  • Complete Fast Eddy Bearings kit
  • Licensed by Currie Enterprises
  • Comes with One Piece Bearing Retainers (Patent Pending)
  • Double shear shock mounts
  • Upper link mounts built into third member
  • Increased upper link clearance for more suspension up travel ability
