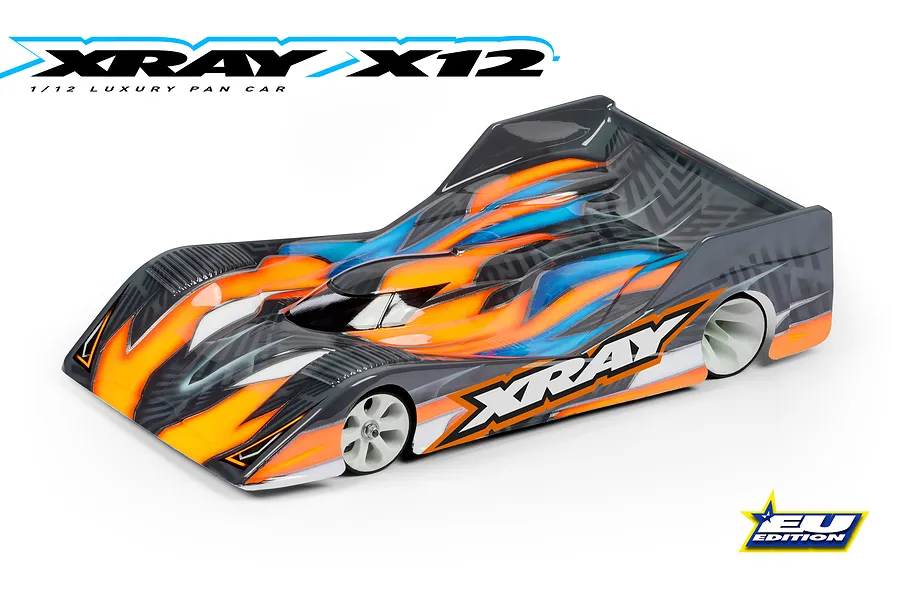

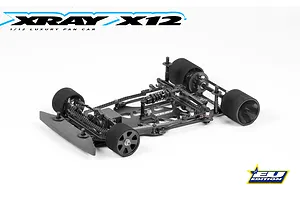

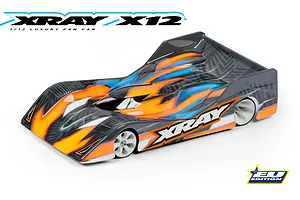

XRAY X12'23 RC Pan Car Electric 1/12 Scale Kit

XRAY X12'23 RC Pan Car Electric 1/12 Scale Kit

XRAY X12'23 RC Pan Car Electric 1/12 Scale Kit

Brand: XRAY | MPN: 370017
discontinued
Shop replacement & upgrade parts for this model
Shop Parts
Description
Features
  • All-new chassis featuring extra forward position for centre pivot for improved cornering speed and steering response
  • Chassis features extra mounting position for side braces between the front and centre position for extra fine tuning of car flex
  • Chassis shortened by 3.5mm in front with extra chamfer, eliminating chassis dragging
  • Chassis features 4 positions for the front battery backstop in 2mm steps to prevent the battery stop from moving in hard crashes
  • Rear POD plate features redesigned area of the alu POD plate pivot holder for improved durability
  • Rear POD features 2 centring holes instead of 1 to eliminate tweak issues in crashes
  • Bulkheads completely redesigned for maximum low CG and weight; 5mm lower and 4g lighter compared to previous version
  • Bulkheads feature new smaller and lower CG window for eccentric bushings
  • Bulkheads feature 2 centring pins instead of one for better centring and to prevent tweaking in hard crashes
  • Bulkheads feature new mounting position for the rear brace from top instead of rear for improved tweak resistance; one mounting position instead of two for improved flex of the rear POD
  • All-new graphite rear brace is thinner and lighter for improved CG and flex of the POD
  • All-new smaller and lighter eccentric bushings with finer steps for improved ride height adjustability and a lower centre of gravity
  • All-new lighter wheel hubs with M2x5 screw instead of M2.5x8 to eliminate rotating weight and vibration
  • All-new lowered rear brace mounts (4mm) and side brace mounts (1.5mm) to allow mounting rear graphite brace with side braces as low as possible
  • All-new rear brace features mounting holes for the battery backstop
  • All-new rear graphite POD upper plate redesigned to use super light aluminium bushings instead of nuts to save weight and lower CG
  • Rear graphite plate mounted 6.5mm lower to lower CG and eliminate tweak issues; side tubes mounted from top for quicker assembly and disassembly
  • All-new rear brace mounted 4mm lower with holes for bushings to mount side braces
  • All-new battery mounting system with improved reliability and ease of battery installation; front battery stop mounted into chassis, moveable in 2mm steps, centred by shock post
  • Improved flex in front suspension using double front brace system
  • Updated steering backstops for better reliability and ease of adjustment
  • All-new foam bumper redesigned for better clearance when using a setup station
  • All-new nickel coated surface on the king pin axles for smoother damping action
Required Items
  • 1/12 scale body
  • Wheels & rims
  • Servo
  • Radio Transmitter & Receiver
  • 1S Electronic Speed Controller (ESC)
  • LiPo Charger
  • 1S LiPo Battery
Note

This kit does not come with a body or wheels.

Specifications
RC Car
Scale
1/12
Max LiPo Power
1S (3.7v)
Completion
Kit
Skill Level
Experienced
Chassis Type
Car
On/Off Road
On Road
Drivetrain
RWD
Factory Specs
