ARRMA

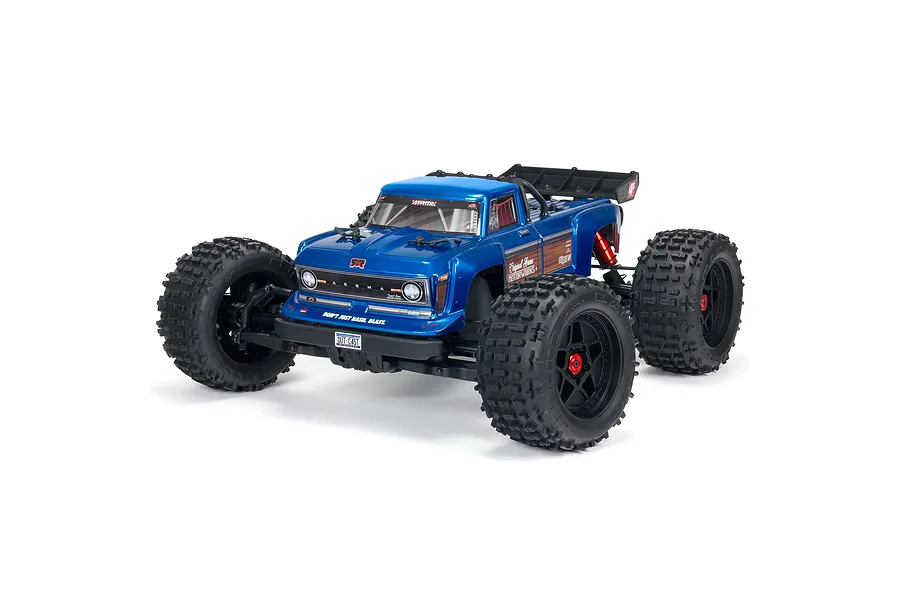

ARRMA Outcast 4x4 BLX 4S RC Stunt Truck Electric Brushless 4WD 1/10 Scale RTR - Blue

  • 1/10
  • 4WD
  • RTR
  • Brushless

Part no. ARA4410V2T2

DiscontinuedNo reviews yet
1 / 16
1 / 16

Videos

Select Option: Blue

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

Infusing the legendary ARRMA spirit of resilience and speed, the Outcast transcends mere off-road bashing. Its shorter wheelbase facilitates effortless flips and nimble manoeuvring through challenging obstacles.

Built upon the latest iteration of the 4S BLX platform — the affordable balance between agile 3S BLX vehicles and formidable 6S BLX machines — this enhanced Outcast is primed for amplified all-road bashing and gravity-defying stunts. ARRMA has fortified the Outcast's 4S-capable Spektrum brushless power system for intensified all-road action. A cool-running Spektrum Firma 120A Smart V2 waterproof ESC with IC5 connectors (EC5 compatible) delivers enhanced punch and an improved driving experience. Steering has been bolstered with a Spektrum S662 metal-geared digital servo featuring an alloy centre case. Its higher torque sharpens the truck's manoeuvring capabilities at high speeds.

Fully ready-to-run, the Outcast includes a 3-channel Spektrum SLT3 2.4GHz radio and a dual protocol SR315 receiver. Simply charge your preferred recommended battery and prepare to unleash a barrage of groundbreaking stunts!

Note

An optional pinion gear is available separately. Use of the optional pinion gear will void warranty.

Features

  • Rubber-shielded bearings protect against dust and debris, ensuring smooth operation with minimal resistance
  • Out-drive protectors, taller side guards, and wishbone dirt guards
  • Higher torque Spektrum S662 metal-geared digital servo with alloy case centre
  • New Spektrum Firma 120A V2 Smart ESC paired with the Spektrum 3668 2400Kv Brushless motor
  • Improved battery retention system with wire clips
  • Centre support brace for maximum durability
  • EXB all-metal gear differentials for enhanced durability and toughness
  • Genuine ARRMA Product

In the box

  • 1x ARRMA 1/10 Outcast 4x4 BLX 4S Brushless RC Stunt Truck RTR
  • 1x Spektrum 2.4GHz SLT3 Transmitter
  • 4x AA Transmitter Batteries
  • 1x Product Manual

You'll need

  • 3S or 4S LiPo Battery with EC5™ or IC5® connector
  • Compatible Battery Charger

Highlights

Upgraded Servo

Upgraded Servo

The Spektrum S662 digital, waterproof steering servo, equipped with full metal gears and delivering an impressive 17kg-cm of torque at 7.4V, effortlessly handles the demands of high-speed, all-terrain bashing. This robust servo also features an industry-standard 25T spline servo horn for compatibility with a wide range of servo savers and horns.

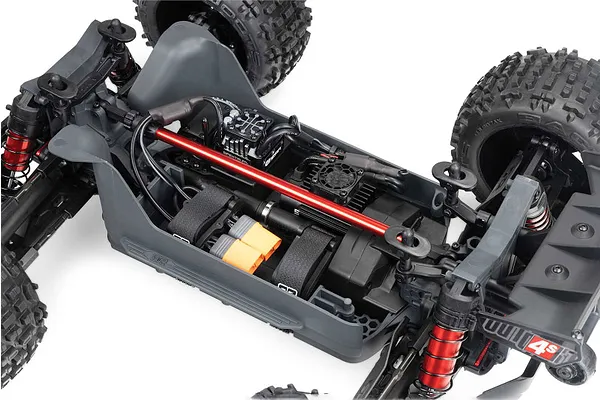

Modular Chassis Design

Modular Chassis Design

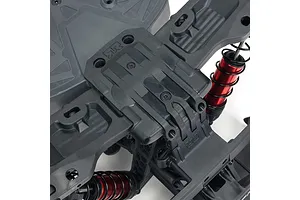

Simplify maintenance with the OUTCAST 4S BLX. Its independent, easily detachable modules for power, electronics, and differentials ensure quick and hassle-free servicing. The upgraded chassis now accepts a centre diff module for improved handling, and includes reinforced hinge pin bracing and a convenient dirt drain for added durability and all-terrain performance.

Spektrum V2 Power System

Spektrum V2 Power System

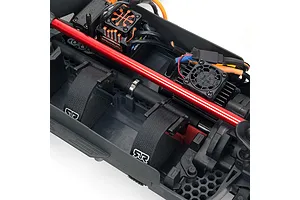

A Spektrum Firma 150A Brushless Smart ESC runs on 3S or 4S LiPo power and drives a Firma 3674 2300Kv brushless motor with a heatsink and cooling fan. The motor is 74 mm long, up from 68 mm on previous ARRMA 4S vehicles, for more torque. A high-airflow fan cover and built-in chassis cooling keep fresh air moving when the action heats up.

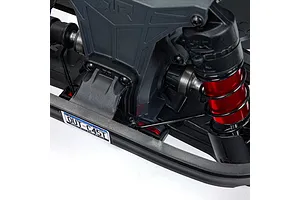

Tougher Than Ever

Tougher Than Ever

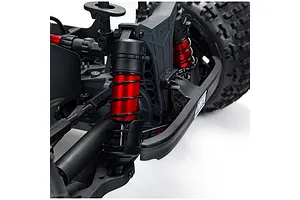

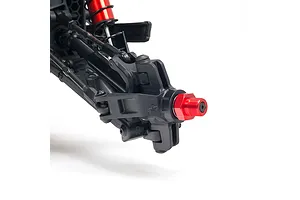

Equipped with a comprehensive array of protective measures, including dirt guards for the wishbones, out-drive protectors, and taller side guards, the Outcast is now better equipped than ever to handle the rigours of high-speed, all-terrain bashing.

dBoots Back-Flip LP

dBoots Back-Flip LP

The rugged dBoots Back-flip LP tyres with their low-profile design and medium-compound foam inserts provide exceptional durability and long-lasting performance. Their aggressive tread pattern boasts impressive grip across a diverse range of terrains, from treacherous off-road tracks to smooth paved surfaces. These tyres are securely mounted on robust 3.8" MT wheels featuring precision-crafted CNC-machined, red anodised 17mm hubs for unwavering performance.

Specifications

Length515mm (20.28")
Width450mm (17.72")
Height225mm (8.86")
Wheelbase450mm (17.72")
Weight4.17kg (9.17lbs)
Tyre Width (F/R)75mm (2.95")
Tyre Diameter (F/R)156mm (6.14")
ChassisMonster Truck
Drivetrain4WD
Gears12.48:1
SuspensionOil Filled EXB Shock Absorbers
MotorSpektrum Firma 3668 2400Kv Brushless Motor w/ Heatsink & Motor Fan
ESCSpektrum Firma 120A V2 Smart ESC

RC Car

Scale1/10
Max LiPo Power4S (14.8v)
CompletionReady to Run
Skill LevelIntermediate
Power SourceElectric Brushless
Chassis TypeTruggy
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorIC5
Front Shock Oil500cSt
Rear Shock Oil500cSt
Front Differential Oil6, 000w
Rear Differential Oil6, 000w
Pinion Gear13T 32dp/0.8Mod
Spur Gear57T 32dp/0.8Mod
Wheel Hex Size17mm
