ARRMA

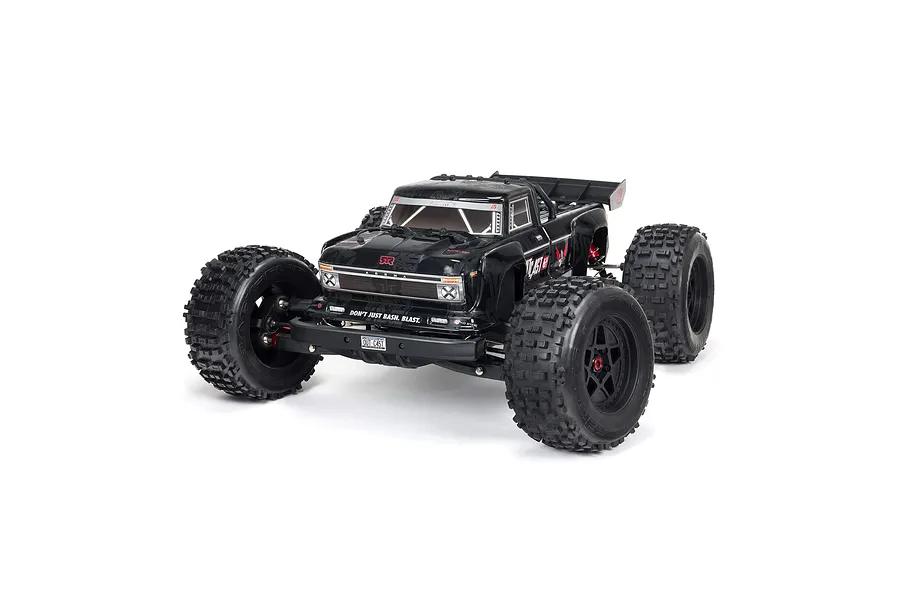

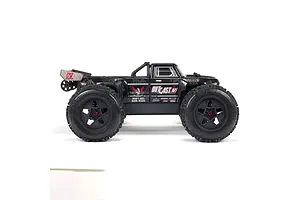

ARRMA Outcast 6S BLX EXtreme Bash RC Stunt Truck Electric Brushless 4WD 1/8 Scale RTR - Black

  • 1/8
  • 4WD
  • RTR
  • Brushless

Part no. ARA8710

DiscontinuedWrite a review
1 / 12
1 / 12

This product has been discontinued.

Contact us

Part Support

Replacement & upgrade parts that fit this model

Overview

ARRMA engineers have given the OUTCAST 6S BLX Stunt Truck the Extreme Bash premium treatment. EXB hardened components increase toughness everywhere it counts, resulting in a 1/8 scale stunt basher with virtually unstoppable strength. It is also the first ARRMA EXB vehicle that comes ready-to-run with a Spektrum AVC radio and Spektrum 6S brushless power system — giving you the muscle and control to perform standing backflips, wheelies, and huge jumps, and to reach 60+ mph speeds.

Made of strong anodized 7075 T6 aluminium, the laser-etched chassis plate gains further rigidity from front and rear aluminium chassis braces. Strong composite chassis side pods, along with a center body support and brace, provide even more rugged resilience. Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling. An EXB-toughened suspension system smooths the ride, with a steel rear suspension mount and adjustable oil-filled shocks mounted on 7075 T6 anodized aluminium front and rear shock towers.

The short wheelbase and powerful 6S brushless power system help make performing flips and tricks a breeze. Power comes from the Spektrum Firma 4074 2050Kv Brushless Motor with ARRMA heat-sink. With the included DX3 DSMR 2.4GHz radio system, SR6110AT receiver, and Firma 150A ESC, this model provides Spektrum AVC (Active Vehicle Control) and Smart technologies straight out of the box. Download the optional Spektrum Dashboard app to your mobile device — available free from the iPhone App Store and Google Play — to view top speed, battery voltage, and other essential data in real time (requires an optional BT2000 Bluetooth Module, available separately).

Note

*For details on waterproof standards, please refer to the product instruction manuals.

Features

  • EXB Anodized 7075 T6 aluminium laser-etched chassis plate
  • EXB Anodized 7075 T6 aluminium laser-etched front and rear shock towers
  • EXB Anodized 7075 T6 aluminium laser-etched steering rack
  • EXB Anodized aluminium laser-etched front and rear chassis braces
  • EXB Heavy-duty steel turnbuckles
  • EXB Anodized aluminium servo mount

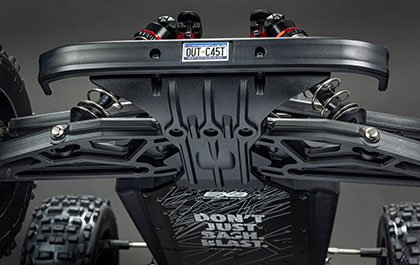

  • EXB Front bumper and skid plate
  • EXB Plated limited slip oil-filled differentials
  • EXB Heavy duty front upper steel hinge pins and mount
  • EXB Matte and gloss effect body
  • EXB Steel rear suspension mounts
  • EXB Extra hard servo saver spring
  • Spektrum DX3 Smart DSMR Radio and SR6110AT AVC receiver
  • Spektrum Firma 150A Smart waterproof 4S/6S ESC
  • Spektrum Firma 4074 2050Kv Brushless Motor
  • Spektrum S652 Steel-Geared waterproof digital servo
  • Tough stunt truck wheels and multi-terrain dBoots Back-Flip tyres
  • Super-durable wheel hubs for increased strength
  • Heavy-duty, all metal drivetrain
  • Center body support and aluminium center brace for maximum durability
  • Heavy-duty suspension arms
  • Rubber-shielded bearings
  • Steel spur gear
  • Safe-D pinion and front and rear input cups
  • ARRMA motor heat-sink
  • Large volume waterproof receiver box
  • Wheelie bar
  • 2-Year limited warranty (see website support for details)

In the box

  • ARRMA OUTCAST 6S BLX Extreme Bash 1/8 Scale Stunt Truck RTR
  • Spektrum Firma 150A Smart Waterproof ESC
  • Spektrum Firma 4074 2050Kv Brushless Motor
  • Spektrum 2.4GHz DX3 3-Channel Transmitter
  • Spektrum SR6110AT AVC Receiver
  • Spektrum SPMS652 Waterproof Metal-Geared Digital Servo
  • Product Manual

You'll need

  • 4S LiPo or 6S Hardcase LiPo Battery* with IC5 connector (EC5 compatible)
  • Compatible Charger
  • AA Batteries

Highlights

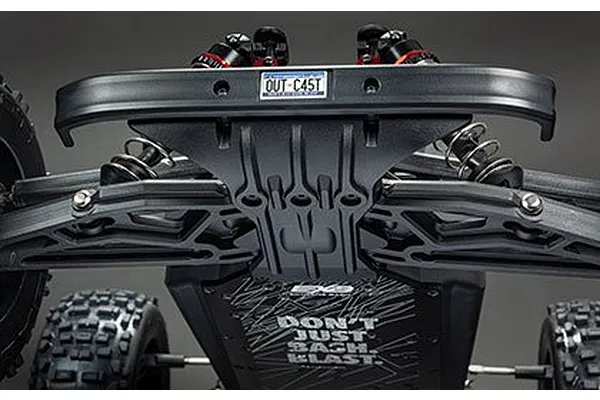

ARRMA Outcast 6S BLX EXB overview

ARRMA Outcast 6S BLX EXB overview

ARRMA® engineers have given the OUTCAST™ 6S BLX Stunt Truck the Extreme Bash premium treatment! EXB hardened components increase toughness everywhere it counts.

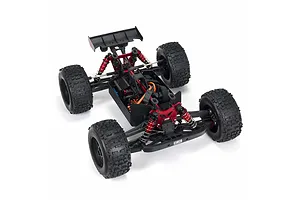

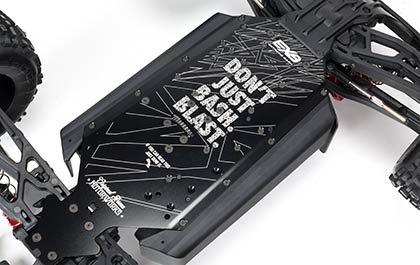

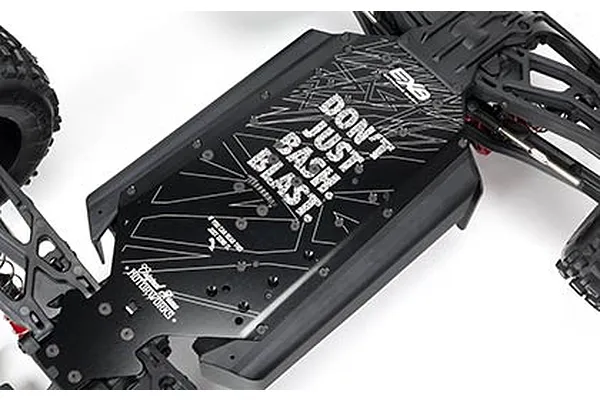

EXB anodized 7075 T6 aluminium laser-etched chassis

EXB anodized 7075 T6 aluminium laser-etched chassis

Made of strong anodized 7075 T6 aluminium, the laser-etched chassis plate gains further rigidity from front and rear aluminium chassis braces.

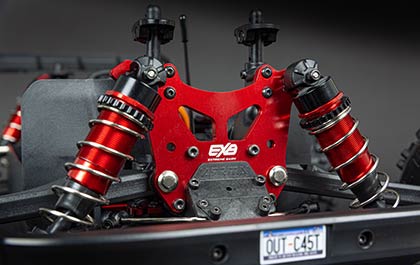

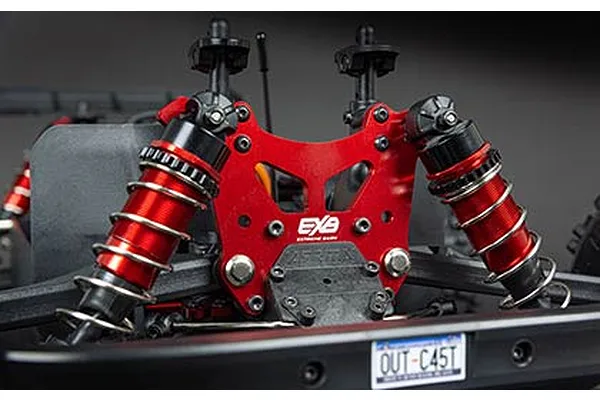

Large oil-filled adjustable coil-over shocks

Large oil-filled adjustable coil-over shocks

These adjustable, aluminium-bodied, oil-filled shocks are mounted on EXB 7075 T6 aluminium front and rear shock towers.

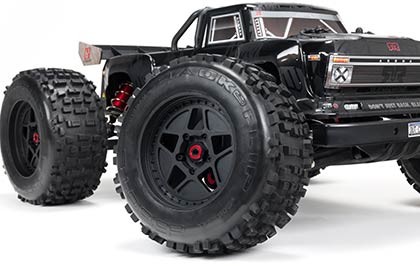

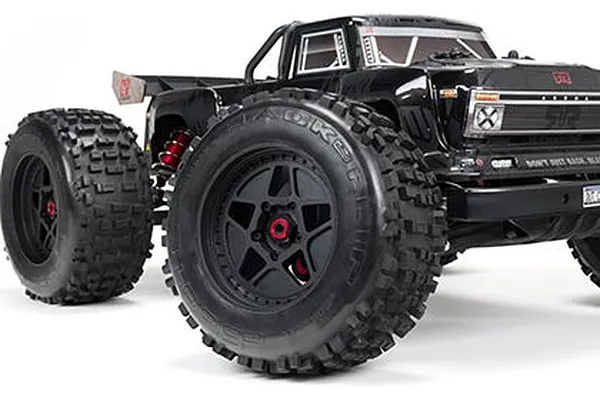

dBoots Back-Flip tyres on 3.8" MT wheels

dBoots Back-Flip tyres on 3.8" MT wheels

The durable dBoots® Back-Flip tyres with medium-compound foam inserts offer long-lasting performance and feature an aggressive tread pattern for excellent traction on a wide range of surfaces.

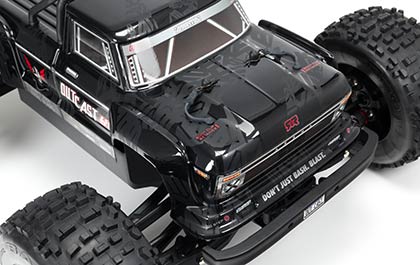

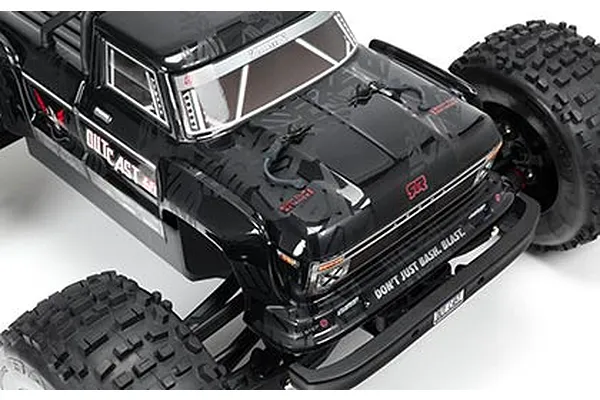

EXB matte and gloss effect finished truck body

EXB matte and gloss effect finished truck body

The sleek truck body features a high downforce wing and comes with an exclusive EXB matte and gloss effect factory finish.

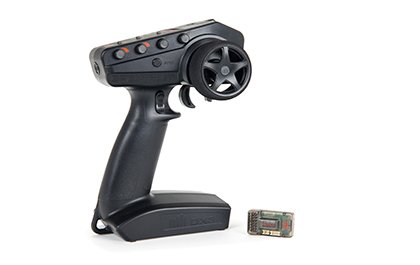

Spektrum DX3 radio system with AVC

Spektrum DX3 radio system with AVC

Includes Smart-ready SR6110AT receiver with on-the-fly adjustable AVC® (Active Vehicle Control) gain for personalized handling set-up.

Specifications

Approximate Assembly TimeNo assembly needed
Ball BearingsTransmission, rubber sealed
BatterySold Separately
BodyTrimmed, painted and decals applied
BrakesIntegral with ESC
ChargerSold Separately
Chassis0.12" (3mm) plate, 7075-T6 aluminium
Completion LevelReady-To-Run
DifferentialGear type, 3 total
Drivetrain4WD
Drive TypeForward/Brake/Reverse
Final Drive Ratio17.92
Front Track18.15" (461mm)
Power TypeElectric
Gear Pitch1.0MOD
Gear Ratio4.3
Motor Size4074
Motor TypeBrushless - Sensorless
Pinion12T
Product Height9.06" (230mm)
Product Length21.26" (540mm)
Product Weight11.59 lbs (5.27 kg)
Product Width18.15" (461mm)
RadioIncluded
Rear Track18.15" (461mm)
ReceiverIncluded
Scale1/8
ServosIncluded
Shock TypeOil-filled coil-over
Speed ControlIncluded
Spur Gear50T
SuspensionIndependent
Tire TreaddBoots Backflip
Vehicle TypeMonster Truck
Wheelbase12.91" (328mm)
Wheel Configuration2-6-0
Wheel Hex Size17mm
Wheel TypeMT 3.8", 17mm hex
Wheel Width3.0" (77mm)

RC Car

Scale1/8
Max LiPo Power6S (22.2v)
CompletionReady to Run
Skill LevelIntermediate
Power SourceElectric Brushless
Chassis TypeTruggy
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Rear Shock Oil1000cst
Front Differential Oil10, 000cst
Centre Differential Oil100, 000cst
Rear Differential Oil10, 000cst
Pinion Gear16T
Spur Gear50T
Wheel Hex Size17mm
