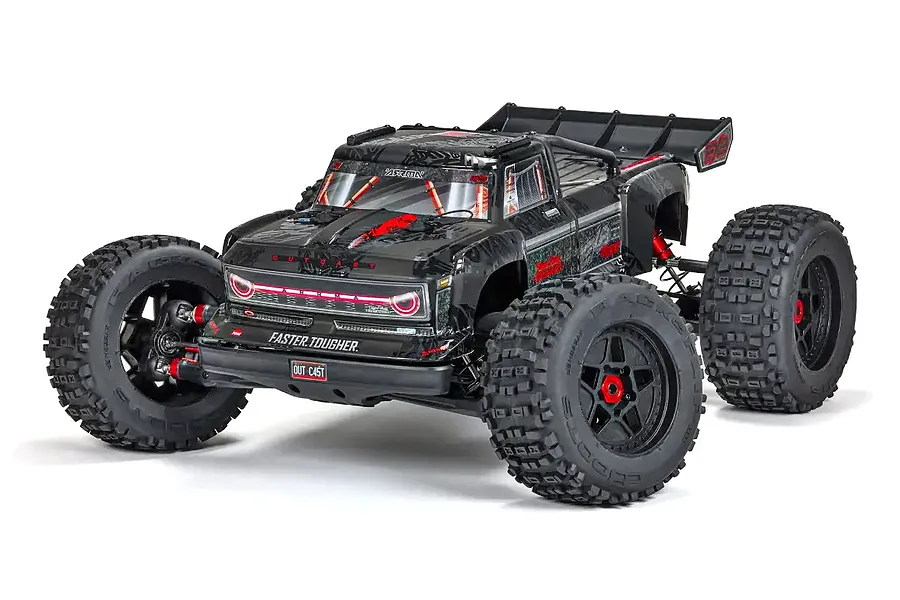

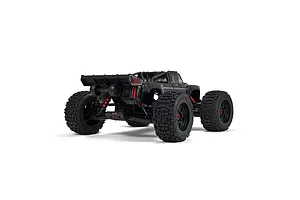

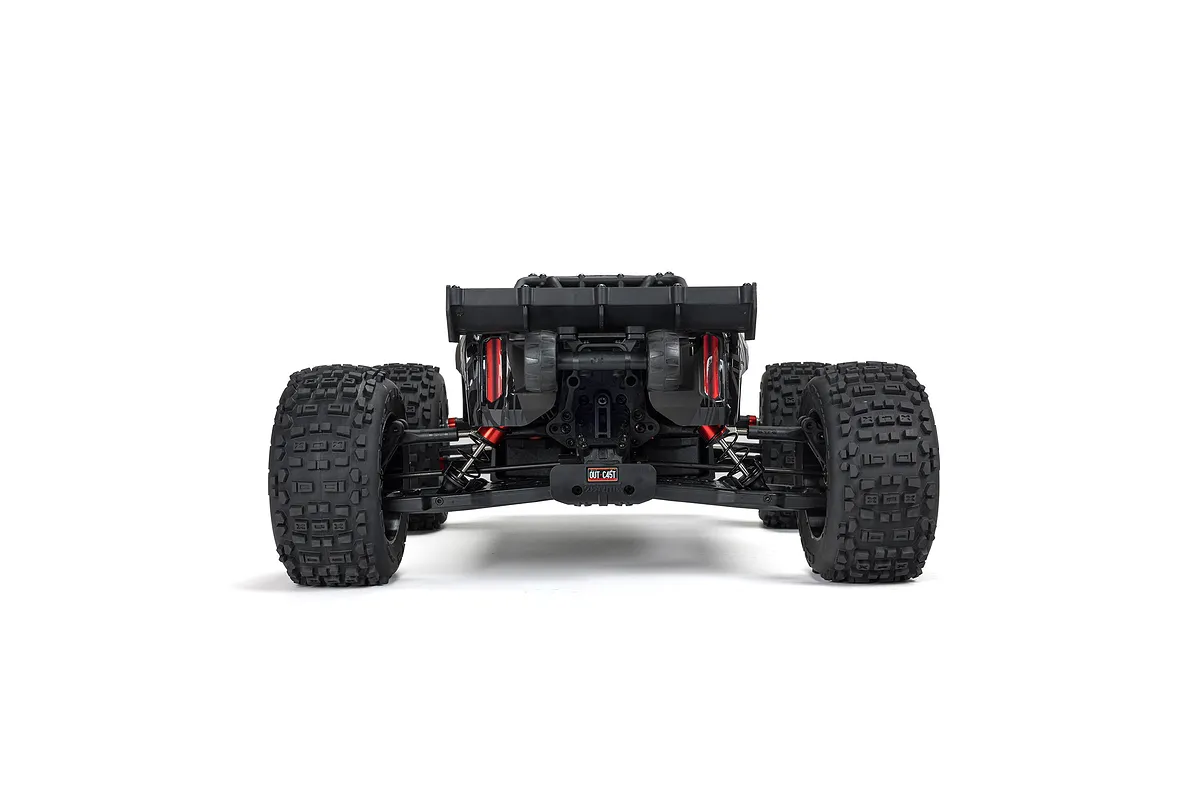

ARRMA OUTCAST 8S EXB AVC 4X4 RC Stunt Truck Electric Brushless 4WD 1/5 Scale RTR - Black

ARRMA OUTCAST 8S EXB AVC 4X4 RC Stunt Truck Electric Brushless 4WD 1/5 Scale RTR - Black

Videos

ARRMA OUTCAST 8S EXB AVC 4X4 RC Stunt Truck Electric Brushless 4WD 1/5 Scale RTR - Black

Brand: ARRMA | SKU: ARA5810V2T1
sold out
2.0

1 out of 5 stars

2 out of 5 stars

3 out of 5 stars

4 out of 5 stars

5 out of 5 stars

1 reviews
$1,781.58
ARRMA OUTCAST 8S EXB AVC 4X4 RC Stunt Truck: The ultimate 1/5 scale basher, engineered for extreme stunts and unstoppable performance.
  • Capable of 80+ km/h (50+ mph) speeds on 8S LiPo batteries
  • Spektrum Firma 160A V2 Smart ESC and 5687 1100Kv Brushless Motor for massive power and telemetry data
  • EXtreme Bash (EXB) hardened parts for increased durability in extreme conditions
  • Spektrum DX3 3-channel radio with AVC technology for enhanced stability and control
  • Ideal for experienced bashers seeking the ultimate in large-scale RC performance
Add to Wishlist
On Order Since
3 days ago
The date we ordered this product from our supplier.
Save Time & Add These Now
Complete your setup with these required items.
8S Battery Setup
8S Battery Setup
6S Battery Setup
6S Battery Setup
Smart Charger
Smart Charger
LiPo Safe Charging Bag
LiPo Safe Charging Bag
Shop replacement & upgrade parts for this model
Shop Parts
Description

The ARRMA OUTCAST 8S EXB AVC 4X4 RC Stunt Truck takes 1/5 scale bashing to a whole new level of extreme. This beastly machine is loaded with EXtreme Bash (EXB) upgrades, including a 5mm thick 7075 T6 CNC aluminium chassis plate and reinforced components throughout, making it virtually unstoppable.

Under the hood, a massive Spektrum Firma 5687 1100Kv brushless motor paired with a 160A V2 Smart ESC delivers jaw-dropping power and acceleration on 8S LiPo batteries. The Spektrum DX3 radio system with AVC (Active Vehicle Control) technology keeps this beast tamed while allowing you to unleash its full potential. With its aggressive new EXB colour scheme and massive dBoots BACK-FLIP 2 tyres, the OUTCAST 8S EXB AVC demands attention and delivers an adrenaline-pumping bashing experience like no other.

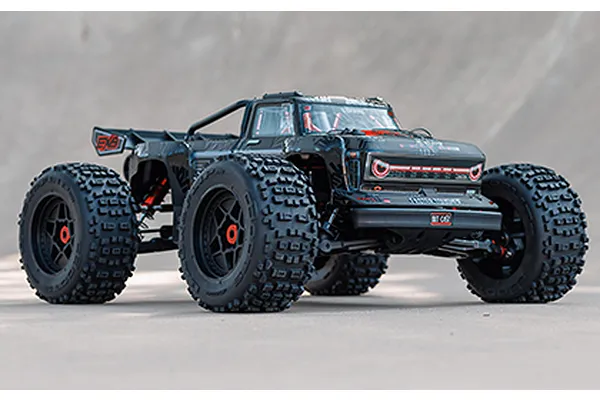

EXB (EXtreme Bash) Components for Unstoppable Strength

The ARRMA® OUTCAST™ 8S EXB Stunt Truck is built for extreme bashing with EXB-hardened components throughout its fully assembled chassis. These heavy-duty parts ensure exceptional strength and durability, allowing you to tackle the toughest terrain with confidence.

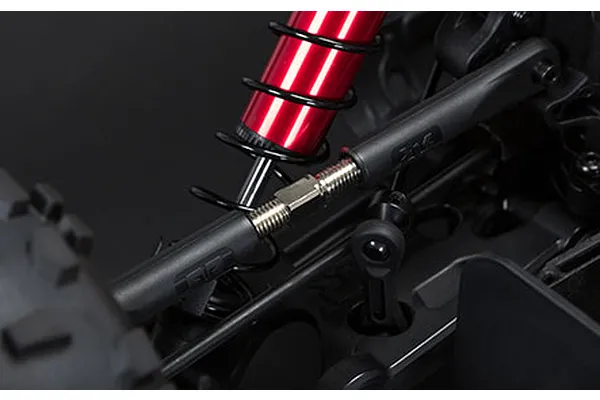

Heavy-Duty Steel Turnbuckles

The OUTCAST™ 8S EXB features heavy-duty steel turnbuckles, including 8mm thick rear turnbuckles and 7mm thick steering turnbuckles. These robust components enhance the truck's ability to withstand extreme off-road abuse, ensuring long-lasting performance and reliable handling.

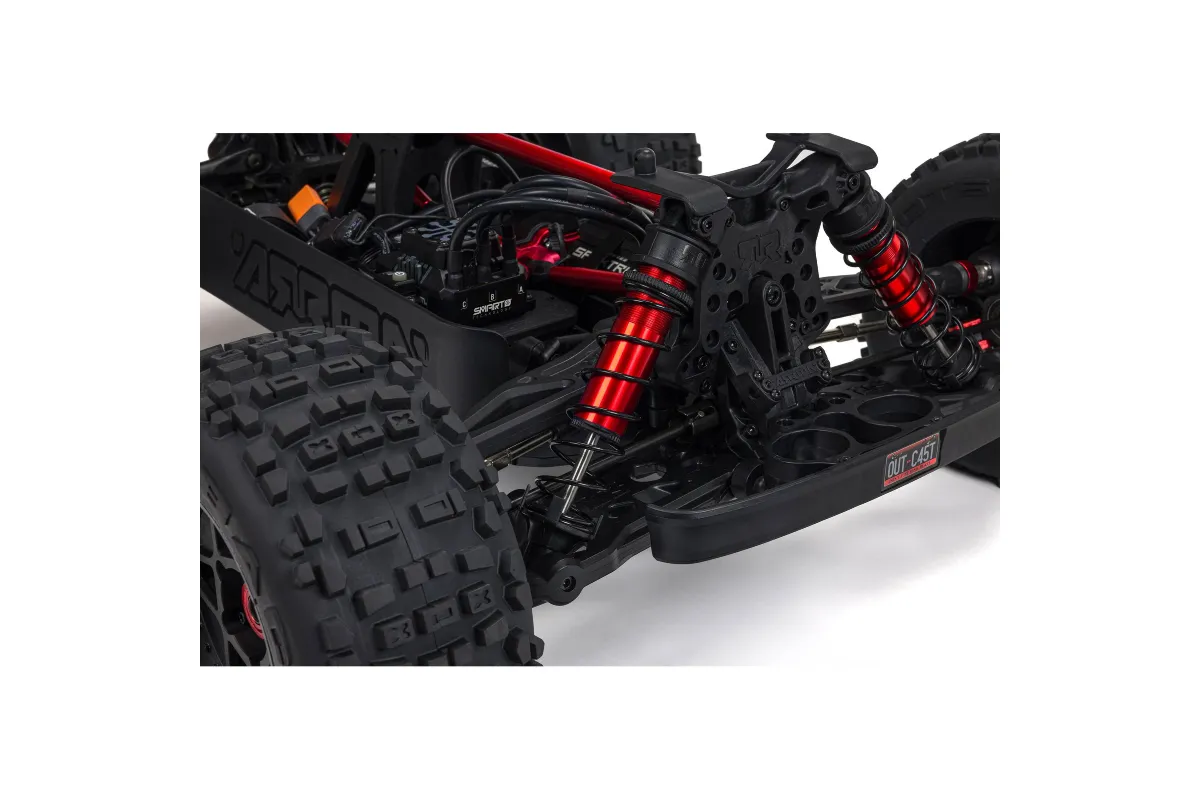

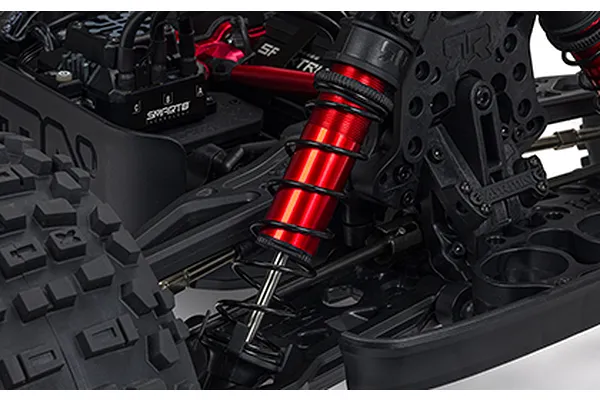

Oil-Filled Shocks Deliver Plush Performance

Experience a smooth and controlled ride with adjustable, oil-filled shocks, featuring plush tuning and massive 20mm bores with 6mm thick shafts. Mounted on ultra-thick composite towers, these shocks effortlessly absorb bumps and jumps.

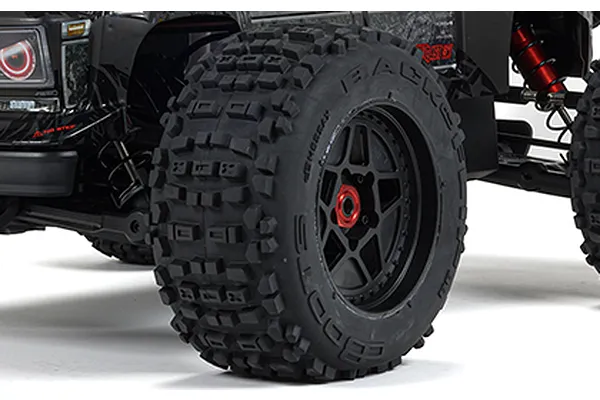

Dominate Any Terrain with High-Traction dBoots® Tyres

This stunt truck is equipped with aggressive dBoots® Back-Flip BB tyres, providing exceptional traction on any terrain. Mounted on multi-spoke wheels with durable hubs, these tyres complement the truck's EXB matte and gloss effect finished body.

Quick Motor Access for Easy Maintenance

ARRMA® minimises downtime with a driver-friendly design. The easy-access, 3-bolt sliding motor mount allows for quick and convenient motor removal, simplifying maintenance and upgrades.

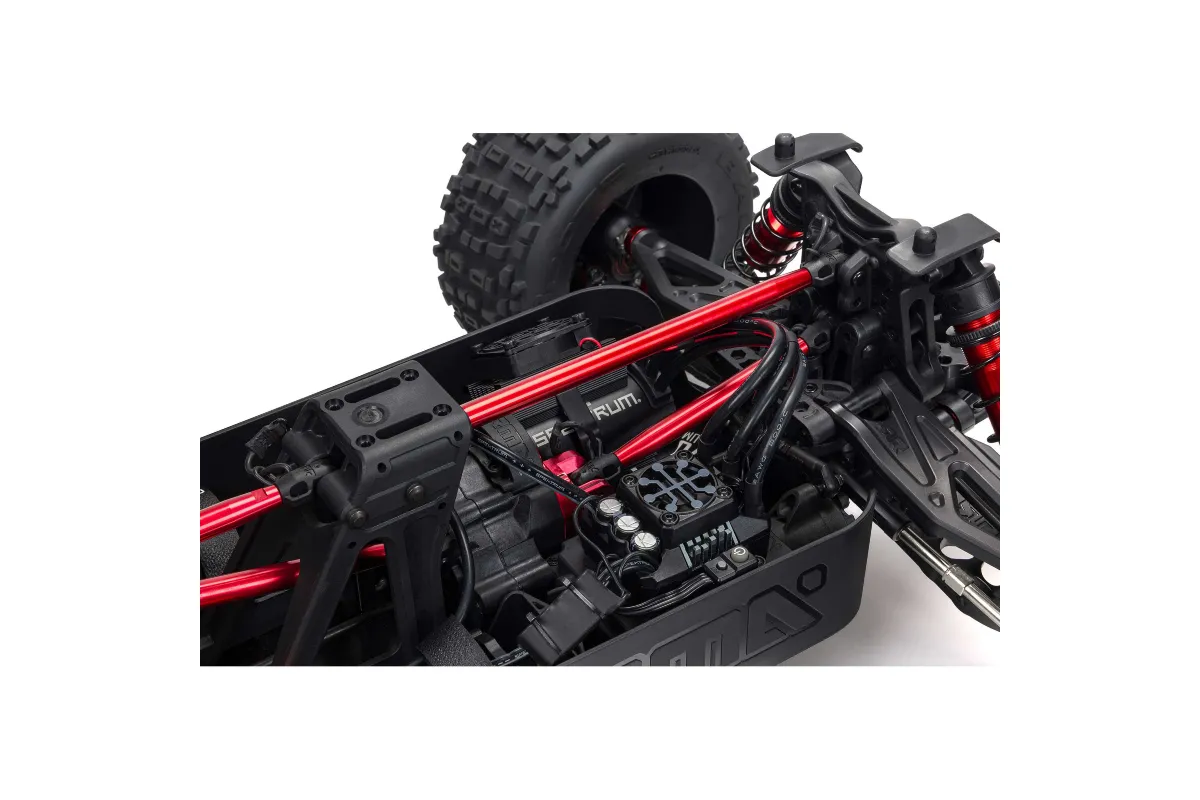

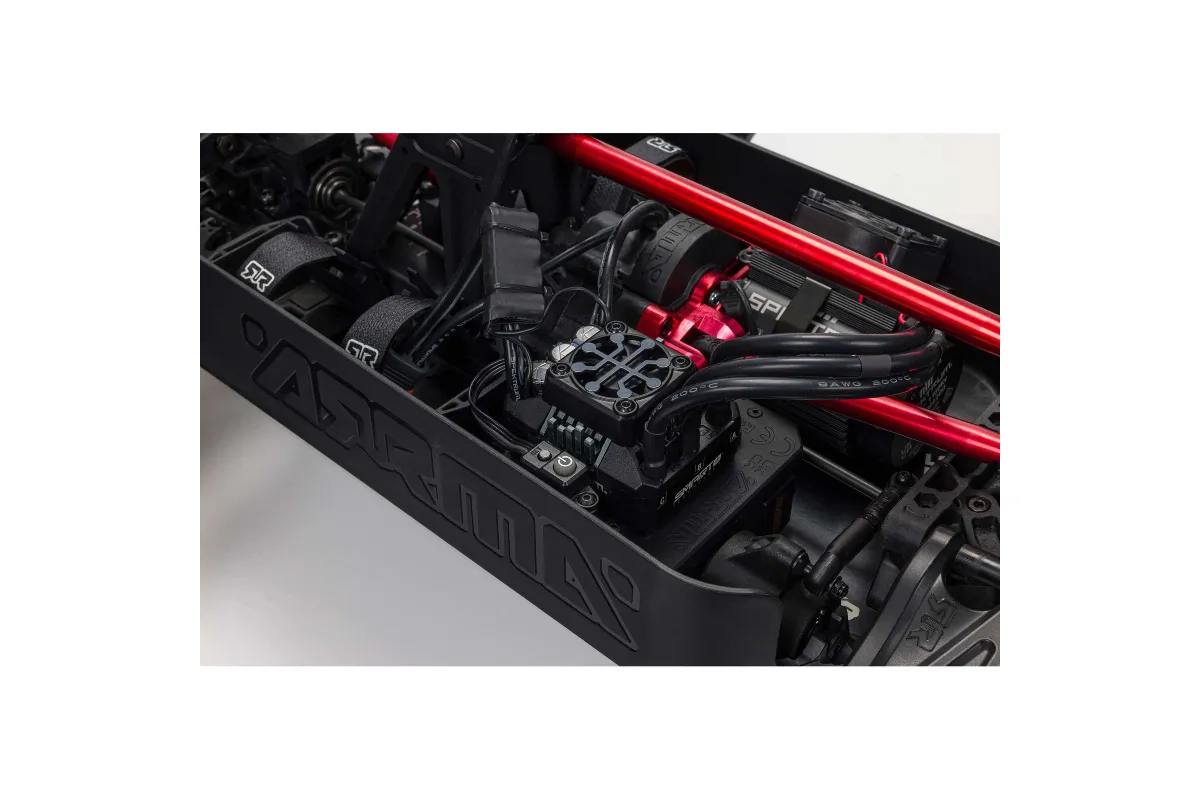

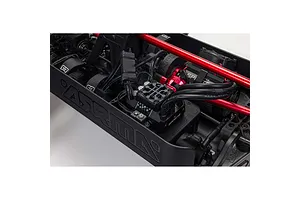

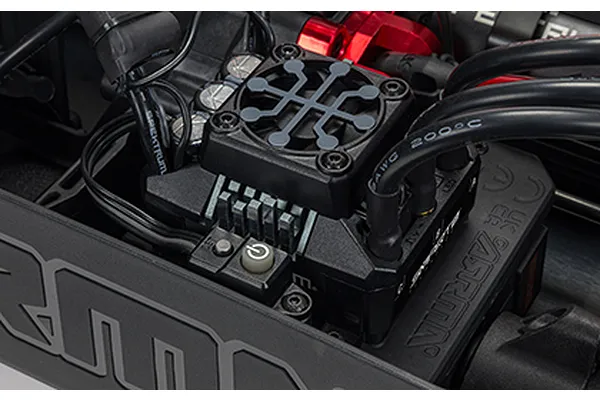

Electronics Module Provides Protection and Accessibility

A moulded electronics module houses the receiver, servo, and ESC, protecting your electronics from dirt and moisture. This module is screwed to the chassis and includes a waterproof receiver box for added security.

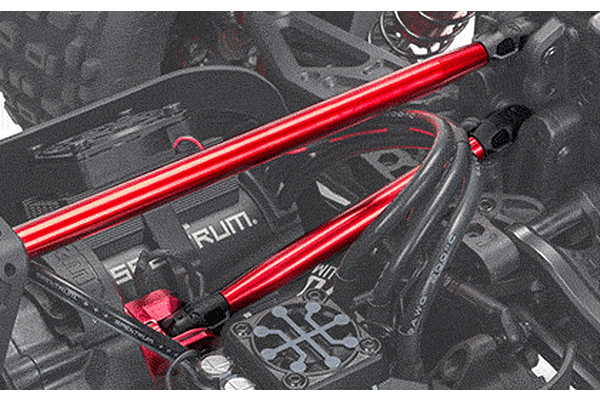

Multi-Structured Centre Brace System

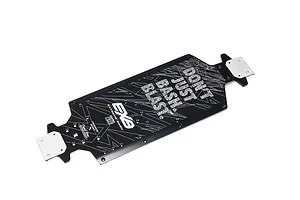

The 5mm chassis plate is crafted from rugged anodised 7075 T6 aluminium and features a multi-structured centre brace system. Strong composite chassis side pods and a centre body support further enhance durability, ensuring the truck can withstand extreme bashing.

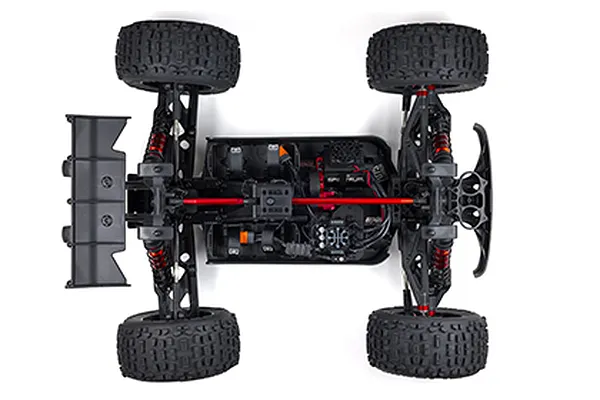

Durable Metal Construction Handles Extreme Bashing

Tackle the most demanding off-road conditions with confidence. Durable steel driveshafts, all-metal diff outdrives, and gearbox internals provide exceptional strength and reliability. An EXB-toughened suspension system smooths out the ride for a truly unstoppable stunt truck.

Features
  • Spektrum Firma 160A V2 Smart ESC and 5687 1100Kv Brushless Motor
  • Spektrum DX3 3-channel 2.4GHz DSMR radio system with AVC technology
  • Spektrum SR6200A DSMR receiver with AVC
  • Spektrum S6510 steel gear waterproof servo with 820 oz-in of torque
  • EXB hardened 7075 T6 5mm thick CNC aluminium chassis plate
  • EXB red-anodised CNC aluminium front brace mount

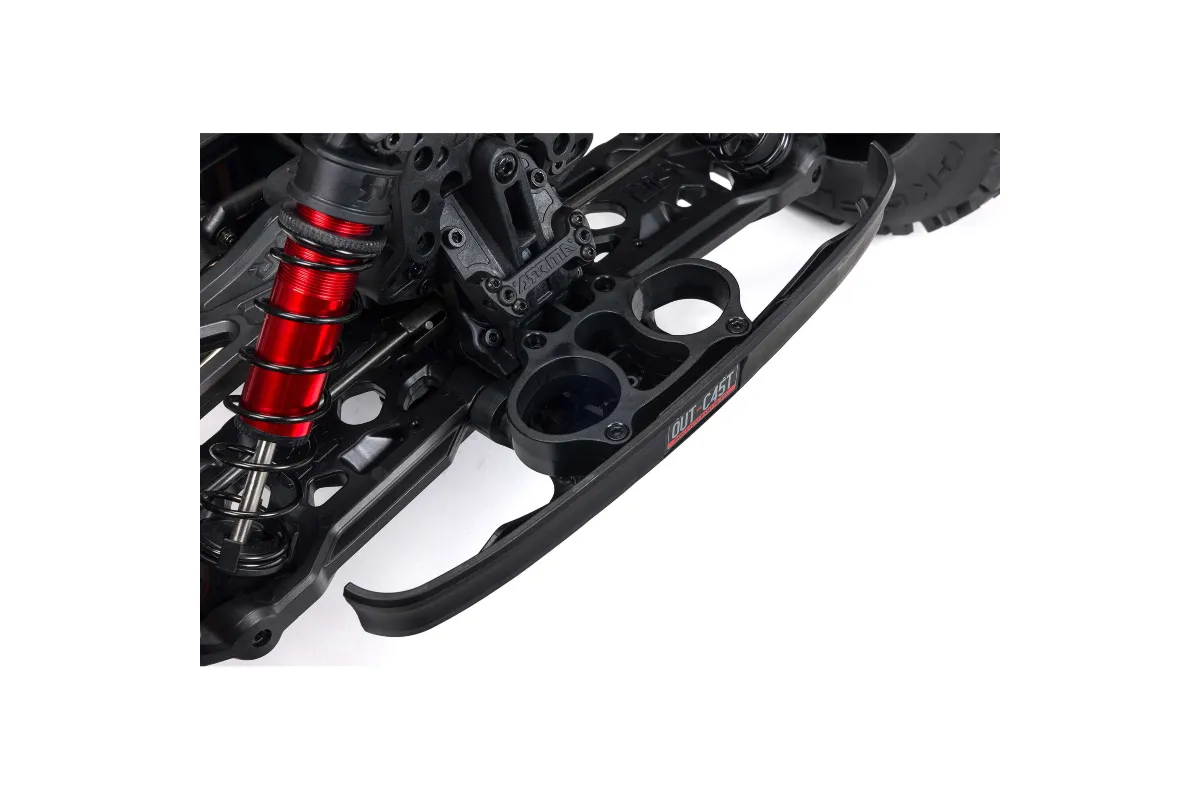

  • EXB front bumper with impact-absorbing design
  • Heavy-duty drivetrain with all-metal diff outdrives and gearbox internals
  • Durable steel driveshafts for efficient power delivery
  • Adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts
  • Ultra-thick composite shock towers for increased durability
  • dBoots BACK-FLIP 2 big block tyres on multi-spoke wheels
  • Centre body support, aluminium centre braces, and composite chassis side pods
  • Easy-access front and rear diff module design for convenient maintenance
  • Easy-access 3-bolt sliding motor mount for quick motor removal
  • Waterproof electronics module for protection from the elements

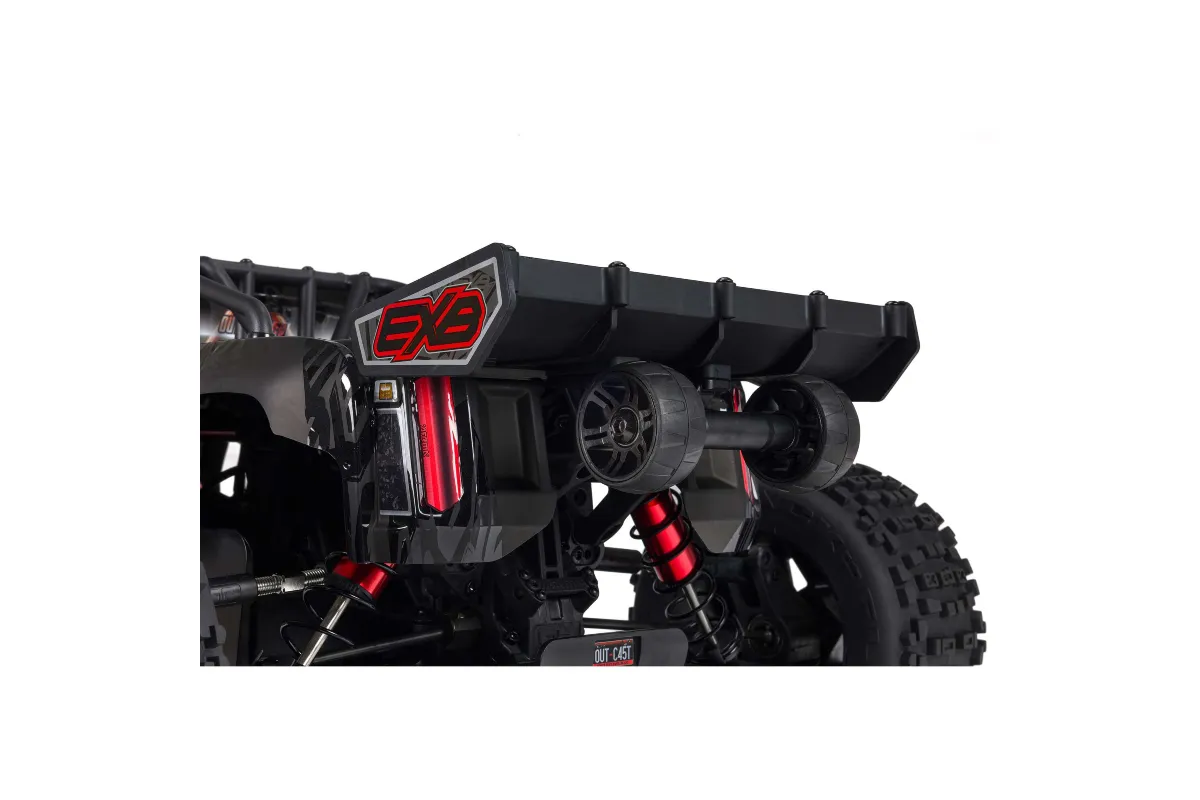

  • Wheelie bar for added stunt potential
  • Aggressive new EXB matte/gloss colour scheme
  • High-quality CNC machined aluminium 24mm wheel wrench included
  • Genuine ARRMA product
Specifications
  • Length: 714mm (28.11")
  • Width: 595mm (23.43")
  • Height: 305mm (12.01")
  • Wheelbase: 430mm (16.93")
  • Weight: N/A
  • Chassis: 5mm Plate, 7075-T6 Aluminium
  • Suspension: Independent
  • Drivetrain: 4WD
  • Motor: Spektrum Firma 5687 1100Kv Brushless
  • ESC: Spektrum Firma 160A V2 Smart
Included Items
  • 1x ARRMA OUTCAST 8S EXB AVC 4X4 RC Stunt Truck
  • 1x Spektrum DX3 3-Channel 2.4GHz DSMR radio
  • 1x Spektrum SR6200A DSMR Receiver with AVC
  • 1x Spektrum S6510 Steel Gear Waterproof Servo
  • 1x Spektrum Firma 5687 1100Kv Brushless Motor
  • 1x Spektrum Firma 160A V2 Smart ESC
  • 1x CNC Machined Aluminium 24mm Wheel Wrench
  • 4x AA Batteries for Transmitter
  • 1x Product Manual
Required Items
  • 2x 3S or 2x 4S LiPo Batteries with EC5 or IC5 connector
  • 1x Compatible Battery Charger
Note
  • This vehicle has been designed to provide water resistance, but is not fully waterproof. Consult the product manual for full details and precautions.
Videos
Specifications
Factory Specs
Spur Gear
47T 1Mod
Wheel Hex Size
24mm
Pinion Gear
23T 1Mod
Front Differential Oil
100000cSt
Rear Differential Oil
100000cSt
Rear Shock Oil
700cSt
Battery Connector
IC5
Max LiPo Power
8S (29.6v)
Front Shock Oil
700cSt
Centre Differential Oil
20000000cSt
RC Car
Skill Level
Expert
Completion
Ready to Run
Drivetrain
4WD
Max LiPo Power
8S (29.6v)
On/Off Road
Off Road
Chassis Type
Monster Truck
Power Source
Electric Brushless
Scale
1/5

Parts

Shop Parts
Shop replacement & upgrade parts for this model.
Reviews (1)
Write a review
Your Name
Rate this product
0 out of 5 stars 😠 👎 😒 🙂 🤩

1 out of 5 stars

2 out of 5 stars

3 out of 5 stars

4 out of 5 stars

5 out of 5 stars

2 out of 5 stars

2 years ago
Tyler H
Verified Buyer
Hobbies Direct shipping was amazing as they always are, but the car itself is a bit of a let down coming from a 1/8 arrma Kraton. Fitted with 2 x 10,000mah batteries it drove for 10-15min ( only doing a handful of full power runs) then went into thermal protection. Steering power was also lacking. If you’re tossing up between a 1/5 and 1/8 version I would choose the 1/8 all day. Way more nimble and manoeuvrable, longer run time off smaller batteries and easier to move :p
