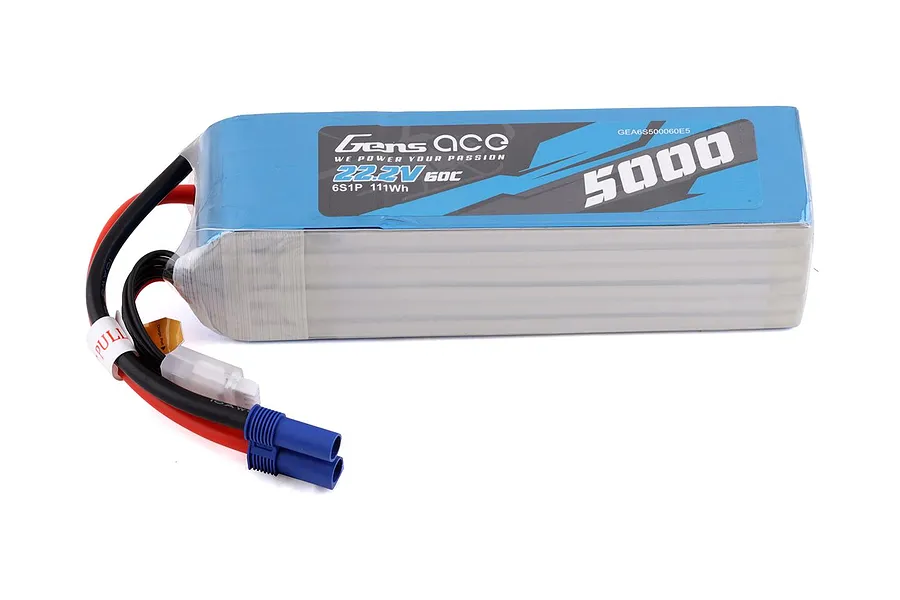

Gens Ace 22.2v 5000mAh 60C Soft Case LiPo Battery w/ EC5 Plug
Gens Ace 22.2v 5000mAh 60C Soft Case LiPo Battery w/ EC5 Plug
Gens ace 5000mAh 22.2V 60C 6S1P Lipo Battery Pack is suitale at aircraft and 700 helicopter. It will offers you 'cool to the touch' landing temperature, while you fly on full power for the whole journey.These batteries are also fast charge capable. They have a longer cycle life, almost double the standard of lipo technology.
Features
Stable automatic stacking technology enables single-cell capacities of 5000mAh.
High discharge rate and high reliability.
Small in size and light in weight.
Specifications
Minimum Capacity: 5000mAh
Configuration: 6S1P / 22.2V / 6 cells
Discharge Rate: 60
Max Burst discharge Rate: 120C
Net Weight(±20g): 755
Dimensions: 164.5mm Length x 45mm Width x 47mm Height
Balancer Connector Type:JST-XHR
Fitment
5000mAh 22.2V 60C 6S1P Lipo Battery Pack is compatible with MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX, FMS Votec 322 1400mm (55") Wingspan, etc.
-
Total Voltage
- 22.2V
-
CapacityHow much energy is stored; higher mAh gives longer run times
- 5000mAh
-
Discharge C RatingHow fast the battery safely delivers power to your motor
- 60C
-
ChemistryBattery type that affects power, performance, and feel
- LiPo
-
ConnectorPlug style that determines what the battery connects to
- EC5
-
Length
- 165mm
-
Width
- 45mm
-
Height
- 45mm
-
WeightInfluences handling, balance, and runtime
- 730g
-
Main Connector Wire GaugeAmerican Wire Gauge - Wire thickness that affects how much current it carries
- 10AWG
-
Case TypeChoose 'Hard Case' for protection or 'Soft Case' for weight saving
- Soft Case
-
Balance Lead ConnectorPlug used by chargers to balance the battery’s cells
- JST-XH
