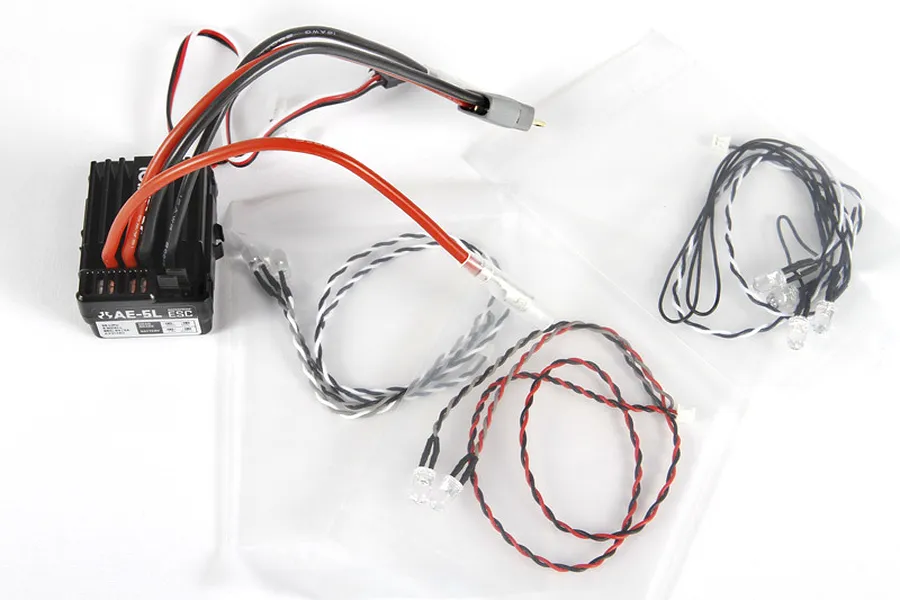

Axial AE-5L ESC w/LED Ports and 6 LED Lights 6Pcs
Axial AE-5L ESC w/LED Ports and 6 LED Lights 6Pcs
Brand:
Axial
|
MPN: AX31480
EC3
IC3
These connectors plug into each other, so any of them fits this product.
No longer made. In stock now: similar
Compatible with
38 products.
See Compatibility
Related Products
Description
The AE-5L ESC features include 3S LiPo capability, adjustable drag brake and additional leads that allow you to plug in LED lights - all wrapped in a waterproof case. Settings can be easily switched “in the field” between LiPo and NiMH battery types with a simple jumper — no more complex procedures!
Features
- Jumper 1 provides a simple plug and play choice between LiPo or NiMH batteries
- Jumper 2 switches drag brake settings
- Waterproof design
- Dual LED outputs for front and rear lighting
- Includes Star style battery plug
- No on/off switch - power supplied by battery connection
- Laser etched heat sink
- Genuine Axial Racing product
Included Items
- 1x AE-5L ESC
- 2x White LEDs
- 4x White LEDs
- 2x Red LEDs
Note
NOTE: LED LEADS NOT COMPATIBLE WITH OUR OLD LED LIGHT STRINGS, or THIRD PARTY LED LIGHT STRINGS. Connecting your old LED light strings to these leads will cause damage to the AE-5L ESC and the light strings.
Always remember to disconnect the battery when vehicle is not in use.
Specifications
-
Length
- 46.5mm (1.8 in)
-
Width
- 34mm (1.3 in)
-
Height
- 28.5mm (1.1 in)
-
Weight
- 70g (2.5 oz)
-
Waterproof
- Yes
-
Continuous/Peak Current
- N/A
-
Motor Limit
- N/A
-
BEC Voltage
- 6.0V @ 3A
-
Voltage Limit
- 7.4-11.1V (2-3S LiPo), 6-10.8V (5-9 cells NiMH/NiCd)
-
Programmable
- Yes
-
Scale
- 1/10
-
Sensored
- No
ESC (Electronic Speed Controller)
-
For Motor Type
- Brushed
-
Max Voltage
- 11.1V
-
Waterproof Design
- Yes
-
Motor Connectors
- 3.5mm Bullet
-
Battery Connector
- IC3
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Air
-
BEC Voltage
- 6V
-
Dual Motor
- No
