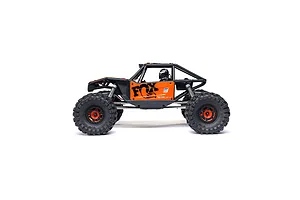

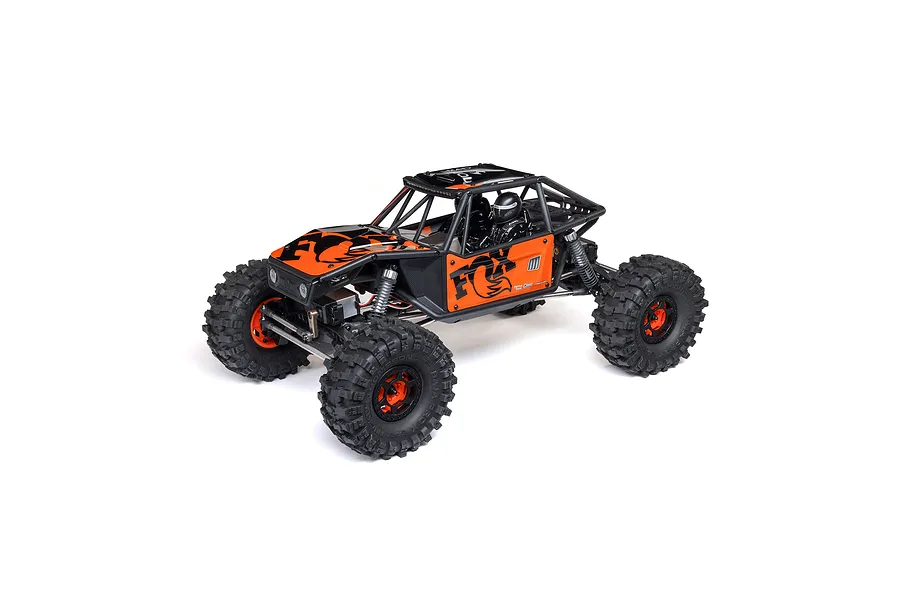

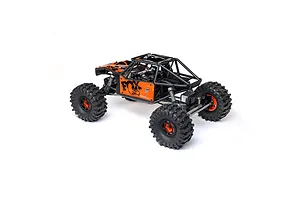

Axial UTB10 Capra 1.9 4WS Unlimited RC Rock Crawler Electric 4WD 1/10 Scale RTR - Orange

Axial UTB10 Capra 1.9 4WS Unlimited RC Rock Crawler Electric 4WD 1/10 Scale RTR - Orange

Videos

Axial UTB10 Capra 1.9 4WS Unlimited RC Rock Crawler Electric 4WD 1/10 Scale RTR - Orange

Brand: Axial | SKU: AXI-1543T1
sold out
$801.57
Axial UTB10 Capra 1.9 4WS Unlimited RC Rock Crawler: A 1/10 scale 4WD electric RTR trail buggy with 4-wheel steering and improved crawling.
  • Enhanced 45.37:1 final drive ratio for superior climbing power
  • True 4-wheel steering (4WS) for ultimate manoeuvrability on obstacles
  • Licensed Pro-Line OE Mickey Thompson Baja Pro X tyres for extreme grip
  • Features Currie F9 portal axles for increased ground clearance
  • Perfect for experienced rock crawlers seeking uncompromising performance
Add to Wishlist
On Order Since
7 hours ago
The date we ordered this product from our supplier.
Shop replacement & upgrade parts for this model
Shop Parts
Description

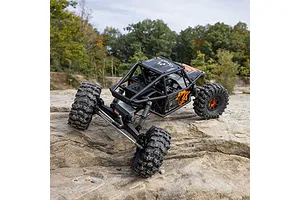

Navigate the most challenging trails with the Axial UTB10 Capra 1.9 4WS 4x4 Unlimited Trail Buggy. This isn't your average trail rig; it's a purpose-built rock crawler designed for unyielding performance. Building upon the legacy of the original Capra, this updated version raises the bar with a new transmission featuring lower gearing, resulting in a significantly improved final drive ratio for exceptional crawling capabilities. The inclusion of 4-wheel steering provides a game-changing advantage over traditional 2-wheel steering crawlers, allowing for precise manoeuvring around obstacles with ease.

The Capra boasts licensed Currie F9 portal axles, which not only enhance scale realism but also increase ground clearance, allowing you to tackle even more challenging terrain. The scale Pro-Line OE Holcomb 1.9 wheels are paired with officially licensed Pro-Line OE Mickey Thompson Baja Pro X tyres, featuring an aggressive tread pattern for maximum grip. Dual-stage foam inserts provide optimal sidewall support and traction. The tube chassis design mirrors real-world rock buggies and is optimised for suspension articulation and tyre clearance. Equipped with Spektrum electronics, including waterproof servos and ESC, and the versatile DX3 transmitter, the Capra 1.9 4WS is ready to dominate the rocks.

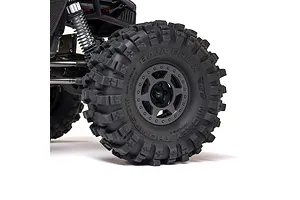

Pro-Line OE Wheels & Tyres for Superior Traction

Tackle even tougher terrain with the aggressive tread of officially licensed Mickey Thompson Baja Pro X Pro-Line OE tyres. Mounted on scale Pro-Line OE Holcomb 1.9 wheels (48.3mm), these tyres deliver exceptional grip. Dual-stage, open-cell foam inserts (soft outer, firm inner) are also included for improved grip and sidewall support.

Improved Transmission

This updated Capra features a significantly lower final drive ratio of 45.37:1 (6.31 internal) compared to the previous model's 31.4:1 (4.37 internal). This 45% reduction vastly improves climbing ability and power, making it ready for any trail, hill, or obstacle.

4-Wheel Steering (4WS) for Maximum Manoeuvreability

Gain an enormous advantage over 2-wheel steering rigs with the Capra's 4-wheel steering (4WS). Using the third channel of the included Spektrum DX3 transmitter, you can steer the front and rear axles full left, straight, and full right for easy and fast manoeuvrability.

Licensed Currie F9 Portal Axles for Increased Clearance

Licensed Currie F9 portal axles increase ground clearance at the differential and enhance durability, providing another edge over standard axle trail buggies. These axles are specifically designed for optimal crawling performance, offering over 45% of steering with extra ground clearance. The improved "ramp style" third member also reduces hang-ups.

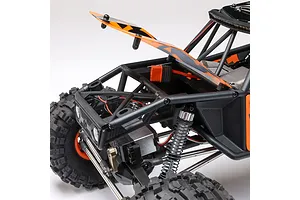

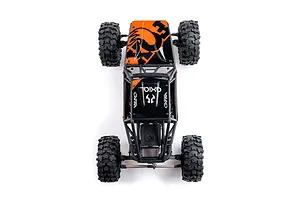

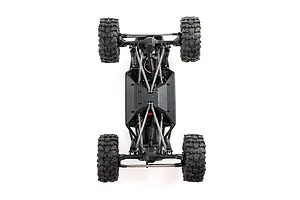

Realistic Tube Chassis Design

The tube chassis design captures the authentic scale looks of a rock crawler buggy and is optimised for generous suspension and tyre clearance.

Tuned 4-Link Suspension for Optimal Crawling

Axial has fine-tuned the Capra suspension geometry with a smooth, flexible, and durable 4-link design to achieve the best possible crawling capabilities.

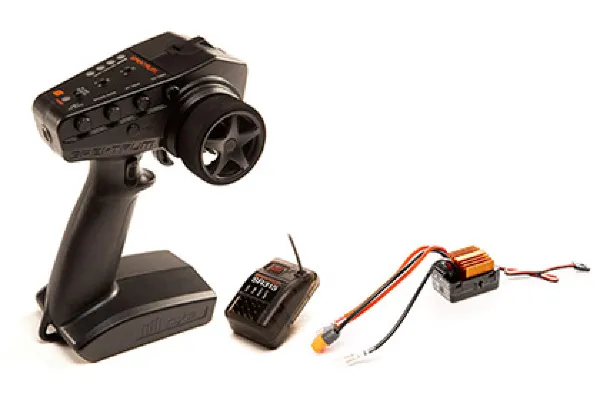

Spektrum Electronics & DX3 Smart Transmitter

The included Spektrum DX3 transmitter features exclusive DSMR technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential provided by the stand-alone Spektrum Firma 40A ESC and Spektrum SR515 DSMR 5-channel receiver.

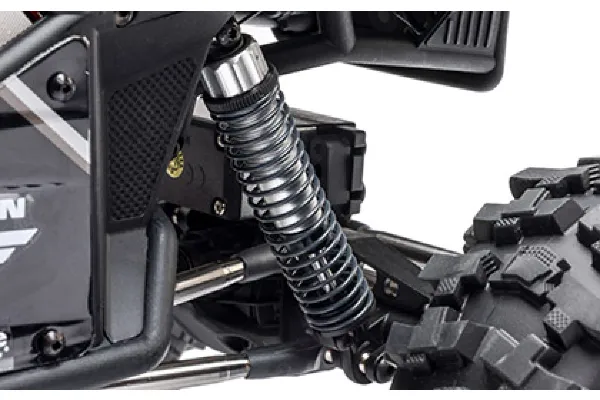

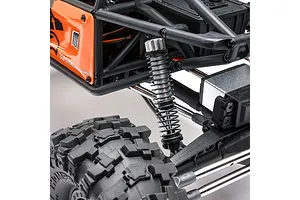

Aluminium Oil-Filled Shocks for Smooth Damping

The shock bodies are threaded and anodised for a smooth, long-lasting finish. Adjust the damping to your optimal suspension settings by increasing or decreasing the spring pre-load, simply by rotating the threaded shock collars.

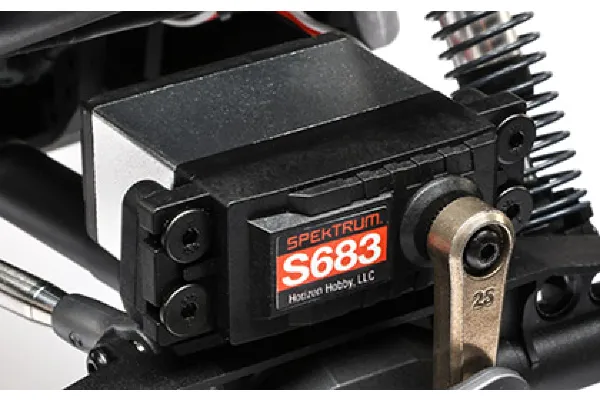

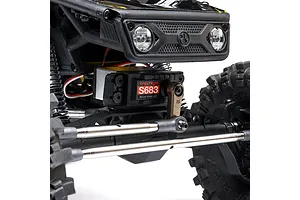

Spektrum S683 Metal-Geared Servos for Reliable Steering

Each end of the Capra is equipped with a waterproof, 25T Spektrum S683 metal-gear servo to steer the front and rear axles.

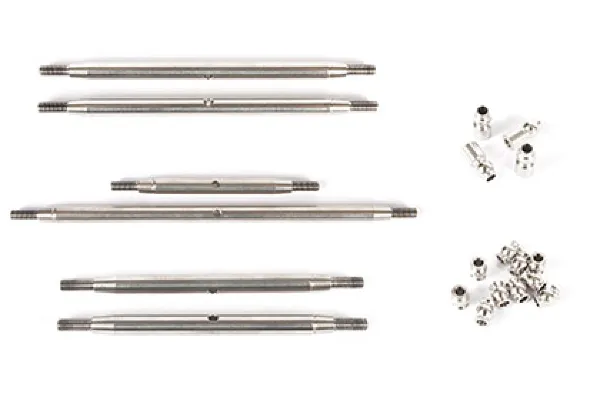

Durable Stainless Steel Suspension Links and Pivot Balls

All links and suspension pivots are made of rust-proof stainless steel and provide precise, durable suspension points.

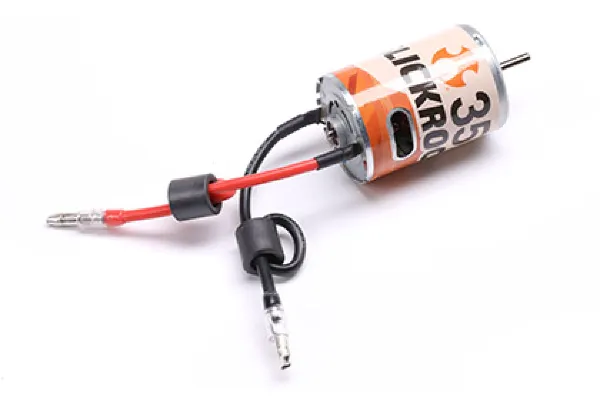

Balanced 35T Brushed Motor

Delivering an even balance of speed and technical crawling, the included 540 size, 35T Axial motor features a hassle-free design with enlarged cooling ports for extended periods of crawling.

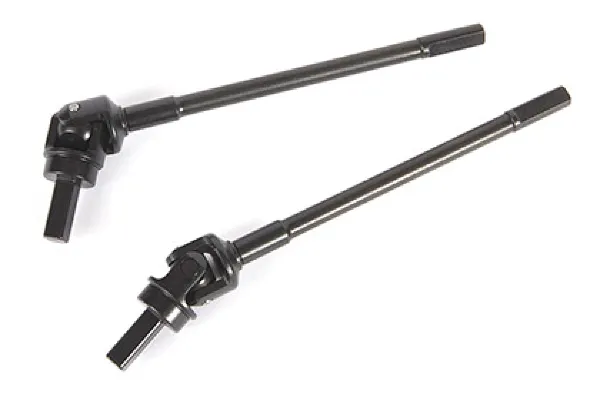

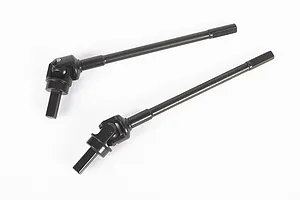

Smooth Metal Universal Joints

Both axles feature metal universals that deliver smooth action for an efficient and durable drivetrain. The universals provide 45 degrees of steering.

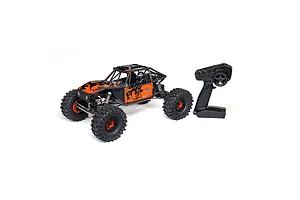

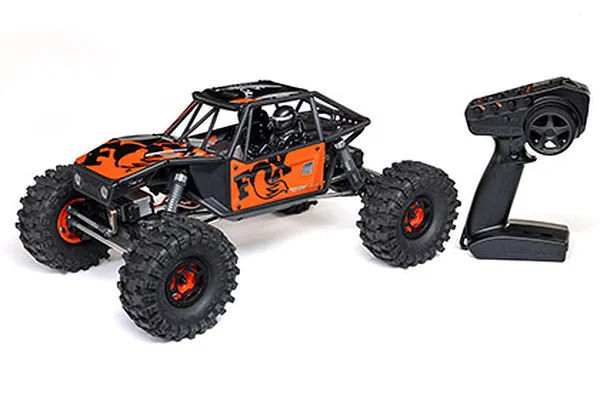

Ready-to-Run Convenience

The Capra comes assembled and includes a transmitter, receiver, ESC, motor, two steering servos, and even “AA” transmitter batteries. All you need to supply is a battery and charger.

Features
  • Officially Licensed Pro-Line OE Mickey Thompson Baja Pro X Tyres
  • Pro-Line OE Holcomb 1.9 Wheels with Dual Stage Foams
  • Improved Transmission with Lower 45.37:1 Final Drive Ratio
  • True 4-Wheel Steering (4WS) Capability
  • Licensed Currie F9 Portal Axles for Increased Clearance
  • Realistic Tube Chassis Design
  • Smooth and Durable 4-Link Suspension
  • Spektrum DX3 2.4GHz Transmitter with 3rd Channel Rear Steer Control
  • Spektrum S683 25T Waterproof Metal Gear Steering Servos (Two)
  • Spektrum Firma 40A Brushed Waterproof ESC
  • Spektrum SR515 DSMR 5-Channel Receiver
  • Aluminium Oil-Filled Shocks
  • Stainless Steel Suspension Links and Pivot Balls
  • Metal Universal Joints on Both Axles
  • Genuine Axial Product
Specifications
  • Length: 442mm (17.4in)
  • Width: 272mm (10.7in)
  • Height: 229mm (9in)
  • Wheelbase: 323mm (12.7in)
  • Weight: 2.04kg (4.5lb)
  • Chassis: Injection Moulded Tubular
  • Suspension: 4-Link Solid Axle
  • Drivetrain: 4WD
  • Motor: Axial 540 Brushed 35T
  • ESC: Spektrum Firma 40A Brushed Waterproof
Included Items
  • 1x Axial UTB10 Capra 1.9 4WS 4X4 Unlimited Trail Buggy RTR
  • 1x Axial 540 Electric Motor (installed)
  • 2x Spektrum S683 25T Waterproof Metal Gear Steering Servos (installed)
  • 1x Spektrum Firma 40A Brushed Waterproof ESC
  • 1x Spektrum SR515 DSMR 5-Channel Receiver
  • 1x Spektrum DX3 2.4GHz Transmitter
  • 4x AA Alkaline Transmitter Batteries
  • 1x Instruction Manual
Required Items
  • 1x 2-3S LiPo Battery with EC3 or IC3 Connector
  • 1x Compatible Battery Charger
Note
  • The Spektrum electronics are designed to be waterproof and dustproof; please consult the product instruction manual for specific details regarding the vehicle's waterproof capabilities.
Videos
Specifications
Factory Specs
Spur Gear
36T 32dp/0.8Mod
Max LiPo Power
3S (11.1v)
Wheel Hex Size
mm
Pinion Gear
14T 32dp/0.8Mod
Front Shock Oil
Rear Shock Oil
Battery Connector
IC3
RC Car
Completion
Ready to Run
Drivetrain
4WD
Max LiPo Power
3S (11.1v)
On/Off Road
Off Road
Chassis Type
Rock Crawler
Power Source
Electric Brushed
Skill Level
Intermediate
Scale
1/10
