BetaFPV Champion 0802 II 28000KV Brushless Motors 4Pcs - Orange
BetaFPV Champion 0802 II 28000KV Brushless Motors 4Pcs - Orange
The BetaFPV 28000KV Champion Motors Deliver Instant Throttle Response And Unmatched Top Speed For Your Competitive RC Racing Whoop

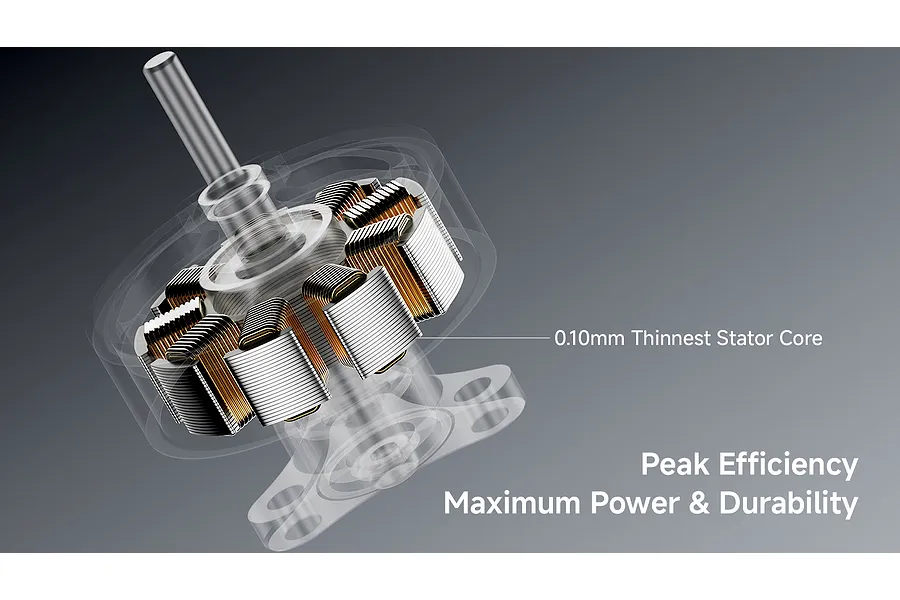

An Ultra-Thin 0.10mm Stator Reduces Magnetic Loss
The Powerful 28000KV Rating Delivers Maximum Speed
Premium Dual-Ball Bearings Provide Instant Response
An Upgraded Rotor Housing Withstands Hard Impacts
Finding that extra fraction of a second on the track demands hardware built specifically for high-speed edge cases. The latest iteration of these racing powerplants integrates a highly advanced 0.10mm stator core alongside premium dual-ball bearings, creating an incredibly smooth rotational mass that translates into blistering straight-line speed. By cutting down magnetic resistance, this setup guarantees that every amp drawn from your battery is converted directly into thrust, allowing your RC Drone to punch out of corners with aggressive and immediate acceleration.
Sustaining high RPMs during intense heats normally takes a severe toll on internal components, but the physical architecture here has been entirely reinforced for competitive longevity. A thickened shaft and impact-resistant bell housing protect the delicate internals from the inevitable gate clips and floor scrapes common in tight indoor circuits. Tuning your rig with the 28000KV Champion variant provides the absolute maximum power ceiling available, giving you the raw thrust needed to overtake the pack and secure your spot on the podium.
Revolutionary 0.10mm Stator Core Significantly Reduces Magnetic Loss For A Massive Increase In Overall Flight Efficiency
Precision Tuned 28000KV Rating Delivers The Absolute Maximum Power And Instant Throttle Response Needed For Racing.

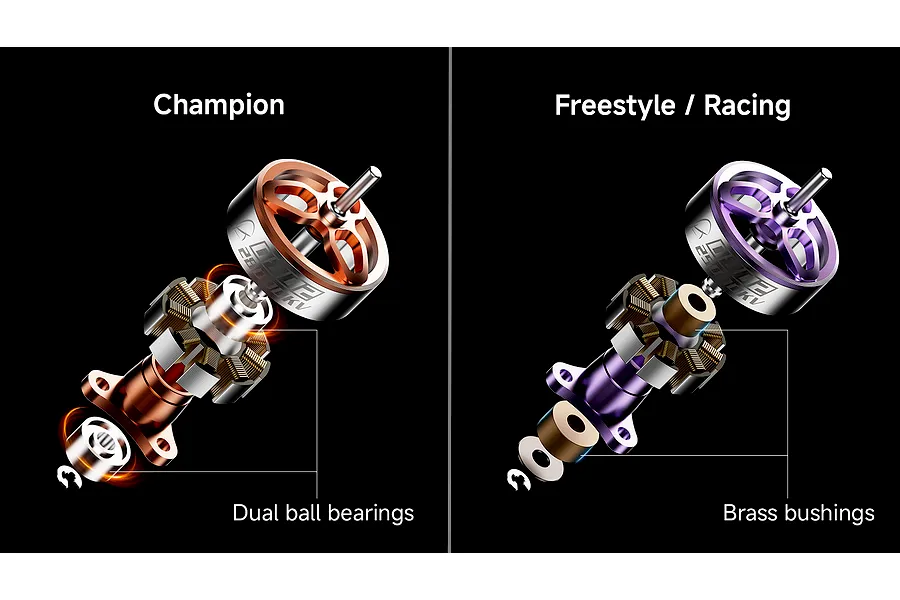

Premium Dual-Ball Bearings Ensure The Bell Spins Exceptionally Smoothly While Handling Extremely High Rotational Speeds
Upgraded Rotor Housing Material Drastically Improves Resilience Against High-Speed Crashes And Accidental Impacts
Reinforced 4.0mm Shaft Design Keeps The Internal Components Aligned And Greatly Extends The Expected Motor Lifespan
Proven To Deliver A 0.1 To 0.2 g/W Efficiency Gain Compared To Older Standard 0.15mm Micro Drone Motor Designs
Includes A Pre-Installed JST1.25 3-Pin Connector, Making Flight Controller Installation Fast And Extremely Simple
Genuine BetaFPV Product

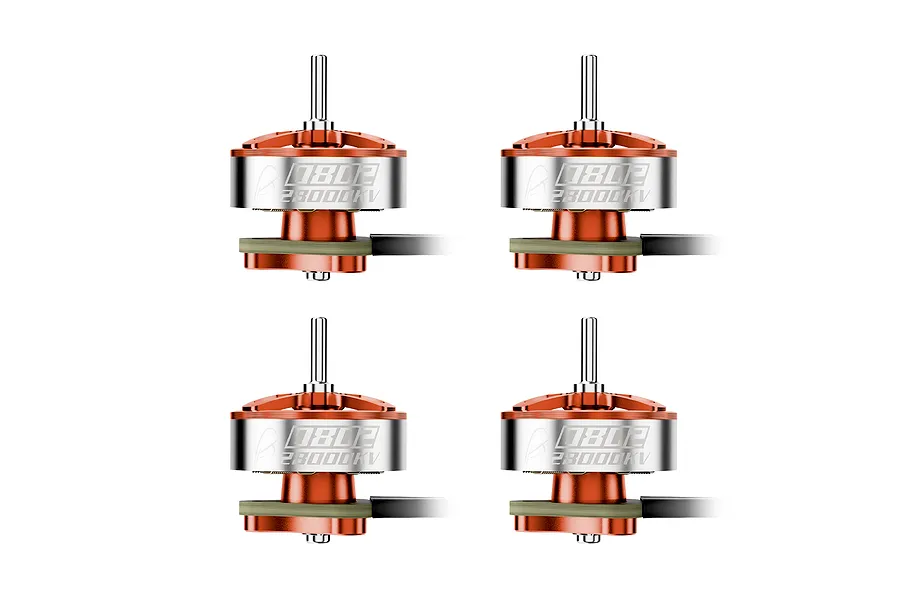

4x BetaFPV Champion 0802 II 28000KV Brushless Motors
12x M1.4x3mm Screws
-
Max Voltage
- 1S HV (3.8V)V
-
Type
- Out-Runner
-
KVRPM (Revolutions Per Minute) per Volt
- 28000KV
-
SensoredUses sensors for precise speed and position control
- No
-

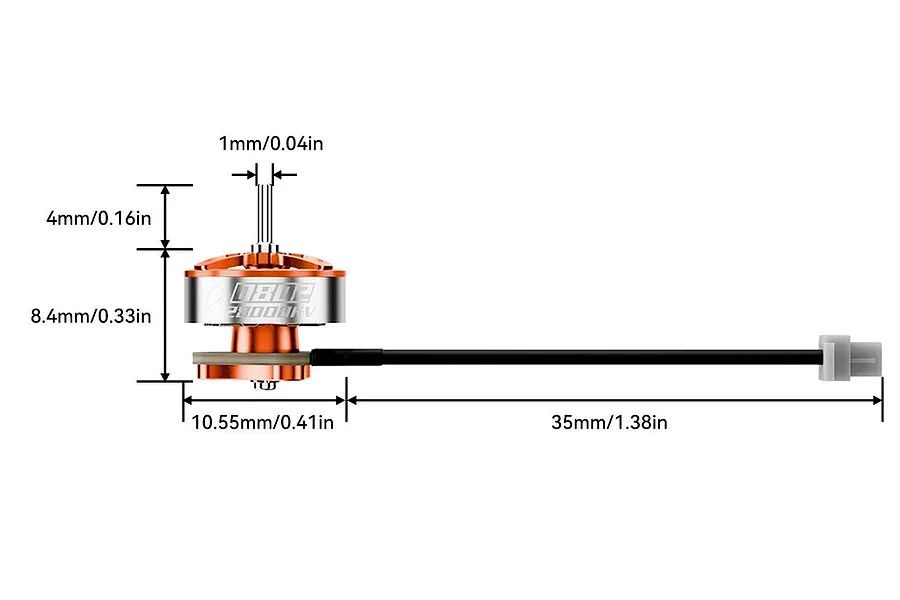

LengthLength of the motor can in mm
- 8.4mm
-
DiameterDiameter of the motor can
- 10.55mm
-
Shaft Diameter
- 1mm
