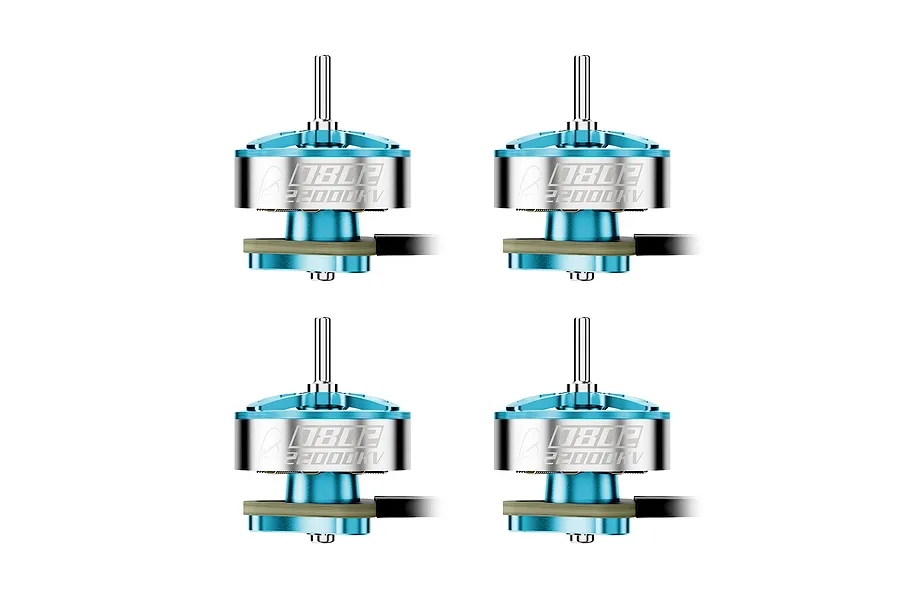

BetaFPV Freestyle 0802 II 22000KV Brushless Motors 4Pcs - Blue

BetaFPV Freestyle 0802 II 22000KV Brushless Motors 4Pcs - Blue

BetaFPV Freestyle 0802 II 22000KV Brushless Motors 4Pcs - Blue

Brand: BetaFPV Drones | MPN: 01050026_3
3+ in stock
$94.99
or 4 fortnightly payments of $23.75 with Afterpay

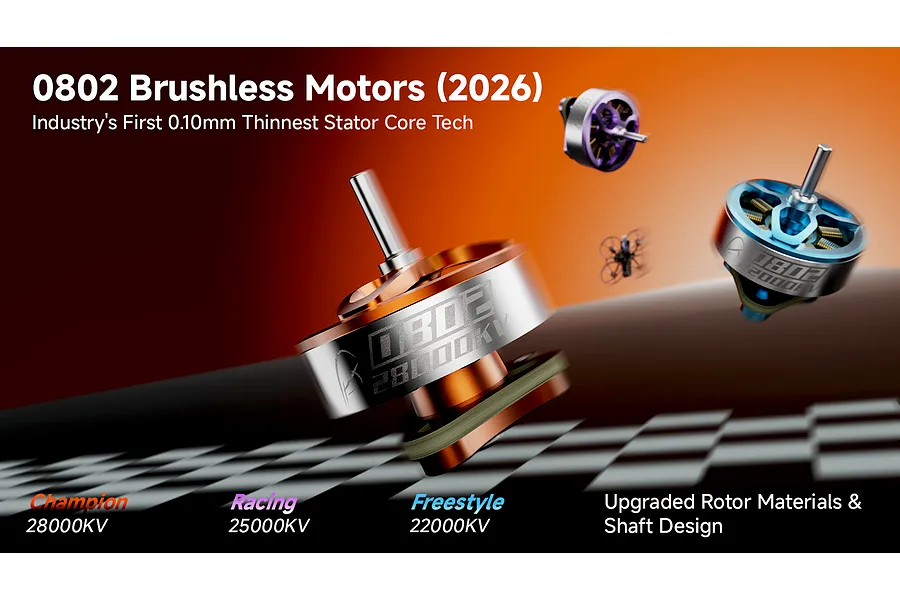

The BetaFPV 22000KV Freestyle Motors Pack Has An Ultra-Thin 0.10mm Stator And Reinforced Housing For Your Drone

  • An Ultra-Thin 0.10mm Stator Reduces Magnetic Loss

  • The Specific 22000KV Tuning Maximises Cinematic Control

  • An Upgraded Rotor Housing Survives Hard Crashes

  • Superior Low-End Torque Improves Proximity Manoeuvres

Add to Wishlist
Pay later with
Afterpay Zip Paypal
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

Pushing the boundaries of micro RC Drone performance requires components engineered for with fine precision. The latest generation of these powerplants introduces a groundbreaking 0.10mm stator core, a design choice that fundamentally changes how energy is converted during flight. By actively minimising magnetic losses, this setup runs drastically cooler and wrings out every ounce of flight time from your 1S batteries. You get an immediate, tangible improvement in efficiency that translates into longer sessions tearing up the backyard or exploring complex indoor environments.

Beyond the raw electrical improvements, the physical construction has been heavily overhauled to handle the harsh realities of proximity flying. A reinforced shaft and toughened rotor housing ensure that an unexpected clip against a chair leg will not ground your quad for the rest of the day. The specific tuning of the 22000KV variant focuses entirely on smooth low-throttle torque, giving you the exact resolution needed to pull off tight, cinematic gaps with absolute confidence.

Features

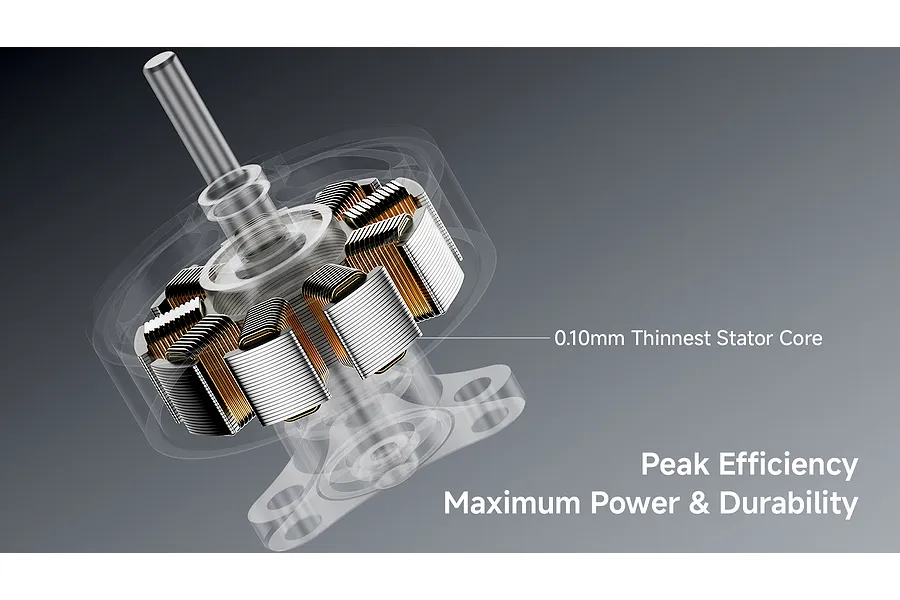

  • Revolutionary 0.10mm Stator Core Minimises Magnetic Loss For A Noticeable Increase In Overall Flight Efficiency

  • Precision Tuned 22000KV Rating Provides The Exact Low-End Torque Needed For Cinematic And Freestyle Flying.

  • Upgraded Rotor Housing Material Drastically Improves Resilience Against High-Speed Crashes And Accidental Impacts

  • Reinforced 4.0mm Shaft Design Keeps The Bell Spinning True And Greatly Extends The Motor Lifespan

  • Proven To Deliver A 0.1 To 0.2 g/W Efficiency Gain Compared To Older Standard 0.15mm Motor Designs

  • Includes A Pre-Installed JST1.25 3-Pin Connector, Making Flight Controller Installation Fast And Extremely Simple

  • Genuine BetaFPV Product

Specifications
Motor
Max Voltage
1S HV (3.8V)V
Type
Out-Runner
KV
RPM (Revolutions Per Minute) per Volt
22000KV
Sensored
Uses sensors for precise speed and position control
No

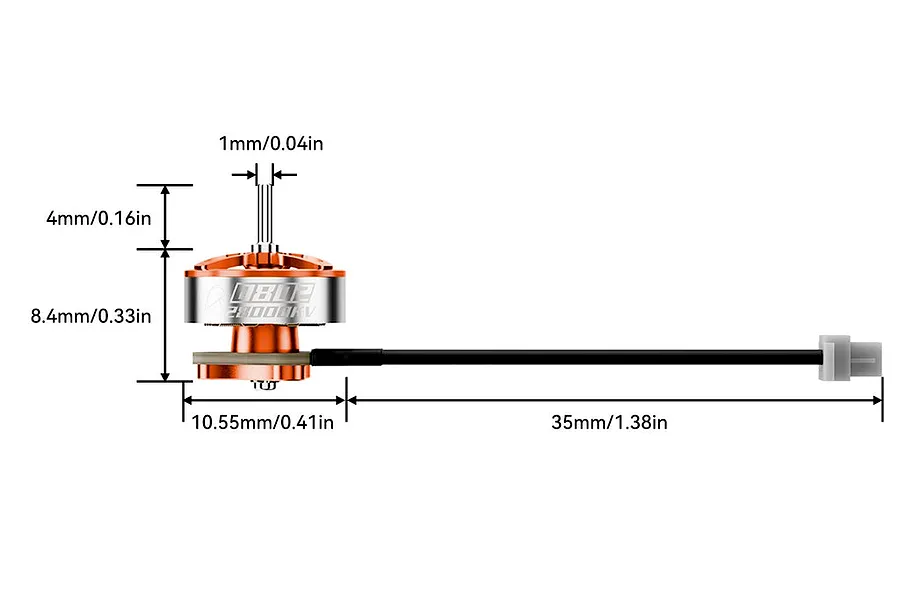

Length
Length of the motor can in mm
8.4mm
Diameter
Diameter of the motor can
10.55mm
Shaft Diameter
1mm
