Castle Creations

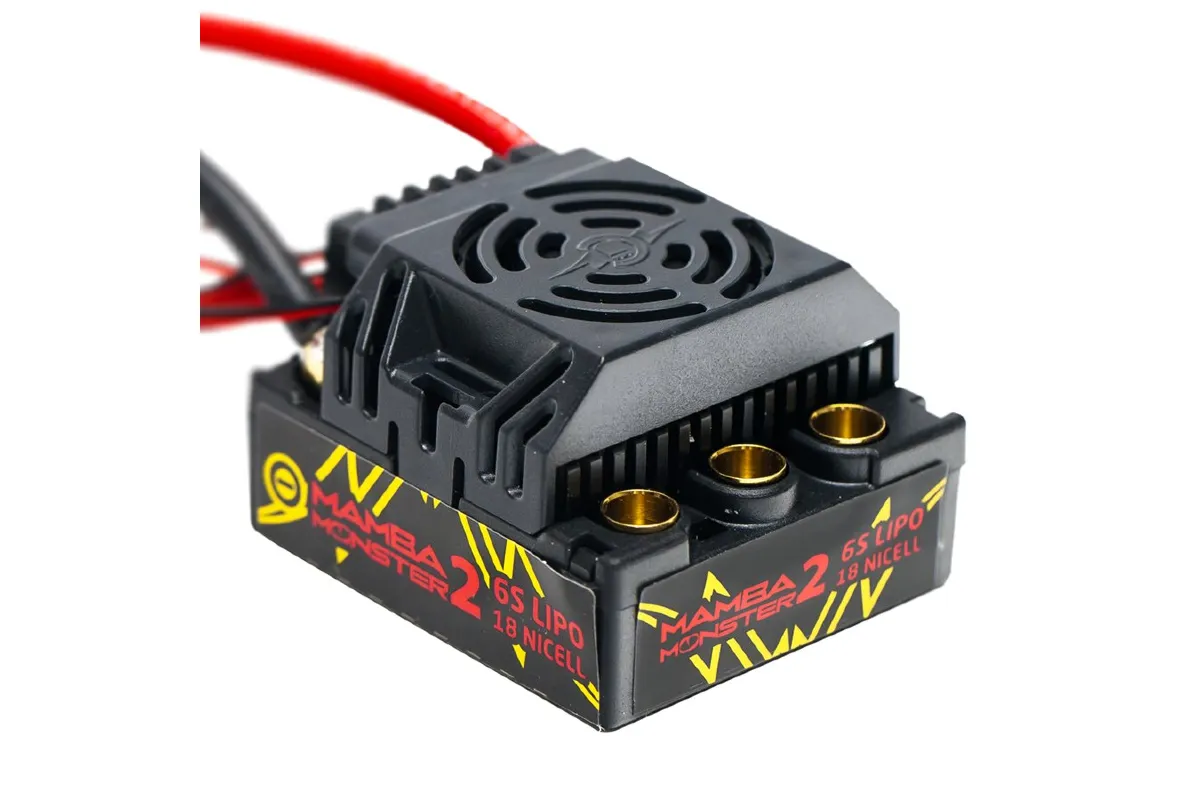

Castle Creations Mamba Monster 2 6S Waterproof Brushless ESC

  • Brushless

Part no. 010-0108-00

1 in stockNo reviews yet

$308.98

or 4 fortnightly payments of $77.24 with afterpay or PayPal, or zip

Castle Creations Mamba Monster 2 6S waterproof brushless ESC with cooling fan — fully programmable, suits 1/8 and 1/10 scale vehicles.

  • Supports 2S to 6S LiPo for popular 1/8th scale buggies, truggies, on-road vehicles and 1/10th scale monster trucks
  • Waterproof (non-submersible) design for use in nearly any environment
  • Fully programmable with free firmware updates
  • LED pattern alerts for over temperature and signal loss conditions
  • Factory equipped cooling fan, fully removable
Select Male Connector
Select Wiring Configuration

Want more than 1? and we'll email you when they're here.

$308.98

Overview

Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable. Brute power and sheer stamina have made this the legacy “power up” for popular 1/8th scale buggies, truggies and on road vehicles and 1/10th scale monster trucks. The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you’d be interested in running a 1/8th scale RC buggy or truck.

Note

Warranty: Your Castle ESC is warranted for one (1) year from date of purchase to be free from manufacturing and component defects. This warranty does not cover damages caused to your motor or controller from abuse. Abuse includes, but is not limited to, incorrect wiring, over-voltage, overloading, improper gearing, improper motor selection, incorrect controller settings, insufficient batteries, or inadequate connectors.

Warning: Always monitor your ESC and motor temperatures during the first run after modifying your system to ensure they stay within the safe operating limits. Drag and speed run setups are inherently abusive and exceedingly hard on all electronic components. Castle does NOT warranty products used in drag and speed run applications.

Features

  • Compatible with on-road, buggies, truggies and monster trucks running up to 6S LiPo batteries and weighing up to 15 lbs (6.8kg)
  • Waterproof design allows running in nearly any environment
  • Solder posts allow battery wire length and direction to be easily changed
  • Programmed to flash LED patterns to alert users to certain conditions such as over temperature or not detecting a valid signal from the receiver
  • Free access to all firmware updates
  • Genuine Castle Creations product

In the box

  • Mamba Monster 2 25V ESC with Cooling Fan
  • On/Off Switch
  • Fan Plug
  • Motor Wires
  • Receiver Wire with Connector and Instructions

You'll need

  • Battery Connector required — 6.5mm Castle Connectors are recommended

Specifications

Input Voltage RangeMIN 2S LiPo, MAX 6S LiPo
BEC SpecificationsUser selectable output between 5 and 7 volts; default 5.5 volts
Operating EnvironmentWaterproof (non-submersible) — allows for use in nearly any environment
BrakeProportional
ReversibleYes, but may be disabled for racing
On/Off SwitchYes
Cooling FanYes, factory equipped, fully removable
Size2.19" (56mm) Length x 1.86" (47mm) Width x 1.33" (34mm) Height
Weight (with no battery connector)3.93 oz. (111.5g)
Connectors6.5mm female bullets for motor connection
Application GuidelinesIntended for up to 6S (25.2V) operation in vehicles weighing less than 15 lbs, with batteries, ready-to-run. Not recommended for use in high speed 1/8th and larger applications.
ProgrammabilityFully programmable
Telemetry Link CapableNo

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage22.2V
Waterproof DesignYes
Motor Connectors6.5mm Bullet
Battery ConnectorBare Wires
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage5V, 5.5V, 7V
Dual MotorNo
