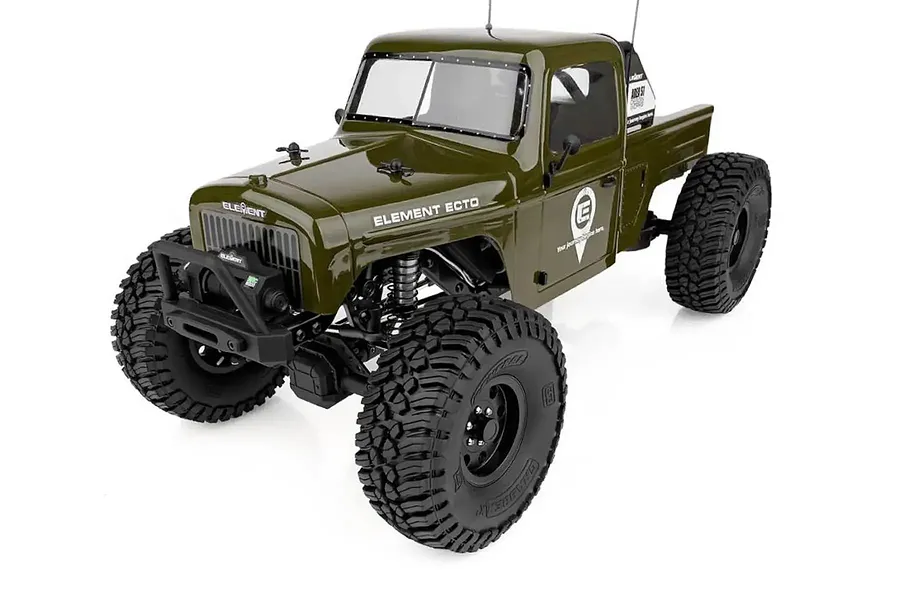

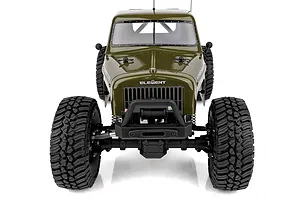

Element RC Enduro Ecto RC Rock Crawler Electric 4WD 1/10 Scale RTR - Green

  • 1/10
  • 4WD
  • RTR
  • Brushed

Part no. 40117

Sold out4.0
1 review
1 / 15
1 / 15

Videos

$604.53

or 4 fortnightly payments of $151.13 with afterpay or PayPal, or zip

Add it to My Garage

Element RC Enduro Ecto 1/10 4WD RTR rock crawler with Gatekeeper Suspension, Stealth X transmission, and Reedy Power electronics.

  • Gatekeeper Suspension (GKS) package with rear trailing arms and anti-roll bar
  • Stealth X transmission — 3 adjustable drive ratio levels
  • Behind-the-axle (BTA) steering for improved approach angle
  • Reedy Power 5-slot 14-turn brushed 550 crawler motor
  • Reedy SC480X water-resistant brushed ESC

Ordered 3 Nov · we're waiting on our supplier

Part Support

Replacement & upgrade parts that fit this model

Videos

Overview

A performance rig built to endure. When hitting the trail, you want to do it with performance and confidence — Team Associated brings you the Enduro rock crawler.

Aimed towards the serious RC rock crawler enthusiast, the Enduro Trail Truck is packed with performance features. Equipped with the Gatekeeper Suspension package (GKS), this package consists of rear trailing arms that move the shocks forward, allowing a larger window for shock tuning and improving weight bias. The trailing arms are paired with a rear anti-roll bar for a more stable and consistent suspension. An adjustable aluminium track bar mount firmly bolted to the chassis rail gives the Enduro more reliable and responsive steering without the flex. Team Associated shock mount inserts with multiple mounting positions allow for precise suspension tuning.

The behind-the-axle (BTA) steering link greatly improves approach angle and front-end clearance. The Stealth X transmission features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7% (installed in RTR), option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83% (included with RTR). Telescopic driveshafts with an extruded aluminium centre section, universal front drive axles, and hardened steel ring and pinion gears deliver reliable power.

Features

  • Behind-the-axle (BTA) steering with aluminium steering plates
  • Integrated servo winch mount
  • Universal front drive and one-piece rear axle design
  • Splined front axle with adjustable caster
  • Telescopic driveshafts front and rear
  • Stamped steel frame rails
  • Metal pinion and ring gear
  • Metal ball bearings included
  • Steel 25T servo horn
  • Adjustable front track bar
  • Adjustable injection-moulded front bumper
  • Extruded aluminium driveshaft splines
  • Heavy-duty 5mm diameter steel links

In the box

  • 1x Element RC Enduro Ecto RC Rock Crawler Electric 4WD 1/10 Scale RTR - Green

You'll need

  • 1x 7.4V LiPo Battery
  • 1x Compatible Charger
  • 4 x AA Batteries for Transmitter

Highlights

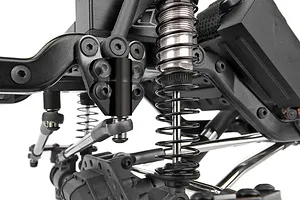

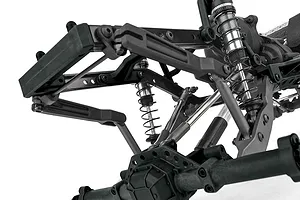

Trailing Arm Rear Suspension

Trailing Arm Rear Suspension

At the heart of the Gatekeeper Suspension (GKS) are the rear trailing arms. This design moves the shocks forward, thus improving weight bias. Because the shock mounting points are farther forward on the lower links and chassis, this allows for a larger window for shock tuning and an optimised anti-roll bar mounting position.

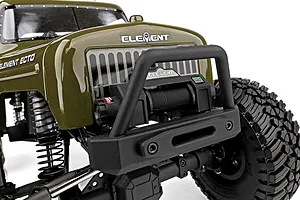

Aluminium Track Bar Mount

Aluminium Track Bar Mount

The package includes an aluminium track bar mount bolted directly to the steel frame rail, making the front
suspension more rigid and flex-free with a more precise steering feel.

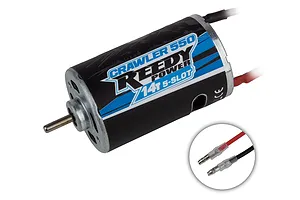

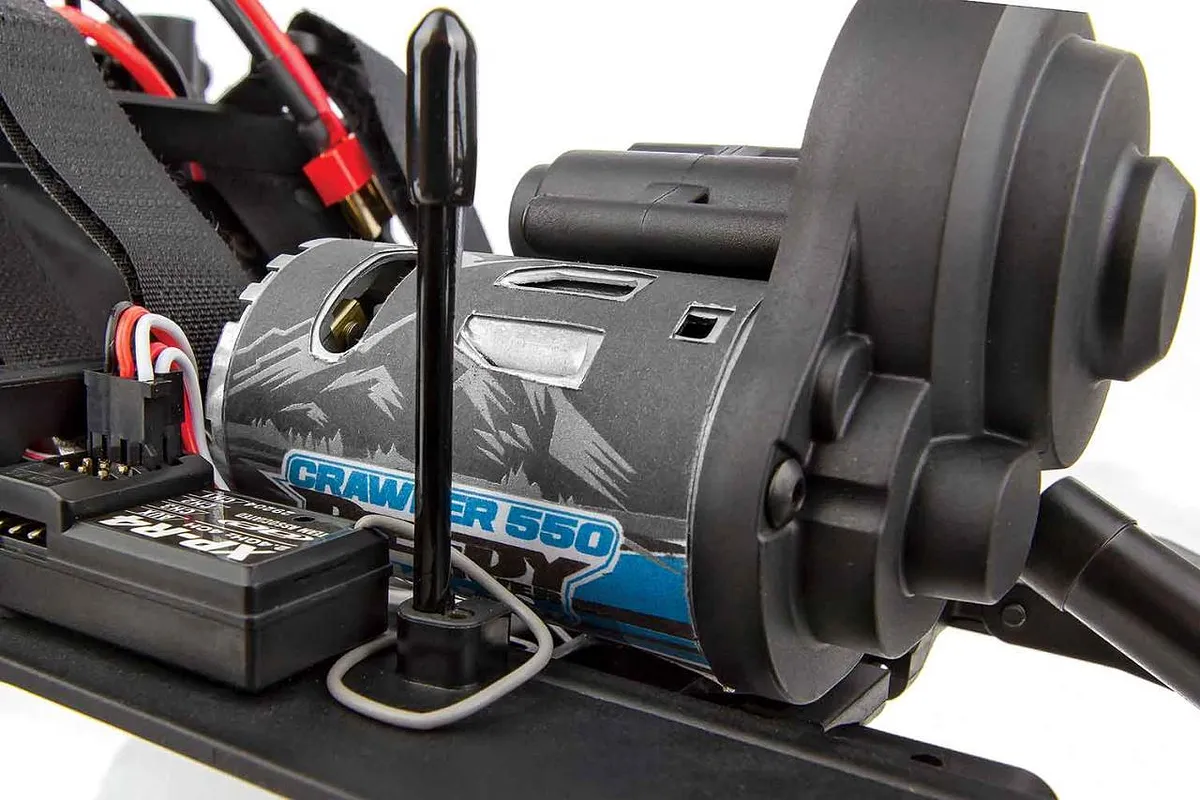

Reedy Power Crawler Motor

Reedy Power Crawler Motor

The Reedy Power 5-slot 14-turn brushed 550 crawler motor provides ample torque with a smooth power delivery. This allows for slow precise acceleration while maintaining consistent power over rough terrain and obstacles.

Radio & Servo

Radio & Servo

The Enduro is equipped with a reliable XP130 2.4GHz radio system and a powerful Reedy Power 1320MG water-resistant servo. This combination provides precise control and the strength needed to navigate challenging trails with confidence.

Battery Tray

Battery Tray

The model comes equipped with a shorty battery tray for optimal weight distribution, but also includes a larger standard battery tray for those who prefer higher capacity packs. For maximum motor life, 2S battery packs are recommended.

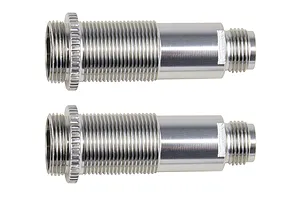

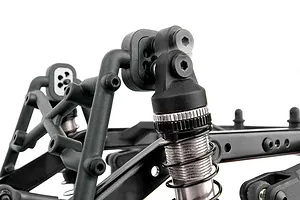

Threaded Aluminium Shock Bodies

Threaded Aluminium Shock Bodies

The threaded aluminium shocks are built for durability and performance. Filled with fluid and featuring a leak-proof design, these shocks keep the vehicle stable and controlled, even in the most demanding conditions.

Shock Mount Inserts

Shock Mount Inserts

The shock mount inserts provide drivers with the ability to tune shock angle, droop and vehicle ride height
without affecting spring preload.

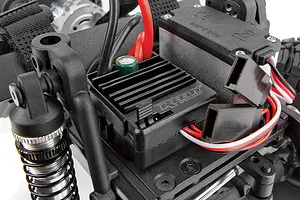

SC480X Crawler ESC

SC480X Crawler ESC

The water-resistant SC480X brushed ESC is specifically programmed for crawling, offering proportional forward/reverse, dual auxiliary power output leads, LiPo low-voltage cut-off protection, and a convenient T-plug connector.

Specifications

Length462mm (18.18")
Width236mm (9.29")
Wheelbase325mm (12.8")
WeightVaries
Drivetrain4WD
PowerElectric Brushed
ChassisRock Crawler
MotorReedy Power 5-slot 14-turn Brushed 550 Crawler Motor
ESCReedy SC480X Brushed ESC

RC Car

Scale1/10
Max LiPo Power3S (11.1v)
CompletionReady to Run
Skill LevelIntermediate
Power SourceElectric Brushed
Chassis TypeRock Crawler
On/Off RoadOff Road
Drivetrain4WD

Factory Specs

Battery ConnectorDeans
Front Shock Oil30wt
Rear Shock Oil30wt
Pinion Gear18T 48dp/0.5Mod
Spur Gear87T 48dp/0.5Mod
Wheel Hex Size12mm
