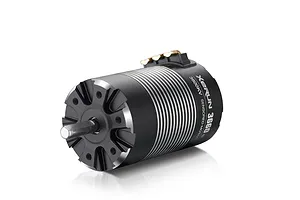

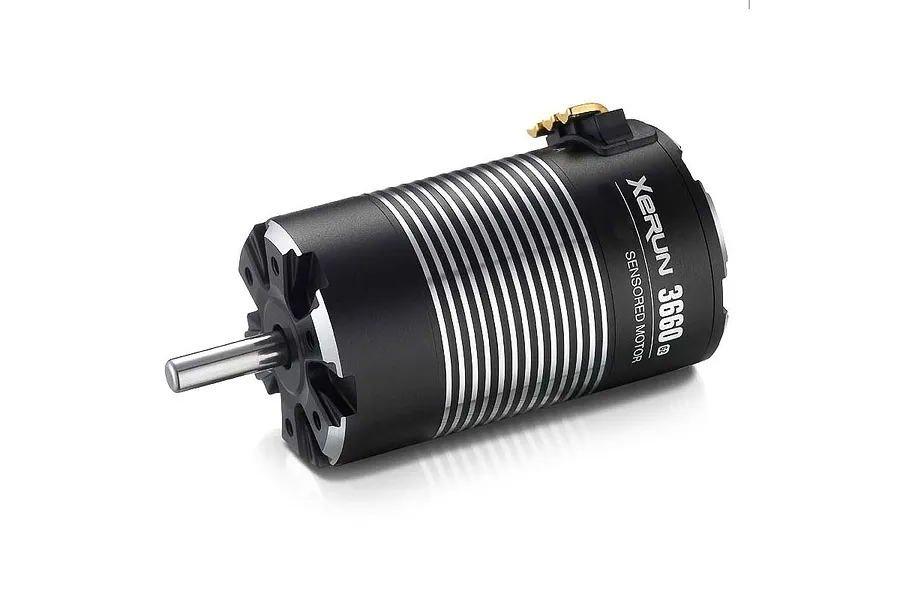

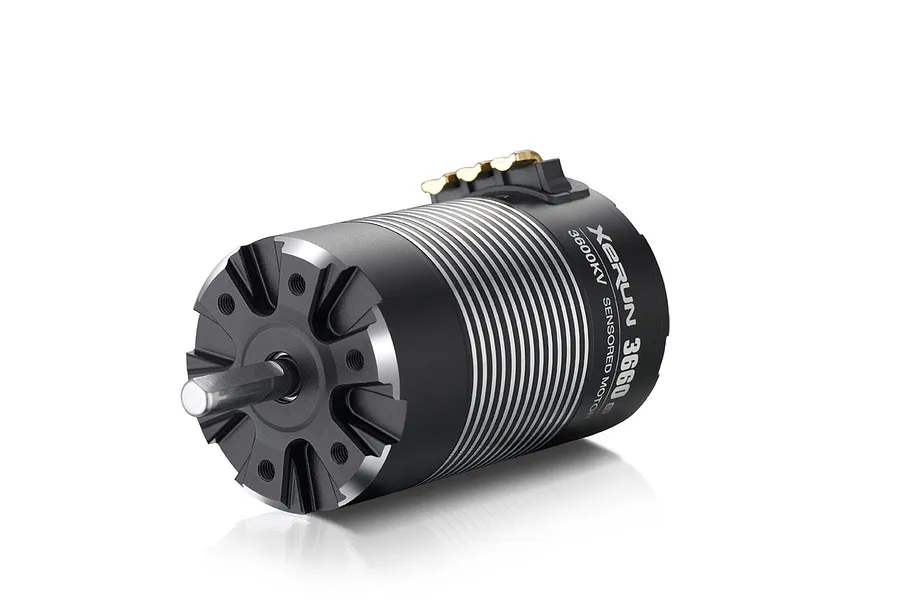

Hobbywing 3660SD G2 4300Kv Sensored Brushless Motor
Related Products
Description

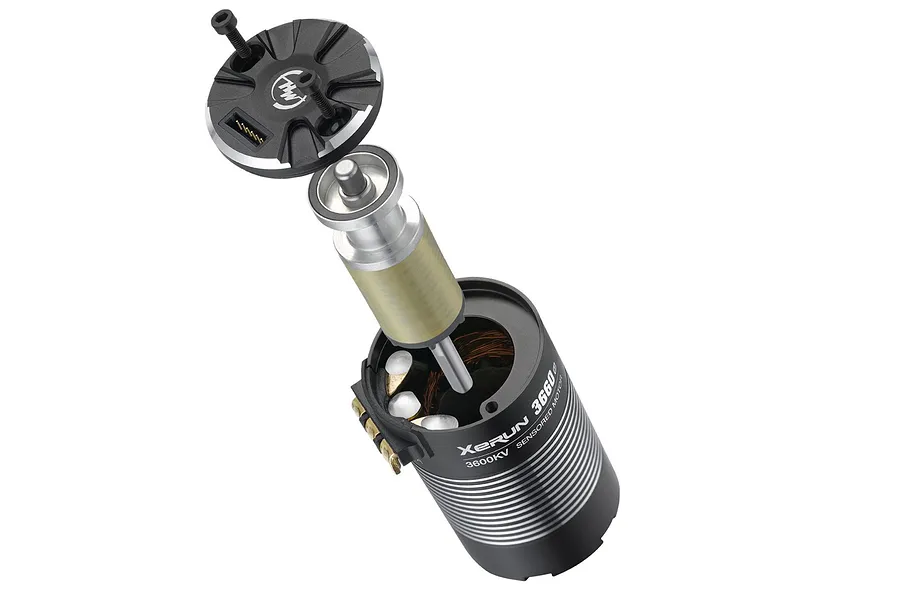

The Hobbywing XERUN SCT 3660SD G2 Sensored Brushless Motor is a powerful and reliable motor suited to short course, truck and monster truck racing. An innovative 4-pole-8-magnet staggered pole rotor reduces cogging and torque pulsation, improving control feel around corners. A built-in chip allows easy identification by Hobbywing ESCs and enables sensored mode operation with great output linearity. Turbo timing can be activated for higher output.
Features
- 4-pole-8-magnet staggered pole rotor for low cogging and torque pulsation
- Built-in chip for easy identification by Hobbywing ESCs and sensored mode operation
- Turbo timing support for higher output
- Compatible with 2S and 3S LiPo batteries
- 4300kV rating for high speed and power
- 5mm shaft diameter for strength and durability
- 62mm motor length for optimal fit and performance
Included Items
- 1x Hobbywing XERUN SCT 3660SD G2 Sensored Brushless Motor (4300kV)
- 1x Product Manual
Specifications
-
kV rating
- 4300kV
-
Shaft diameter
- 5mm
-
Motor length
- 62mm
-
Compatible batteries
- 2S and 3S LiPo
-
Pinion gear bore required
- 5mm
Motor
-
Type
- Brushless
-
KVRPM (Revolutions Per Minute) per Volt
- 4300KV
-
LengthLength of the motor can in mm
- 60mm
-
DiameterDiameter of the motor can
- 35.8mm
-
Shaft Diameter
- 5mm
